SKY RC e4S Compact Charger
In Stock

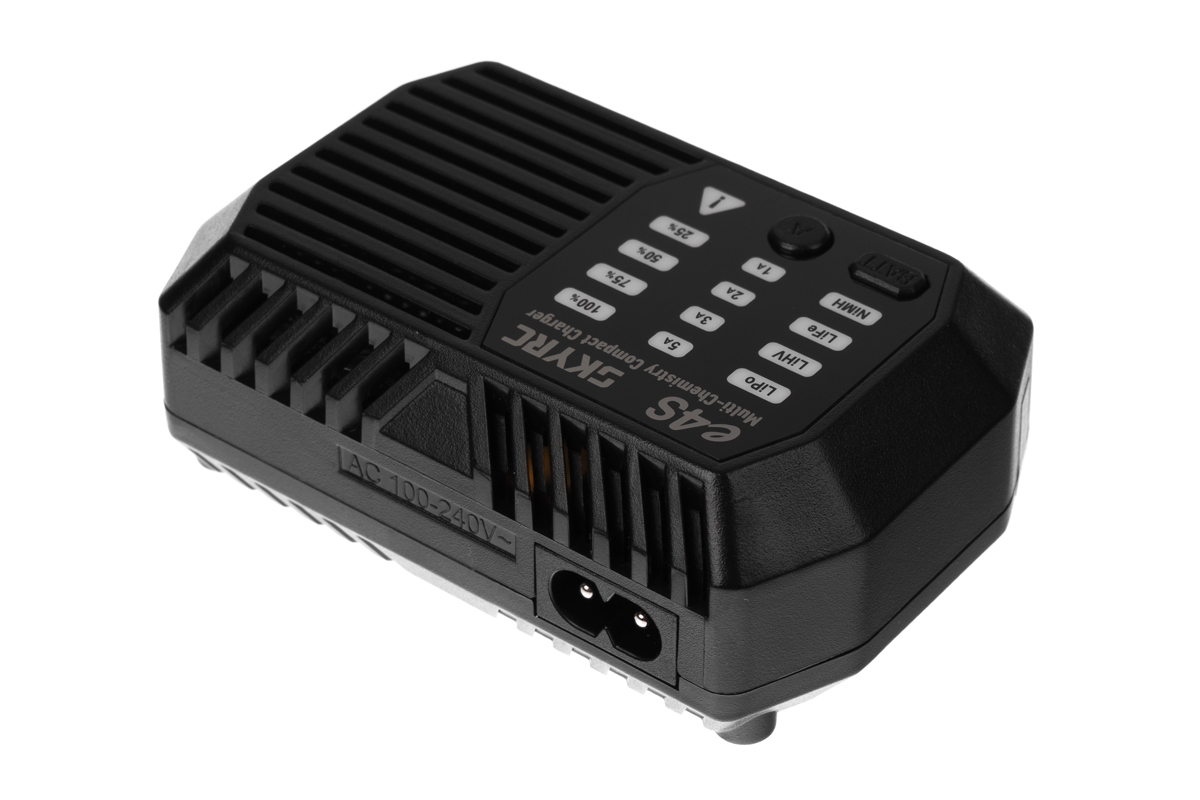

The SKY RC e4S Charger with Built-in Balancer is a very simple “box-style” charger for recreational drivers and pilots, powered by AC, for charging 2-4S LiPo, LiFe, LiHV, and 6-8-cell NiMH batteries. It’s the ideal addition to “RTR” models, allowing for easy charging at home, or an excellent travel companion when you don’t want to “lug around” a large, heavy, and expensive charger. The charger’s 60 W output is comparable to that of Raytronic C15-class chargers with displays; you can set the charging current to 1, 2, 3, or 5 A. And so that you can gauge the battery’s charge level even without a display, an LED indicator shows charge levels of 25%, 50%, 75%, and 100% during charging.

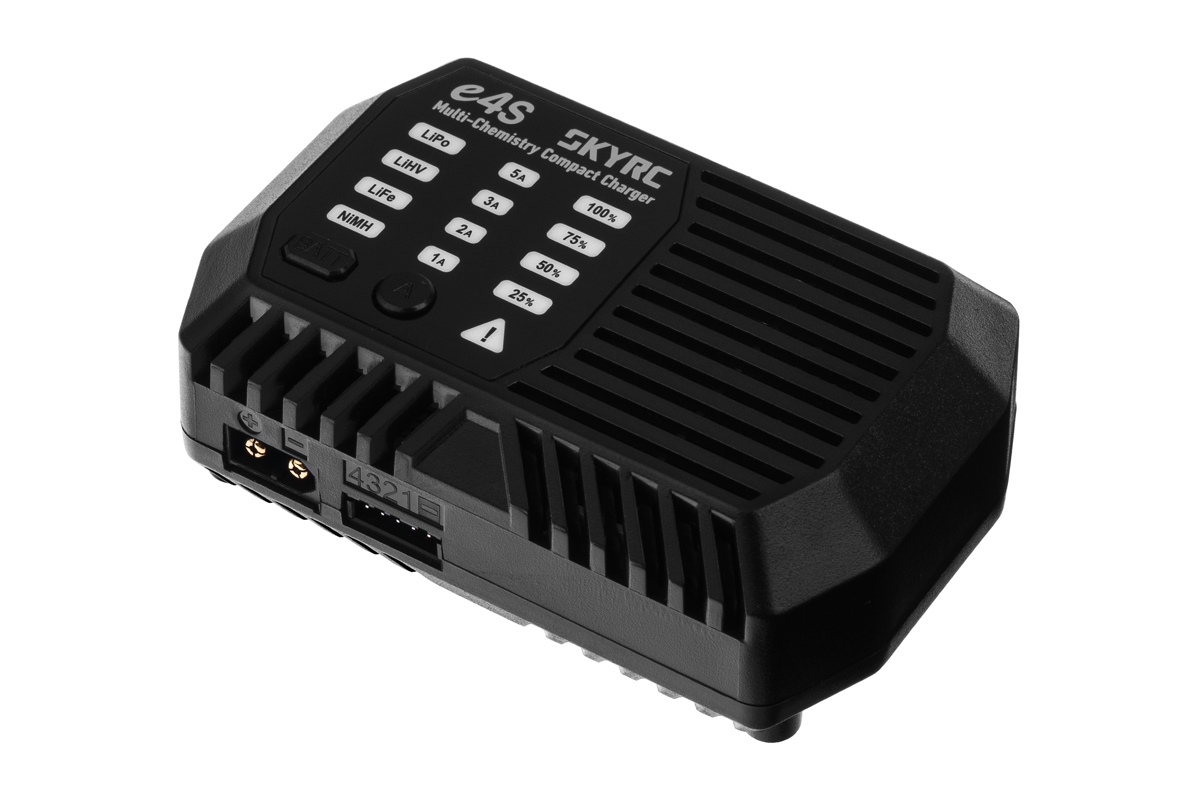

The battery being charged is connected via power cables plugged into the charger’s output (XT60 connector) and to the built-in balancer via a service connector; the charger is equipped with a universal balancer connector (2S, 3S, 4S) for JST-XH system connectors. To connect a kit with a different service connector, you will need the appropriate adapter.
Basic Features
- AC power supply: 100–240 V/50–60 Hz
- For charging 2–4S LiPo/LiFe/LiHV cells or 6–8 NiMH cells
- Switchable charging current: 1, 2, 3, or 5 A
- Max. charging power: 60 W
- “Constant current/constant voltage” charging for LiPo/LiFe/LiHV; delta-peak detection for NiMH

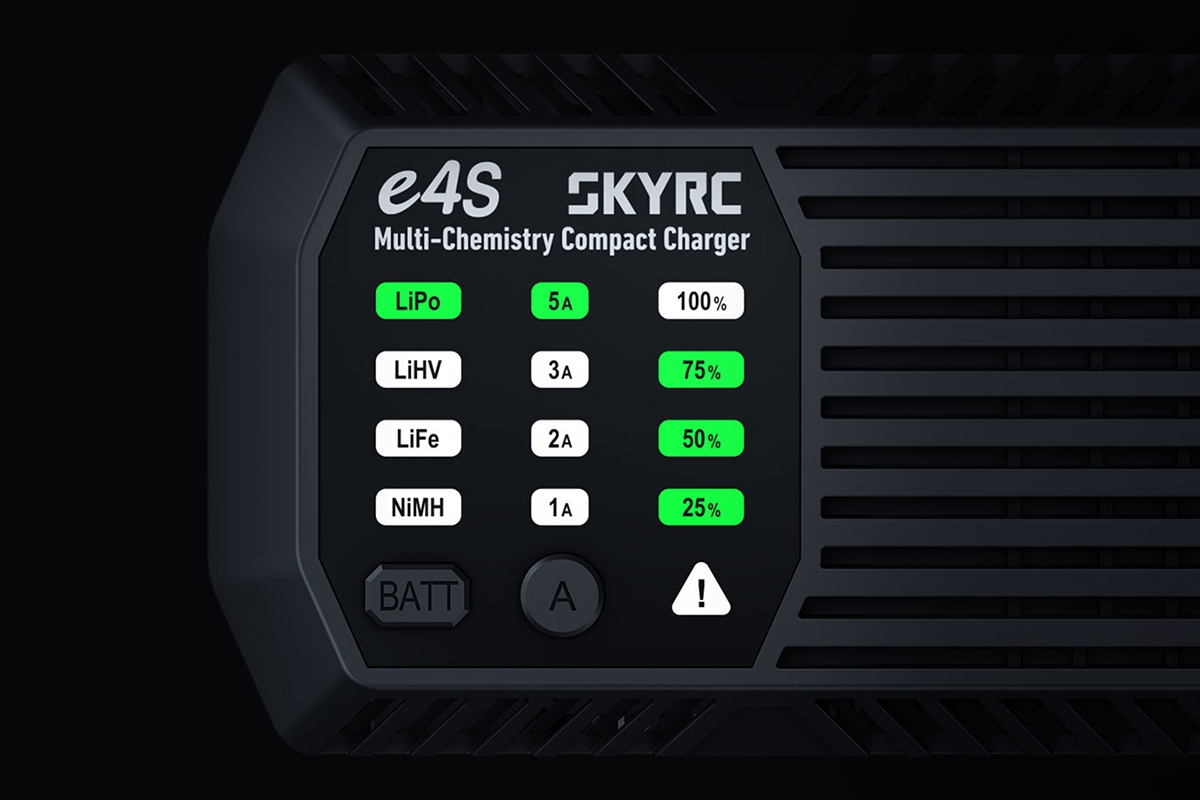

- Charger operating states indicated by LEDs (charging current, charge level at 25%, 50%, 75%, 100%)
- Reports error conditions (incorrect connection, excessive voltage difference between individual cells, broken cables)
- Universal JST-XH balancer connector (2S, 3S, 4S) for LiPo/LiFe/LiHV
- Compact plastic case, pocket-sized

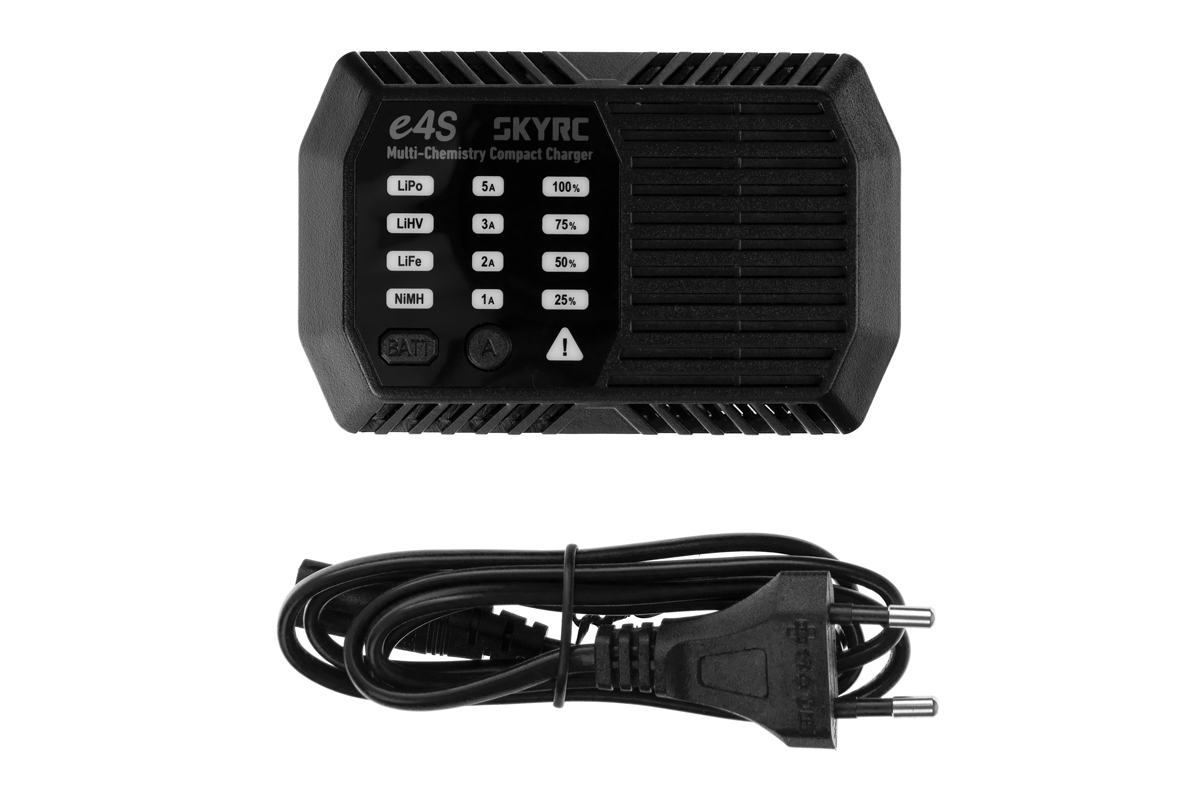

Charger set includes: SKY RC e4S charger, AC power cord, instruction manual.
| Input voltage (síťové - AC) [V] | 230 |
| Charging current [A] | 1 - 5 |
| Charging power [W] | 60 |
| Li-Po [čl.] | 2 - 4 |
| Li-Fe [čl.] | 2 - 4 |
| Li-HV [čl.] | 2 - 4 |
| NiMH [čl.] | 6 - 8 |
| Balancer | Yes |
| Balancer current [mA] | 500 |
| Length [mm] | 110 |
| Width [mm] | 70 |
| Height [mm] | 38 |
| Weight [g] | 169 |
