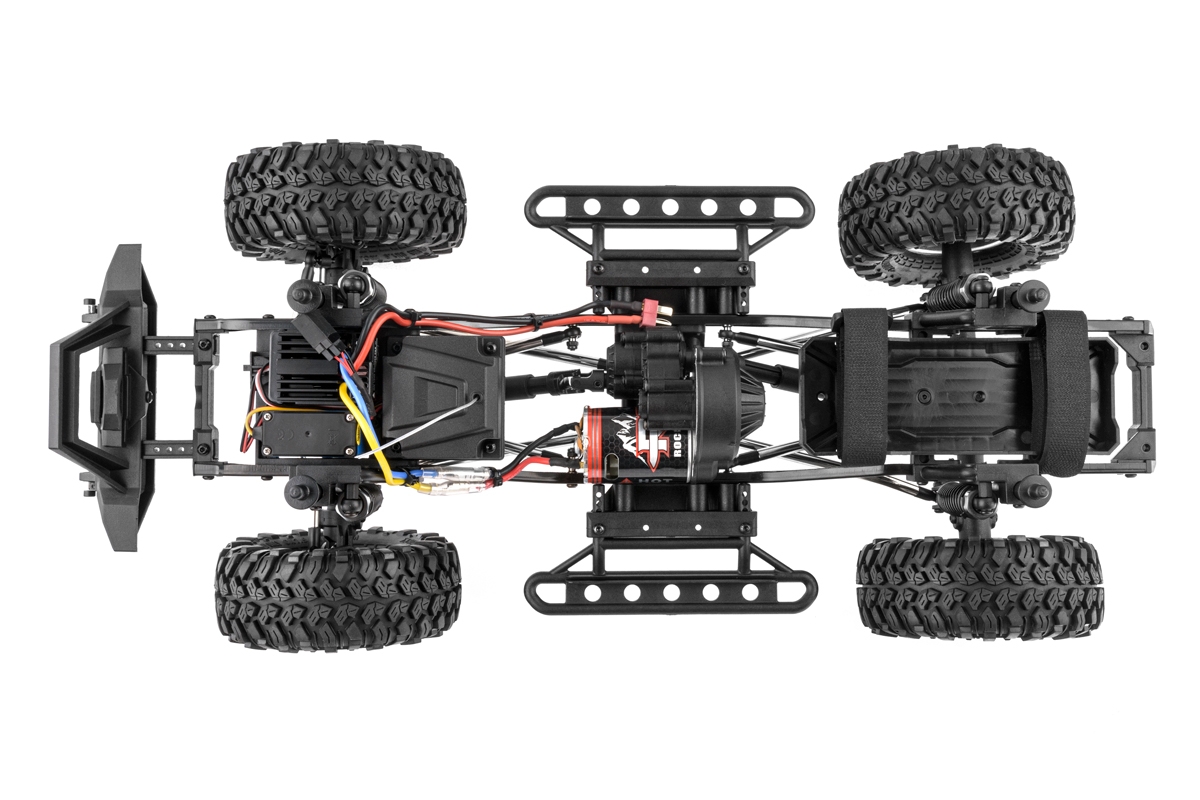

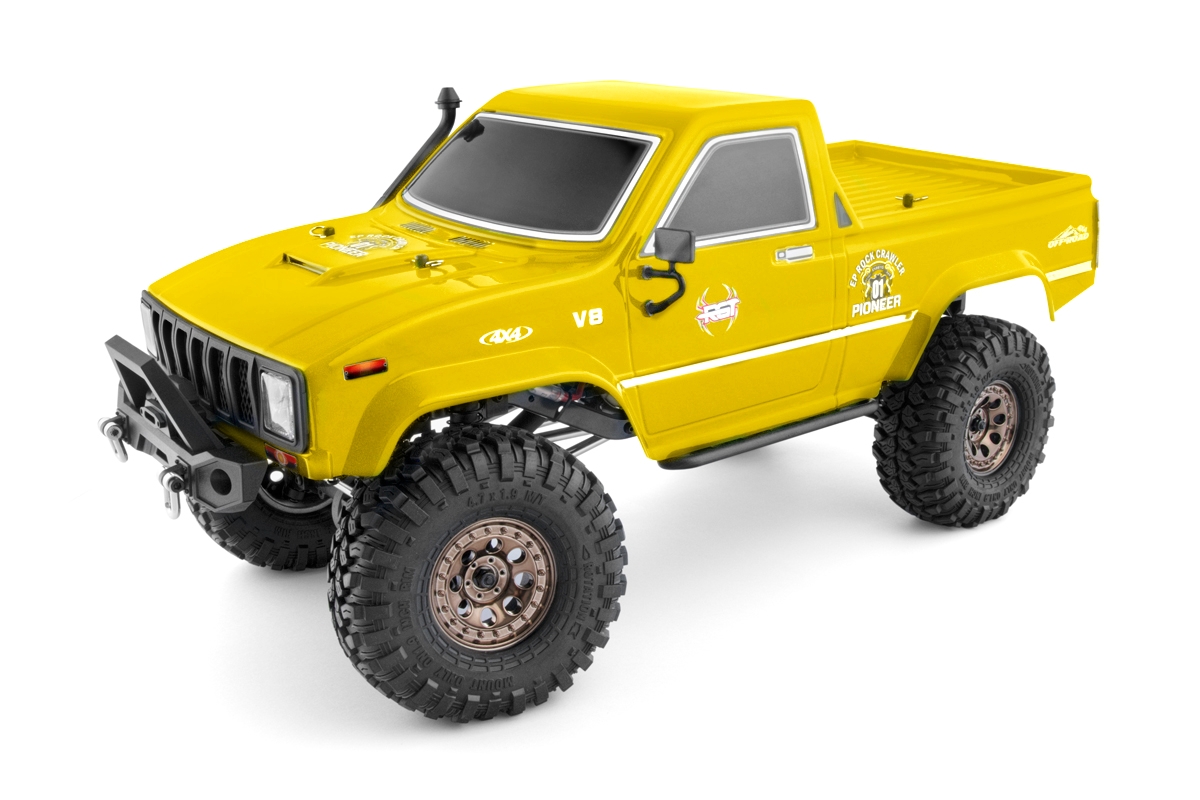

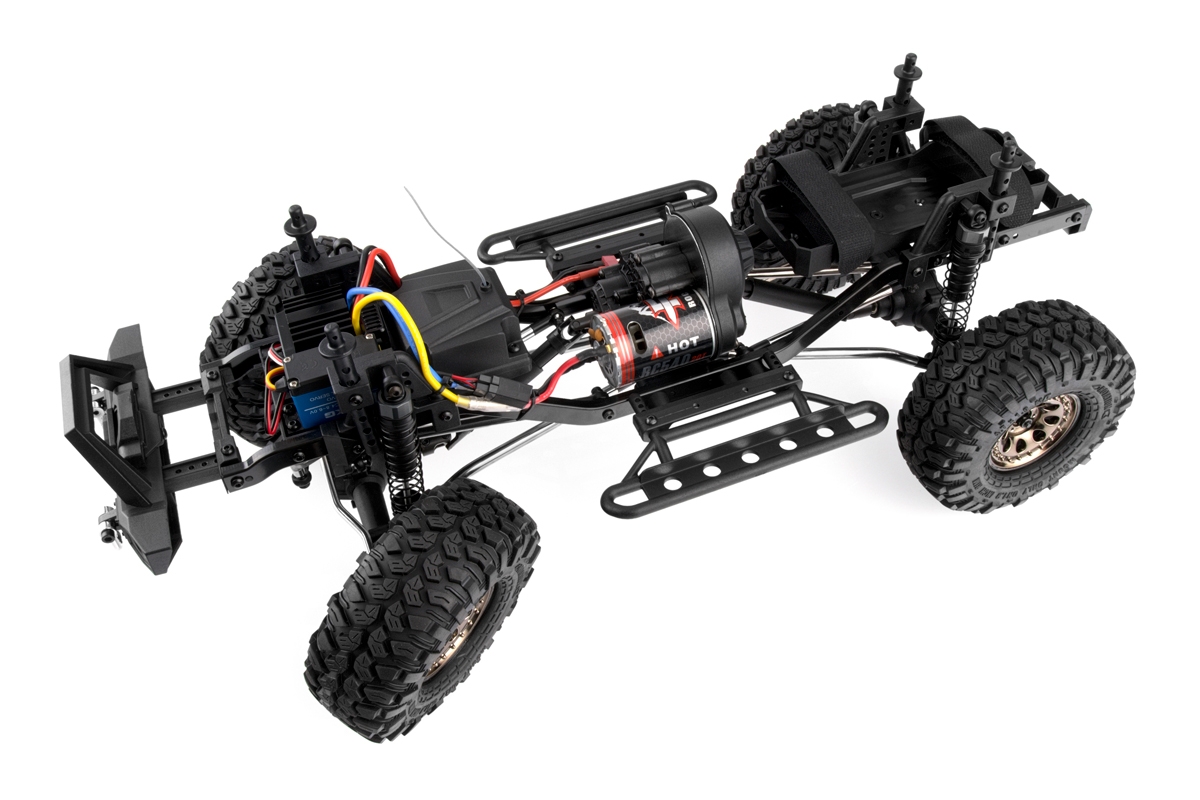

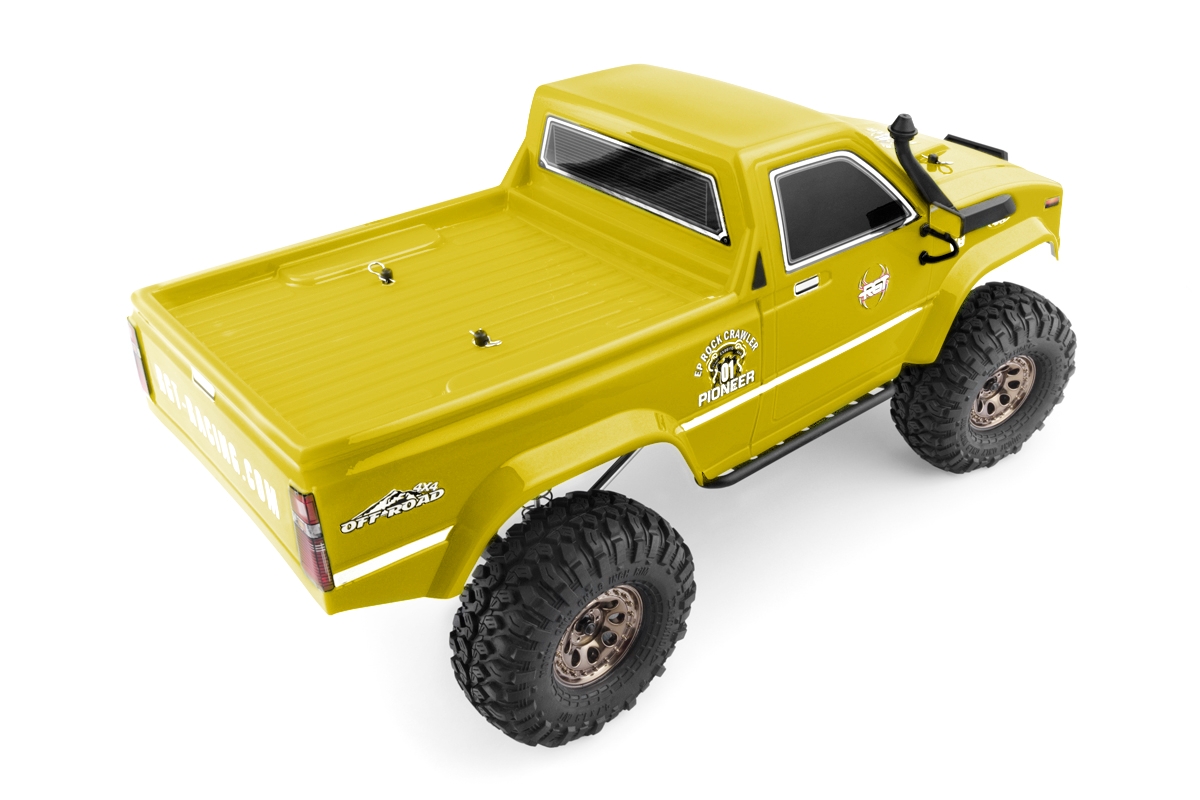

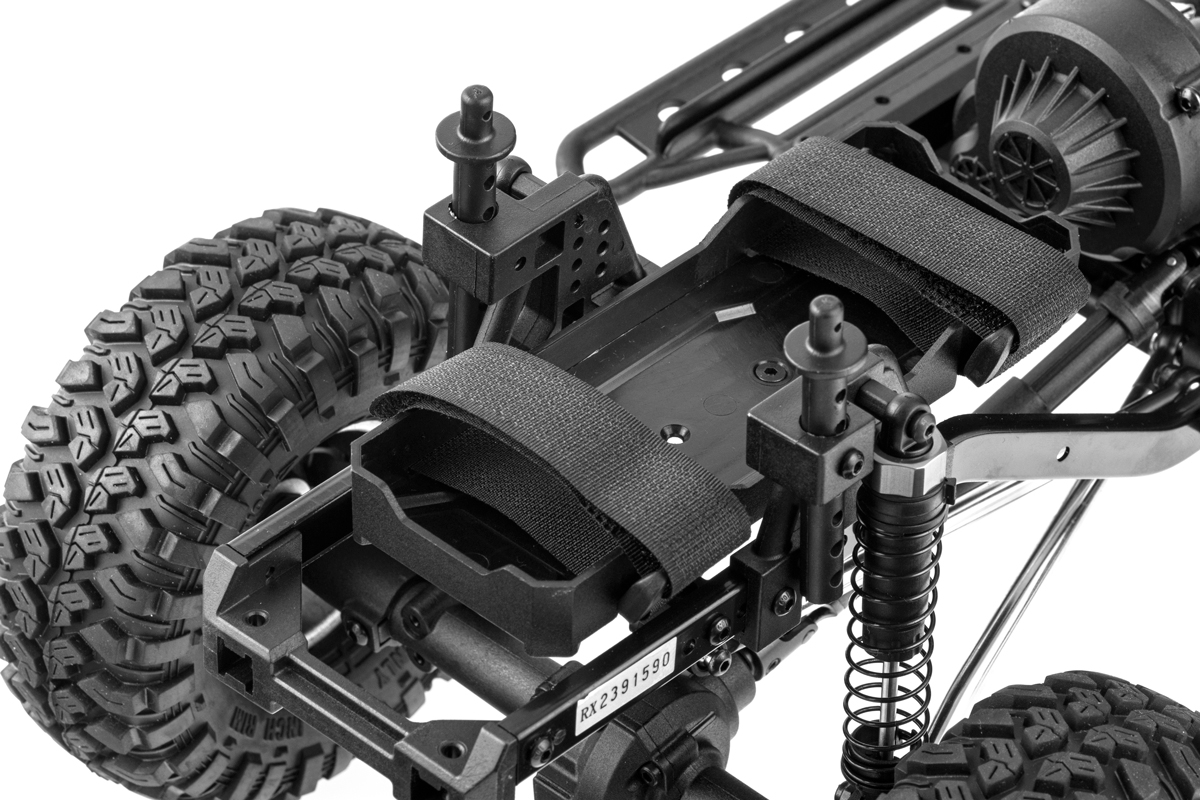

Based on ROCK CRUISER, the V2 improves and upgrades the whole appearance and chassis design.

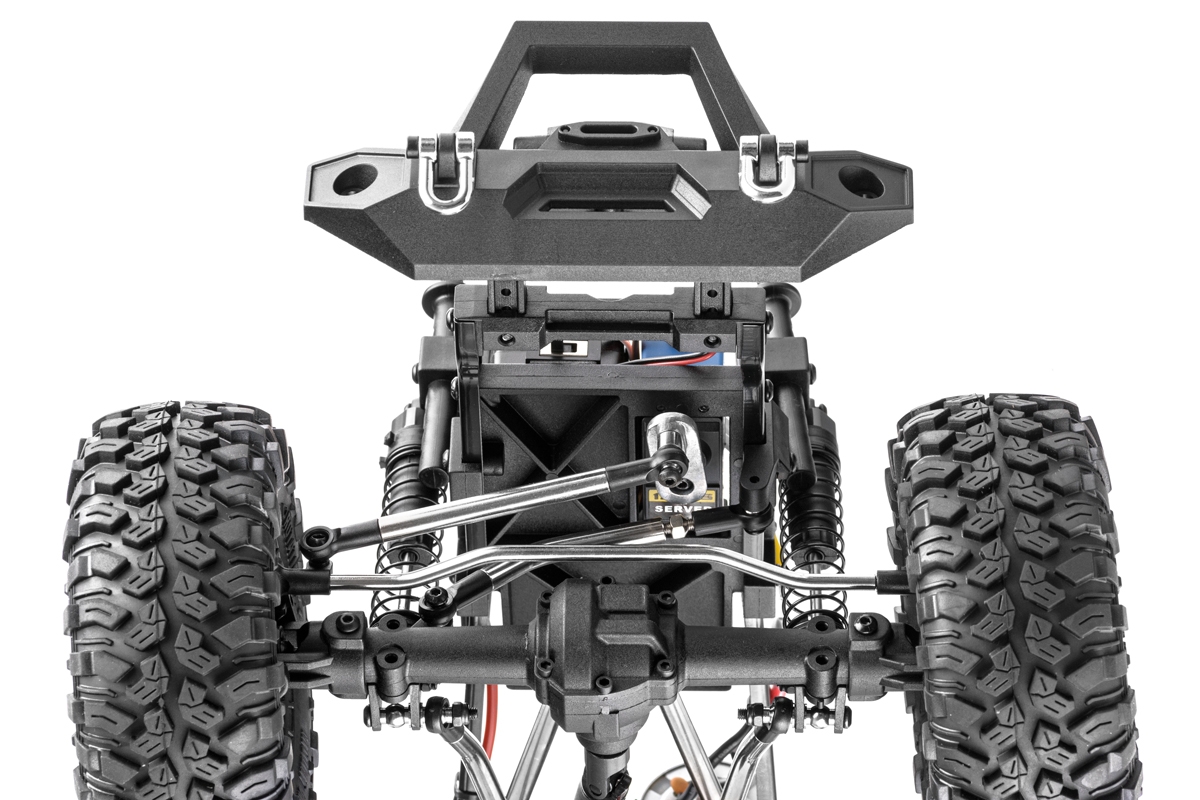

The front steering system uses CVD structure to increase the steering angle with a positive Ackerman angle.
The transmission system uses a reverse drive design. A reverse gear set is added to the central transfer case, so the driveshaft connected to the front and rear gear case can rotate in opposite direction. The reverse drive can reduce the torque twist and improve overall balance.
Compared to the previous models, all gears on V2 are equipped with metal steel teeth.

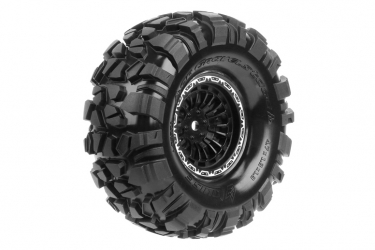

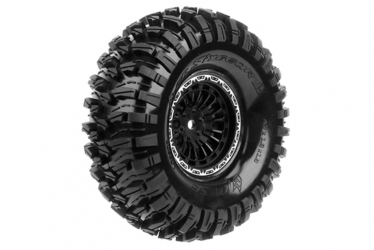

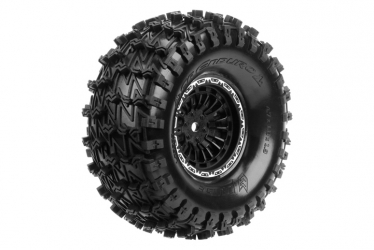

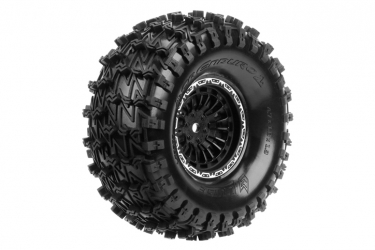

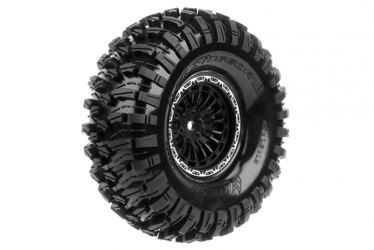

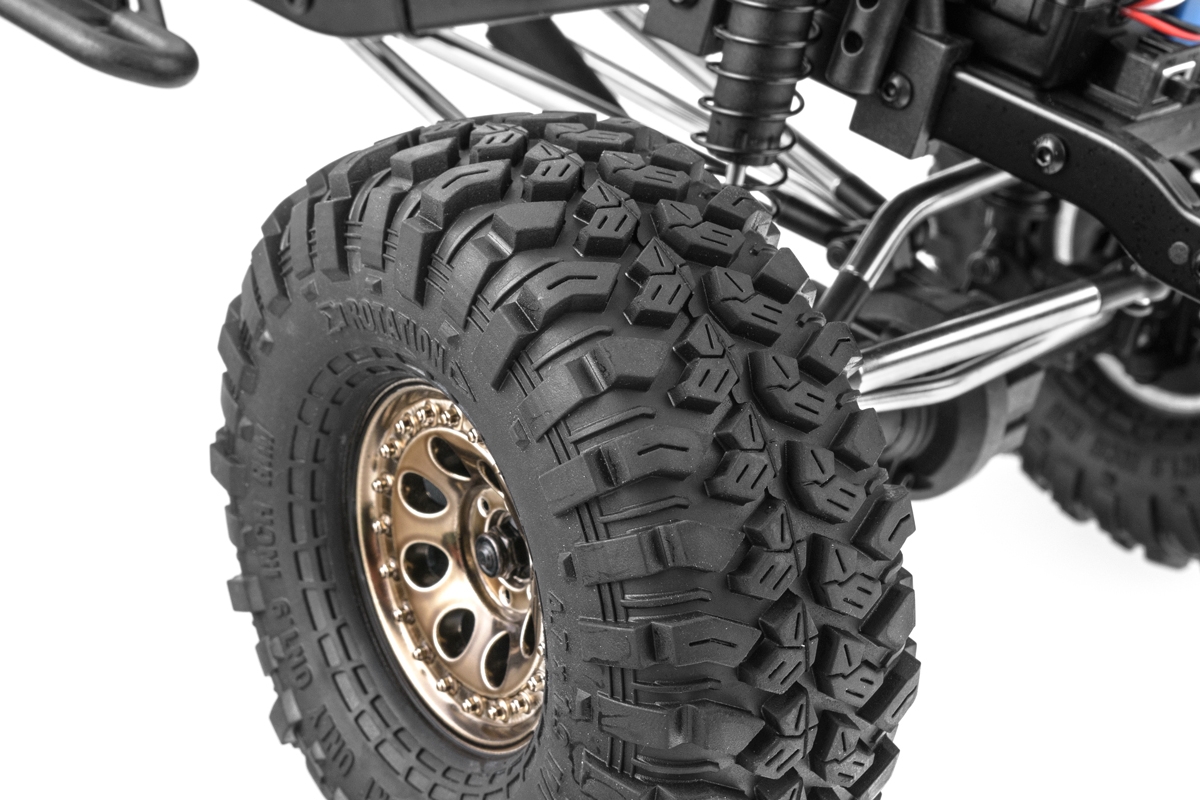

The new tire has increased width and tread depth to improve its climbing performance. The rims have a new realistic titanium gold finish.

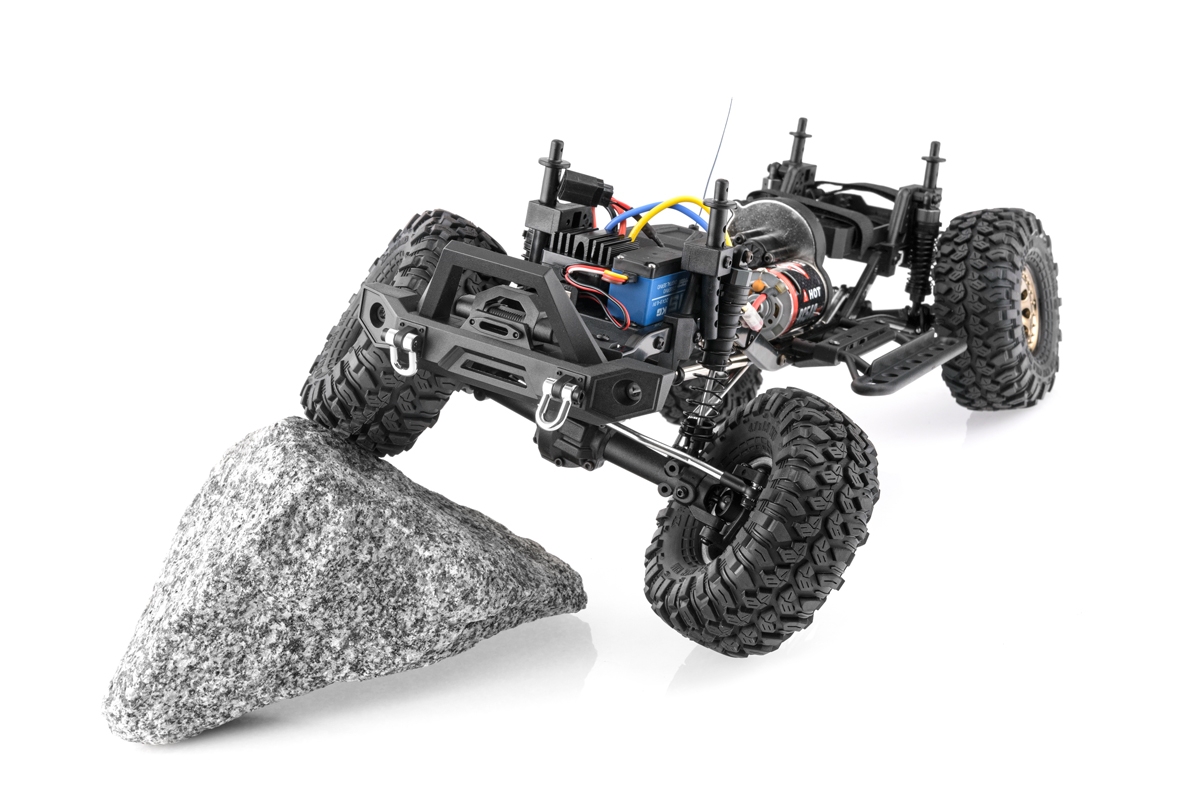

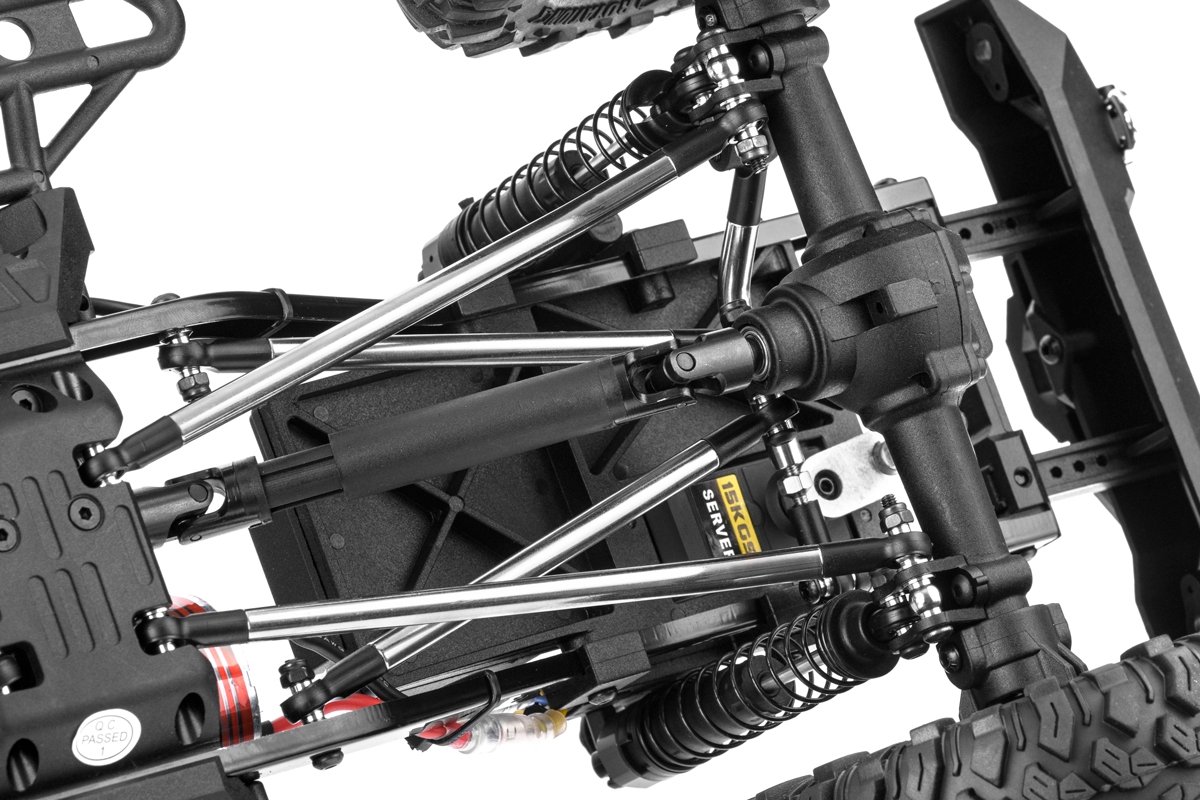

The links on V2 increase the steering angle to navigate in tight courses and avoid obstacles when climbing.

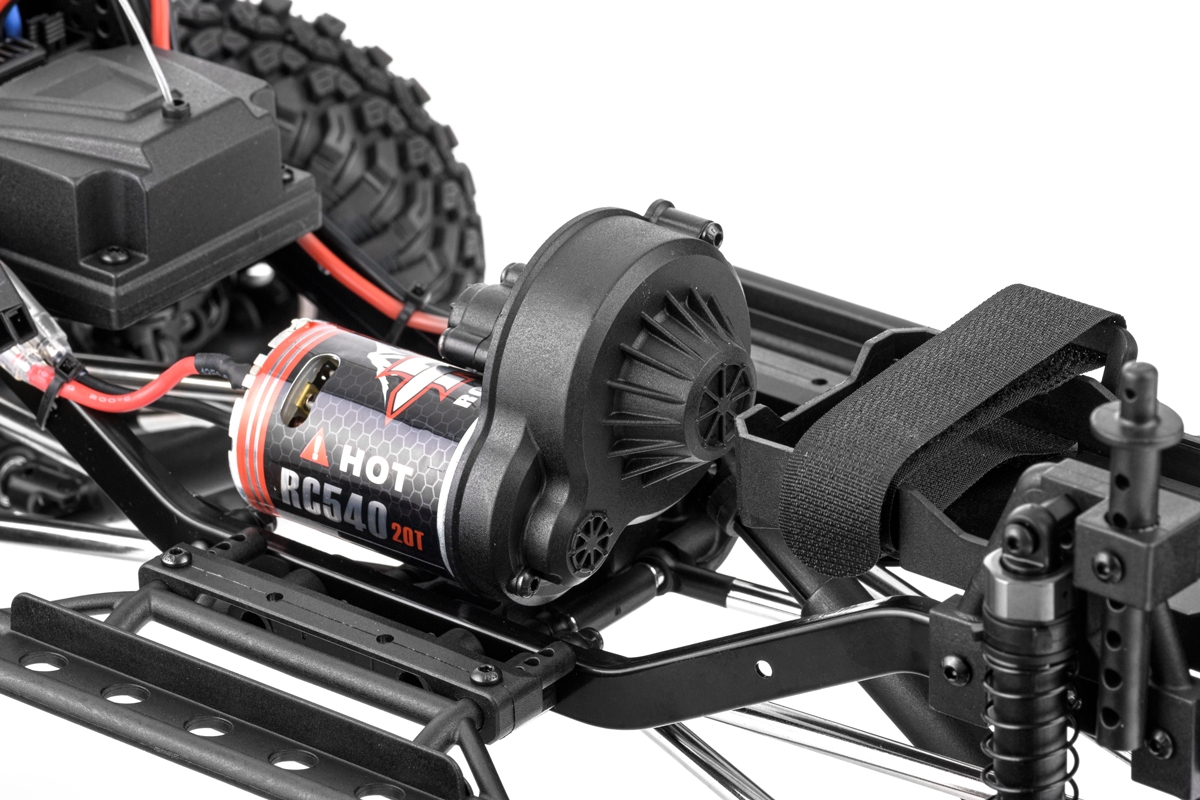

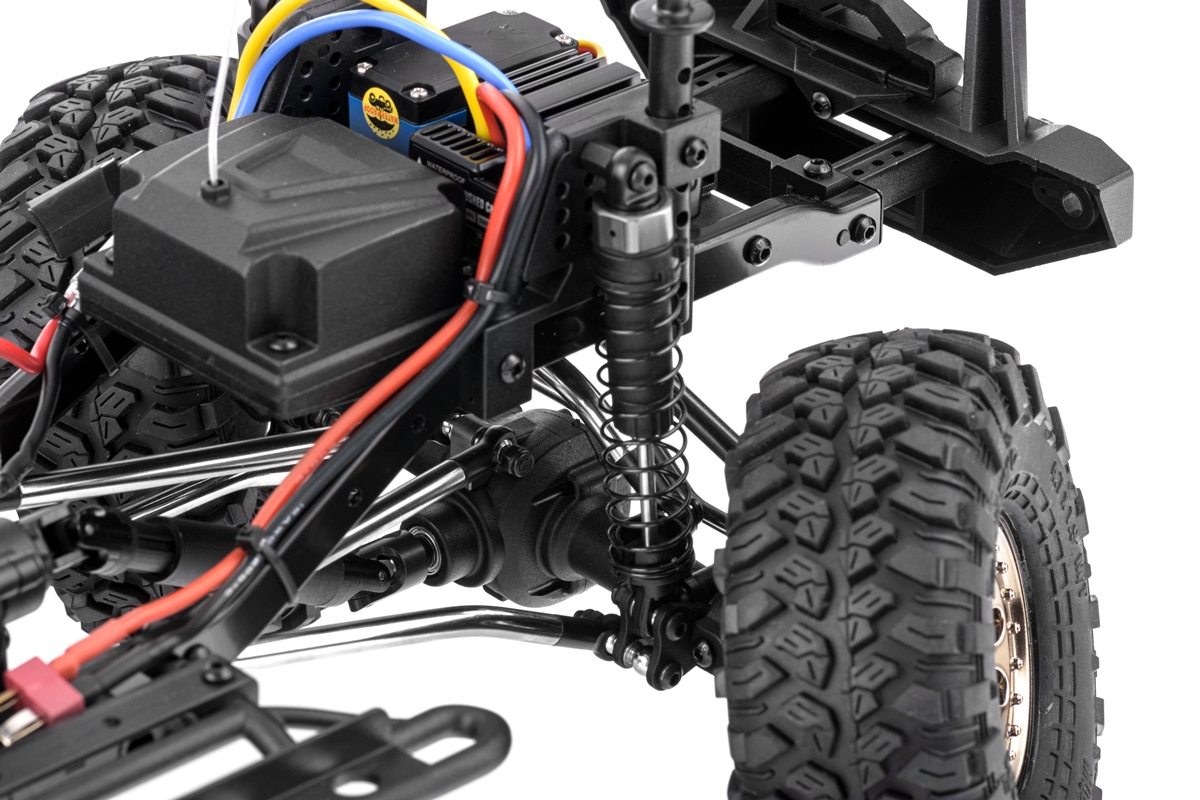

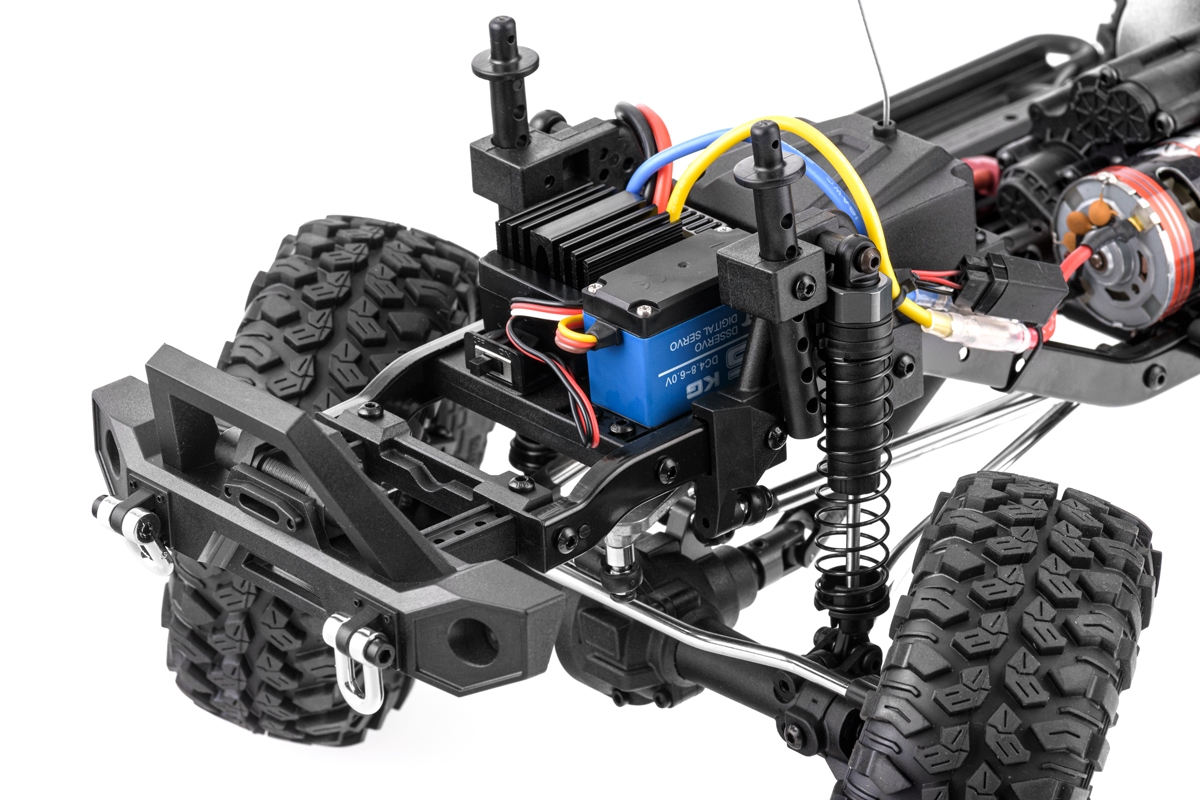

RTR version has a 540 brushed motor, Hobbywing waterproof ESC and 15kg metal gear servo with metal servo horn. The 2.4G radio system is updated.
More Features:
RTR set contains:
Necessary equipment: 4xAA transmitter batteries, main battery pack 7.2V NiMH, or 7.4V LiPo with a corresponding battery charger.
Scale | 1/10 |
Wheelbase [mm] | 313 |
Width [mm] | 235 |
Height [mm] | 245 |
Length [mm] | 495 |
Weight [kg] [kg] | 2.64 |
Transmitter battery | 4×AA |
Frequency [GHz] | 2.4 |
Servo gears | Metal |
NiMH [čl.] | 6 |
Li-Po [čl.] | 2 |
