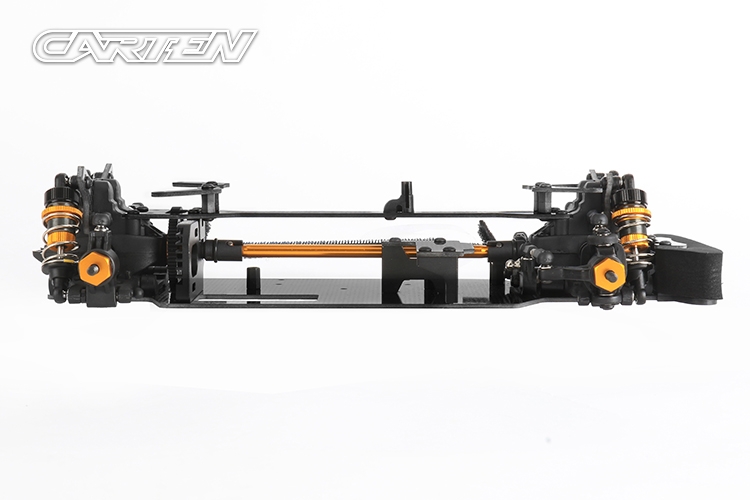

CARTEN M210R 1/10 M-Chassis Kit

This item is not available in you region (United States)
Description
Spare parts
Video

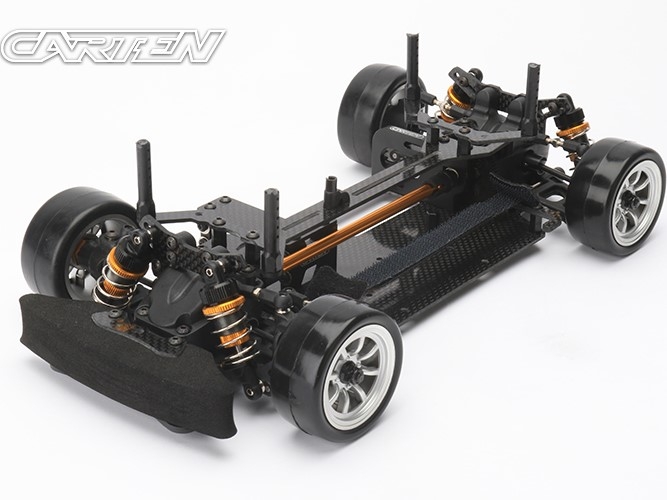

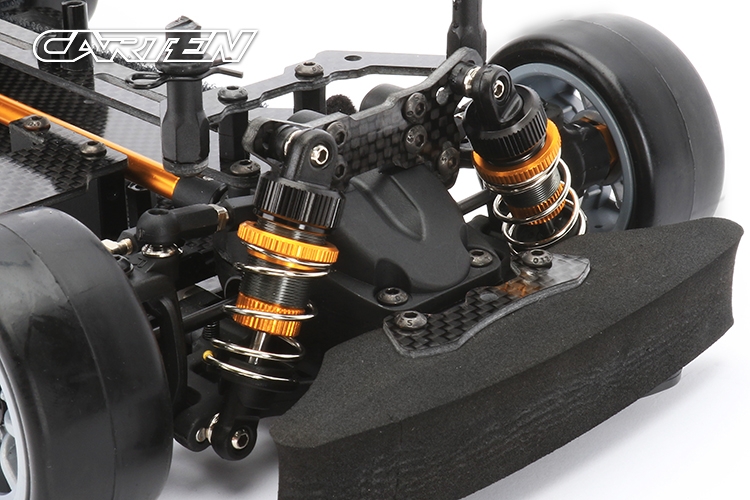

The CARTEN M210R is a 4WD M-Chassis Kit in top quality. With numerous aluminum parts and gear-differentials, it is perfect for the ambitious RC driver.

An M-chassis vehicle with an excellent price-performance ratio.

Features:

  • Fully ball-bearing

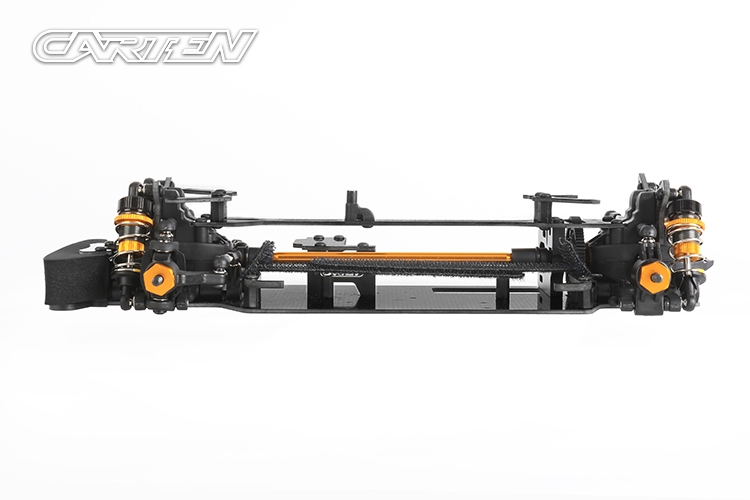

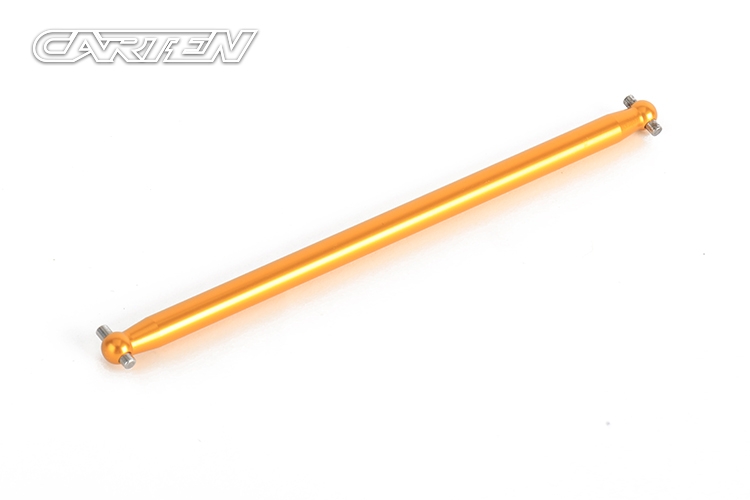

  • Aluminum central cardan shaft

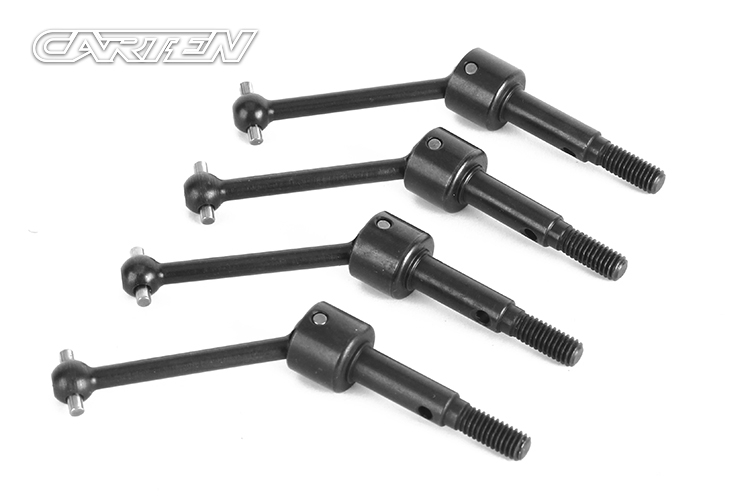

  • Steel CVD drive shafts
  • Aluminum 12mm wheel hub
  • Adjustable tie rods
  • Aluminum gear drivers

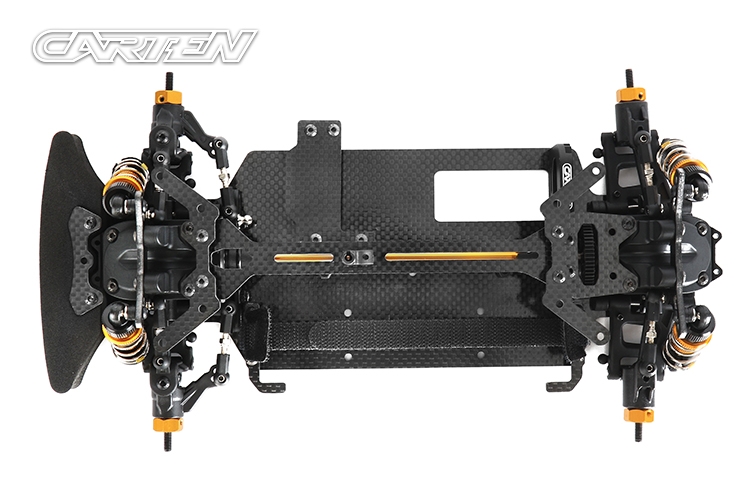

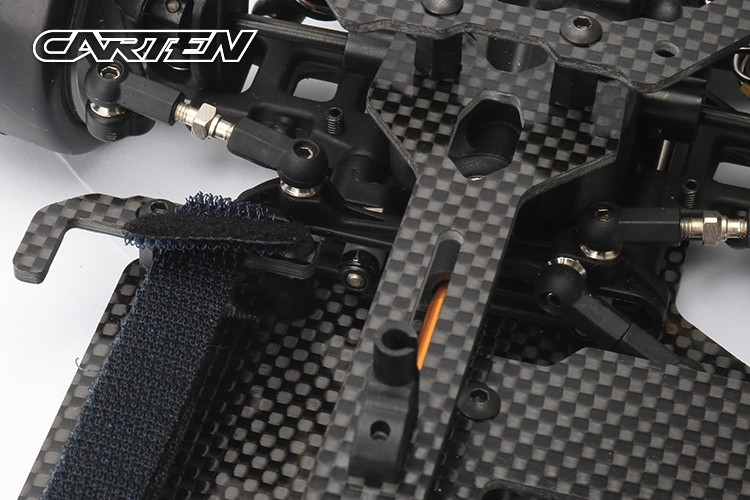

  • Carbon fiber chassis, upper deck, shock absorber plate

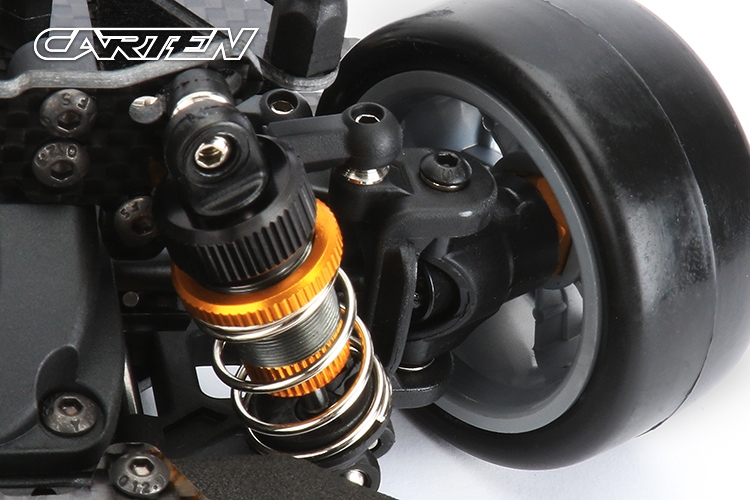

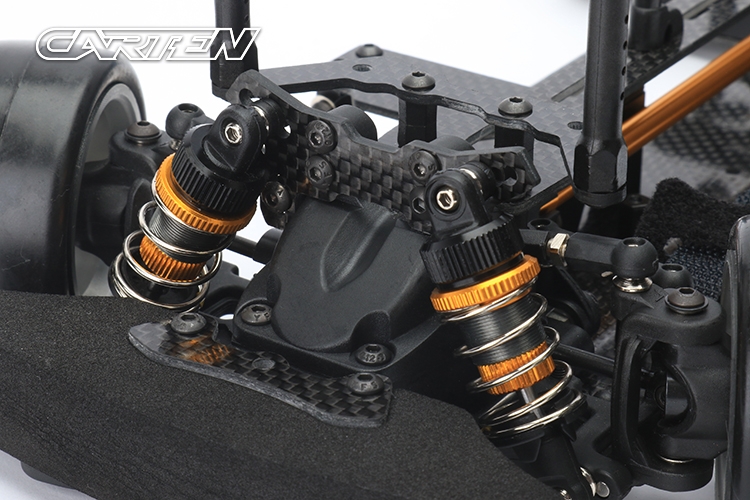

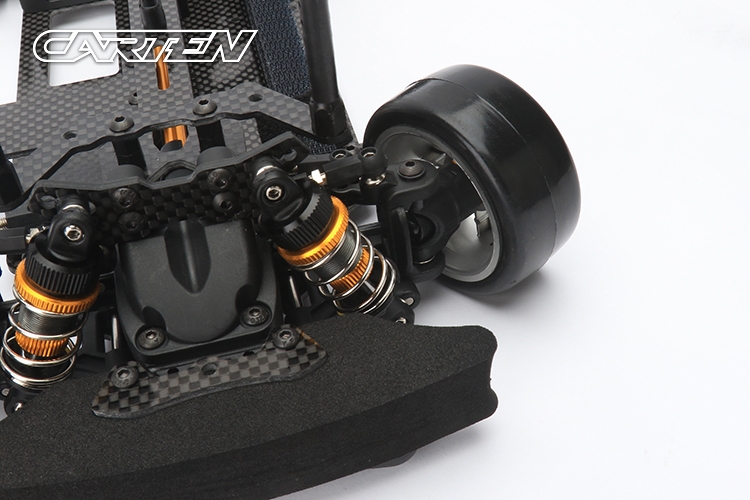

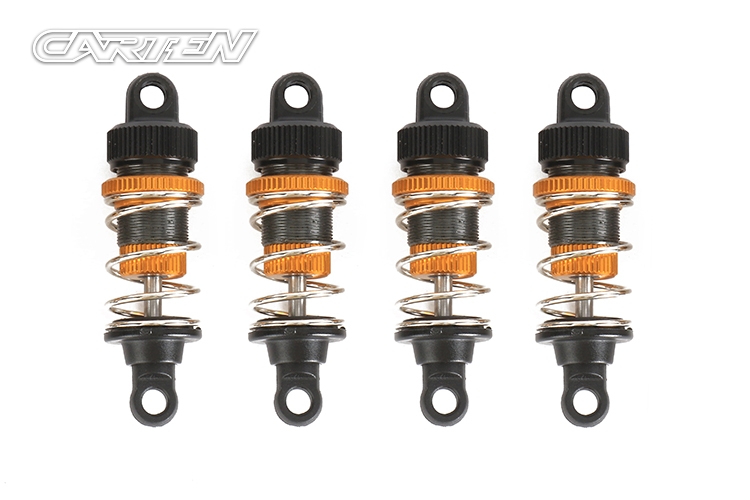

  • Aluminum oil pressure shock absorbers

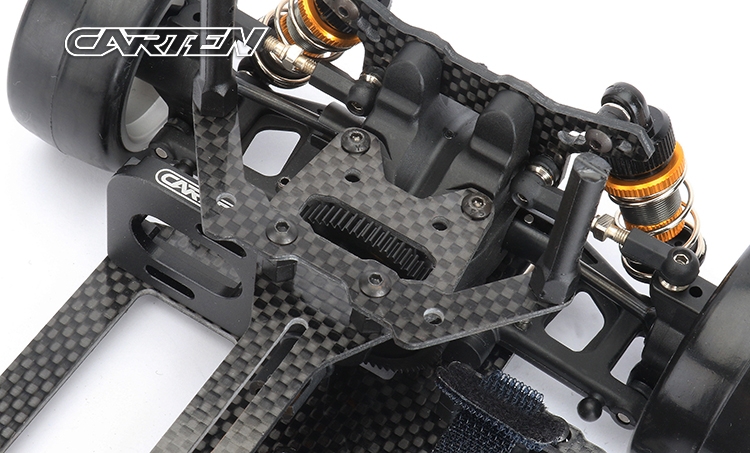

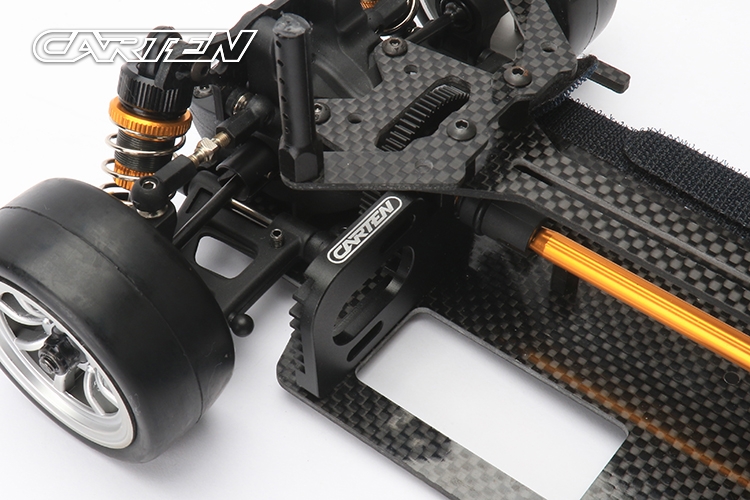

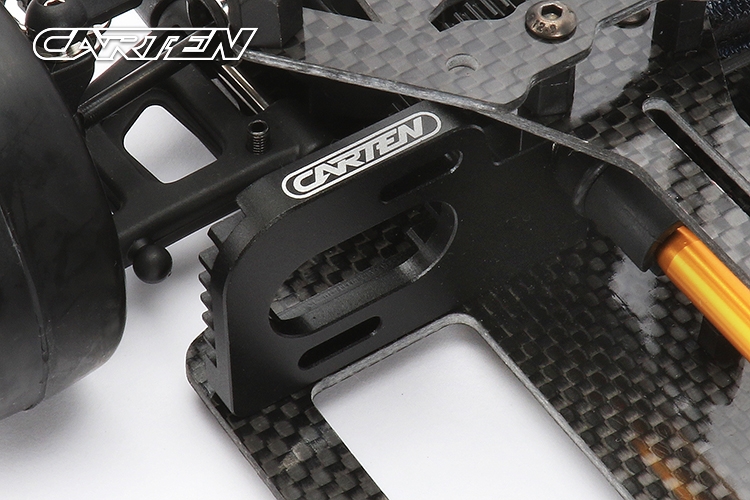

  • Aluminum motor bracket
  • Metal cone differentials

Technical Data
  • Drivetrain Shaft Drive: 4WD
  • Track Width: 166mm
  • Wheelbase: 208-210mm
  • Final Gear Ratio: 2.35
  • Gear Ratio: 5.46
  • Tire Diameter: 55mm

'
Accessories (1) Spare parts (138)
CARTEN Motor Mount
CARTEN Universal Shafts
CARTEN Center Drive Shaft (210mm Chassis)

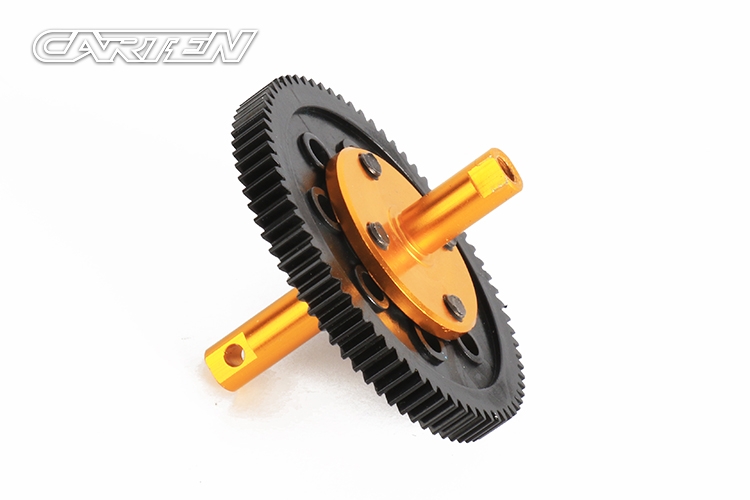

CARTEN Drive Shaft And Spur Gear Hub (For Ball Diff)
CARTEN Drive Shaft And Spur Gear Hub (For Gear Diff)
CARTEN Servo Mount Set
CARTEN 17T Metal Bevel Gear (Gear Diff)
CARTEN Turnbuckle Set (M3x12 /M3x19)
CARTEN Steering Bolt
CARTEN 4.8x6 mm Ball Stud
CARTEN Pivot Ball Stud
CARTEN steering Bush

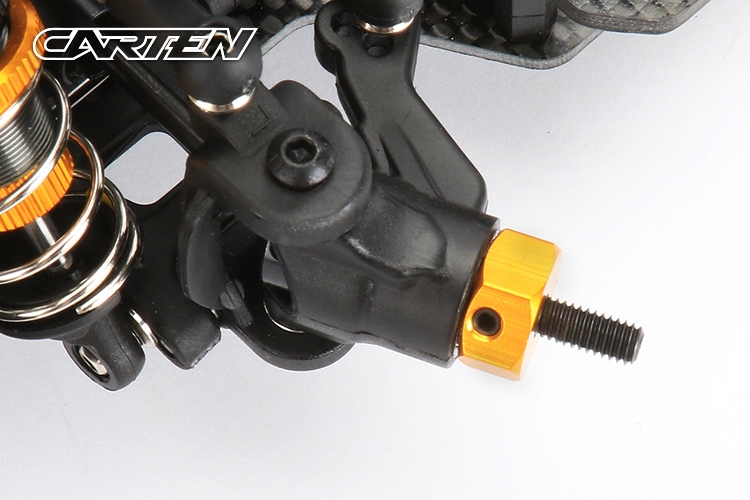

CARTEN 12mm Hex Hub, 4 Pcs.
CARTEN Suspension Shaft, 8 Pcs.
CARTEN Shock Parts(O-rings)
CARTEN Shock Body sets (Aluminum)
CARTEN Shock shafts
CARTEN Shock Body (Aluminum)
CARTEN Shock Parts
CARTEN Plastic Shock
CARTEN Shock spring (1.2X22mm)Blue-Hard
CARTEN Shock spring (1.2X22mm)Yellow-Medium
CARTEN Shock spring (1.2X22mm)Red-Soft
CARTEN Shock Set(Plastic)
CARTEN Shock Set(Aluminum)

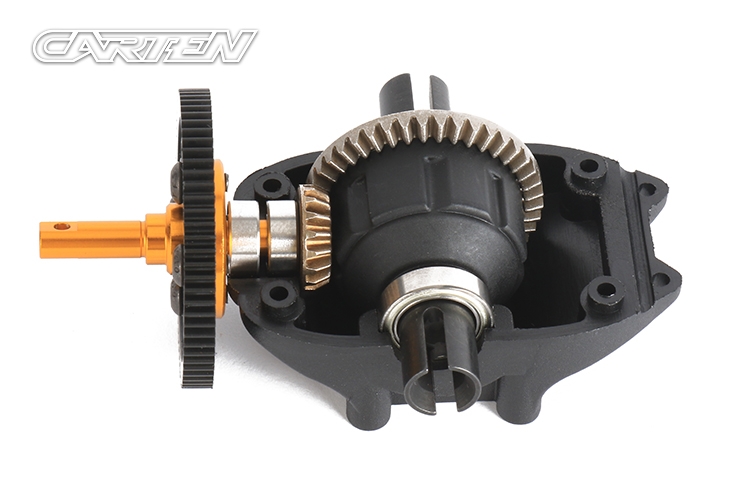

CARTEN Gear Differential
CARTEN Gear Diff Case
CARTEN 42T Bevel Gear (Metal)
CARTEN Gear Diff Cup Joint
CARTEN Gear Diff Oring
CARTEN Gear Diff Bevel Gear Set
CARTEN Ball Diff Parts Set
CARTEN Diff Ball (3/32)
CARTEN Ball Diff Screw Set
CARTEN Ball Diff Shim
CARTEN Diff gears (Ball Diff)
CARTEN Diff O-rings (Ball Diff)
CARTEN Ball Diff cup joint (Plastic)
CARTEN Ball Diff cup joint (Metal)

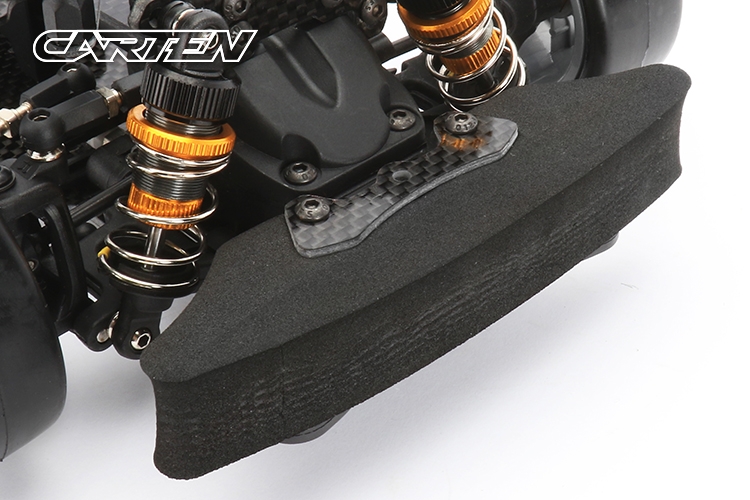

CARTEN Front Bumper Hold And Body Mount
CARTEN Front Hub Carrier L/R
CARTEN Ball End (4.8mm)
CARTEN Suspension Mount Parts
CARTEN Gear box
CARTEN Arms Set (F and R)
CARTEN Hub carrier
CARTEN Spur Gear 72T
CARTEN Hex Hub (5MM)
CARTEN Servo Saver
CARTEN Cup Jiont
CARTEN Bumper For Sedan Body
CARTEN Bumper For Hatchback Body
CARTEN Battery Strap
CARTEN Antenna Pipe
CARTEN Main Chassis
CARTEN Upper Deck

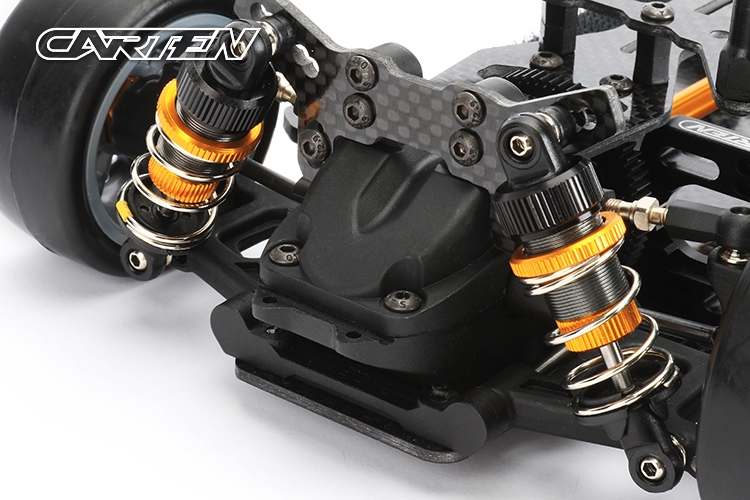

CARTEN Shock Tower (Front& Rear)
CARTEN Battery Holder
CARTEN Body Mount Plate
CARTEN Servo Plate
CARTEN Bumper Plate (For Hatchback Body)
CARTEN Bumper Plate (For Sedan Body)
CARTEN Screw Set - FH M3x6
CARTEN Screw Set - FH M3x8
CARTEN Screw Set - BH M3x6
CARTEN Screw Set - BH M3x8
CARTEN Screw Set - BH M3x10
CARTEN Screw Set - BH M3x12
CARTEN Screw Set - BH M3x18
CARTEN Screw Set - FH M2x8
CARTEN Set Screw M3x3
CARTEN Set Screw M3x4
CARTEN Set Screw M3x8
CARTEN Set Screw M3x10
CARTEN Set Screw M3x12
CARTEN Set Screw M3x18
CARTEN Set Screw M3x20
CARTEN M3 Nut
CARTEN M4 Nut
CARTEN Bearing 3X6X2.5
CARTEN Bearing5*8*2.5
CARTEN Bearing 5x10x4mm, 8 Pcs.
CARTEN Bearing 10X15X4
CARTEN Spacer Set 3X6X2.5
CARTEN Washer(3*6.5*0.5mm )
CARTEN Washer(3*8*0.5mm )
CARTEN E-Clip
CARTEN Pin2X10
CARTEN Body pinS
CARTEN O-Ring
CARTEN Washer(11*14*0.2mm )
CARTEN Ball Differential(2 Set)
CARTEN Ball Differential(Metal)
CARTEN Gear Differential Set
CARTEN Sway Bar
CARTEN Fan Holder(For 30mm Fan)
CARTEN Pivot Block Toe in 3° (Aluminum)
CARTEN Pivot Block Toe in 0° (Aluminum)
CARTEN Pivot Block Toe in 2.5° (Aluminum)
