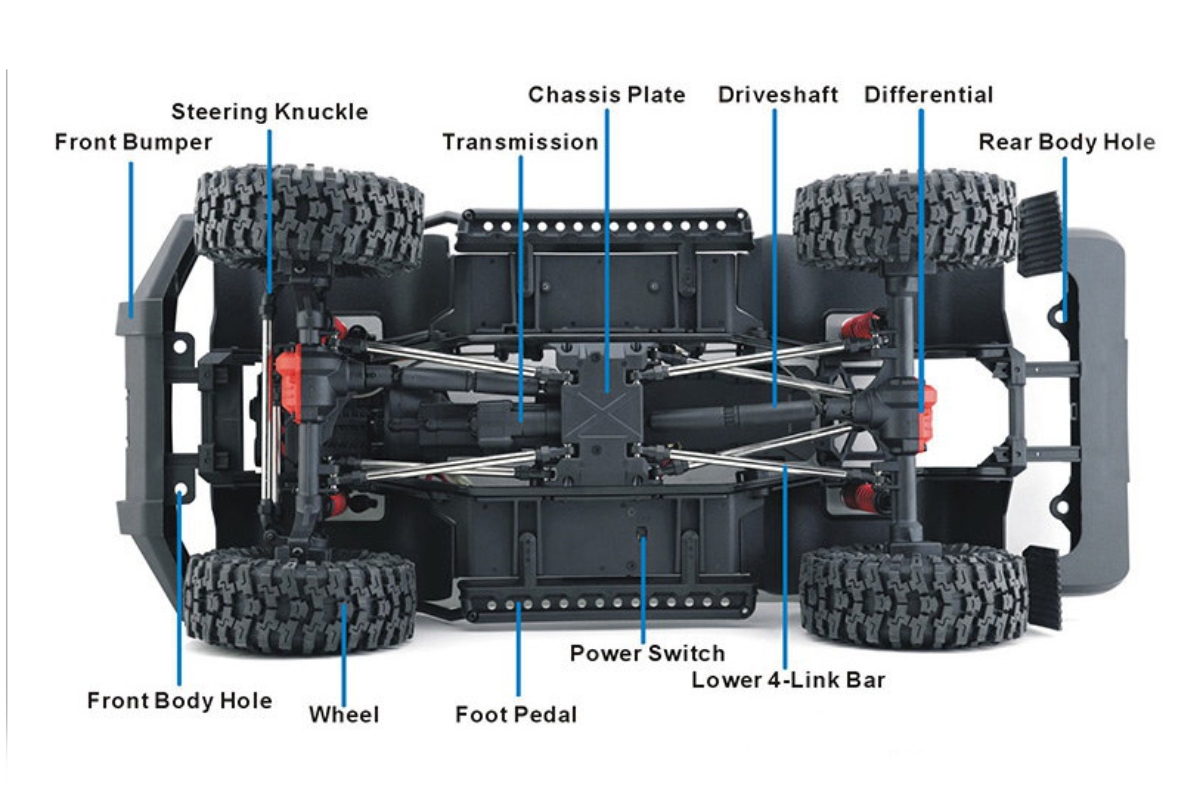

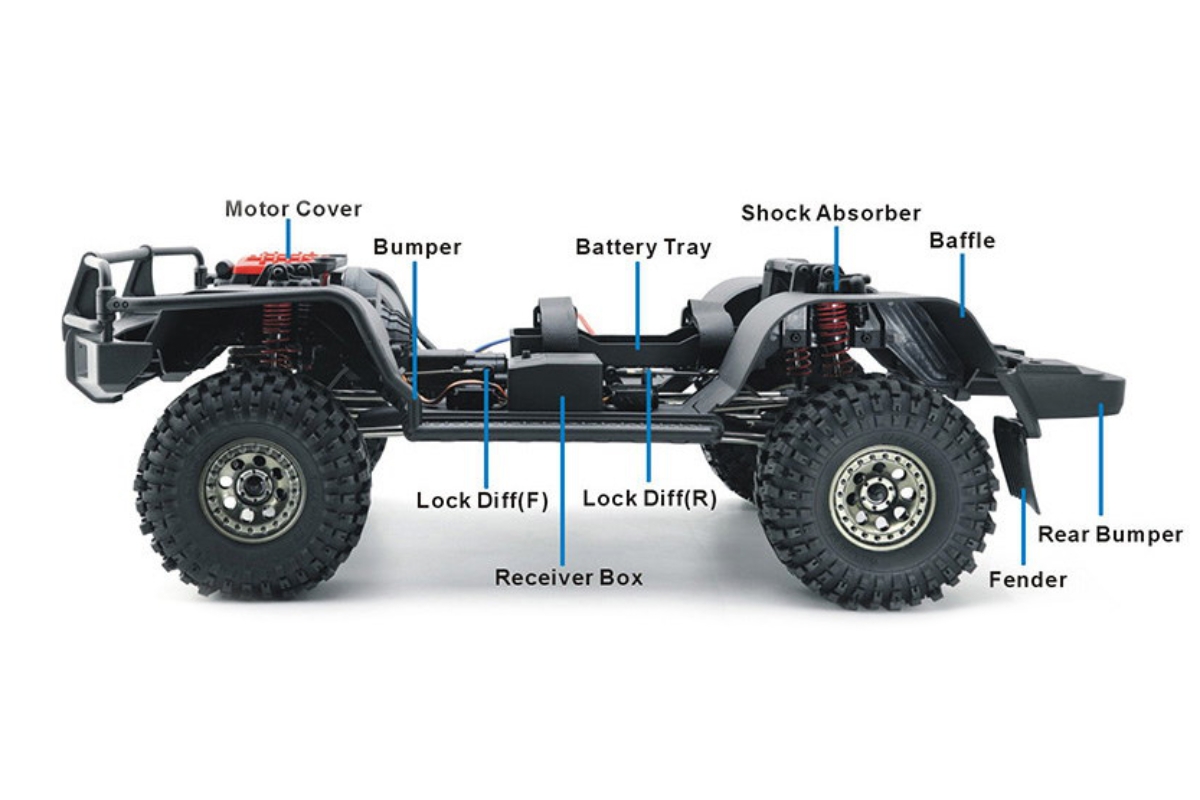

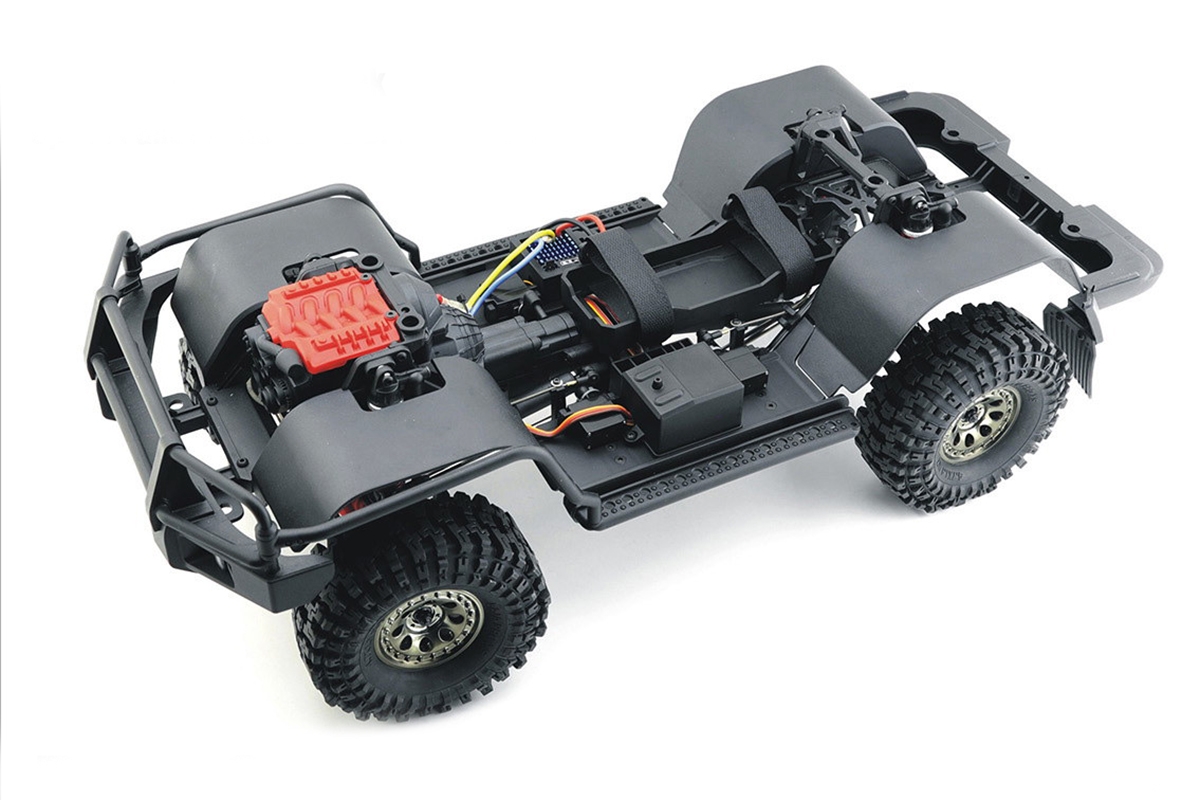

Rescuer has a rigid chassis frame, 324mm wheelbase, front and rear portal axle design, 2-speed transmission with torque adjustment, mechanical positive and negative adjustable transmission combination, front and rear integrated gearbox, and front and rear lock differential.

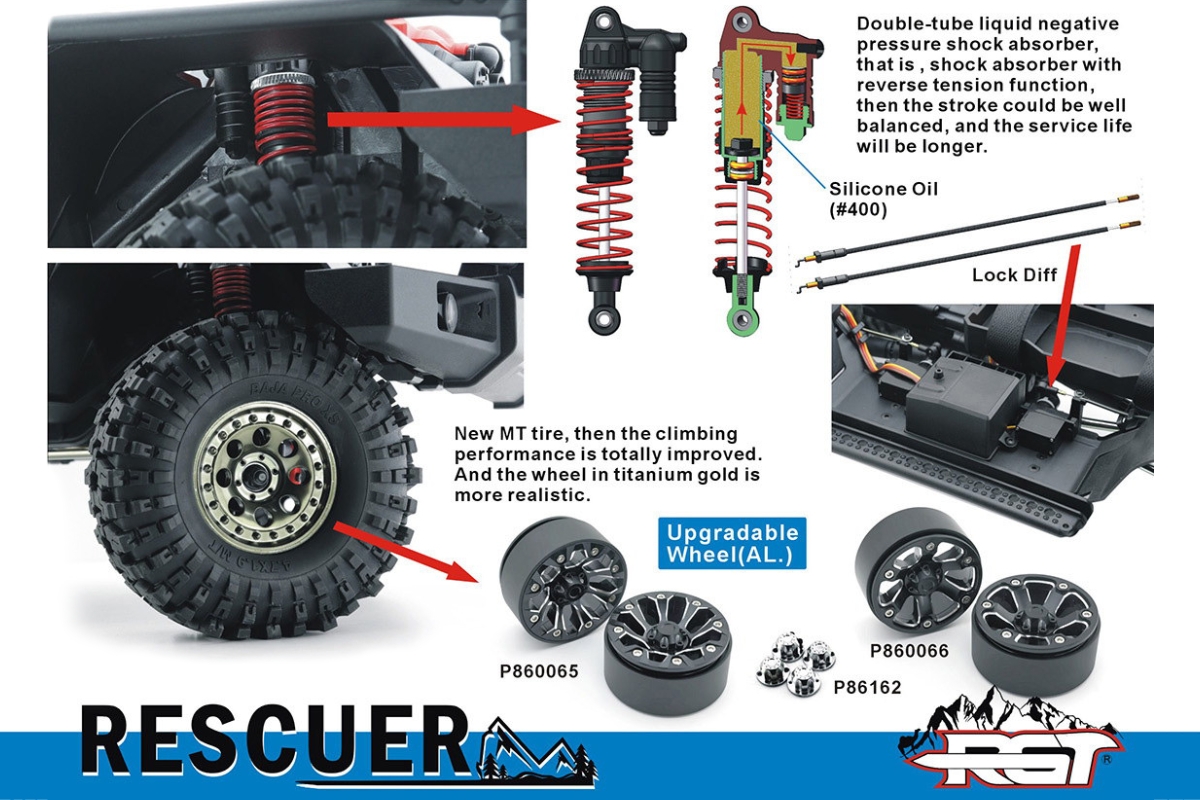

Those features provide it with strong adaptability in complex terrain. Fully equipped with metal gears, adjustable metal "piggyback" shock absorbers with dual springs, high-quality sealed bearings, or CVD metal drive shafts, this model can handle just about anything.

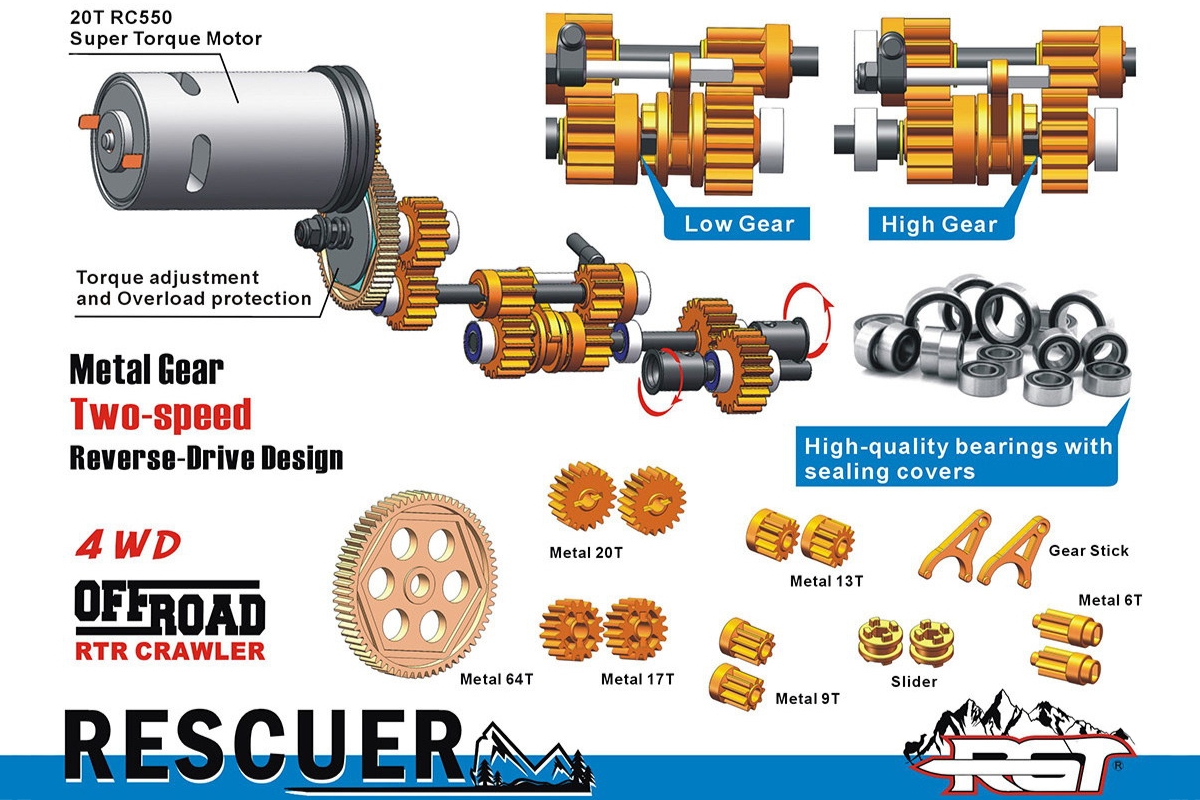

The motor and 2-speed servo-operated gearbox are mounted in the front to improve the front wheel traction and increase the climbing angle. Gearing was carefully tuned to provide great low-speed control and after switching to high gear also surprisingly high speed.
The central transfer case adds a set of reverse gears, so the driveshafts connected to the front and rear axles can rotate in opposite direction. The reverse drive reduces torque twist and improves overall balance.

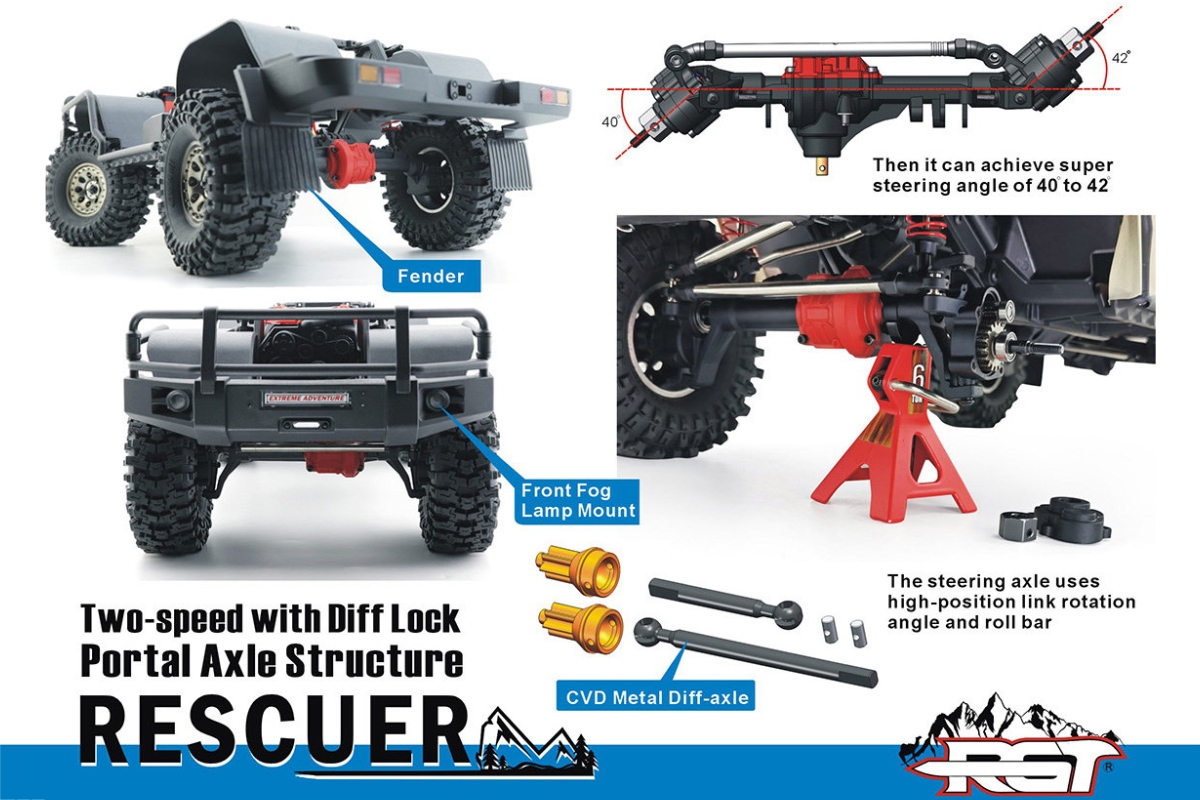

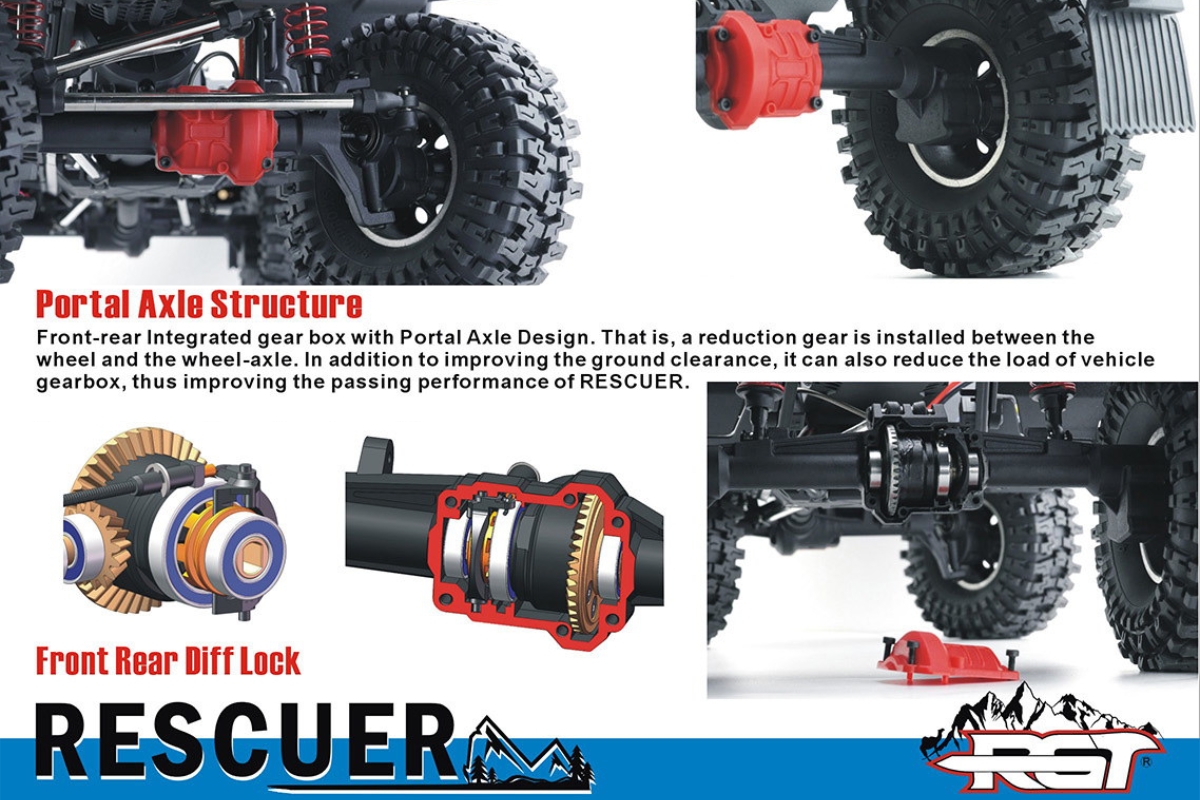

The axles have a portal structure for additional gearing and increased ground clearance. Thanks to the CVD axles, the maximum steering angle is up to 42 degrees. In addition, both front and rear differential can be independently opened or closed by a transmitter button with light indication.

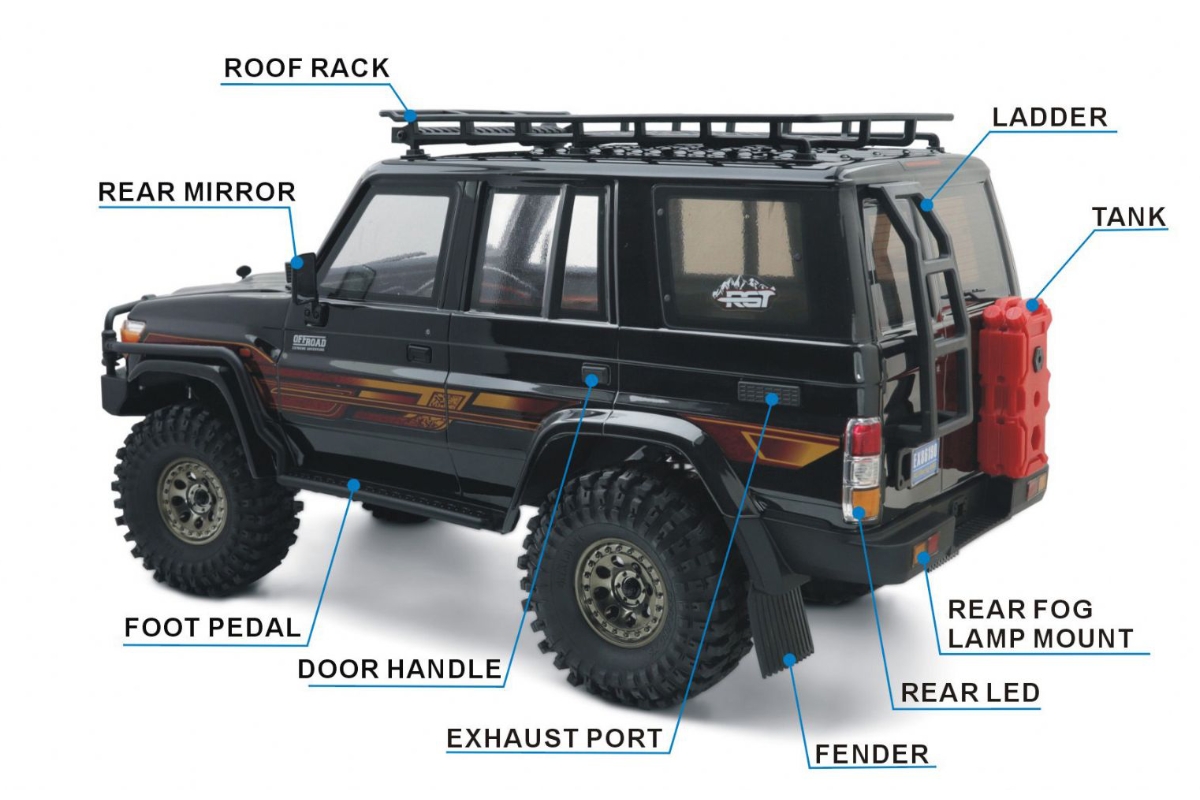

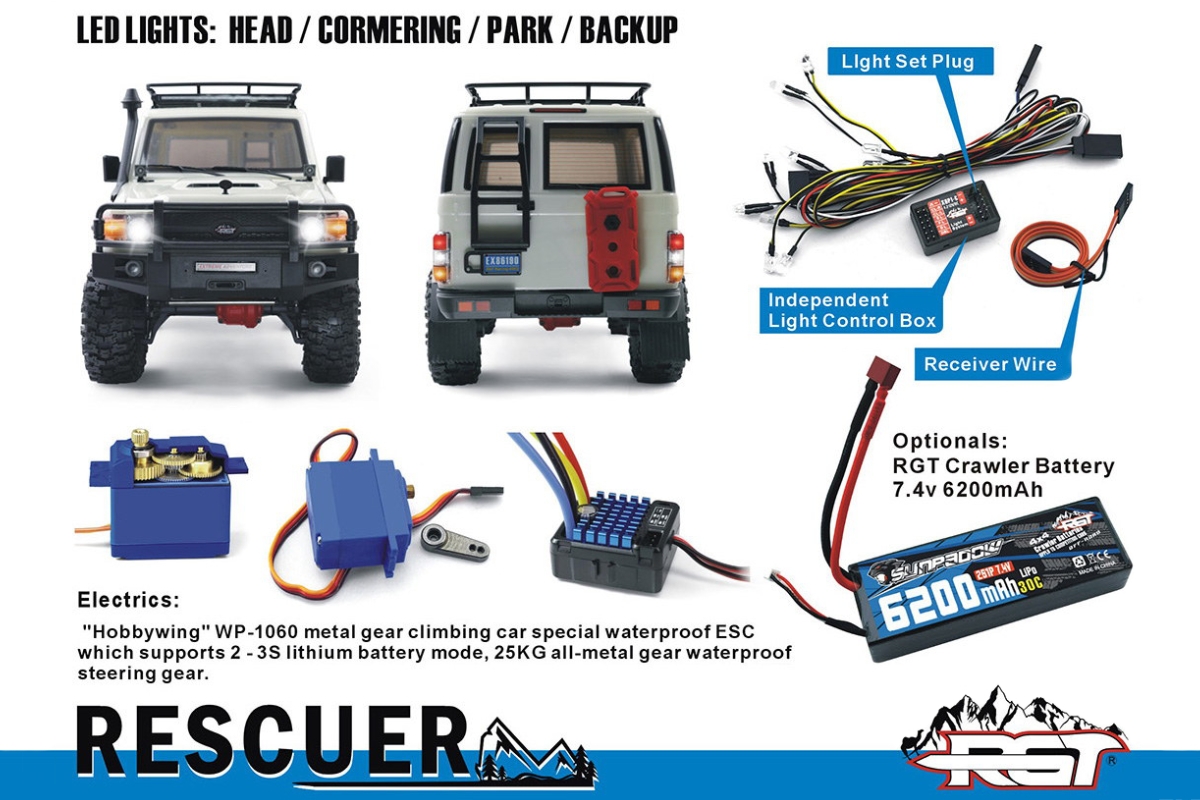

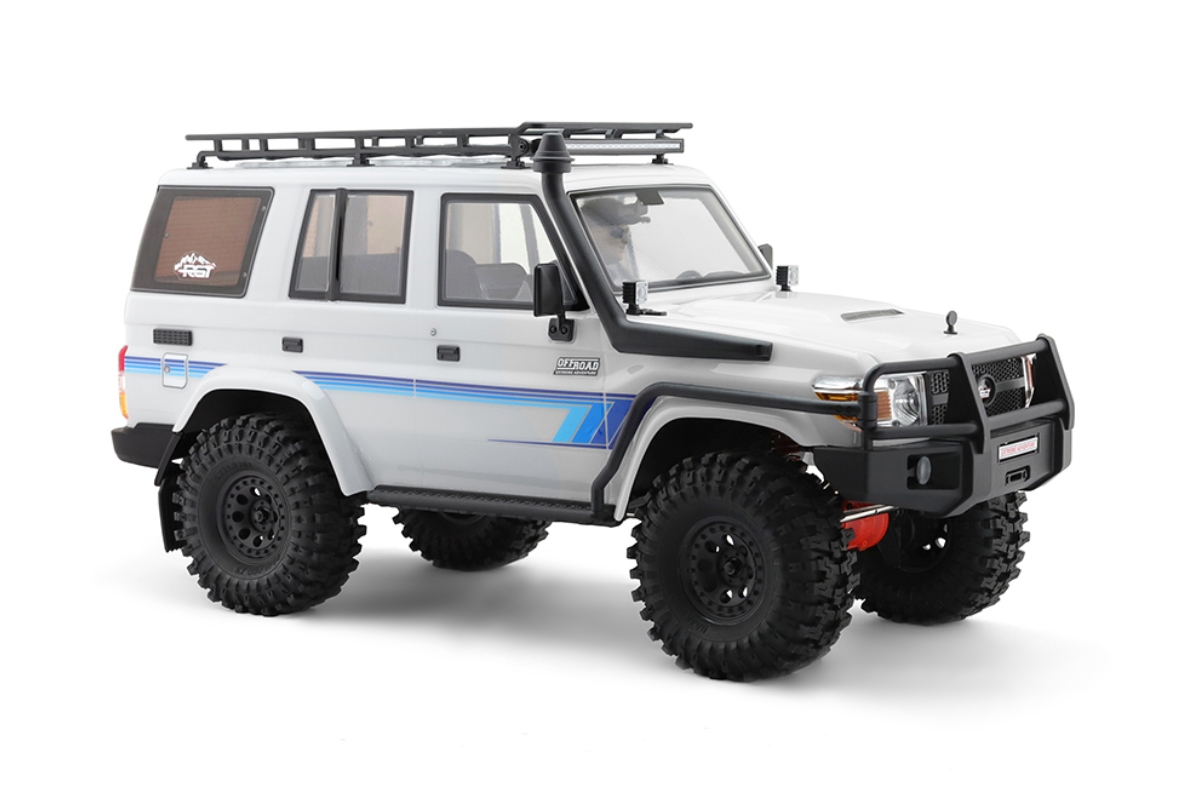

1.5 mm thick PC softshell has transparent windows, an openable hood with motor cover in front, dedicated LED light control system and many accessories, like roof rack, spotlights, snorkel, rear-view mirrors, door handles, ladder, fuel tank, etc.
Features:
RTR set contains:
Necessary equipment: 4xAA transmitter batteries, main battery pack 7.4V LiPo or 11.1V LiPo with a corresponding battery charger.
** Spare parts that are not in our offer can be ordered from the manufacturer on request. The complete list can be found in the manual.

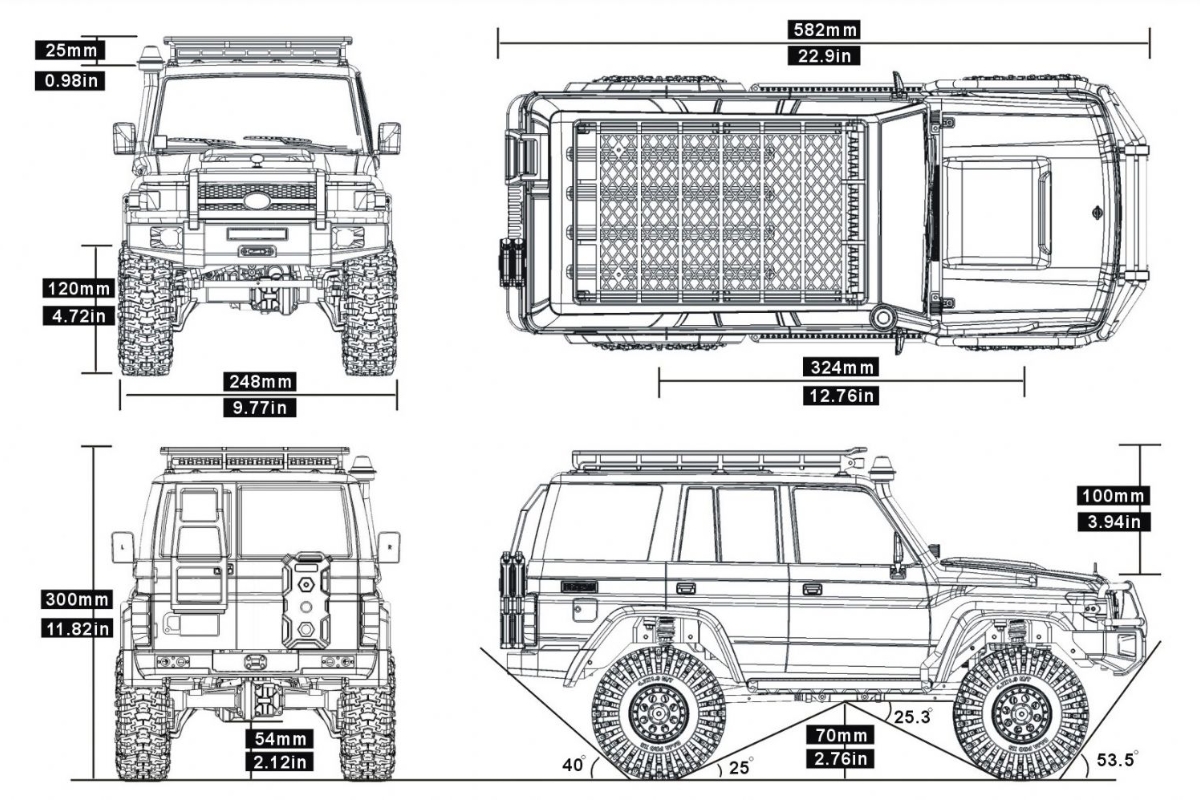

Scale | 1/10 |
Wheelbase [mm] | 324 |
Width [mm] | 248 |
Height [mm] | 300 |
Length [mm] | 582 |
Weight [kg] [kg] | 3.56 |
Transmitter battery | 4×AA |
Frequency [GHz] | 2.4 |
Servo gears | Metal |
Li-Po [čl.] | 2 |
Li-Po [čl.] | 3 |
