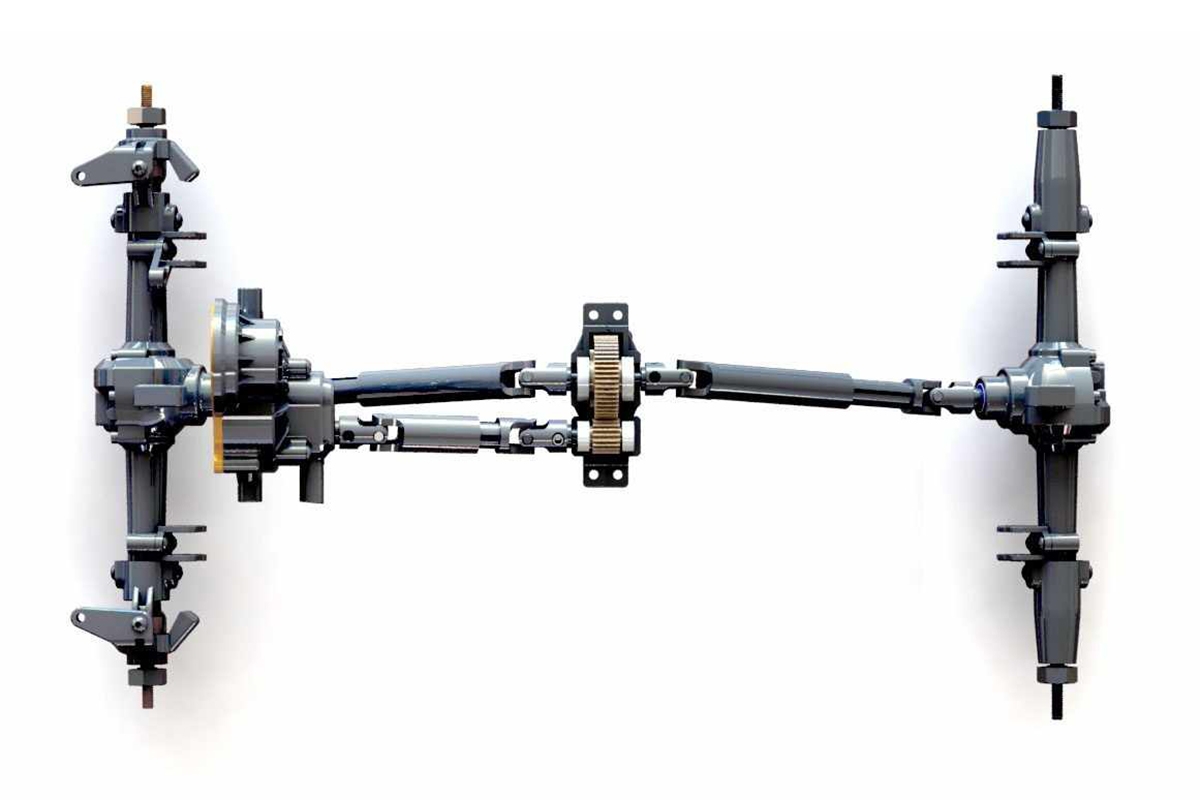

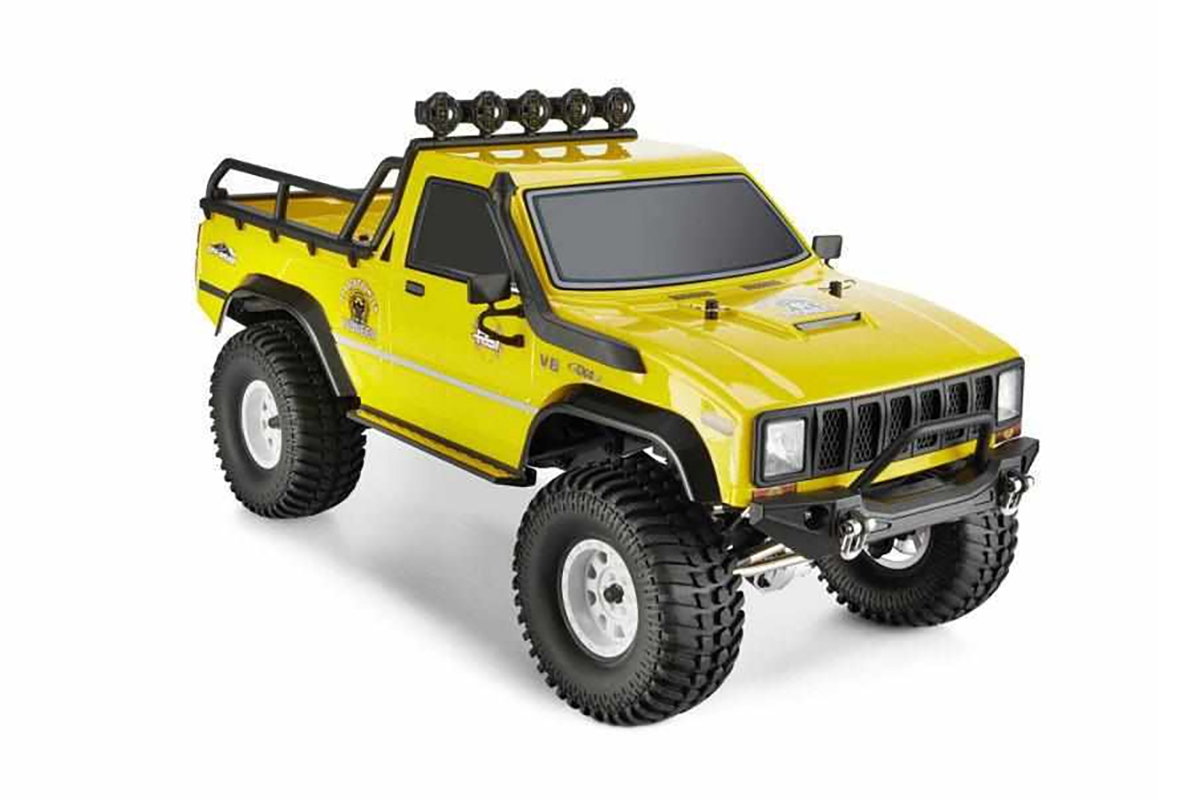

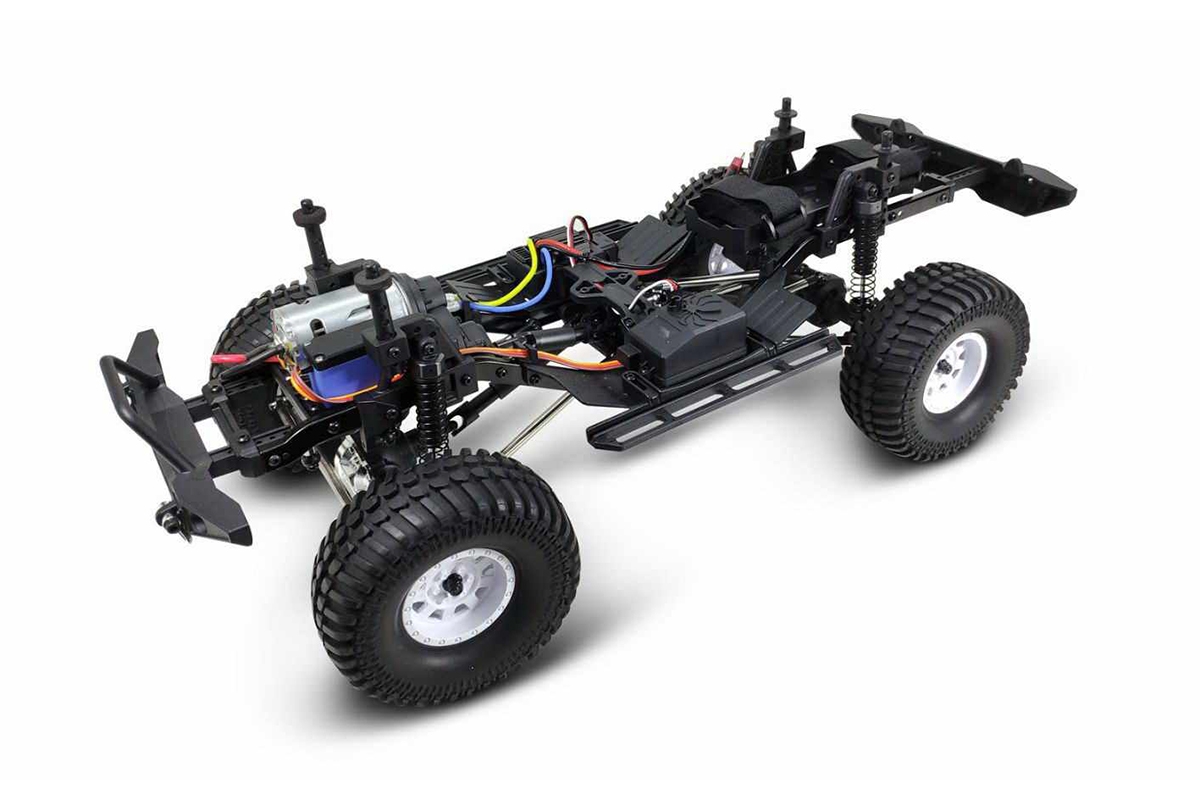

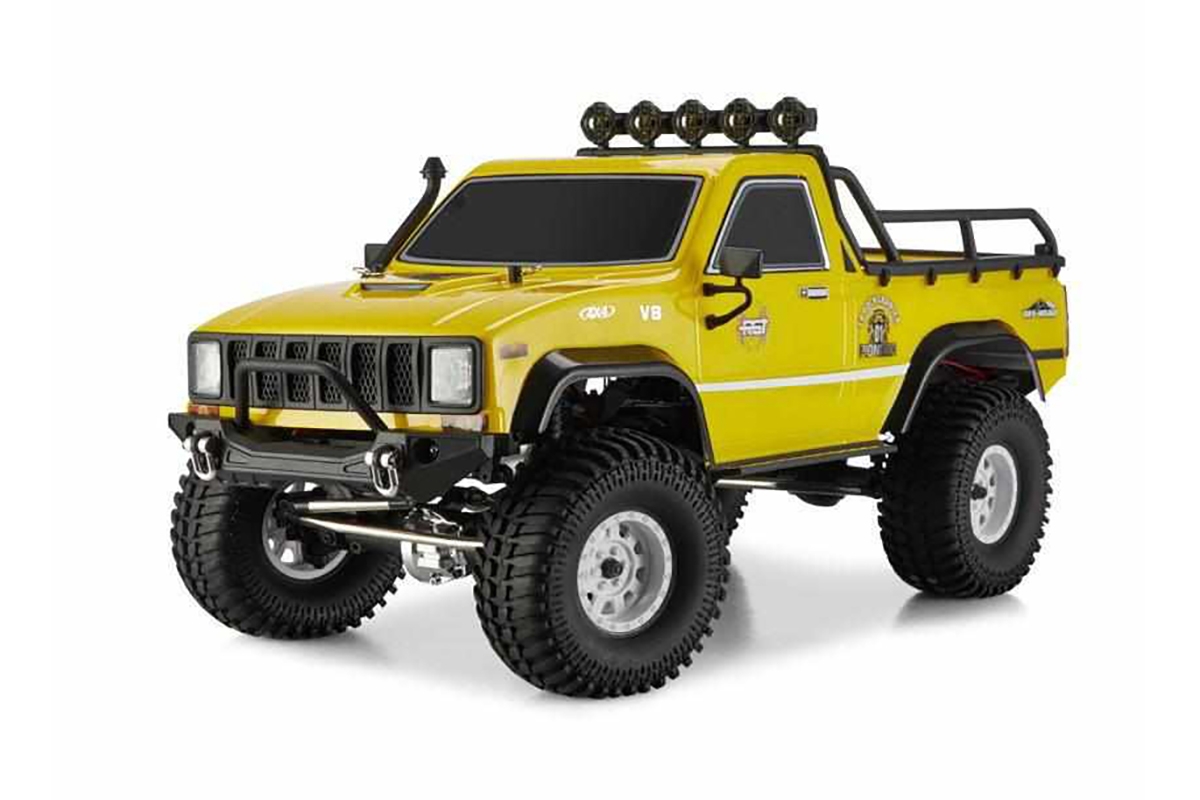

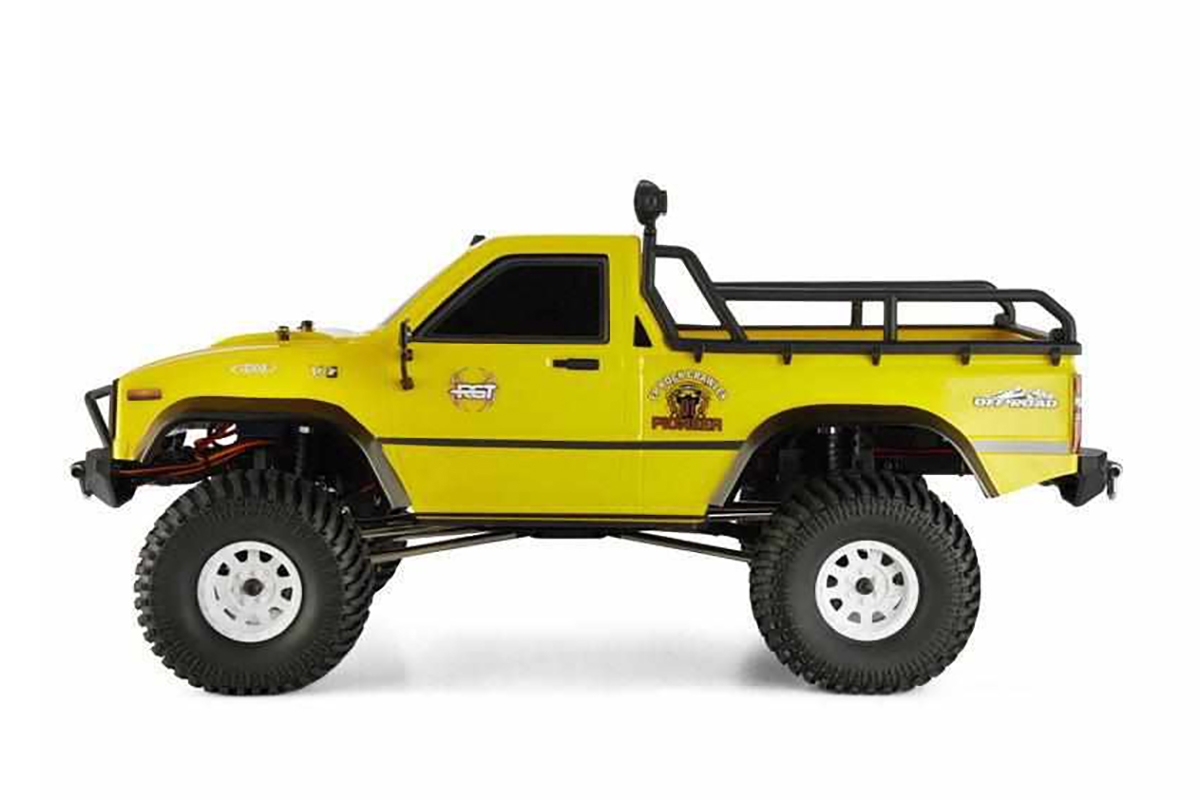

Pioneer is a high-performance 1/10 4WD off-road crawler, which uses a split transmission system. The vehicle is equipped with C-type steel chassis rails, ball bearings all around, a solid spool in front and a differential in the rear.

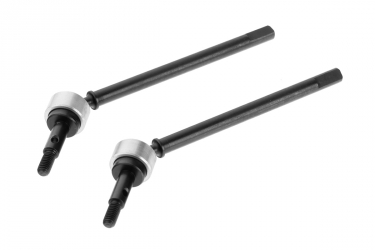

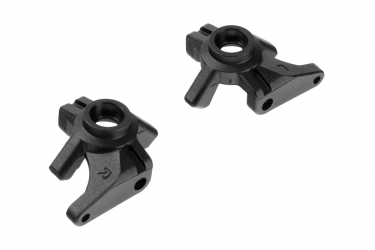

Thanks to high-precision CVA axles and newly designed steering knuckles, it can reach a maximum steering angle of 42 degrees. Its motor mount and gearbox are in the front to provide more traction for the front wheels, and effectively reduce the possibility of rollover when passing through high-angle slopes.

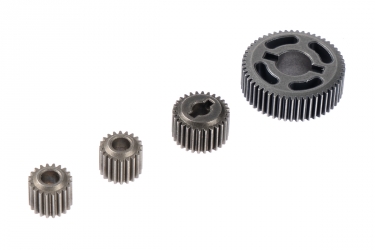

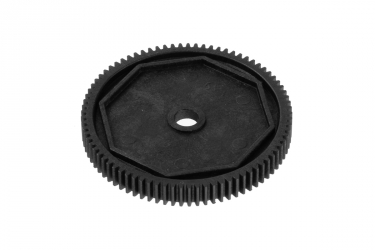

The main gear of the transmission system uses a slipper clutch design. Also, all the gears of the transmission are made of high-strength aluminum to withstand super-strong resistance and load.
Pioneer RTR version is equipped with a powerful 17T brushed motor, waterproof crawler ESC, 15KG high-torque waterproof servo and a 2.4GHz 4-channel radio set, which is specially designed for crawlers. The transmitter is able control the light switch via third channel, and a supports the fourth channel to retract a winch.
Features:
RTR set contains:
Necessary equipment: 4xAA transmitter batteries, main battery pack 7.2V NiMH, or 7.4V LiPo with a corresponding battery charger.
Scale | 1/10 |
Wheelbase [mm] | 313 |
Width [mm] | 240 |
Height [mm] | 240 |
Length [mm] | 560 |
Weight [kg] [kg] | 2.6 |
Transmitter battery | 4×AA |
Frequency [GHz] | 2.4 |
Servo gears | Metal |
NiMH [čl.] | 6 |
Li-Po [čl.] | 2 |
EU declaration of conformity | 21.07.2023 |
