Code:RGT-EX86120-1
Barcode:8596450061507
Brand:RGT

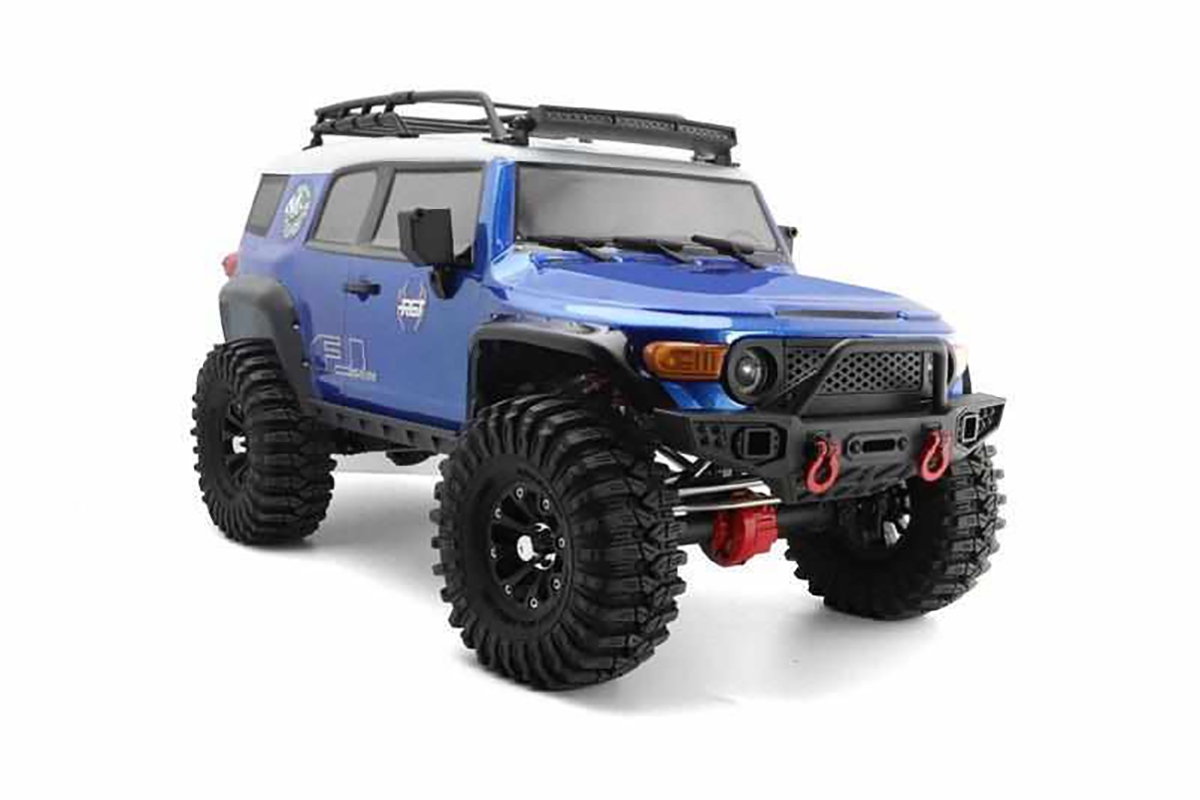

DESERT FOX 1/10 set 2,4GHz, Blue

Fully assembled RC crawler with a brushed motor, water-resistant ESC and strong steering servo. The set includes a 2.4GHz radio. Without battery pack and charger. Blue bodyshell.
This item is not available in you region (United States)
Description
Spare parts
Video
Download

RGT DESERT FOX

Desert Fox (EX86120) is a high-performance 1/10 4WD off-road crawler based on Pioneer (EX86110) model, with redesigned reverse drive split transmission system, improved weight distribution, upgraded steering system and suspension.

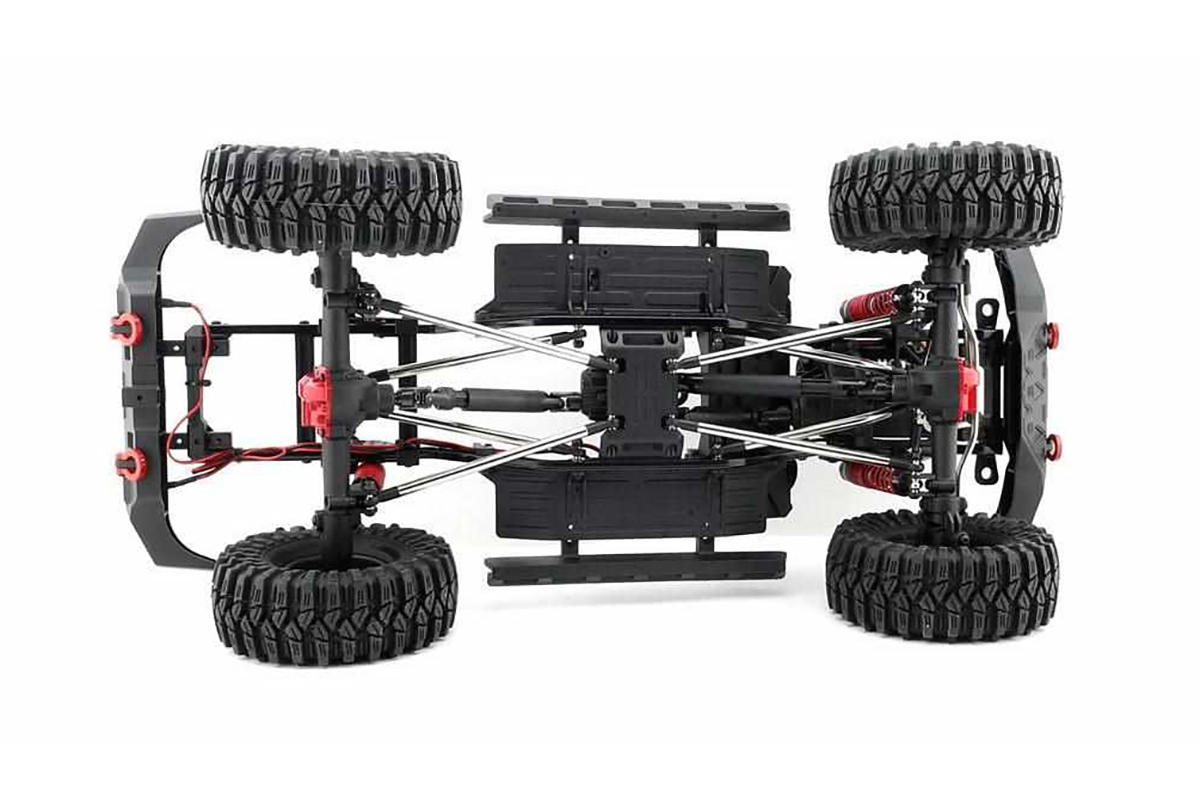

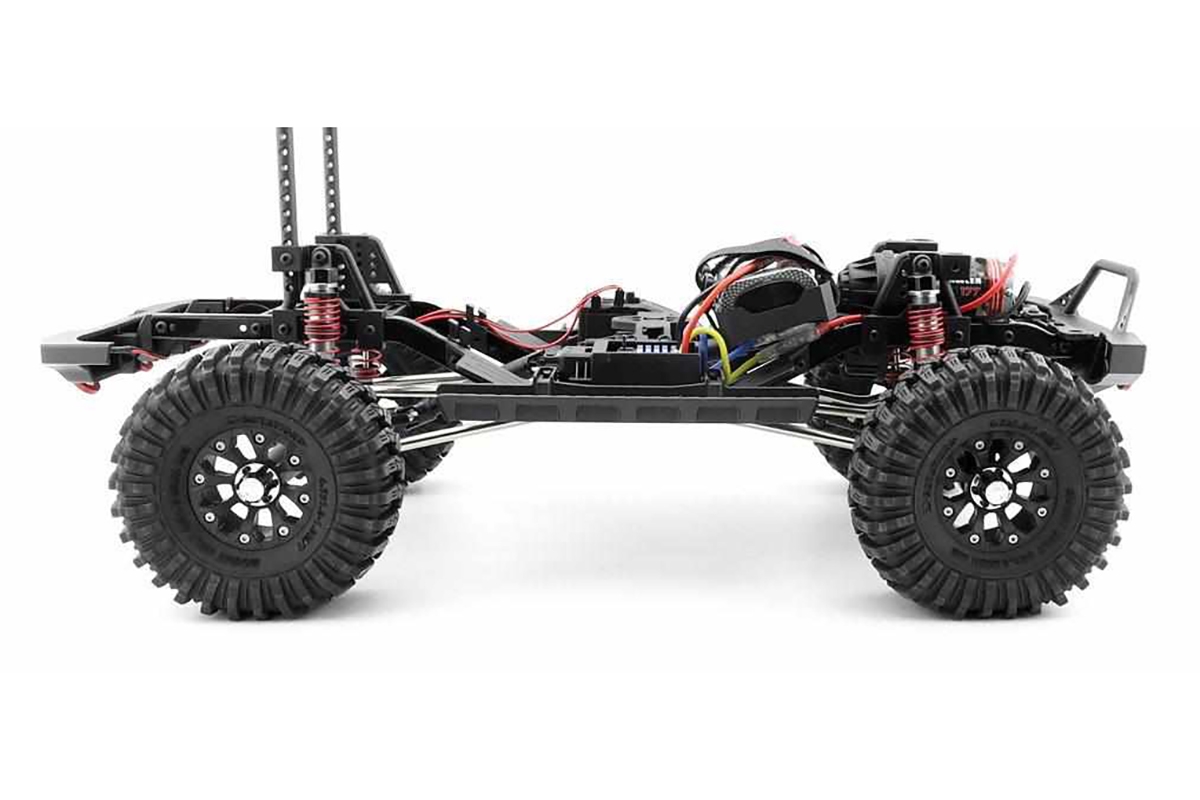

The chassis has integrally molded steel chassis rails, front mounted battery, 45 degrees steering angle with a positive Ackerman, solid steel links, ball-bearing all around, high-durability metal gears with slipper clutch, steel CVA transmission, beadlock wheels, etc.

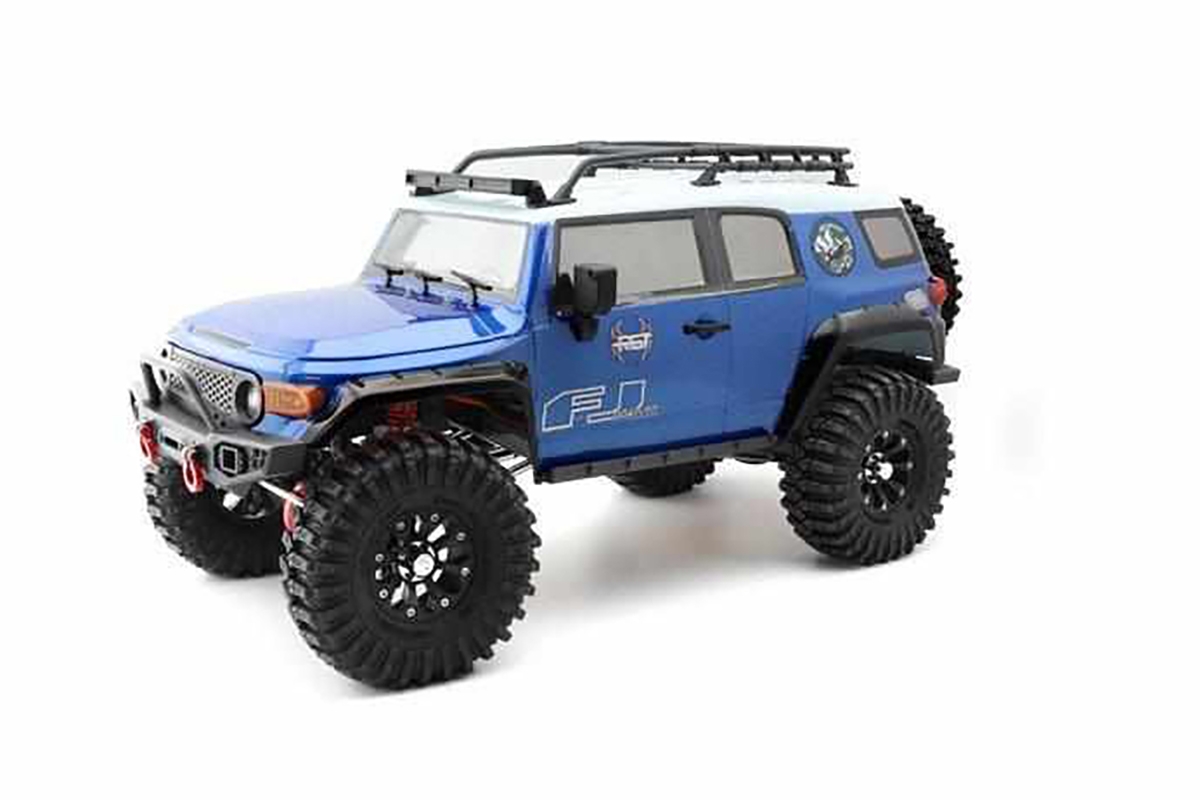

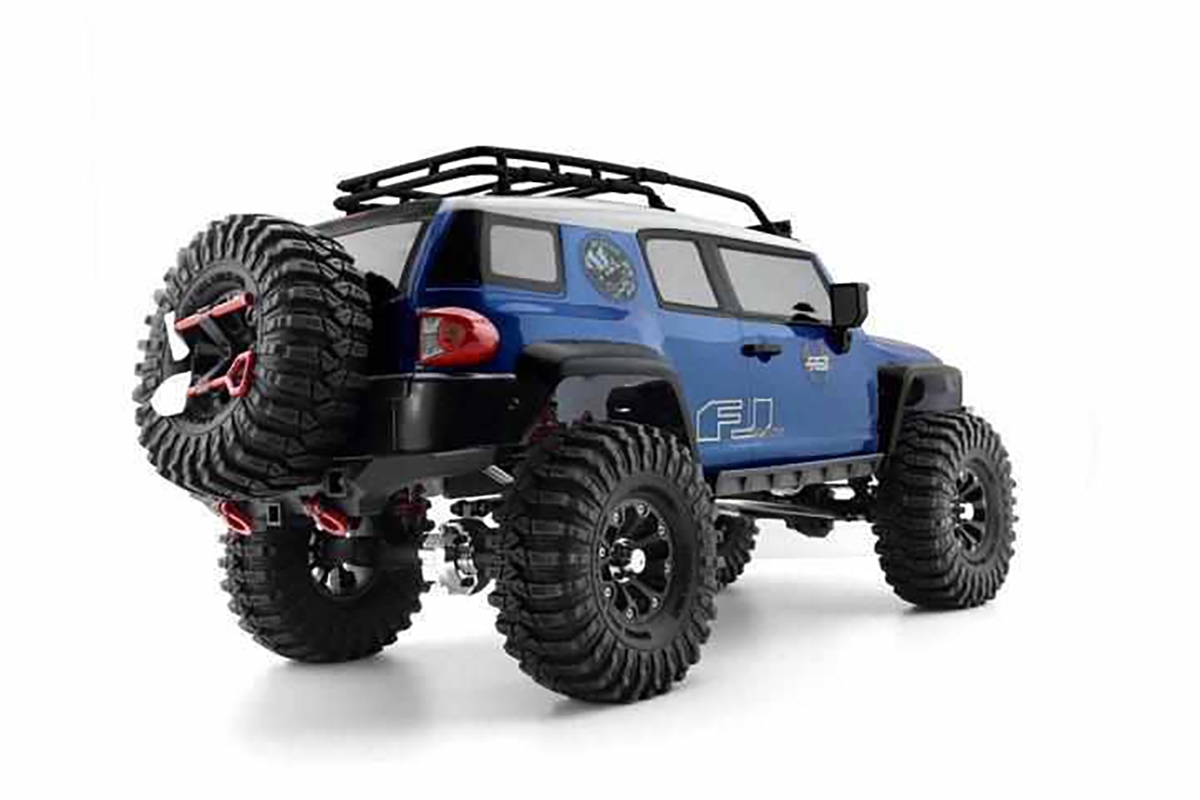

The Desert Fox PC bodyshell is fully painted, with accessories like a spare tire, roof rack, light ramp, foot pedals, front grille, angel-eye headlights, rear lights, LED blinkers, rear-view mirrors, wipers, door handles and others. It also has hidden front body posts to keep it clean without holes in the hood.


Features:

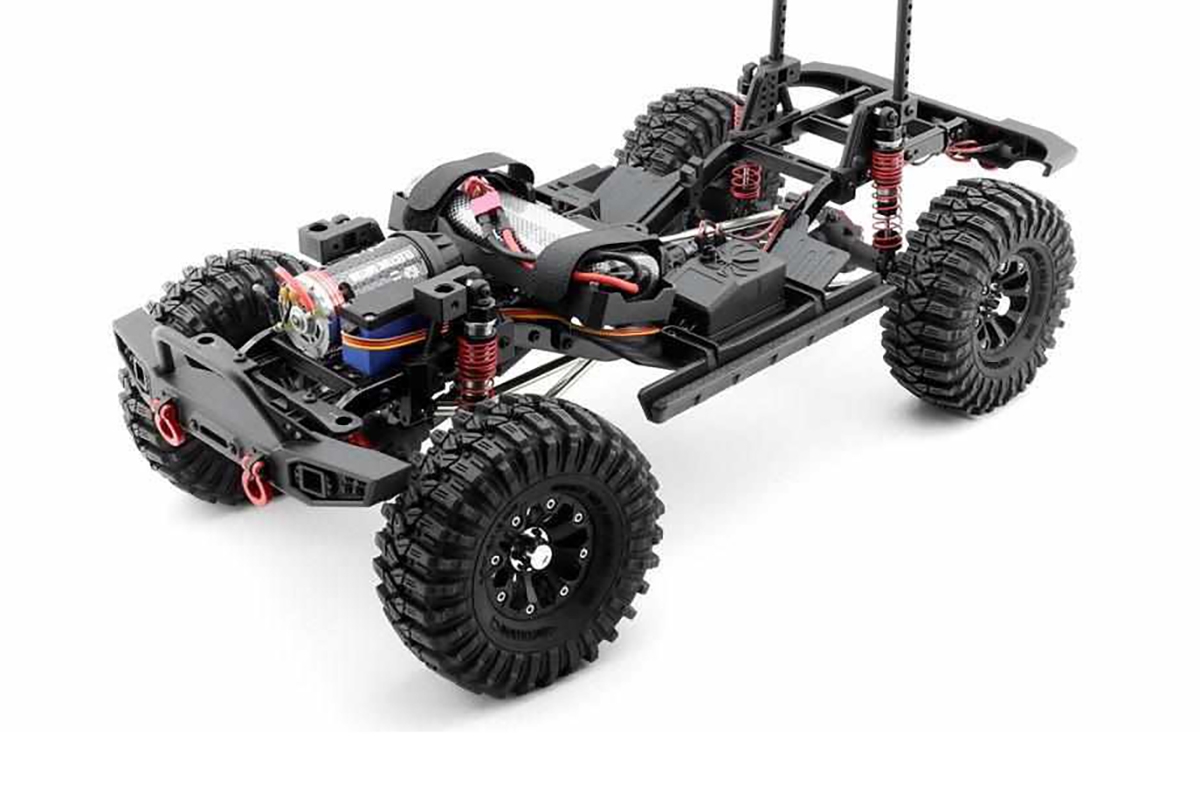

  • Front-mounted motor and reverse drive gearbox. The front weight bias design provides more traction for the front wheels and effectively reduces the possibility of rollover when passing through high-angle slopes. Reverse drive reduces a torque-twist effect during acceleration or climbing.
  • Ball bearings all around, high-durability metal gears with slipper clutch.
  • High-precision steel CVA shafts.
  • Adjustable oil-filled metal dampers with dual springs.
  • Newly designed steering knuckles with high precision CVA axles and 45 degrees maximum steering angle.

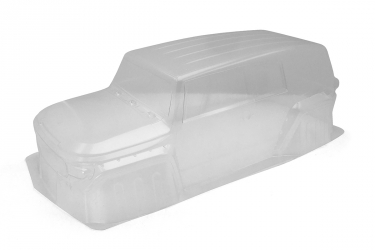

  • 1.2mm thick painted PC bodyshell with accessories and hidden front body posts.
  • Realistic 1.9-inch beadlock wheels.
  • Powerful RC550 brushed motor, 60A HobbyWing ESC and 15KG high-torque waterproof servo.

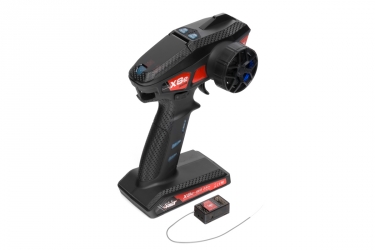

  • 2.4GHz 4-channel radio set, which is specially designed for crawlers.


RTR set contains:

  • Complete assembled model ready to run
  • RC 2,4GHz transmitter

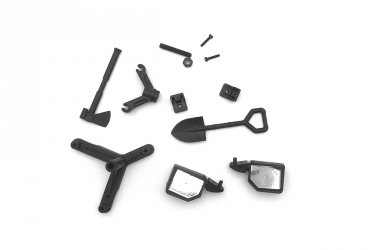

  • Scale accessories

Necessary equipment: 4xAA transmitter batteries, main battery pack 7.2V NiMH, or 7.4V LiPo with a corresponding battery charger.

'
Scale1/10
Wheelbase [mm]313
Width [mm]245
Height [mm]252
Length [mm]550
Weight [kg] [kg]3.05
Transmitter battery4×AA
Frequency [GHz]2.4
Servo gearsMetal
NiMH [čl.]6
Li-Po [čl.]2
Accessories (14) Spare parts (36) Tuning parts (6) Wheels (36)

Download

EU declaration of conformity 21.07.2023
