Code:3SK30080-06
Brand:SKY RC

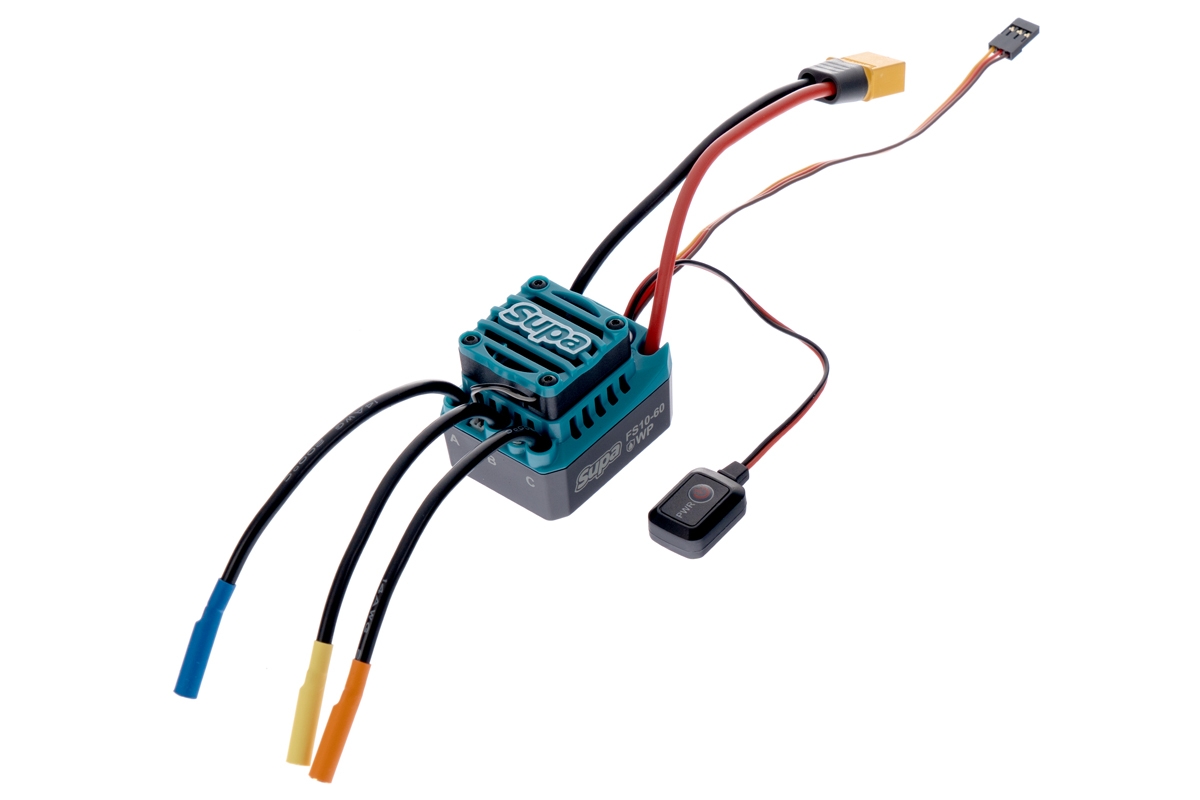

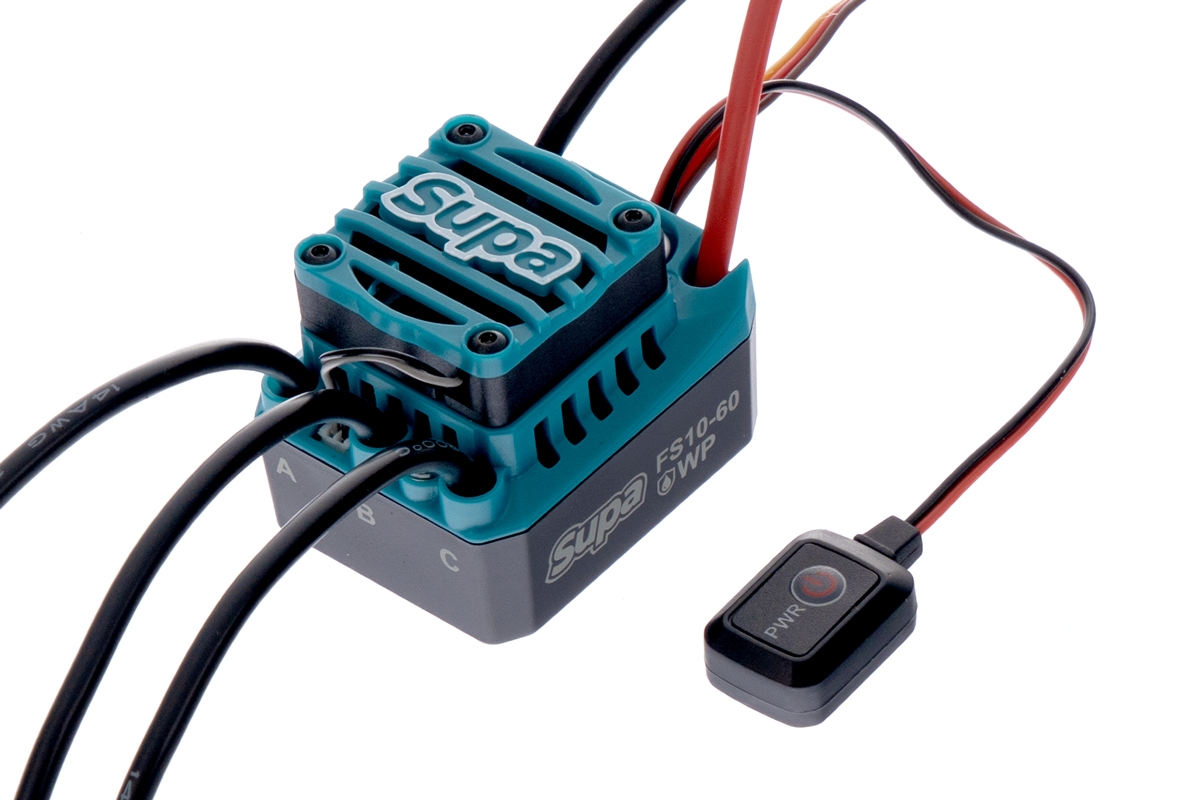

SKY RC FuriaX Supa 60A Brushless ESC
60A brushless electronic speed controller (ESC) for sensorless motors with a built-in high-performance 6V/7.4V switched BEC circuit, designed for 1:10 scale on-road cars, buggies, and short-course trucks. Powered by a 2-3S LiPo battery, ideal for sensorless brushless motors in sizes 3650, 3652, or 3660.
Not on stock
FuriaX SUPA 60A
The FuriaX Supa 60A ESC offers everything you need to fully unleash the potential of your 1:10 on-road or off-road RC car with a sensorless brushless motor—whether it’s an on-road touring car, an off-road buggy, or a lightweight short-course truck. It offers a wide range of 10 programmable parameters for perfect tuning of the motor, chassis, and track. So, if you take driving your 1:10 brushless RC car seriously, the splash-proof (IPX4) FuriaX Supa 60A speed controller from SkyRC is the right choice for you!
Features
- Specially developed for 1:10 on-road and off-road RC cars: 1:10 on-road cars, buggies, and short-course trucks with sensorless brushless motors powered by 2-3S LiPo or 6-9-cell NiMH batteries
- For motors: 2S LiPo power supply: 3650-size motors with KV ≤ 6000 / 2–3S LiPo power supply: 3650-size motors with KV ≤ 4000
- BEC voltage regulator with selectable 6.0 or 7.4 V output
- Compact dimensions, lightweight, patented high-efficiency cooling system
- Fan for optimal cooling
- Splash-proof (IPX4 standard)

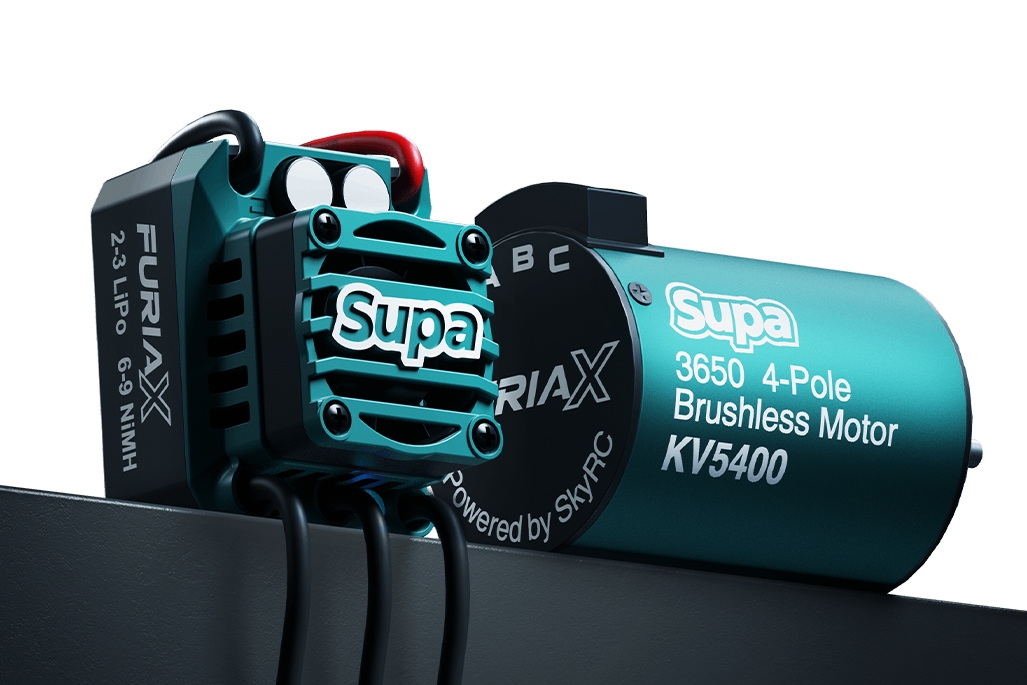

- Ideal for use with SkyRC FuriaX Supa brushless motors
- 10 programmable parameters
- Powerful switched BEC regulator up to 3 A at 6.0 V
- Advanced protection features (voltage protection, thermal protection, fail-safe, etc.)
- Programmable via the RC Gears mobile app with Bluetooth connectivity
Programmable Parameters
- General: Drive Mode, Voltage Protection, Thermal Protection, Number of Motor Poles, BEC Voltage
- Throttle Control: Start-up, Max. Forward Power, Max. Reverse Power, Throttle Neutral Range
- Brake Control: Regenerative Brake Intensity
ESC set Includes: FuriaX Supa 60A ESC with cables, user manual.
| Used for | Car |
| Type | AC |
| Constant current [A] | 60 |
| Max. peak current [A] | 360 |
| Li-Po [čl.] | 2 - 3 |
| BEC voltage [V] | 6 - 7.4 |
| Length [mm] | 48 |
| Width [mm] | 38 |
| Height [mm] | 38.5 |
| Weight [g] | 100 |
| Control | two-way |
| Sensor imputs | No |
| Programmable | Yes |
| Water resistance | Splash-resistant |
