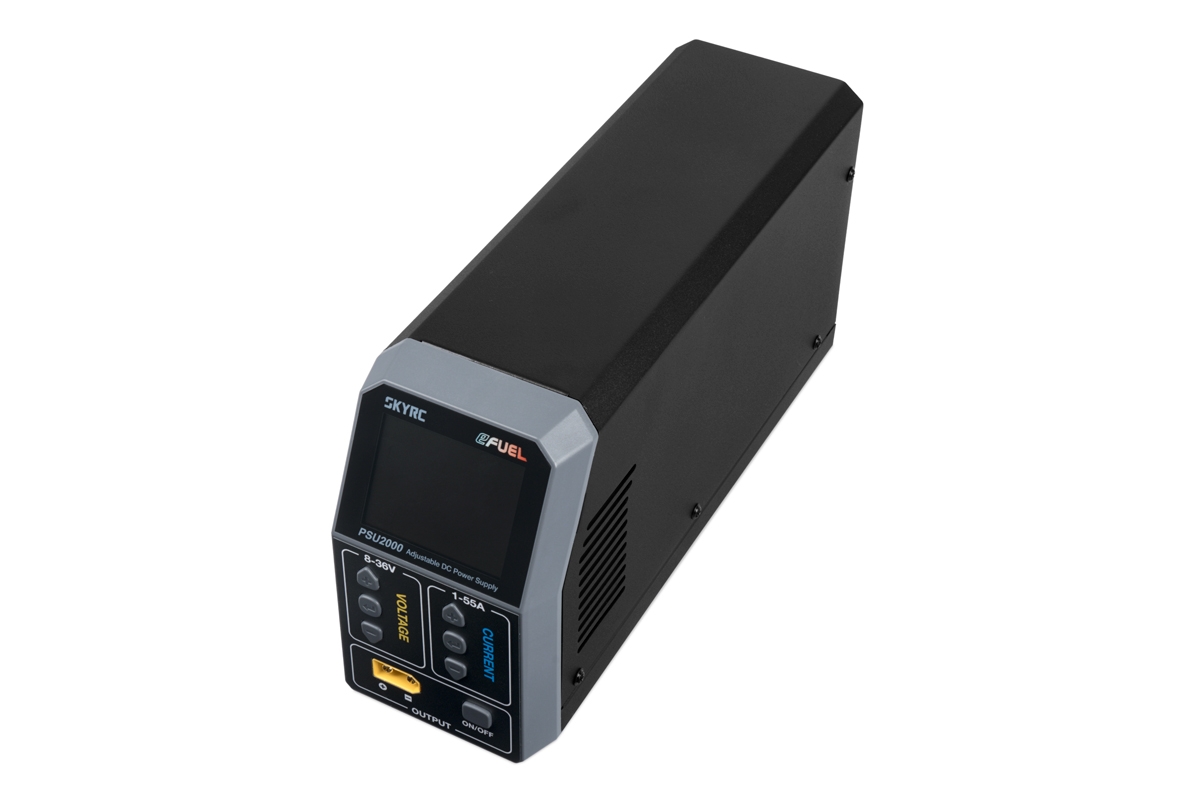

EFUEL PSU2000 2000W Power Supply

High-performance—yet lightweight, compact, and housed in a durable aluminum casing—the PSU2000 stabilized power supply is ideal for powering model-making chargers and other devices. It offers an adjustable output voltage of 8–36 V and current of 1–55 A with a power output of up to 2000 W.

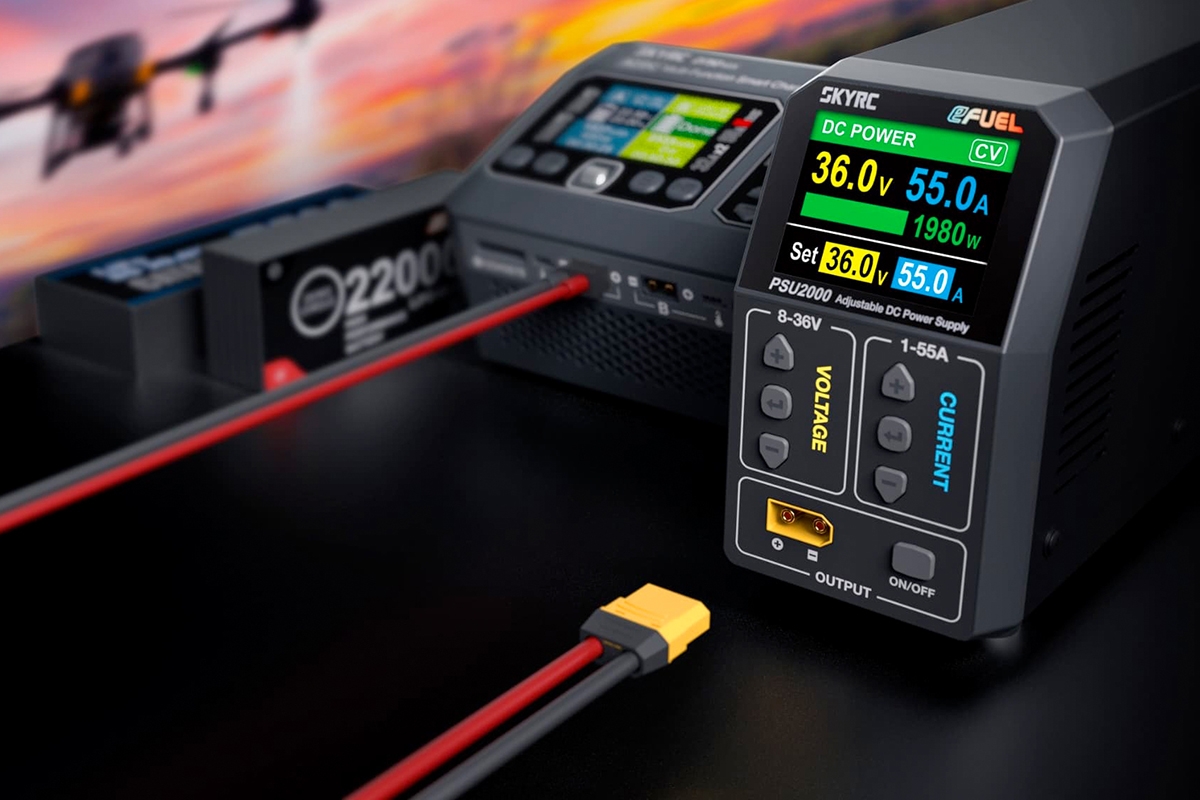

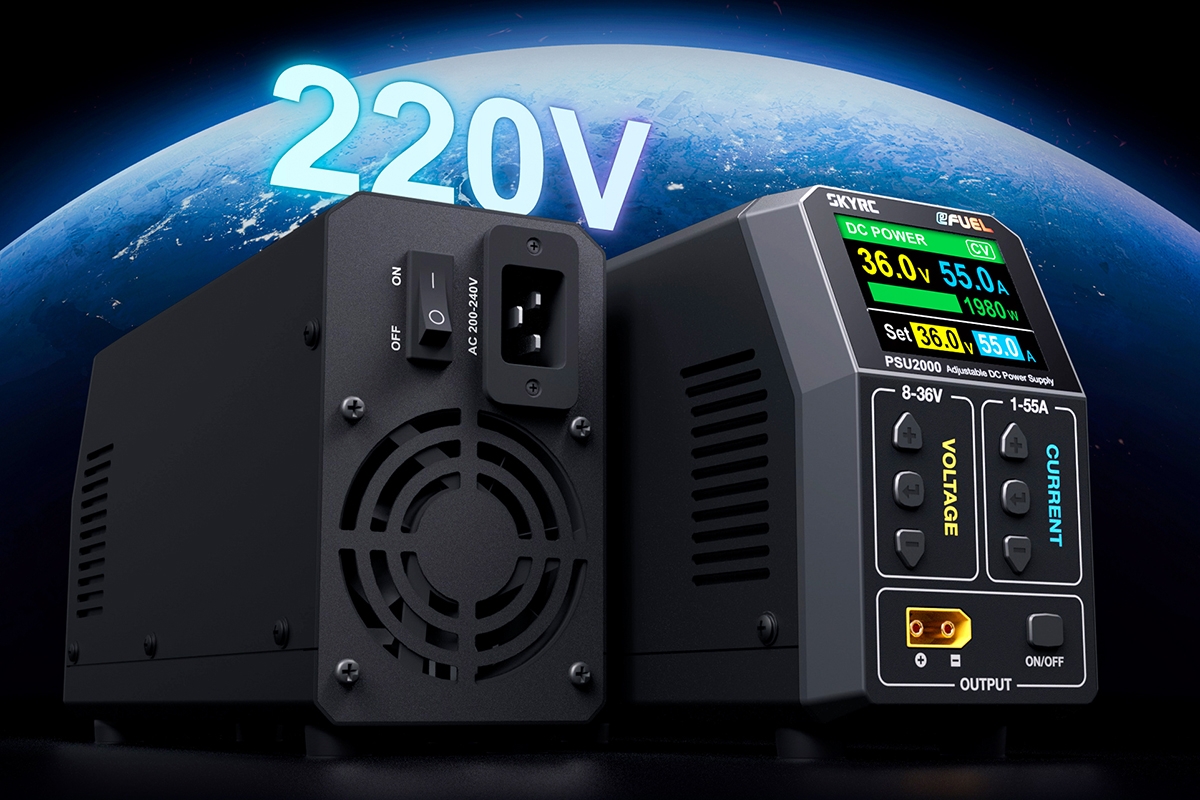

The power supply’s 8–36 V/55 A (max. 2000 W) output is equipped with an XT90 connector with non-reversible polarity. The output voltage and current are adjustable via buttons on the front panel, and the current output voltage and current are displayed on the LCD screen. The power supply is equipped with two switches—the switch on the rear panel turns off the entire power supply, while the push-button switch on the front panel turns the DC output on and off.

The power supply is equipped with protection against current and thermal overloads, as well as output short circuits. It features a forced-air cooling system with an intelligent fan that ensures consistently stable operating conditions and protects against overheating.

Caution: Due to the very high output power and corresponding power consumption, the electrical circuit to which you connect the power supply must be equipped with a circuit breaker rated at least 15 A. Also, avoid using extension cords whenever possible.

The power supply set includes: PSA2000 regulated power supply, power cord, XT90/XT90 power cable, and user manual.
