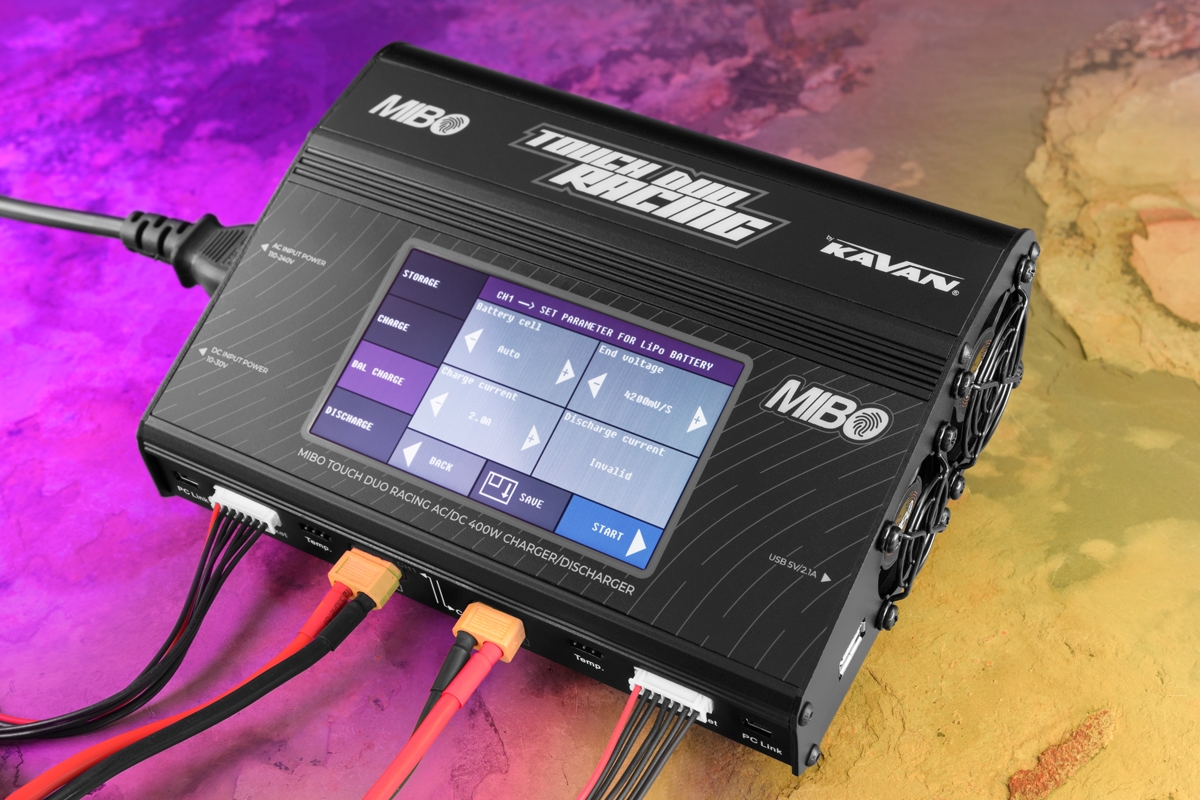

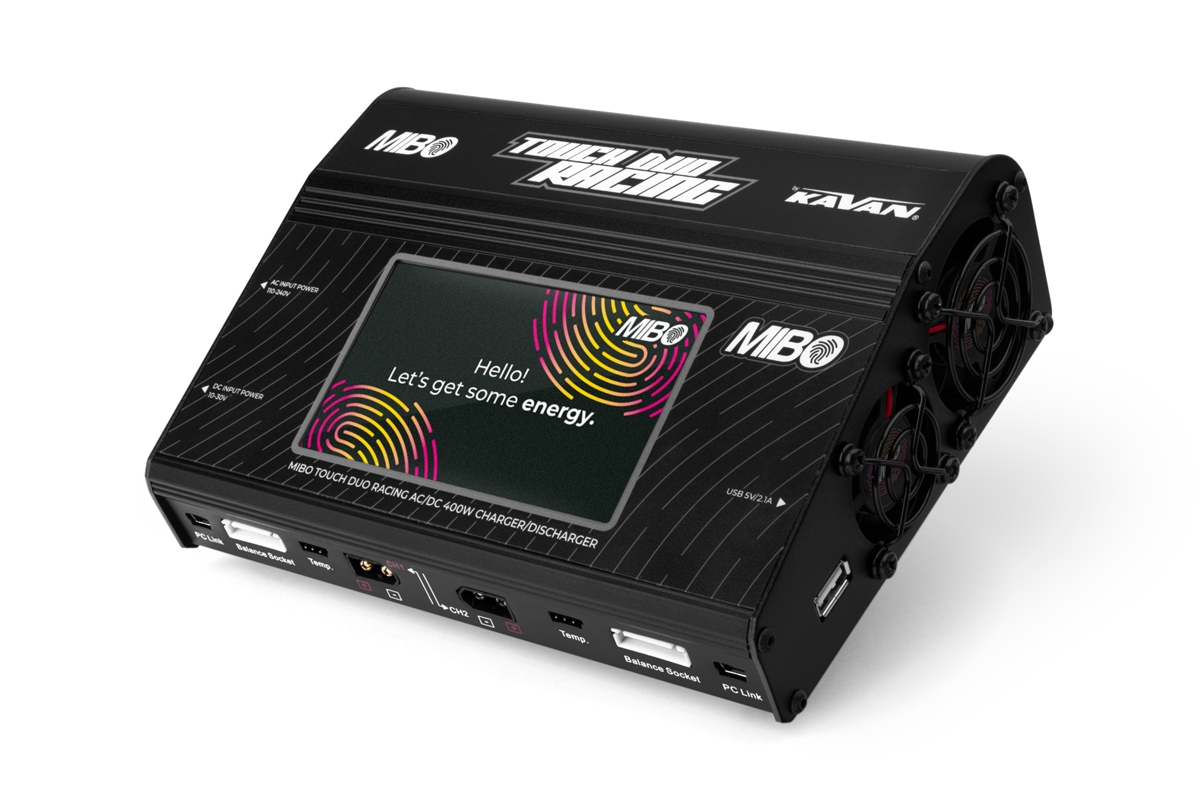

MIBO Touch Duo Racing AC/DC 400W Charger/Discharger

MIBO Touch Duo Racing AC/DC 400W is a dual-channel charger and discharger with a touchscreen display. It has built-in balancers with up to 200 W per channel for all battery types (NiMH, NiCd, LiPo, LiHV, Li-ion, LiFe and lead-acid). The charger is designed to be powered from a mains supply 100–240 V/50–60 Hz, a 12 V lead-acid battery (traction or car battery), or a suitable stabilised power supply.

The MIBO Touch Duo Racing is equipped with intelligent and user-friendly software that offers many useful functions and has a wide range of helpful capabilities:

• a program for new types of „high-voltage“ LiHV batteries with a terminal voltage for charging up to 4.35 V
• the end-voltage setting for charging and discharging lithium batteries (allowing the gentle charging that aviators like, or the brutal overcharging that „car guys“ are looking for
• the end-voltage setting for charging and discharging lead-acid batteries (allows all types of lead-acid batteries to be charged safely and optimally)
• measurement of the total voltage and the voltage of each cell (for lithium batteries) even without charging/discharging
• a MicroUSB port for firmware updates
• when powered from a mains supply, both channels can also serve as a stabilized power supply of 0.1–28 V with an adjustable current limiter of 0.1–20 A (up to 200 W)
• charging of smart batteries for drones (3S LiPo, 4S LiHV, 6S LiHV)

Overview of basic functions and parameters:

• Input voltage 10–30 V DC - for full use of the charger's power, the power supply must be at least 24 V

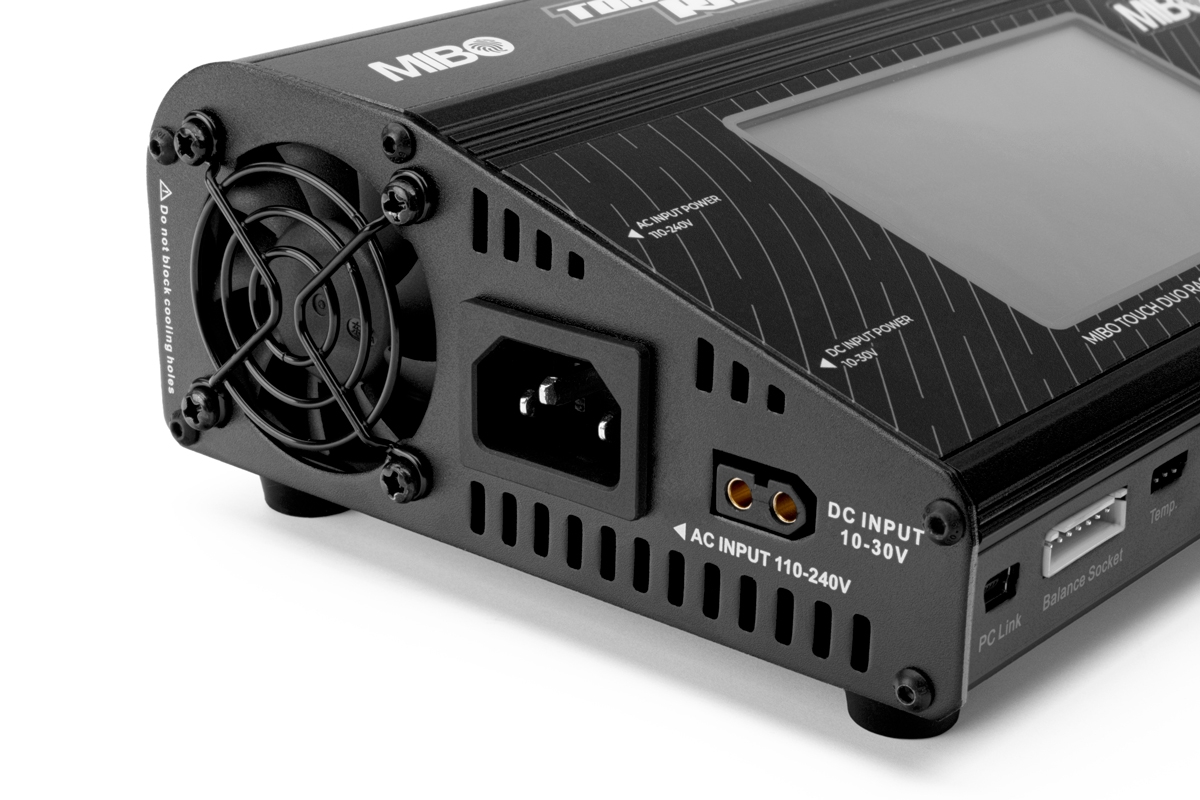

• Mains supply 100–240 V/50–60 Hz
• For charging and discharging 1–15 NiCd/NiMH cells, 1–6 Li-ion/LiPo/LiFe/LiHV cells or 2–20 V lead-acid batteries
• Adjustable charging current (0.1–20.0 A) in 0.1 A steps
• Adjustable discharge current (0.1–5.0 A)
• When mains powered, allows power to be allocated to charging channels (2x 200 W, 1x 400 W, 300 W/100 W, 100 W/300 W)
• Max. discharge power of 25 W per channel
• Automatic charge and discharge mode for NiCd, and NiMH with adjustable current limit
• Charge termination with delta-peak automatic charging for NiCd and NiMH batteries
• Lithium and lead-acid batteries are charged using the „constant current/constant voltage“ method
• Adjustable sensitivity of delta-peak detection for NiCd and NiMH batteries
• Adjustable end voltage for charging and discharging lithium and lead-acid batteries
• Repeatable charge/discharge or discharge/charge cycling for NiCd and NiMH batteries, up to 5 cycles
• Three charging modes for lithium batteries - normal charging, balanced charging, storage charging/discharging.
• Termination of charging when the set time or delivered charge is exceeded.
• Memory for 8 charge/discharge programs.
• Measurement of the pack's total voltage and individual cell voltage (for lithium batteries)
• Measurement of the pack's total internal resistance and individual cell resistance (for lithium batteries)
• With the mains supply, the possibility of using both channels as a stabilised power supply with an output voltage of 0.1–28 V with an adjustable current limit of 0.1–20 A (max. according to the allocated power for the channel) to power other electrical equipment
• Programs for charging intelligent drone batteries (3S LiPo 11.1 V, 4S LiHV 15.2 V and 6S LiHV 22.8 V)
• Micro USB port for communication with PC and charger's firmware update
• USB power output 5.0 V/2.1 A for powering/charging mobile phones, tablets and similar devices

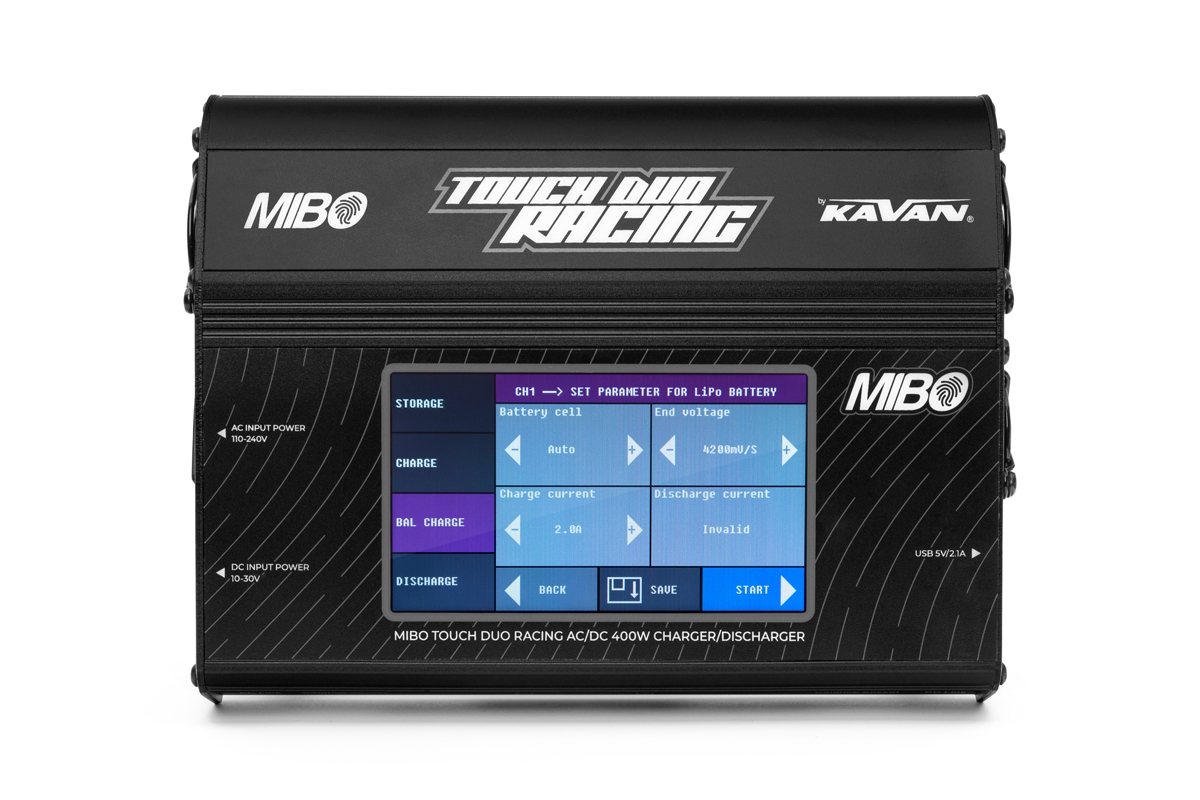

• Backlit LCD touch screen with simple and intuitive menu and parameter display during charging/discharging
• A number of text warning messages contribute to safe operation - incorrect input voltage, incorrect wiring, unsuitable battery or battery condition, incorrect polarity at the output
• Protection against over-polarity and short-circuit at the output.
• Compact aluminium enclosure
• Built-in fans for forced cooling

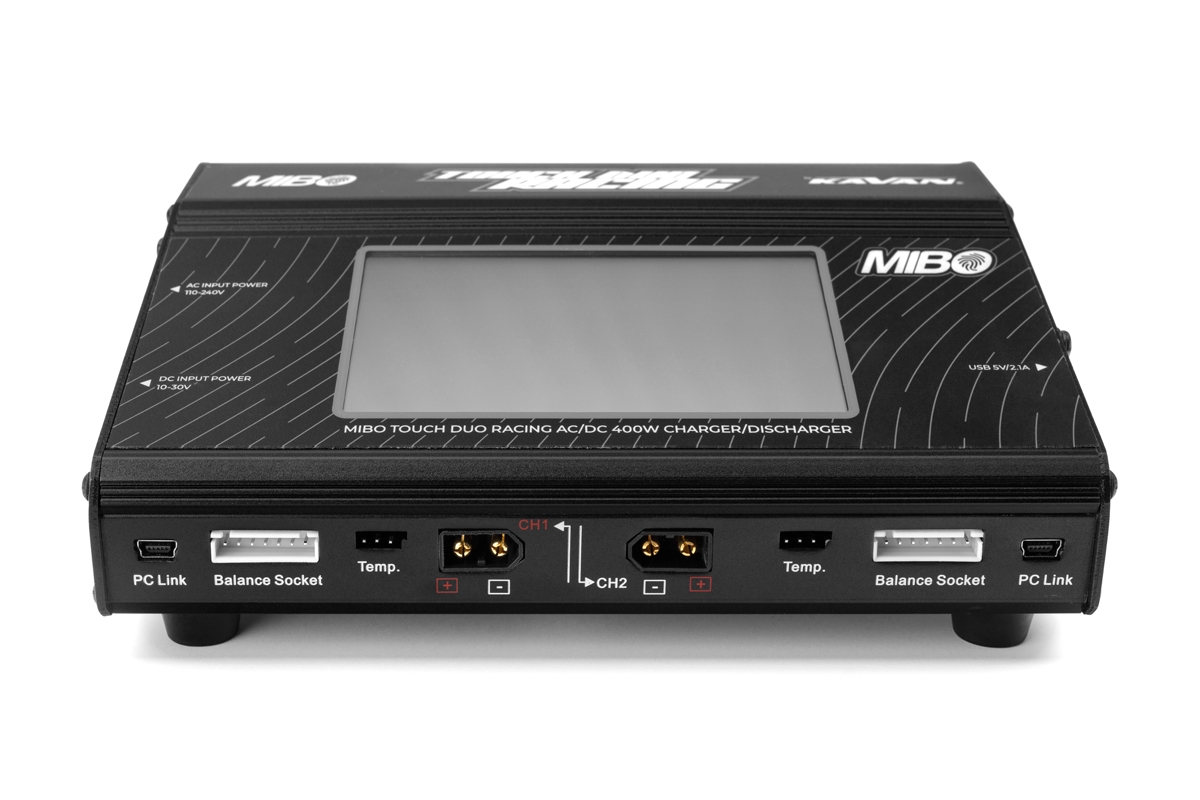

The charger is equipped with XT60 sockets in both channels and is shipped with 2 JST-XH service connector adapters allowing direct connection of power cables and JST-XH connectors of 2–6S LiPo packs. If you use packs with XT60 and JST-XH connectors, you don't need any charging cables. You can use common Sky RC or RC System adapters to connect service connectors from other systems.

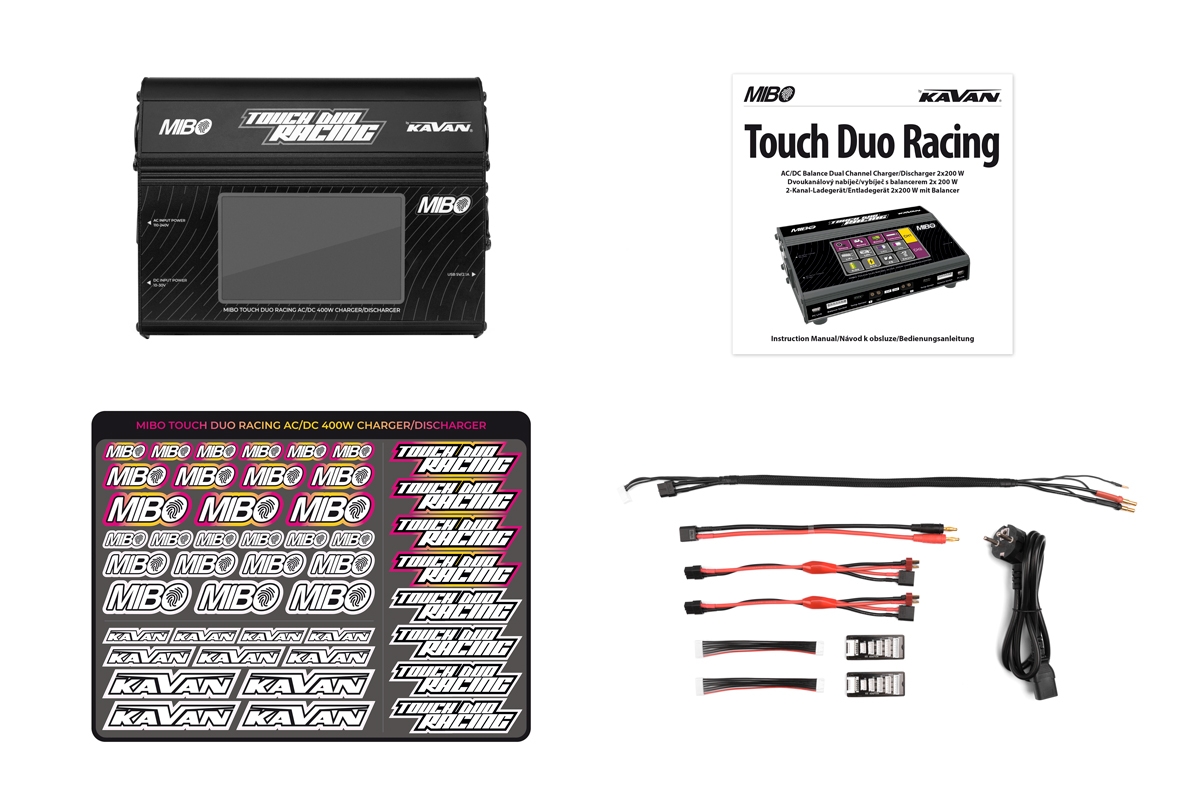

The charger set includes:

• MIBO Touch Duo Racing charger
• 2x XT60/XT60+Dean-T charging cable
• 2x JST-XH balancer adapter 2–6S
• 2S LiPo hard-case charging cable
• 4mm banana/XT60 power cable
• mains power cable
• user manual
