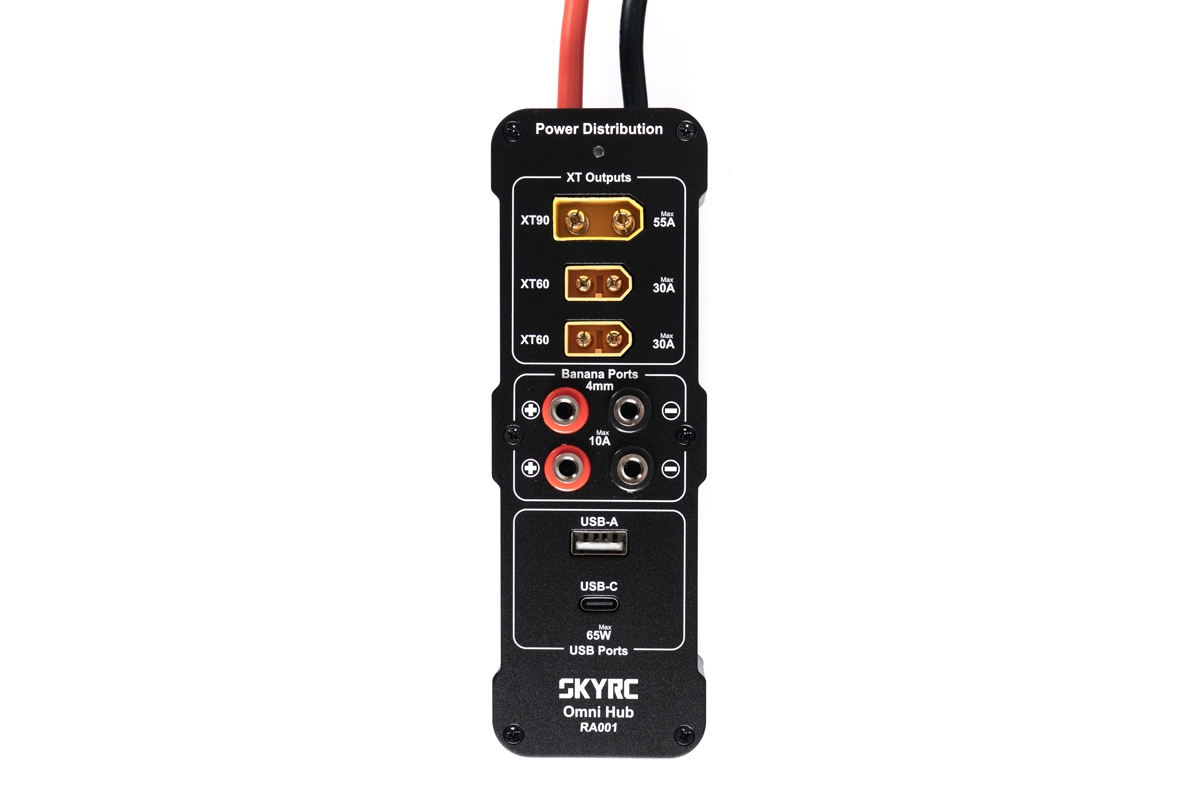

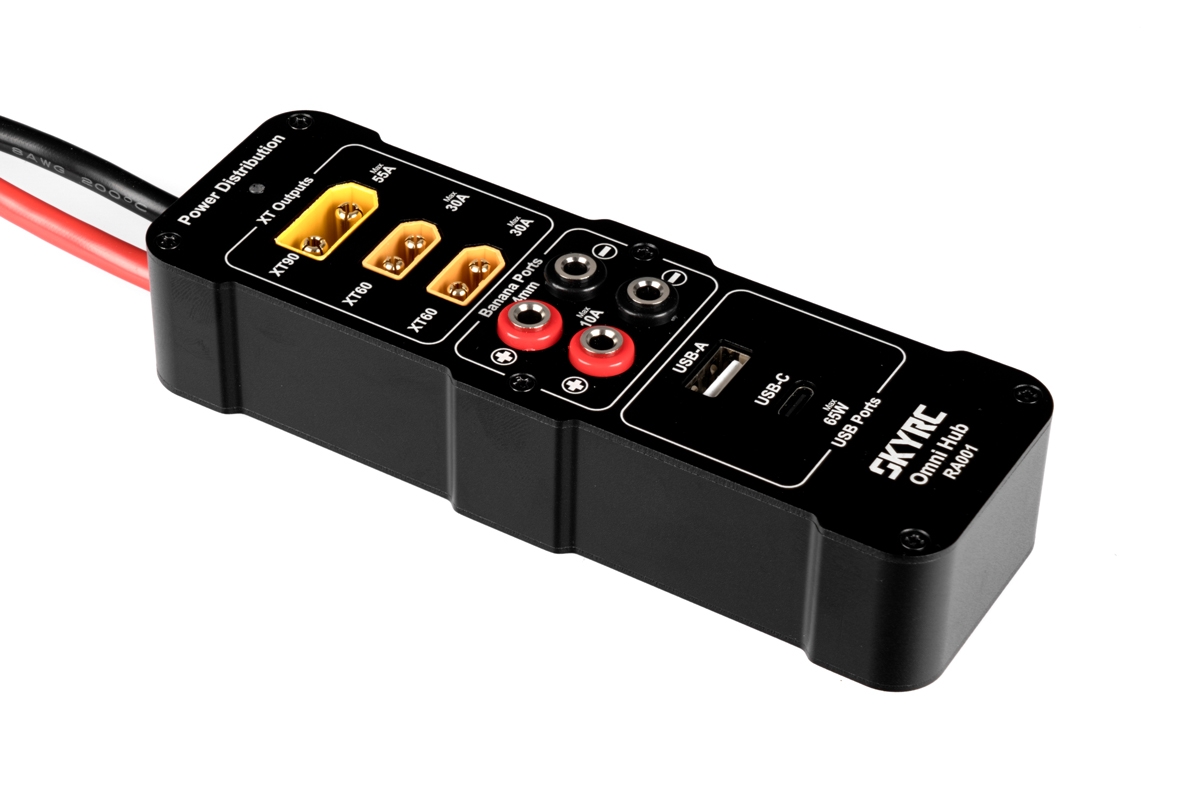

SKY RC RA001 Omni XT60 Power Distribution Hub

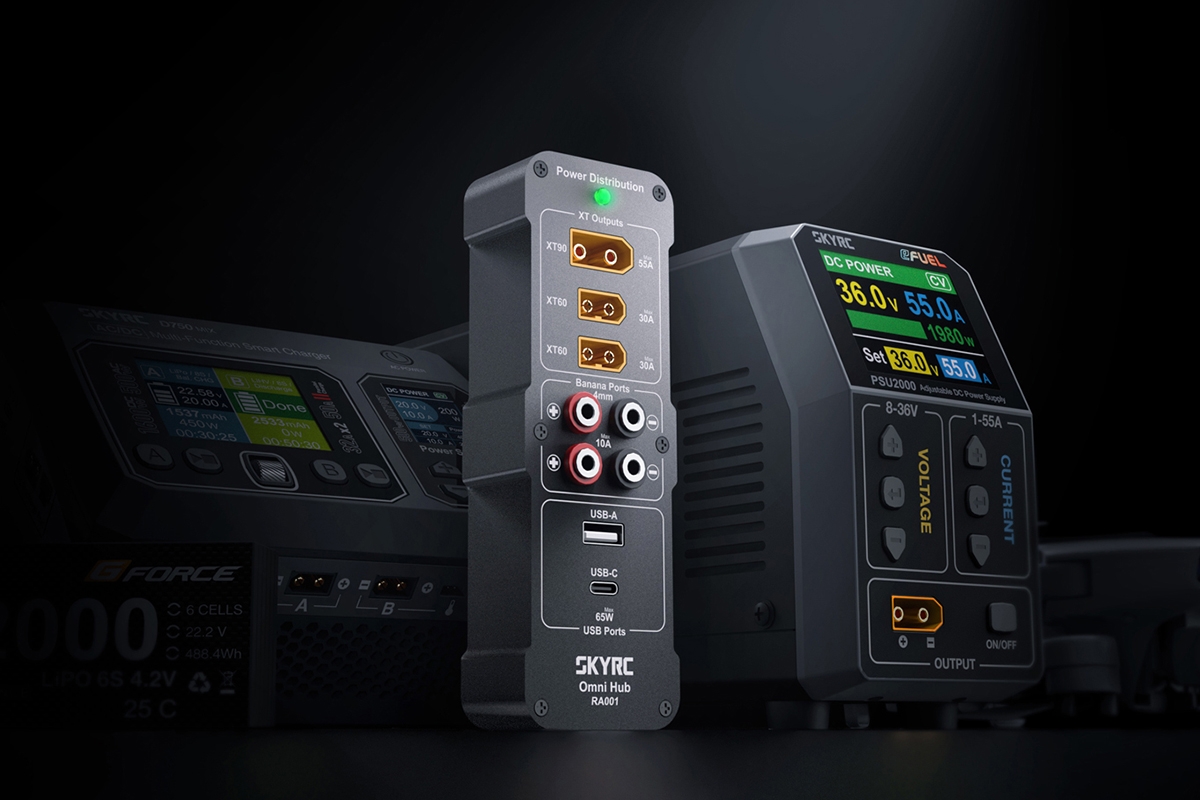

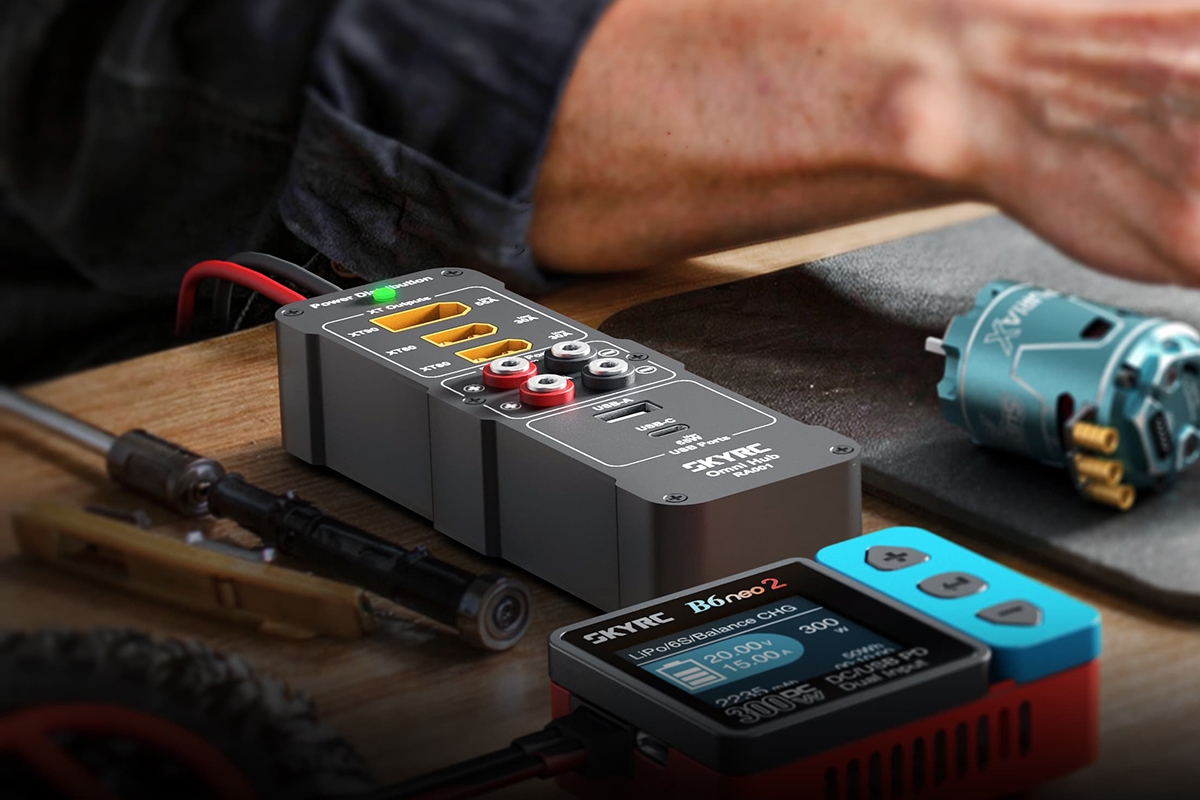

The SkyRC Omni Hub is a power distribution and charging hub that, when used with the eFUEL PSU2000 stabilized power supply, allows you to distribute its 1,980 W of power to power multiple modeling devices (chargers, etc.) and charge digital devices with high power requirements, enabling them to operate simultaneously. The hub was specially designed to work with RC model and digital electronic devices.

Power Supply: 8–36 V DC (e.g., SkyRC eFUEL PSU2000), total max. current: 55 A, power cable with XT90 connector.

Outputs:

• XT90 1x: max. 55 A
• XT60 2x: max. 30 A
• 4 mm banana jacks (2x): max. 10 A

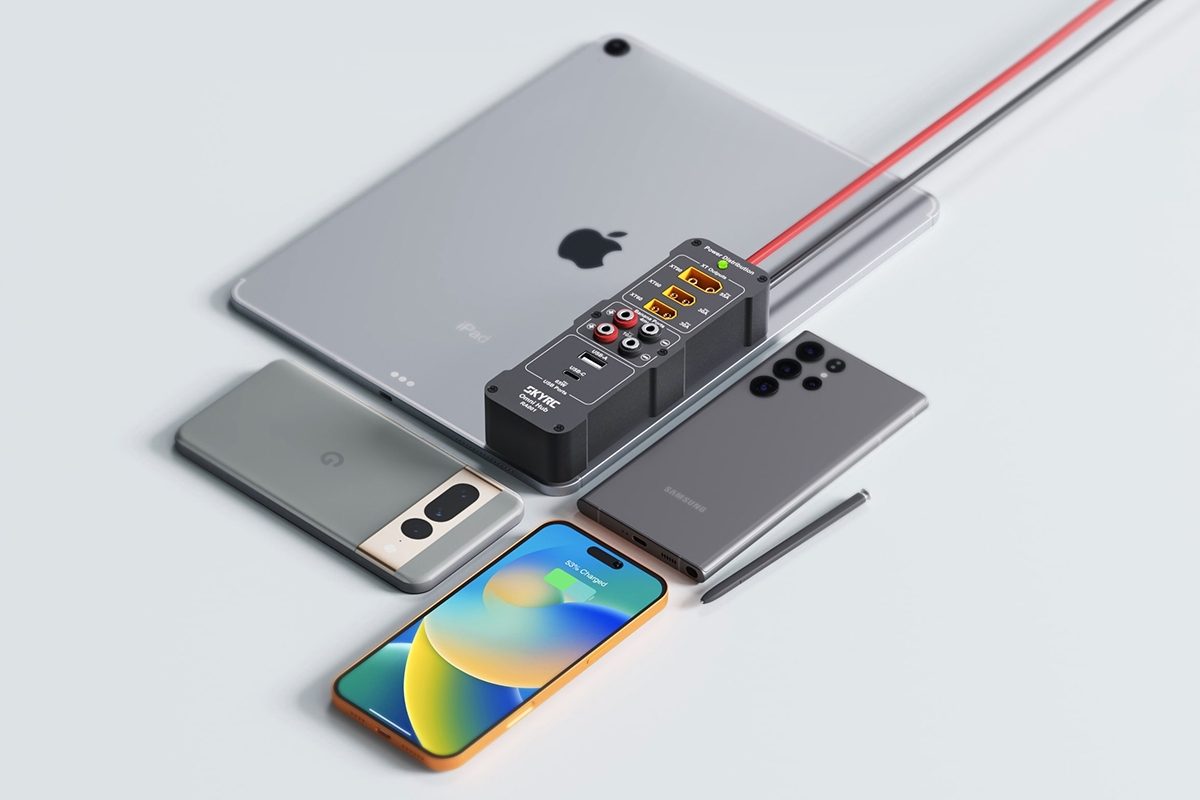

• USB-C: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A, max. 65 W
• USB-A: 5 V/3 A, 9 V/2 A, 12 V/1.5 A, max. 18 W
• USB-C + USB-A simultaneously: 5 V/3.6 A, max. 18 W (when using the USB-C and USB-A ports simultaneously, the output voltage of both is limited to 5 V)

Package contents: Omni Hub RA001 power and charging hub, user manual.
