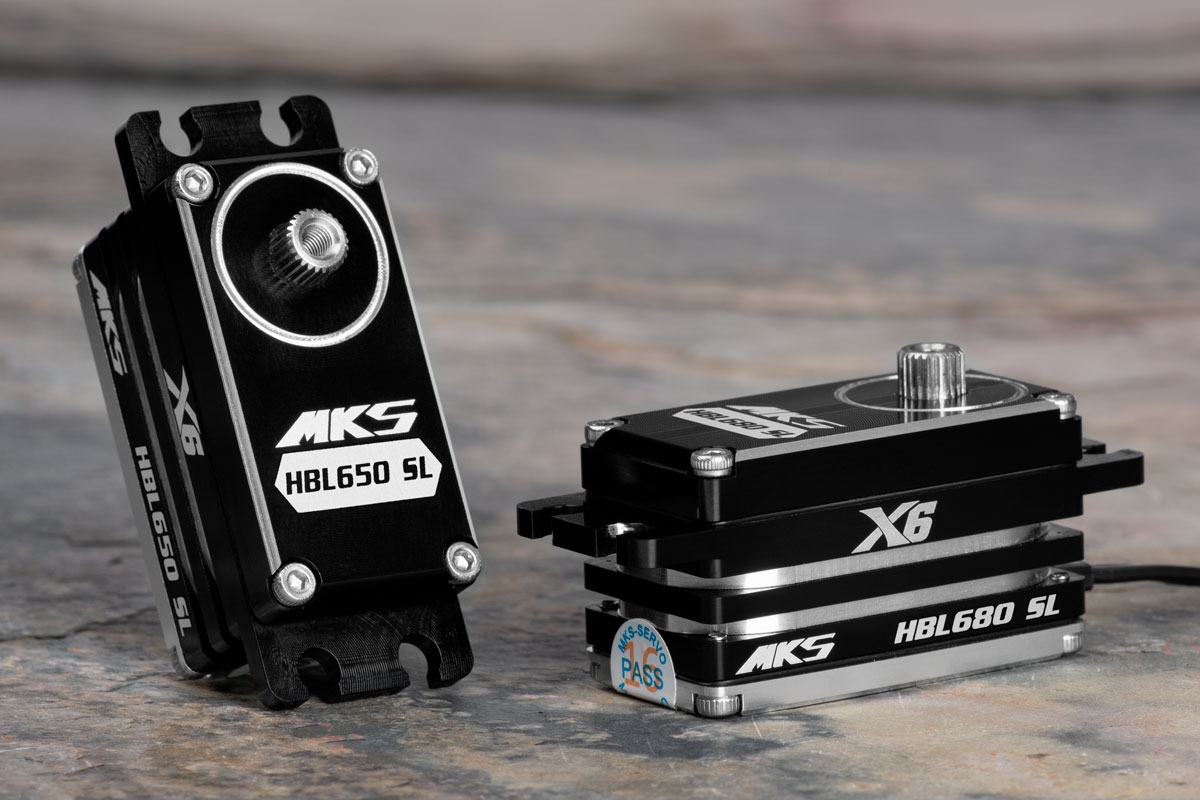

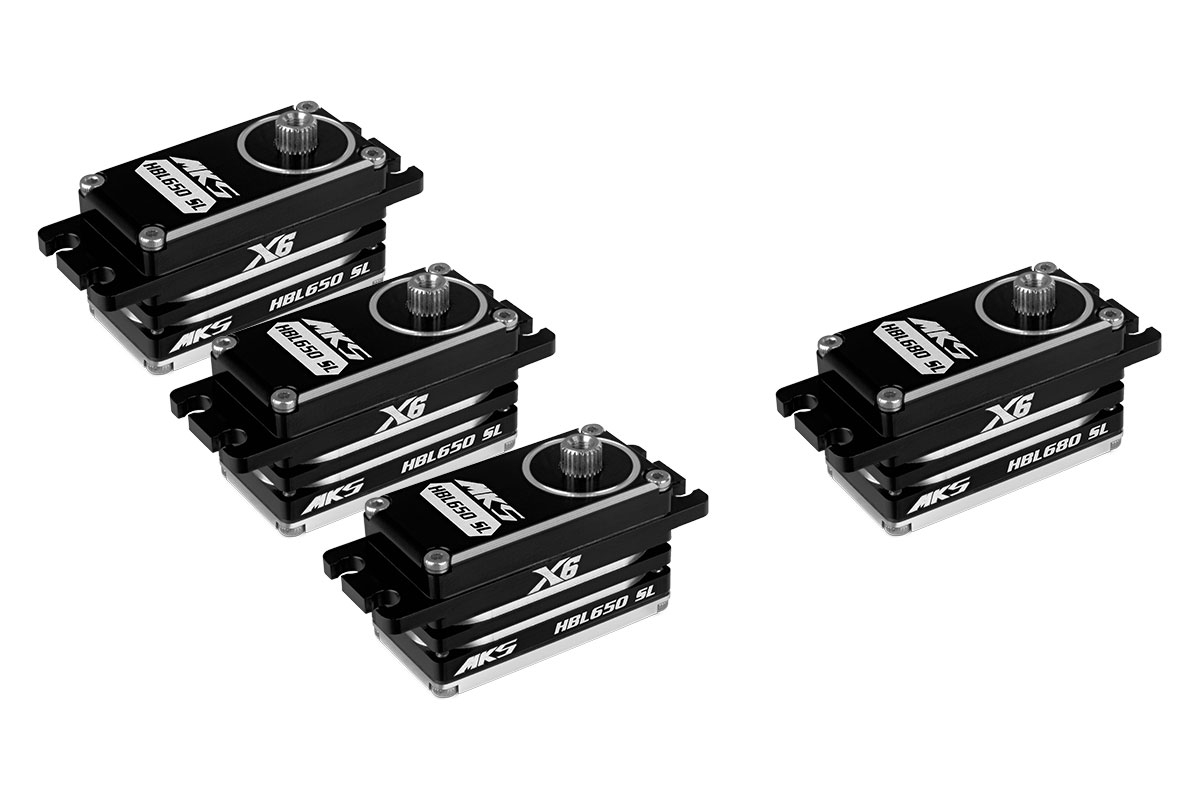

HBL650SL*3+HBL680SL*1 Combo Pack

Combo pack of standard low-profile servos for 550-700 class helicopters containing 3x HBL650SL cyclic low-profile brushless servos and 1x HBL680SL tail low-profile brushless servo (narrow-band 760µs). Compatible with most of 760µs gyro and flybarless systems.

HBL650SL

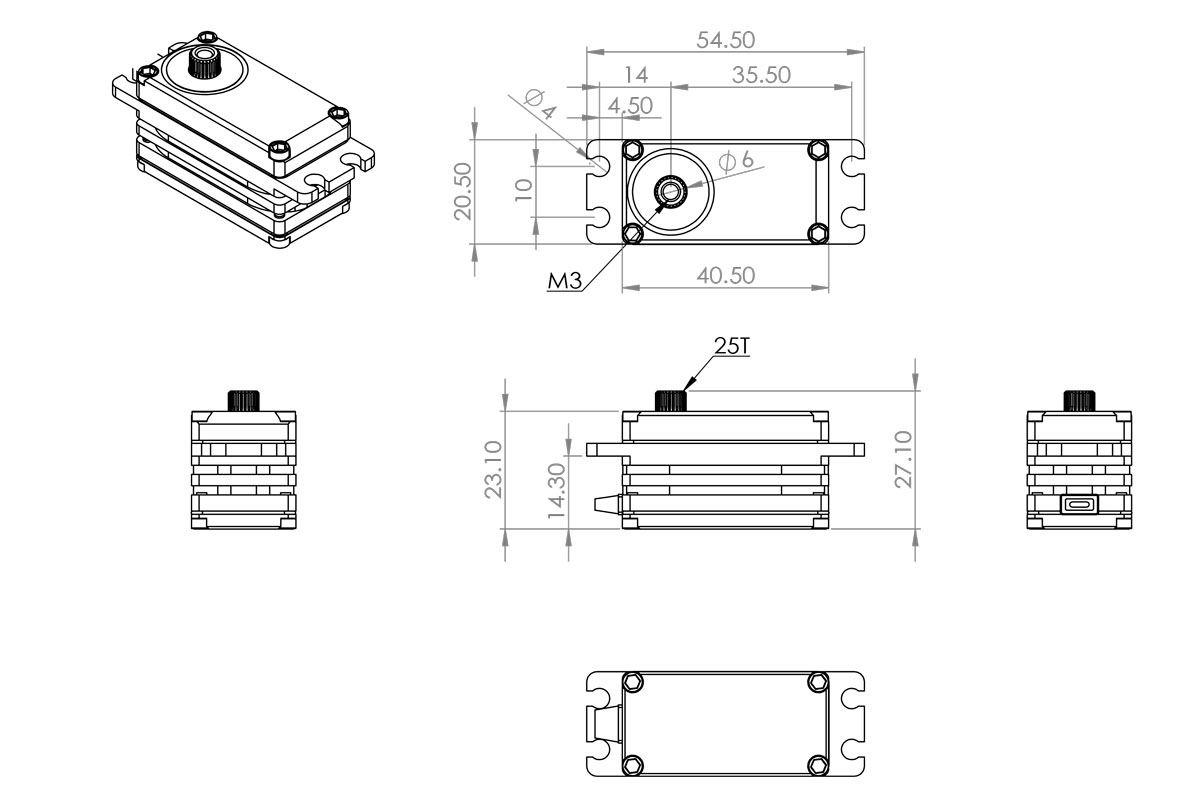

Super high torque/super high speed 73g HV digital brushless low-profile standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for cyclic of 550-700 class helicopters. Torque 18.5kg.cm, speed 0.110s/60° at 6.0V, torque 22.9kg.cm, speed 0.090s/60° at 7.4V, torque 25.4kg.cm, speed 0.081s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40.5x20.5x23.1mm, weight 54g.

HBL680SL
High torque/ultra high speed 54g HV digital narrowband (760µs) brushless low-profile standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 550-700 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 7.0kg.cm, speed 0.056s/60° at 6.0V, torque 8.6kg.cm, speed 0.045s/60° at 7.4V, torque 9.5kg.cm, speed 0.041s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40.5x20.5x23.1mm, weight 54g. Non-programmable.
