SKY RC ITV500 Mini HeatVision

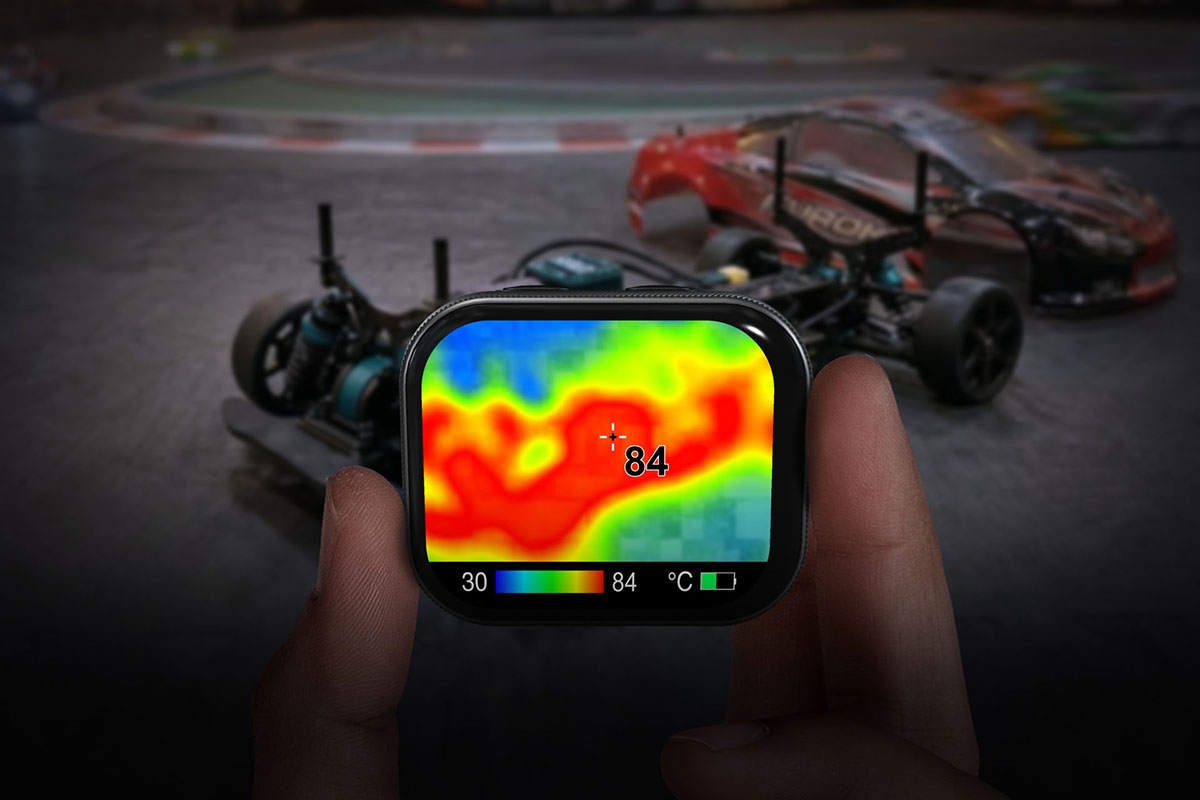

The SkyRC ITV500 is a compact and portable miniature infrared thermal camera designed for fast and accurate surface temperature measurements. It was specially developed for RC modelers and can measure the temperatures of motors, speed controllers, batteries, and other devices. Unlike conventional infrared thermometers, it provides information not only on the temperature at a specific point but also displays the temperature distribution across the entire field of view.

Features

• High-precision far-infrared (FIR) temperature sensor
• Field of view: 55° x 35°
Measurement distance: up to 5 m; for high accuracy, up to 20 cm
• Temperature sensitivity of 100 mK at 1 Hz
• 1.83" (240x283 pixels) high-resolution touchscreen for real-time display of measured objects
• Camera frame rate of 8 frames/s
• Camera with memory for 100 images
• Wide temperature measurement range from -20 °C (-4 °F) to 300 °C (572 °F)
• Easy switching between Celsius, Fahrenheit, and Kelvin scales
• Automatic marking of points with maximum and minimum temperatures
• Temperature measurement at any point within the field of view selected by touching the display
• Built-in 600 mAh lithium-ion battery with LED indicator; charging via USB-C (5 V)
• Multiple emissivity settings for accurate temperature measurement of objects made of different materials and with different colors
• Multiple color palette modes for temperature display: White Hot for general observation, Ironbow for quick identification of areas with abnormal temperatures, Rainbow for scenes with minimal temperature differences
• Automatic shutdown when idle

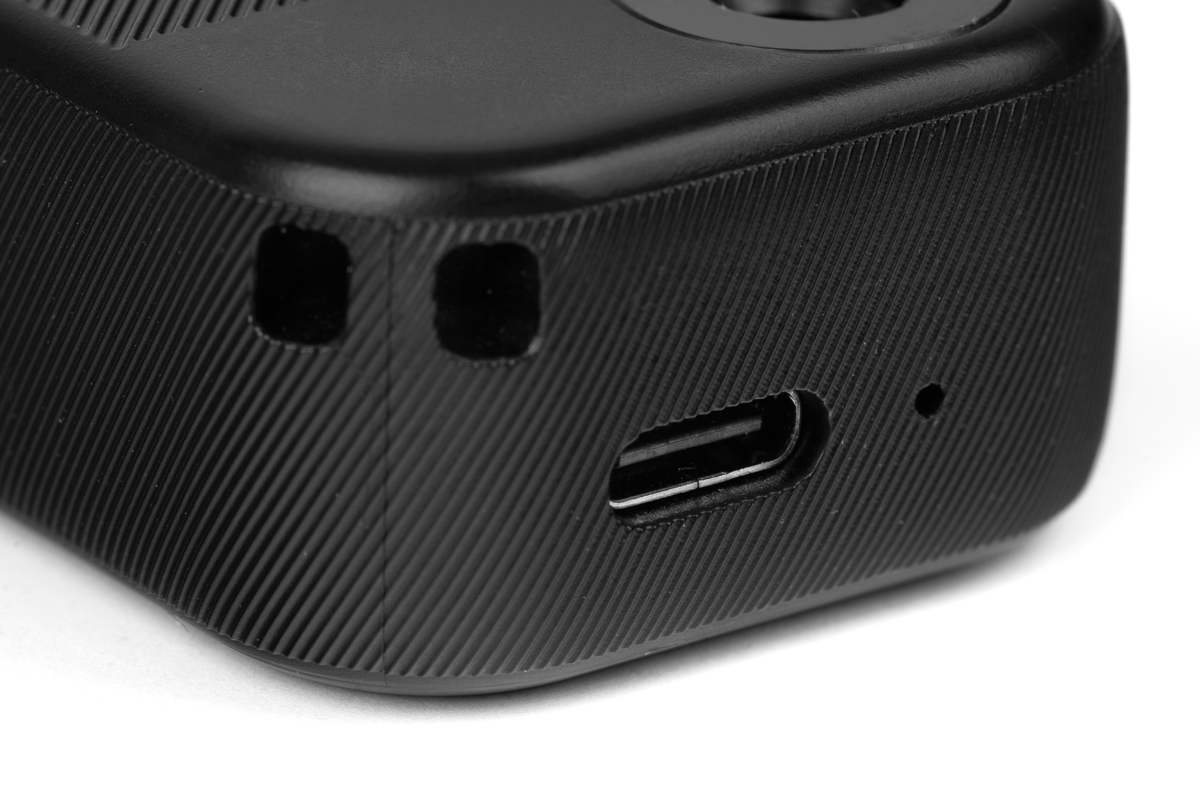

• USB-C port for battery charging and firmware updates

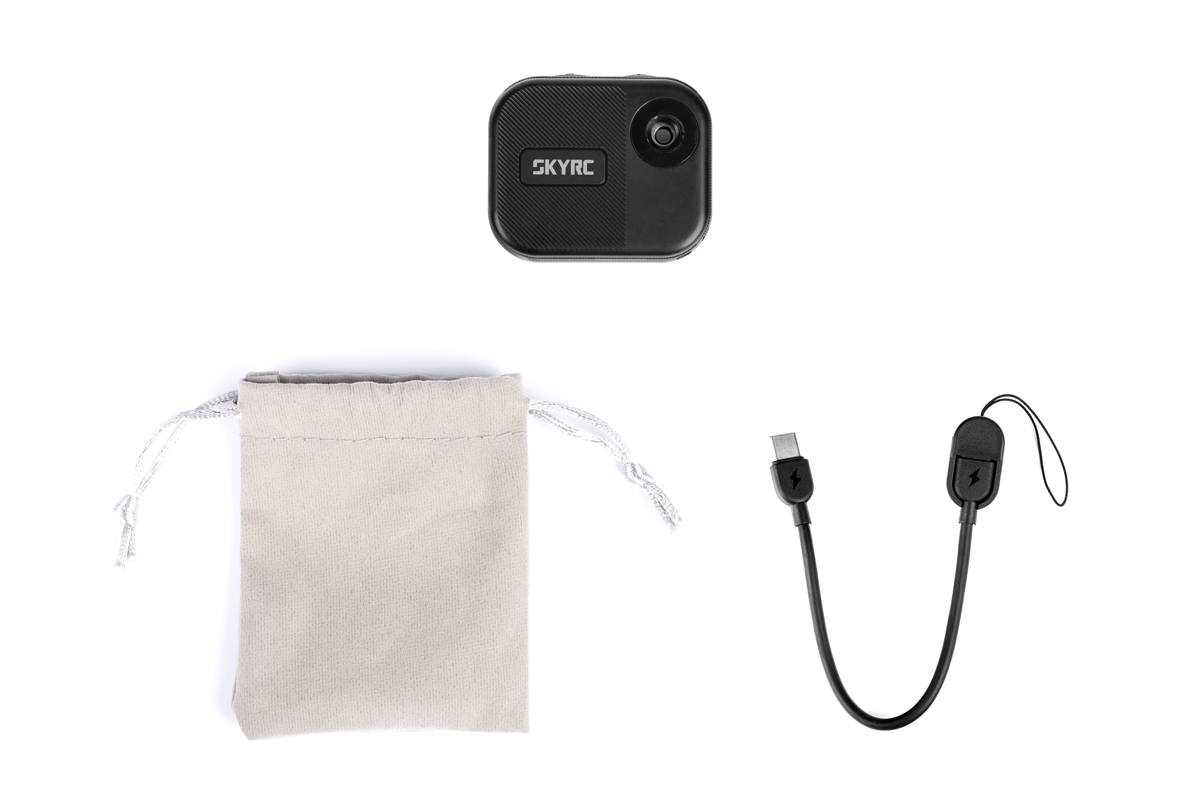

The heatvision set includes: ITV500 mini thermal imaging camera, USB-C cable, protective camera case, user manual.
