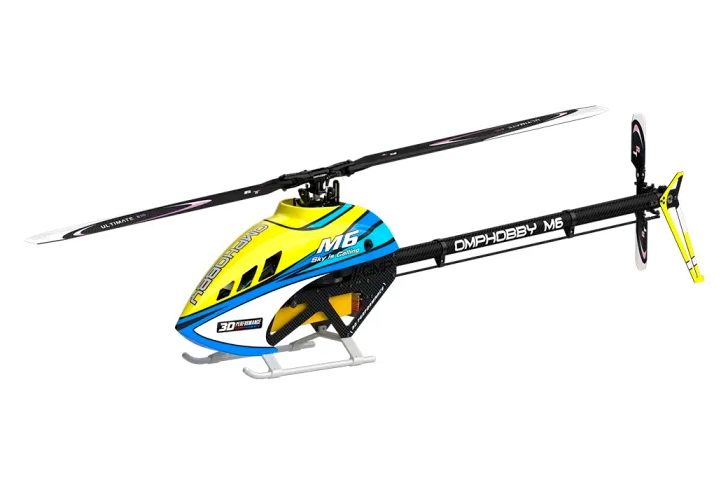

M6 kit - yellow

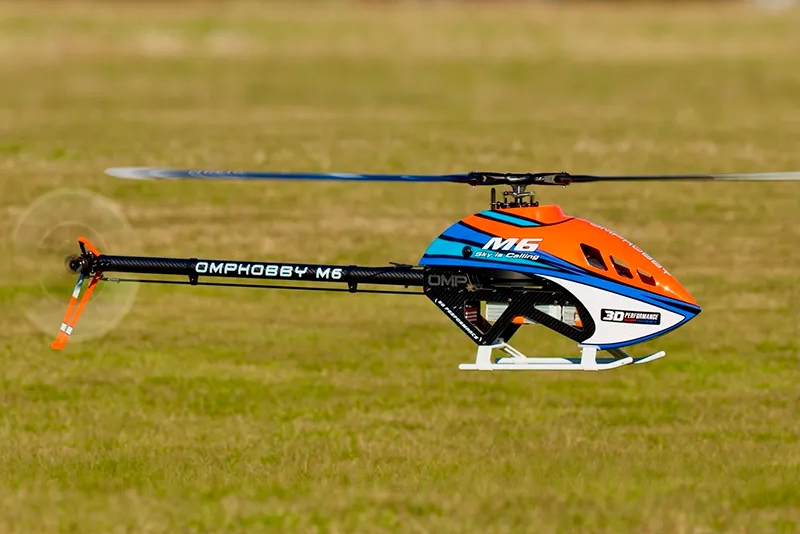

OMP HOBBY M6 is a high performance „600“ class helicopter designed to - with the appropriate motor and electronics - meet the requirements of flyers just starting with large choppers, sport pilots, scale enthusiasts as well as 3D champions. Many aspects of the M6 were engineered to minimize rotational moments of inertia in all the three axes. Together with the innovative long-throw design of the main and tail rotor heads it provides tremendous control authority and manoeuvrability. Many of the solutions proven on the “older and bigger brother” M7 were used.
The M6 can adopt a wide range of brushless motors and electronics; therefore - either „straight from the box“ or with optional parts added - it will meet requirements of seasoned 3D pilots and is ready to work with their favourite and well tested equipment.

• Flybarless main rotor head
• 120° CCPM swash plate

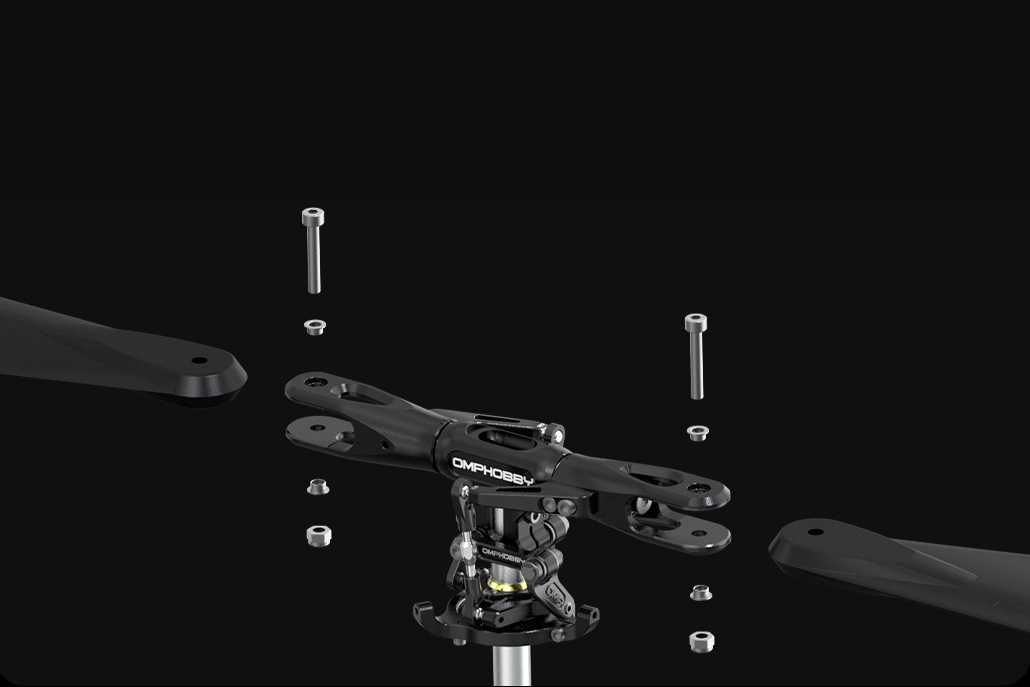

• All-metal main rotor head of high strength 7075 aluminium alloy with large control throws for exceptional response and control authority

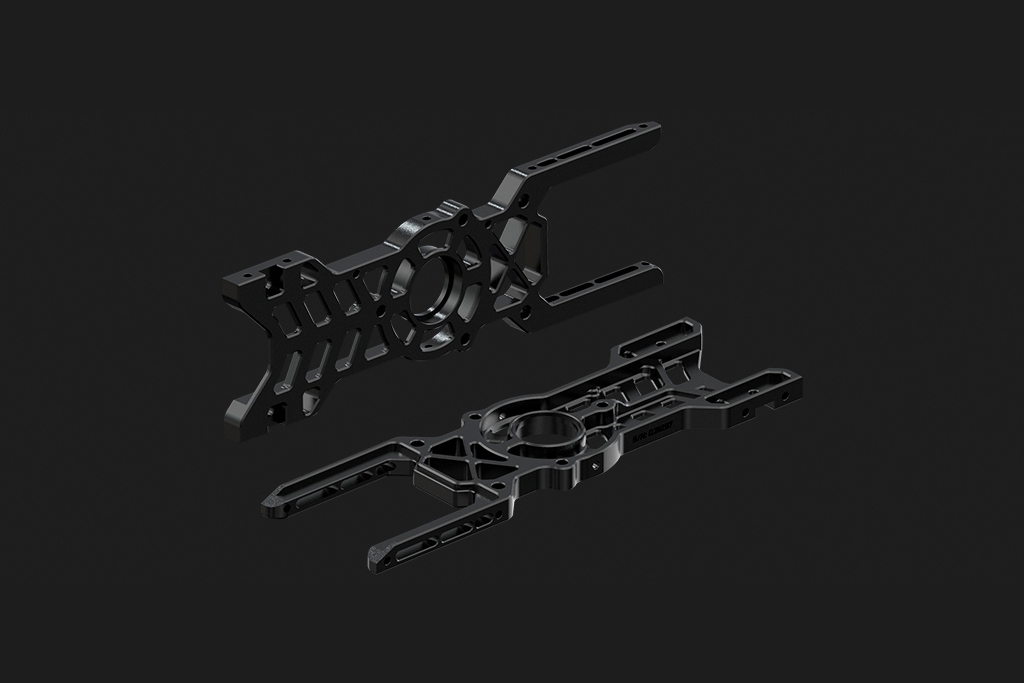

• Rigid airframe with carbon sides
• Extra rigid carbon tube tail boom not requiring any struts
• 13T pinion for 6 mm motor shaft included in the kit (11 to 15T pinnions may be used)

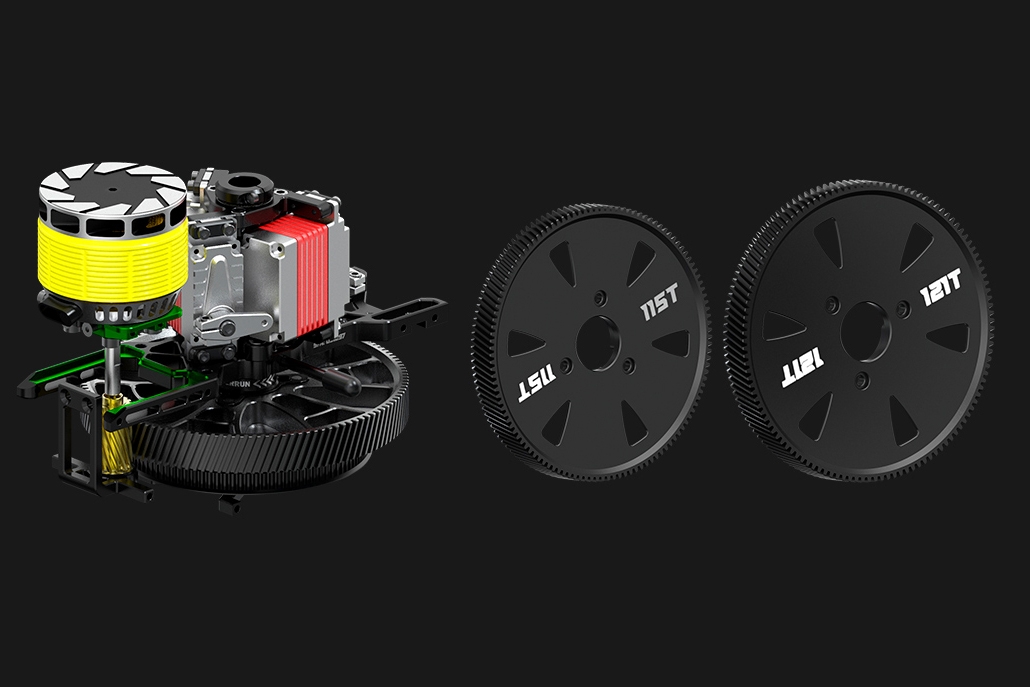

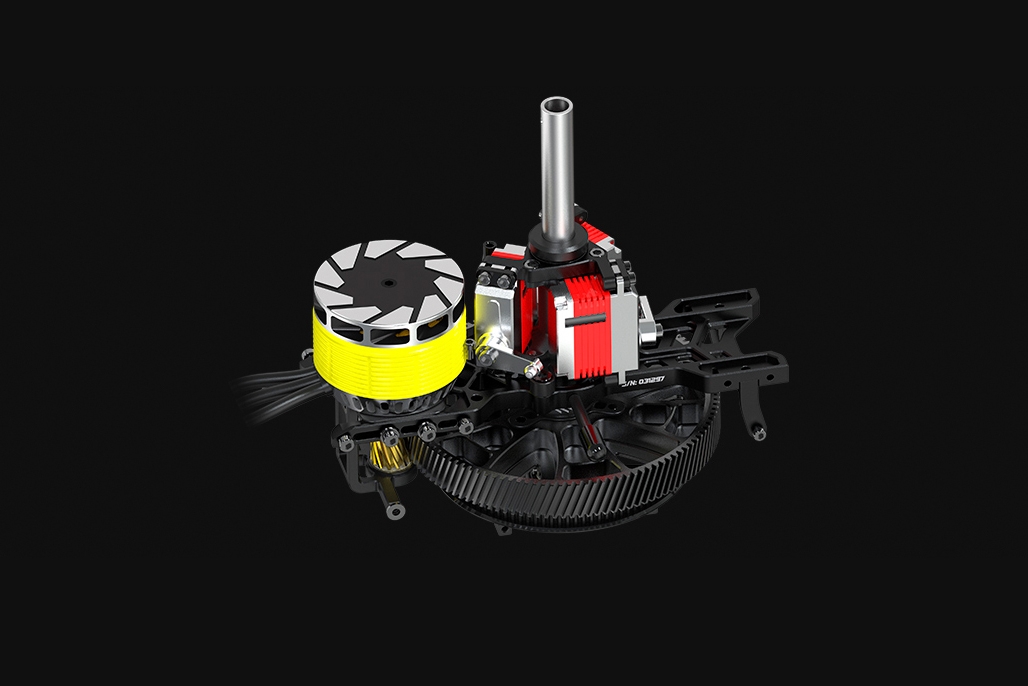

• Helical main gear for smooth running and low noise level

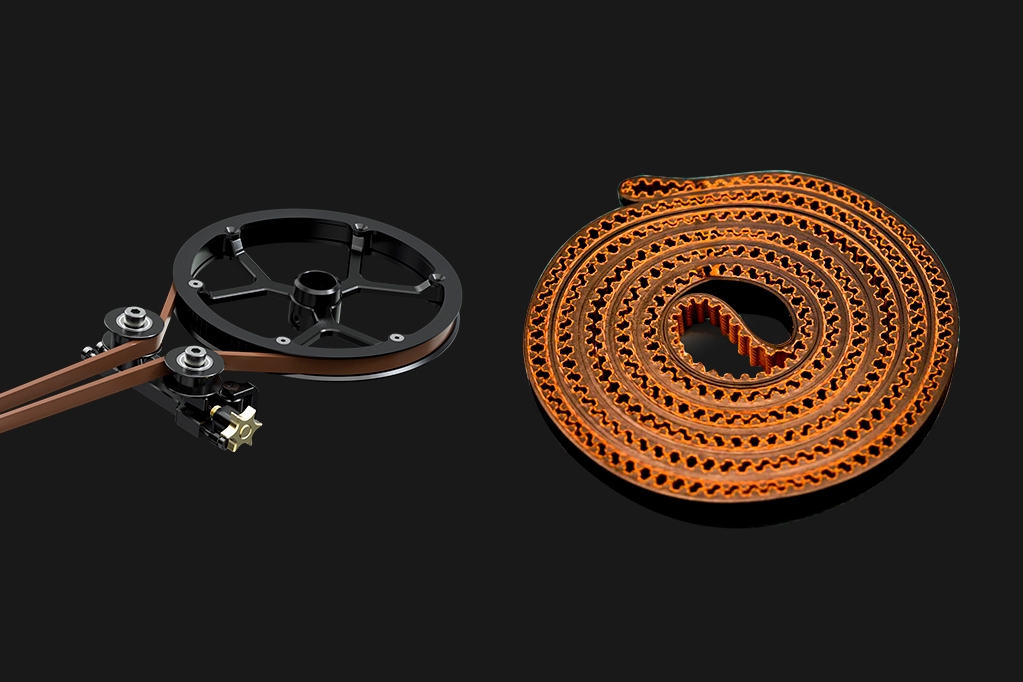

• Tail belt drive with innovative tensioner system for quick belt tension adjustment without any tools.
• Low weight one-piece CNC-machined tail housing

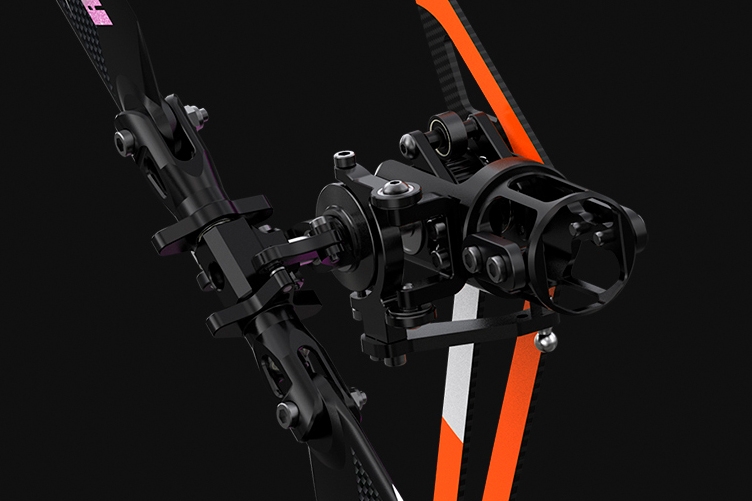

• Long-throw tail rotor design with integrated dynamic weights for maximum precision and unrivalled tail control

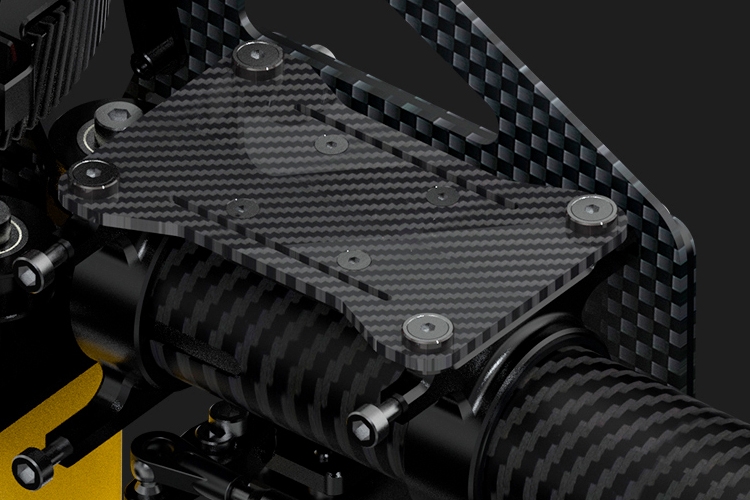

• Vibration-isolating flybarless control unit platform

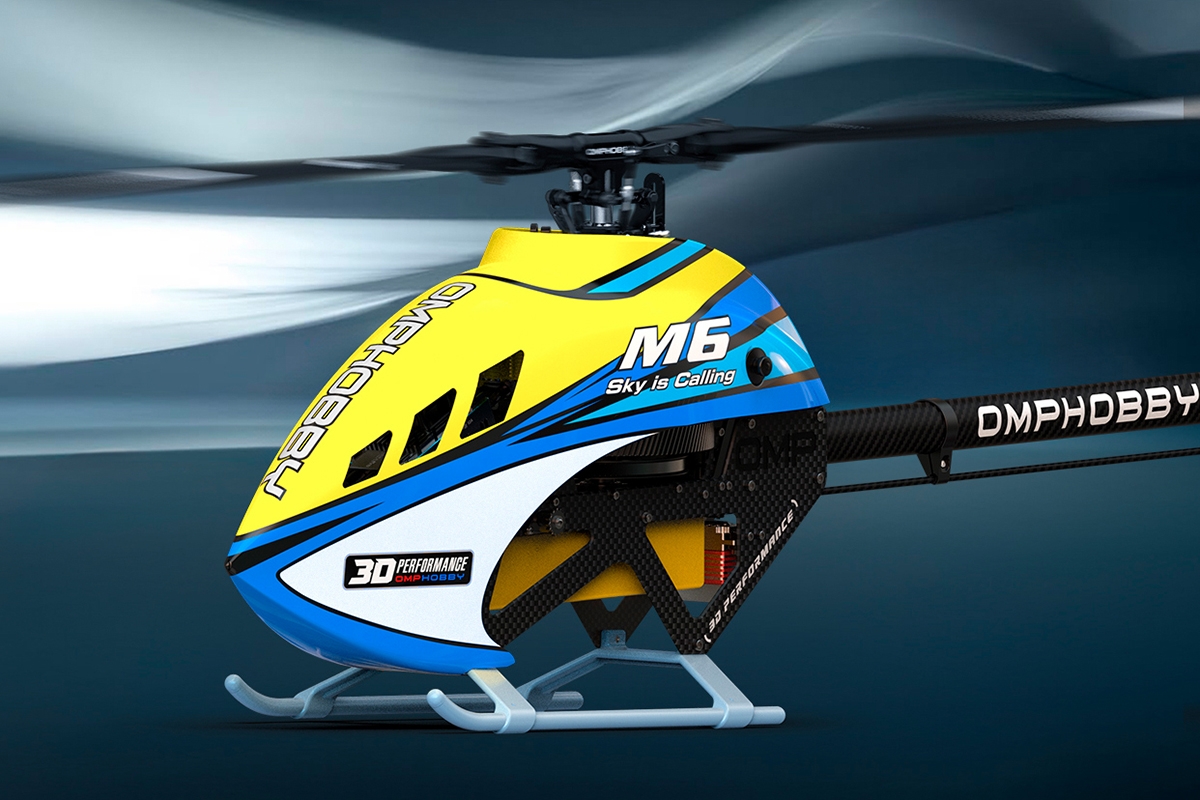

• Sleek sporty style canopy with quick release connectors
• Durable composite undercarriage

Recommended main rotor blades: 580-610 mm carbon.
Recommended tail rotor blades: 96-106 mm carbon.
Recommended RC set: At least 6-channel computer transmitter w. heli program.
Recommended cyclic servos: Standard size - like MKS HBL850, HBL960, HBL950, KAVAN GO-1180MG.
Recommended tail servo: Standard size - like MKS HBL880, HBL990, HBL980, and KAVAN GO-11T80MG.
Flybarless control unit: Futaba CGY770R, CGY760R, CGY755, Bavarian Demon BD 3X, BD AXON, etc.
Suitable motor: 4520 size brushless outrunner 500-550KV for 12S LiPo, like Sunnysky M4520R 550KV or similar.
ESC suitable for sport flying: 100-150A HV heli brushless ESC, like Hobbywing Platinum PRO 130A-HV V4, Platinum PRO 130A-HV Opto V4 or similar.
ESC suitable for 3D and extreme 3D flying: 200-300A HV heli brushless ESC, like Hobbywing Platinum 260A-HV OPTO V5 or similar.
Flight pack: 12S (2x 6S) LiPo 3500-5000 mAh min. 60C (battery compartment 58x70x300 mm)

The kit contents: The complete set of the mechanic/airframe parts and manual; not included: main and tail rotor blades, brushless motor and electronics.
