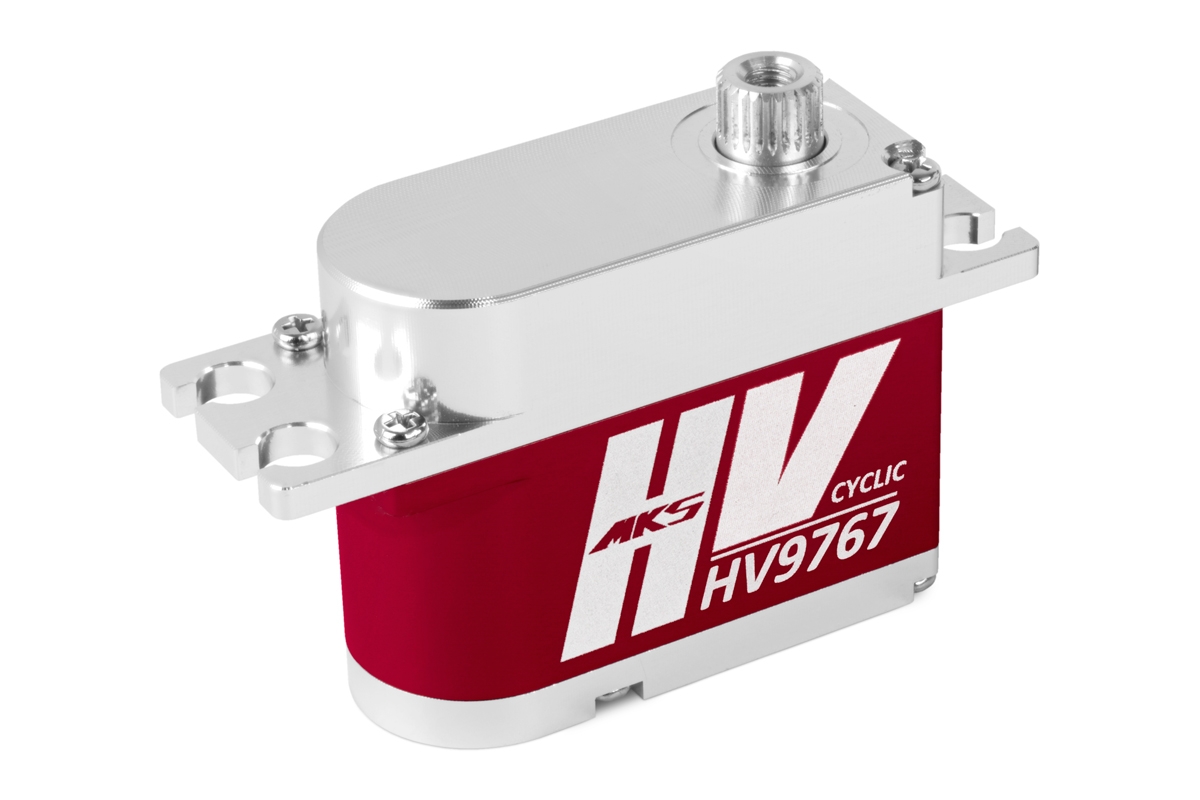

HV9767 (0.07s/60°, 9.4kg.cm)

Super high torque/super high speed programmable digital mini servo with metal gears with twin ballraced output shaft. Ideal for cyclic of 500-600 class helicopters. An aluminium case with for perfect cooling even under high loads.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
