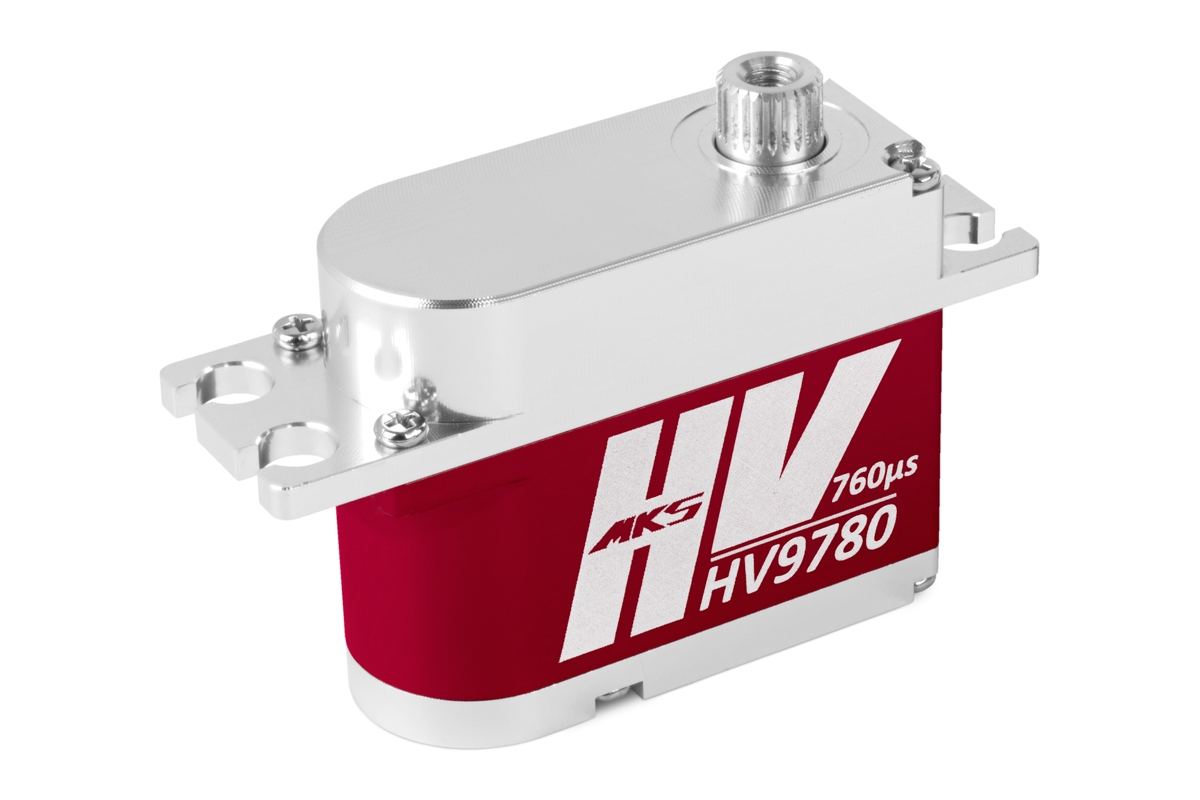

HV9780 (0.04s/60°, 4.5kg.cm)

Ultra high speed 38g HV digital narrowband (760µs) mini servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 500 class mini helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 3.3kg.cm, speed 0.055s/60° at 6.0V, torque 4.0kg.cm, speed 0.045s/60° at 7.4V, torque 4.5kg.cm, speed 0.040s/60° at 8.2V. Aluminium case for perfect heat dissipation. Dimensions 35.5x15x28.5mm, weight 38.01g. Non-programmable.

This item is not available in you region (United States)

Ultra high speed narrowband (760µs) digital mini servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 500 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 6.0-7.4 V (nominal).

Servo dimensions	Mini
Servo type	Digital
Programmable	No
Torque at 6.0V [kg∙cm]	3.3
Torque at 7.4V [kg∙cm]	4
Torque at 8.2 V [kg∙cm]	4.5
Speed at 6.0V [s/60st.]	0.055
Speed at 7.4V [s/60st.]	0.045
Speed at 8.2 V [s/60st.]	0.04
Control pulse width in neutral [µs]	760
Frame Rate [Hz]	560
Deadband [ms]	0.0005
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	6 - 8.4

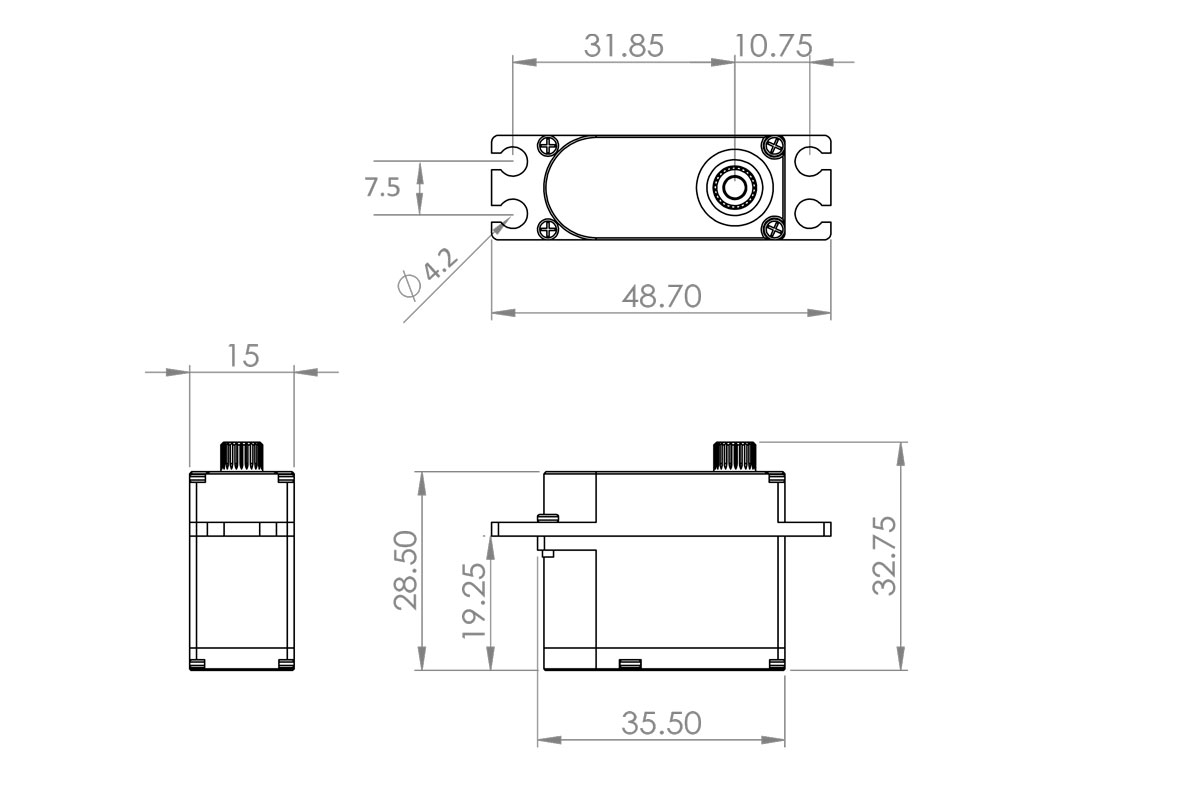

Length [mm]	35.5
Width [mm]	15
Height [mm]	28.55
Weight [g]	38.01
Intended for	Helicopters
Servo motor type	HV Coreless
