Code:KAV20.1180MG
Brand:KAVAN
GO-1180MG (0.038s/60°, 30kg.cm)
High torque/ultra high speed digital standard brushless 79g servo with titanium/hardened steel gear and wide input voltage range 4.8-8.4V, 3xBB. Neutral setting option 1520/760 µs (333/666 Hz). Ideal as swashplate servo for 500-800 RC helis etc. Torque 22.0kg.cm, speed 0.060s/60° at 4.8V, torque 24.0kg.cm, speed 0.050s/60° at 6.0V, torque 28.0kg.cm, speed 0.042s/60° at 7.4V, torque 30.0kg.cm, speed 0.038s/60° at 8.4V. Aluminium case for perfect cooling under high load. Not programmable.
Not on stock
Rotate with mouse
High torque/ultra high speed digital standard 79g brushless servo with titanium/hardened steel gear and triple BB-ed output shaft. Works great as a swashplate servo for 500-800 RC helicopters etc. All-aluminium case for perfect cooling under high load.
For supported Flybarless units, you can switch from 1520 to 760 µs (333 → 666 Hz) only using the GO serv USB programmer. For proper operation, it is necessary to apply the "Narrow Band" setting. Recommended settings:
- Dampening factor: 26
- Vbar: 500 Hz
GO-1180MG is not programmable.
Wide input voltage range 4.8–7.4 V (nominal).
25T/5.92 mm output shaft.
All GO servos are covered by an extended 3-year warranty.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Torque at 4.8V [kg∙cm] | 22 |
| Torque at 6.0V [kg∙cm] | 24 |
| Torque at 7.4V [kg∙cm] | 28 |
| Torque at 8.4V [kg∙cm] | 30 |
| Speed at 4.8V [s/60st.] | 0.06 |
| Speed at 6.0V [s/60st.] | 0.05 |
| Speed at 7.4V [s/60st.] | 0.042 |
| Speed at 8.4V [s/60st.] | 0.038 |
| Servo gears | Metal,Titanium |
| Ball bearings | 3× |
| High-voltage | Yes |
| Power supply [V] | 4.8 - 8.4 |

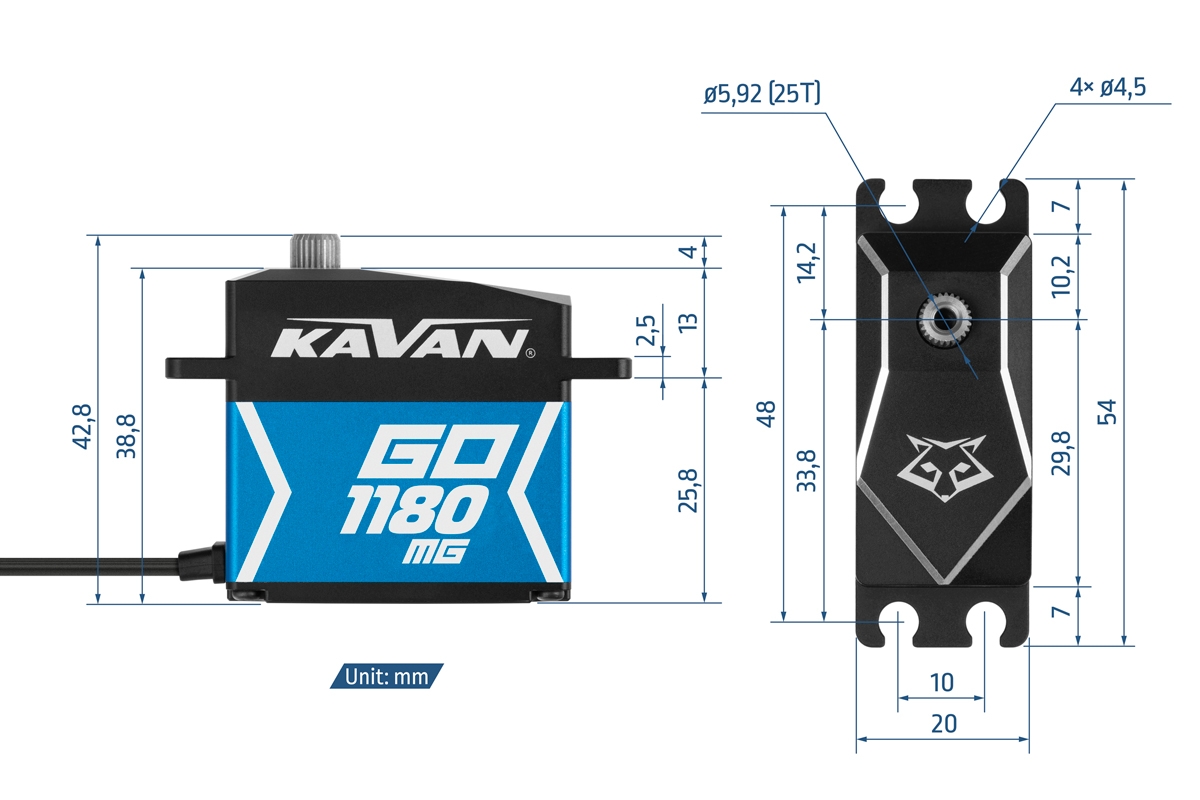

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 38.8 |
| Weight [g] | 79 |
| Intended for | Helicopters |
