Code:MAX4006
Barcode:8596450112704
Brand:ManiaX

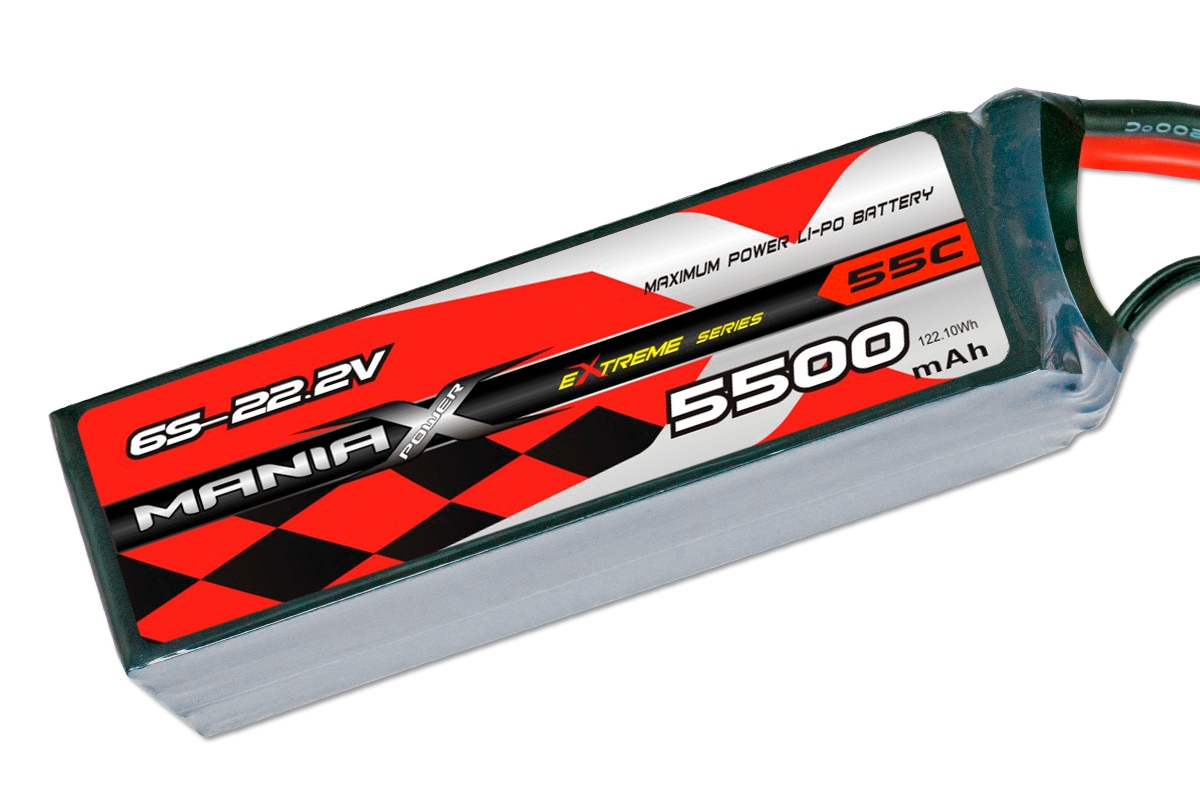

ManiaX Lipol 22.2V 5500mAh 55C

ManiaX LiPo pack 55/110C, charge rate 1-3C, max. 5C. Six-cell pack 6S 22.2V 5500 mAh, dimensions: 158x45x54mm, weight: 826g, JST-XH balance connector.
This item is not available in you region (United States)
Description

ManiaX eXtreme Line 55/90C high performance lithium polymer packs will pump new fresh energy to your models! The advanced technologies used ensure extremely high discharge rate, high charge rate and long lifespan.

The standard discharge rate of ManiaX eXtreme Line 55/110C pack is 55C, the peak discharge rate up to 110C; the recommended charge rate 1-3C. They are great for high performance sport, scale and aerobatic models (both pattern and 3D), EDF jets, helicopters, speed boats and other demanding applications. The high discharge rate allows unleashing the full power of your power unit, aggressive flight style and all sorts of stunts.

Do not use a charge rate higher than 5C, the recommended charge rate is 1-3C. We recommend using a balancer during every charge. ManiaX eXtreme Line 55/110C LiPo batteries do not require any initial forming; however, if you intend to use more than 1C charge rate, the initial three charging cycles should be performed at a rate not higher than 1C. There is no need to discharge the LiPo batteries before the charging - you can charge partly discharged packs.

The batteries are supplied as packs optimized for model planes and helicopters. The packs feature heavy duty silicone power (charging) cables and balance cables with JST-XH connectors that could be connected directly to the balance sockets of the most of KAVAN, SkyRC, GT Power etc. chargers.

The package contents: ManiaX eXtreme Line 55/110C, instruction manual.

Capacity [mAh]5500
Voltage [V]22.2
Charging current [A]5.5 - 16.5
Max. charging current [A]27.5
Discharging current [A]302.5
Max. discharging current [A]605
Energy [Wh]122.1
Length [mm]158
Width [mm]45
Height [mm]54
Weight [g]826
