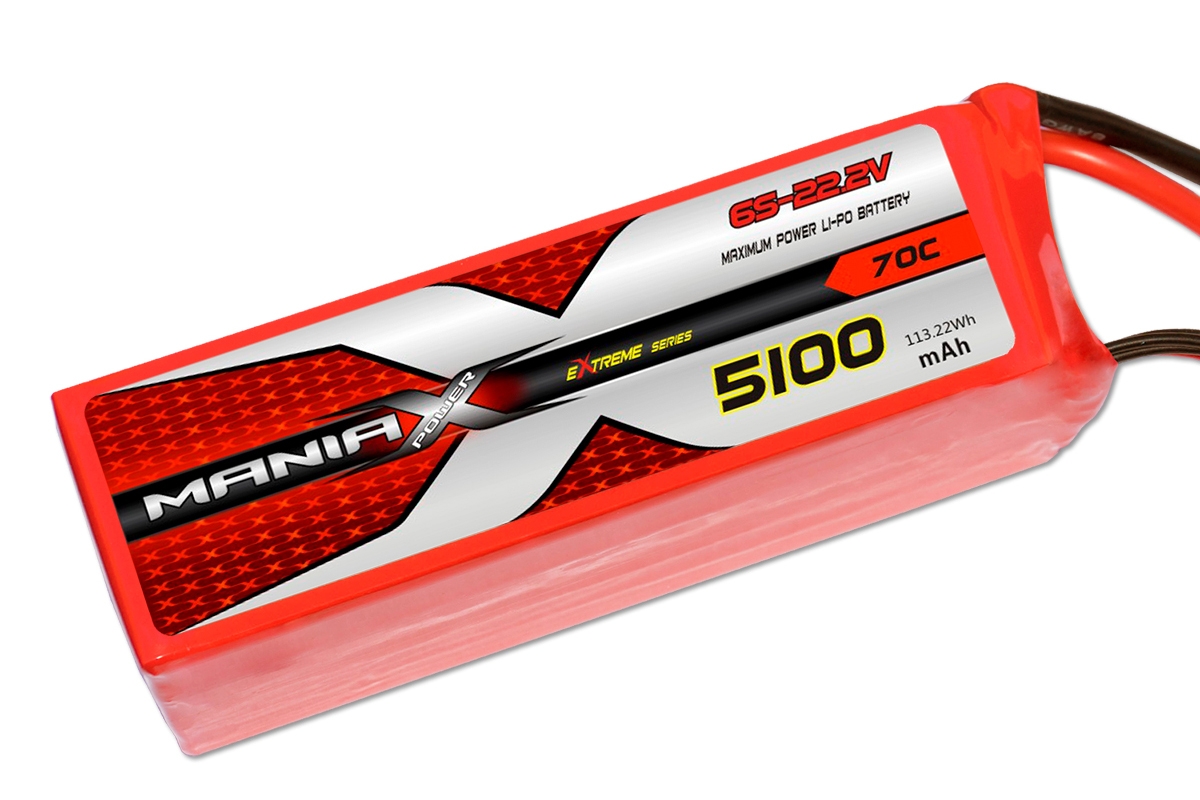

ManiaX eXtreme Line 70/140C super high performance lithium polymer packs will pump new fresh energy to your models! The advanced technologies used ensure extremely high discharge rate, high charge rate and long lifespan.
The standard discharge rate of ManiaX eXtreme Line 70/140C pack is 70C, the peak discharge rate up to 140C; the recommended charge rate 1-3C. They are great for high performance sport, scale and aerobatic models (both pattern and 3D), EDF jets, helicopters, speed boats and other demanding applications. The high discharge rate allows unleashing the full power of your power unit, aggressive flight style and all sorts of stunts.
Do not use a charge rate higher than 5C, the recommended charge rate is 1-3C. We recommend using a balancer during every charge. ManiaX eXtreme Line 70/140C LiPo batteries do not require any initial forming; however, if you intend to use more than 1C charge rate, the initial three charging cycles should be performed at a rate not higher than 1C. There is no need to discharge the LiPo batteries before the charging - you can charge partly discharged packs.
The batteries are supplied as packs optimized for model planes and helicopters. The packs feature heavy duty silicone power (charging) cables and balance cables with JST-XH connectors that could be connected directly to the balance sockets of the most of KAVAN, SkyRC, GT Power etc. chargers.
The package contents: ManiaX eXtreme Line 70/140C, instruction manual.
Capacity [mAh] | 5100 |
Voltage [V] | 22.2 |
Charging current [A] | 5.1 - 15.3 |
Max. charging current [A] | 25.5 |
Discharging current [A] | 357 |
Max. discharging current [A] | 714 |
Energy [Wh] | 113.2 |
Length [mm] | 158 |
Width [mm] | 48 |
Height [mm] | 47 |
Weight [g] | 780 |
