Code:SUN0004
Barcode:8596450073494
Brand:Sunnysky

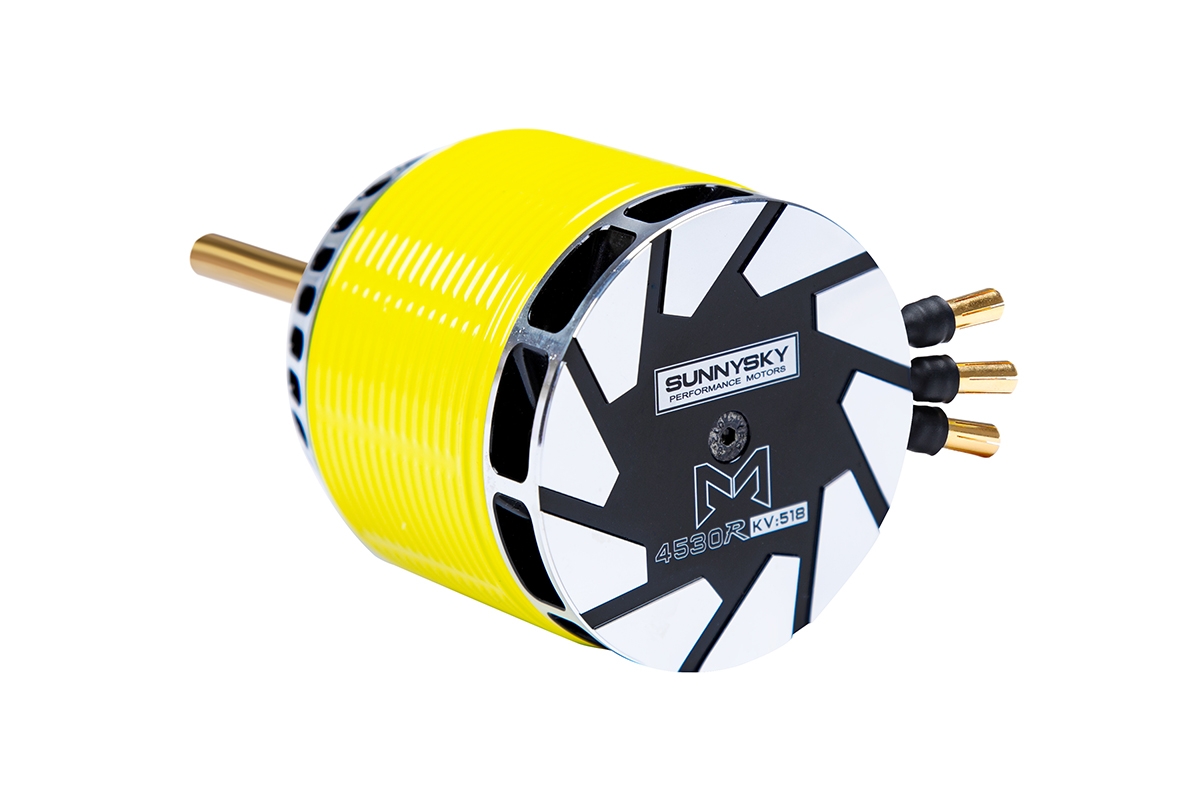

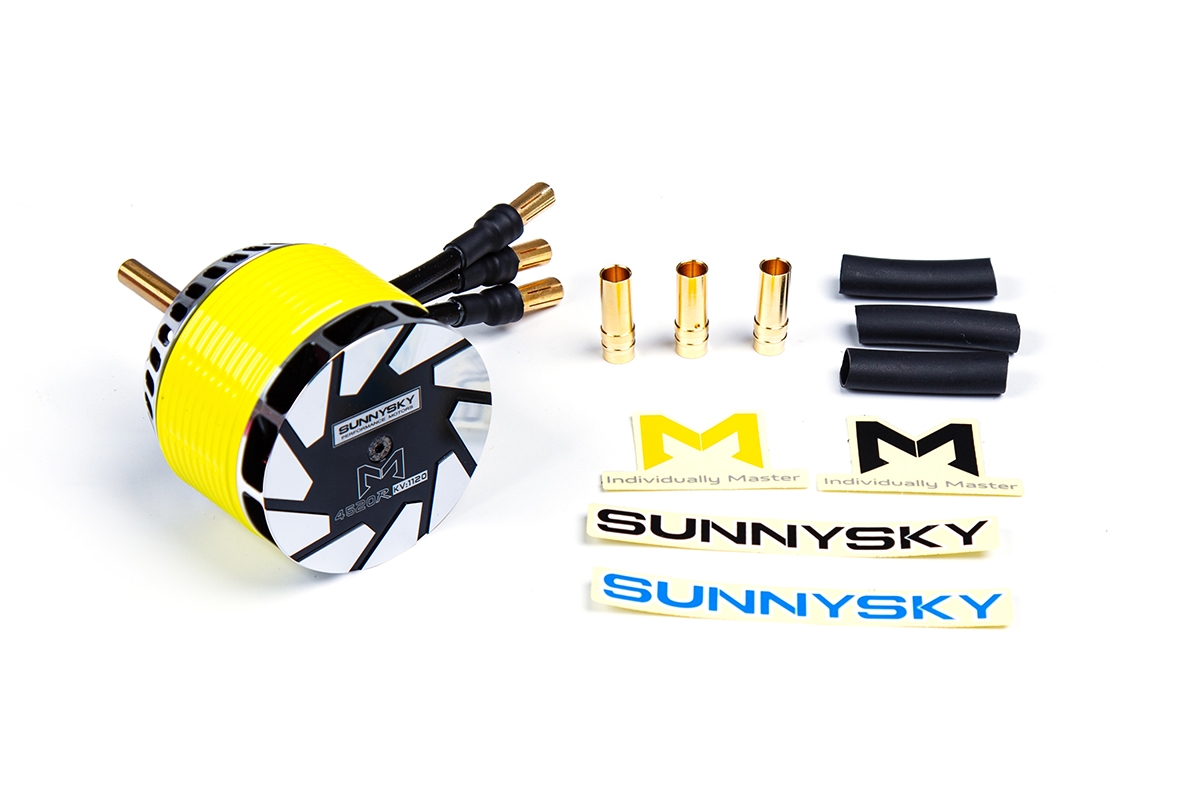

M4530R 518kV Heli BLS motor
This item is not available in you region (United States)
Description
Spare parts
| Powering LiXX cells | 10 - 12 |
| RPM/V [ot./min/V] | 518 |
| Max. power (trvalý) [W] | 6000 |
| Max. power (špičkový) [W] | 9600 |
| Internal resistance [mOhm] | 8.5 |
| Open-circuit current (při 10 V) [A] | 2.5 |
| Max. current (trvalý) [A] | 125 |
| Max. peak current [A] | 200 |

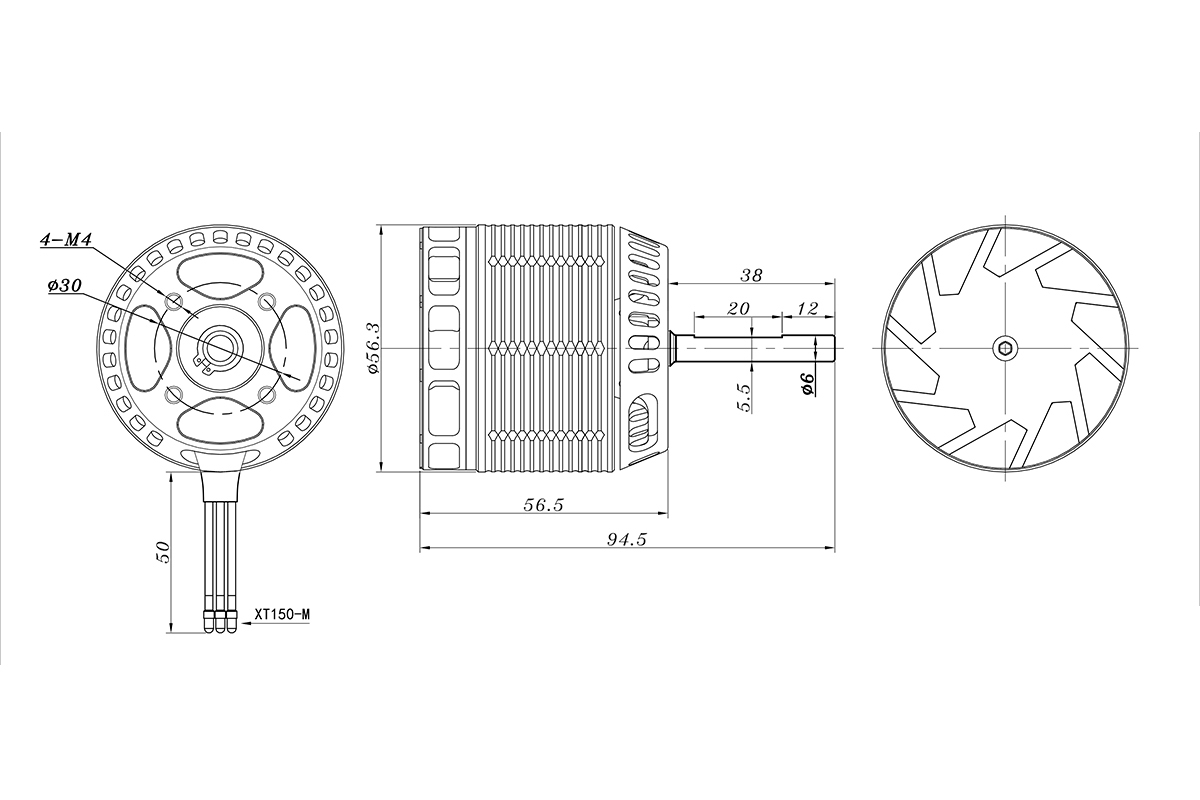

| Diameter [mm] | 56.3 |
| Length [mm] | 57 |
| Length volné hřídele [mm] | 38 |
| Shaft diameter [mm] | 6 |
| Weight [g] | 543 |
| Poles count | 10 |
| ESC [A] | 200 - 300 |
| Helicopter Class [mm] | 700 - 800 |
