Code:SUN0003
Barcode:8596450073470
Brand:Sunnysky

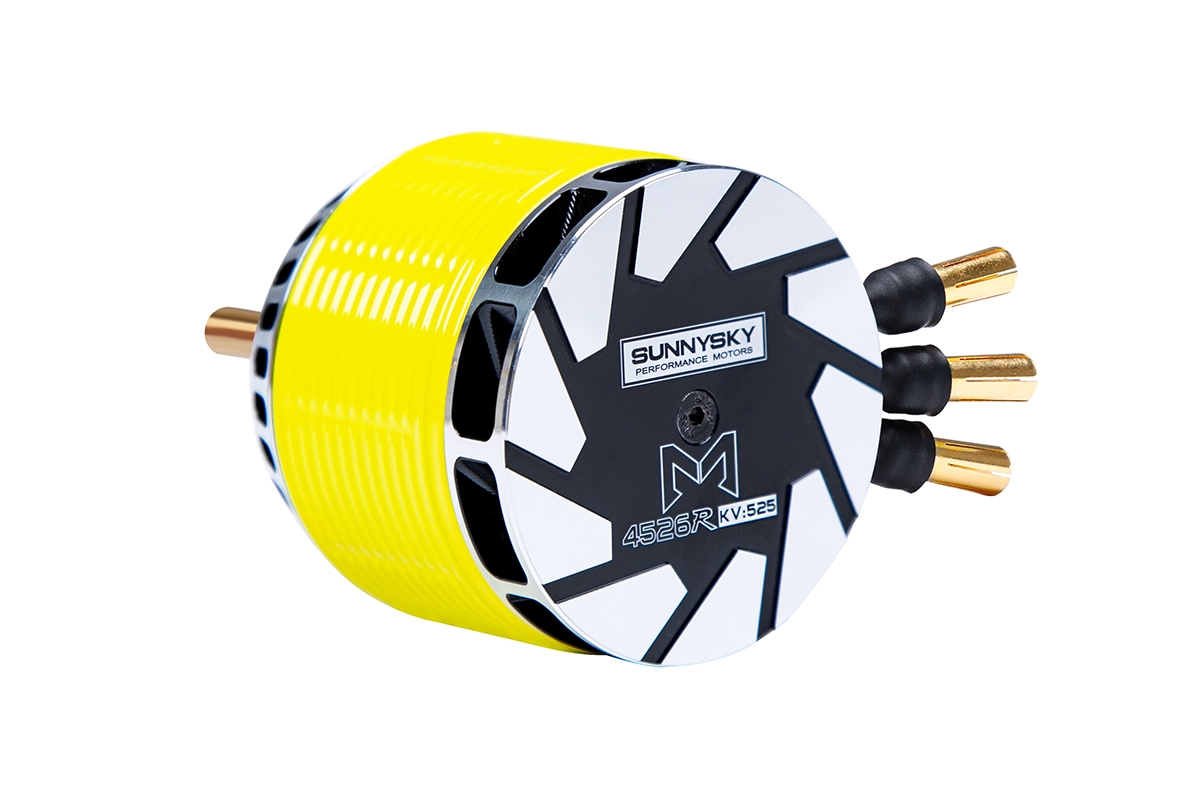

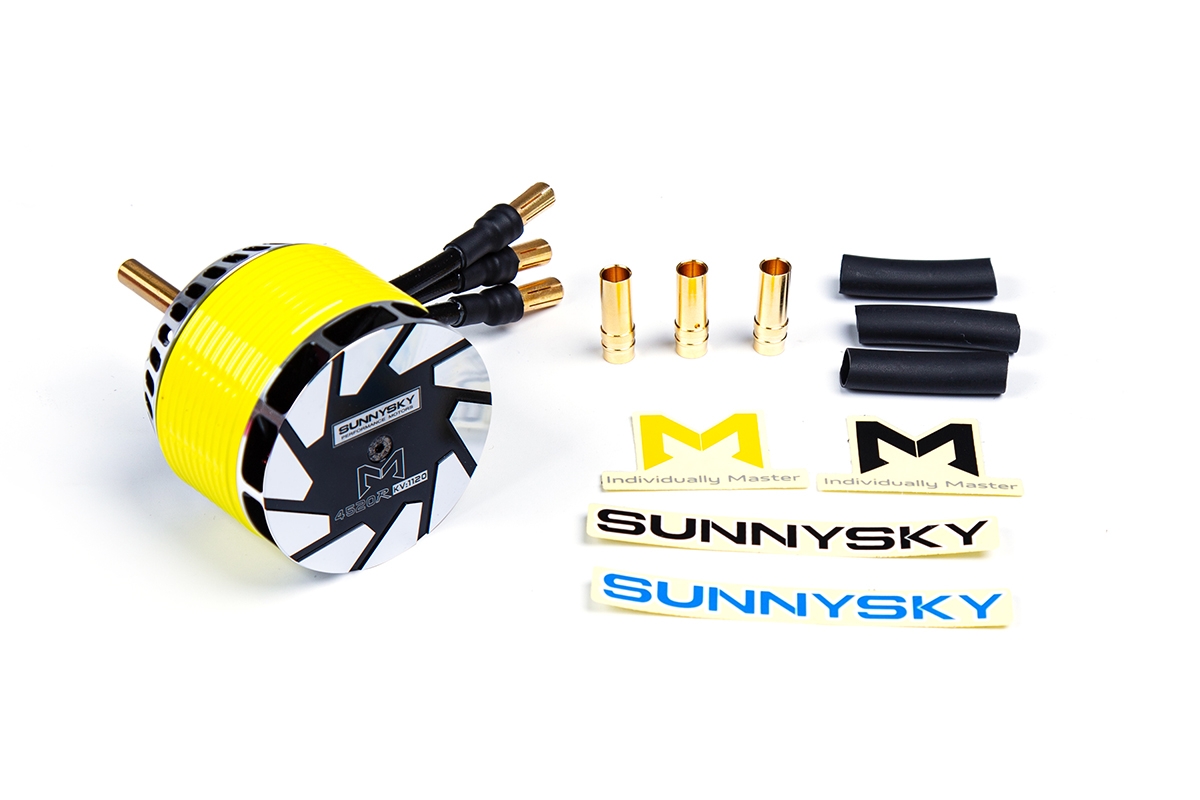

M4526R 540kV Heli BLS motor
Top-class AC electric motor with rotating casing for competition helicopter models of size 600-700. KV540 rpm at V, power supply max. 12S LiPo. Shaft 6.0mm, weight 485g, free shaft length 36mm.
This item is not available in you region (United States)
Description

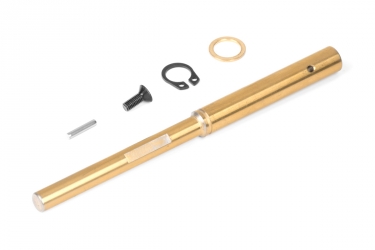

Spare parts
| Powering LiXX cells | 10 - 12 |
| RPM/V [ot./min/V] | 540 |
| Max. power (trvalý) [W] | 5200 |
| Max. power (špičkový) [W] | 8000 |
| Internal resistance [mOhm] | 9.8 |
| Open-circuit current (při 10 V) [A] | 2.5 |
| Max. current (trvalý) [A] | 110 |
| Max. peak current [A] | 170 |

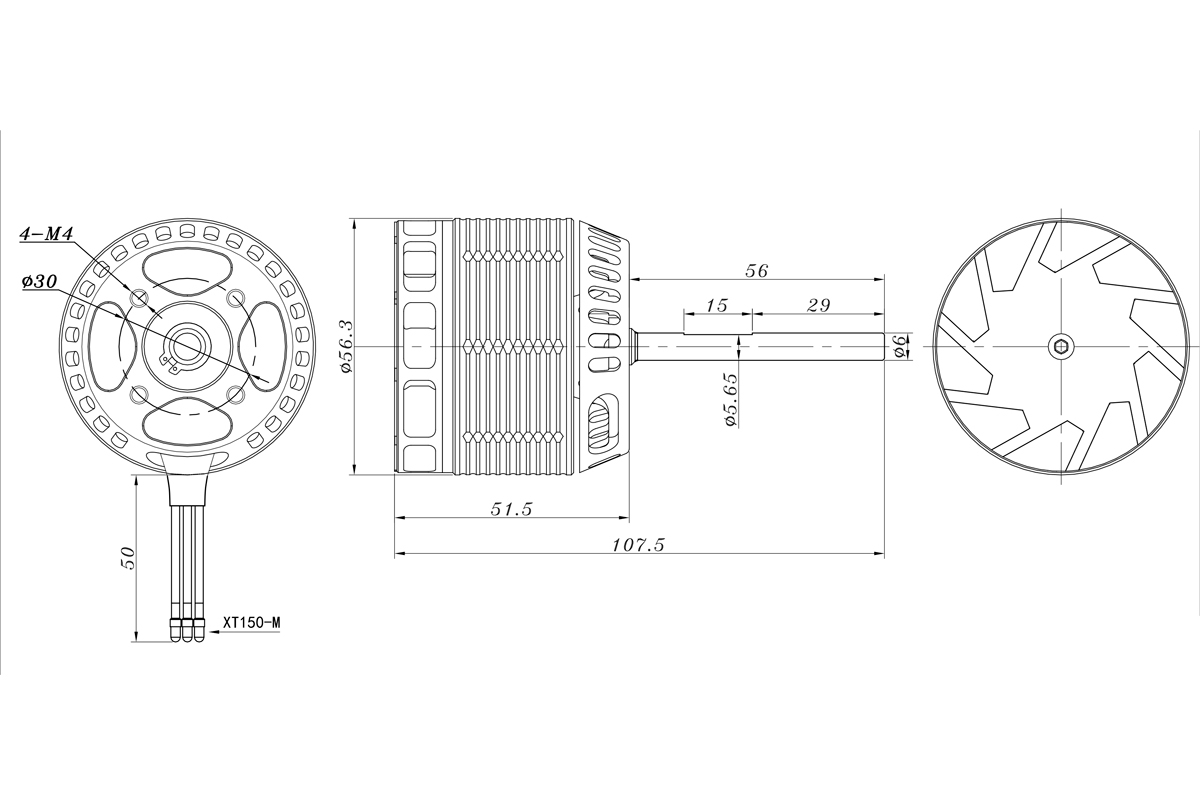

| Diameter [mm] | 56.3 |
| Length [mm] | 52 |
| Length volné hřídele [mm] | 36 |
| Shaft diameter [mm] | 6 |
| Weight [g] | 485 |
| Poles count | 10 |
| ESC [A] | 200 - 300 |
| Helicopter Class [mm] | 600 - 700 |
