Code:SRT-BHX6
Brand:SRT

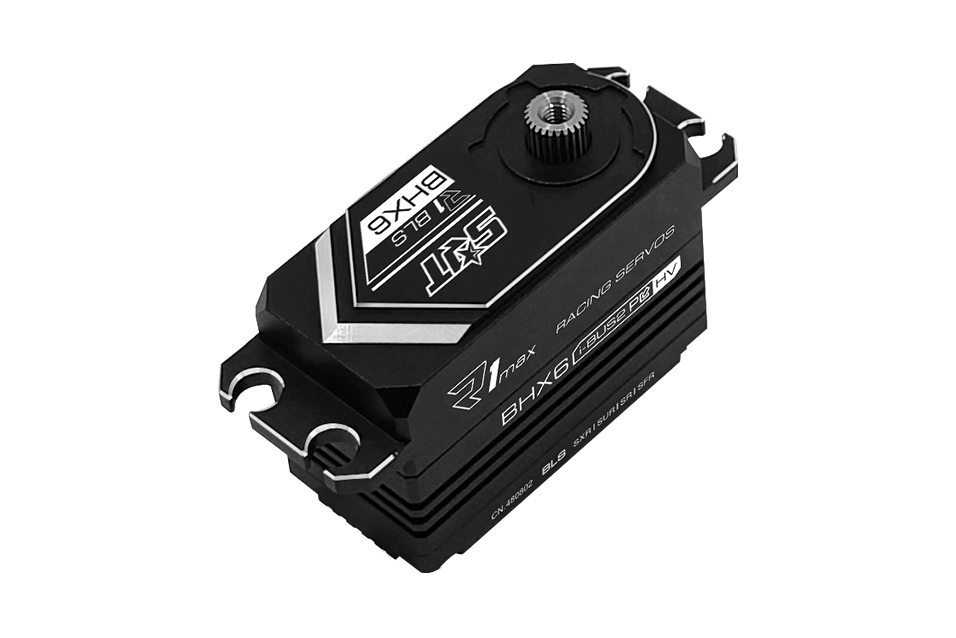

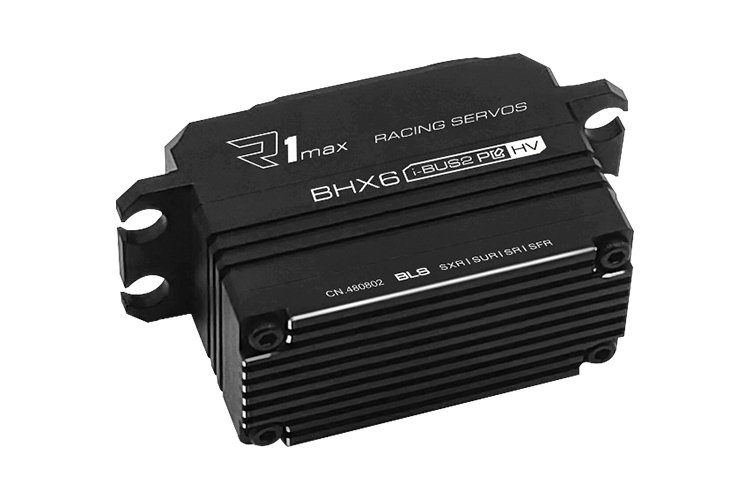

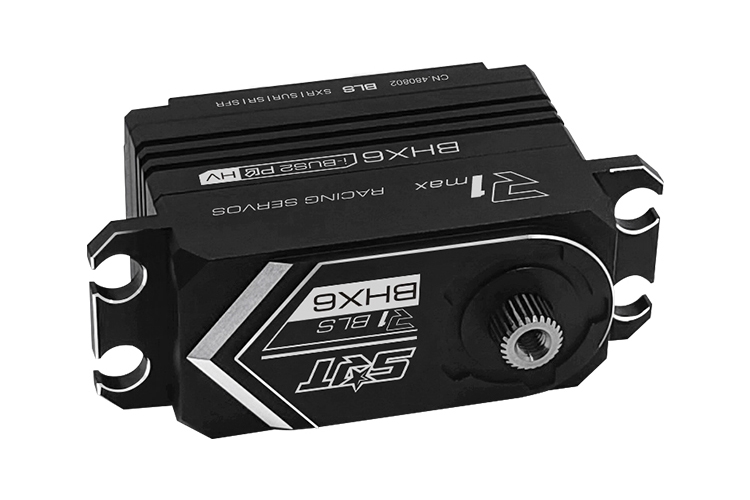

BHX6 HiVOLT BRUSHLESS Digital servo LOW PROFILE (35 kg-0.053s/60°)
Digital low-profile HiVolt standard servo with brushless motor and metal gears.
Not on stock
SRT BHX6
The new SRT servo series R1max brings brushless motors with uncompromising performance, voltage, temperature and signal logging, or support for high-speed transmission modes of Futaba, Sanwa and FlySky. All in a sleek all aluminum housing and with steel gears.
KEY FEATURES
- Ideal for 1/10 - 1/8 scale on-road and off-road scale applications
- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- Programmable High torque Brushless servo
- Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
- Supporting i-BUS2
- 25T output shaft
PRODUCT SPECIFICATIONS
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Aluminum 7075 + Steel
- Control system: pulse width control
- Working frequency: 1520μs / 330Hz
- Operating voltage: DC 6.0-8.4V
- Operating temperature range: -10 to + 60 deg
- Operating speed (6.0v): 0.08 sec/60 degrees at no load
- Operating speed (7.4v): 0.065 sec/60 degrees at no load
- Operating speed (8.4v): 0.053 sec/60 degrees at no load
- Stall torque (6.0v): 25.0 kg.cm
- Stall torque (7.4v): 30.0 kg.cm
- Stall torque (8.4v): 35.0 kg.cm
- Potentiometer drive: direct drive

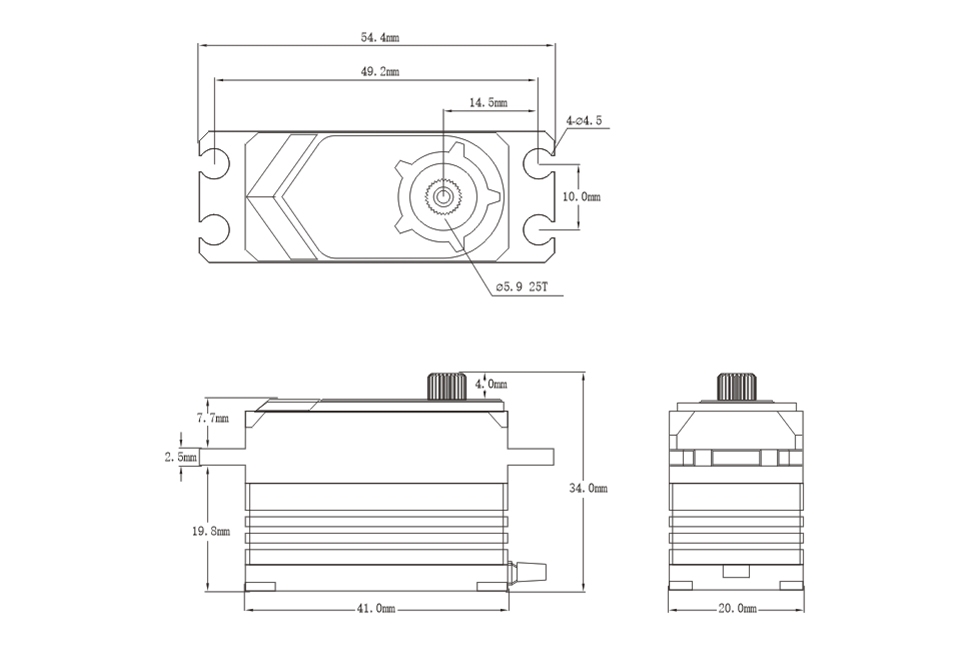

- Dimensions: 41.0 x 20.0 x 30.0 mm
- Weight: 66.0 g
- Protection: IP67
- Connector wire length: JR 300 mm
