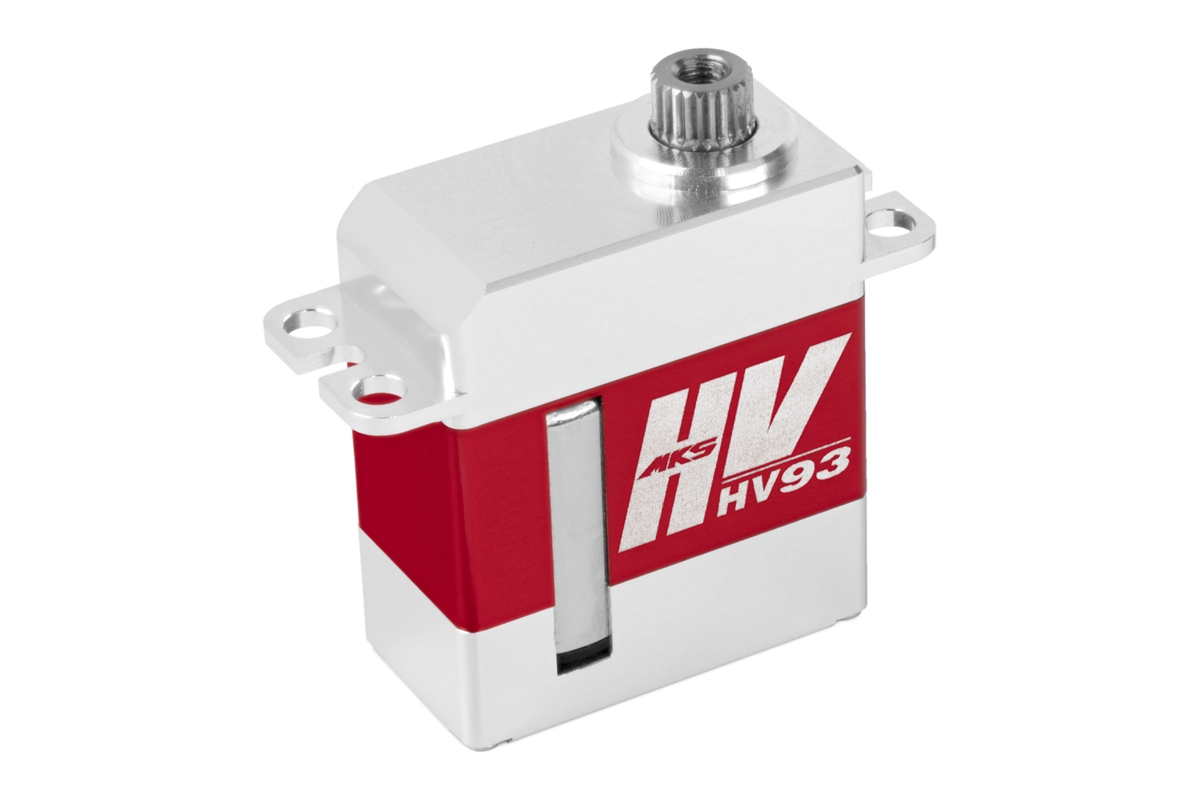

HV93 (0.05s/60°, 3.2kg.cm)
This item is not available in you region (United States)
High torque/ultra high speed programmable digital micro servo with metal gears and twin ballraced output shaft. Ideal for cyclic of 380-420 class mini helicopters. An aluminium case for perfect cooling even under high loads.
Input voltage range 6.0-7.4 V (nominal).

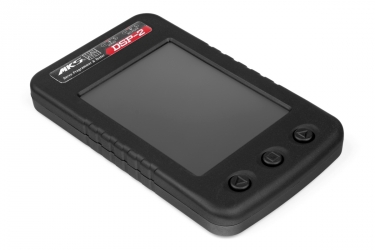

Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.
.
| Servo dimensions | Micro |
| Servo type | Digital |
| Programmable | Yes |
| Torque at 6.0V [kg∙cm] | 2.2 |
| Torque at 7.4V [kg∙cm] | 2.8 |
| Torque at 8.2 V [kg∙cm] | 3.2 |
| Speed at 6.0V [s/60st.] | 0.07 |
| Speed at 7.4V [s/60st.] | 0.06 |
| Speed at 8.2 V [s/60st.] | 0.05 |
| Control pulse width in neutral [µs] | 1520 |
| Frame Rate [Hz] | 333 |
| Deadband [ms] | 0.001 |

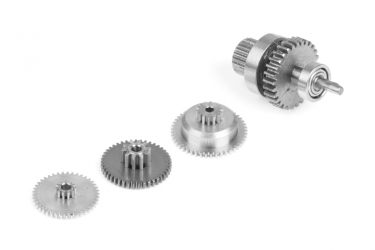

| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 6 - 8.4 |

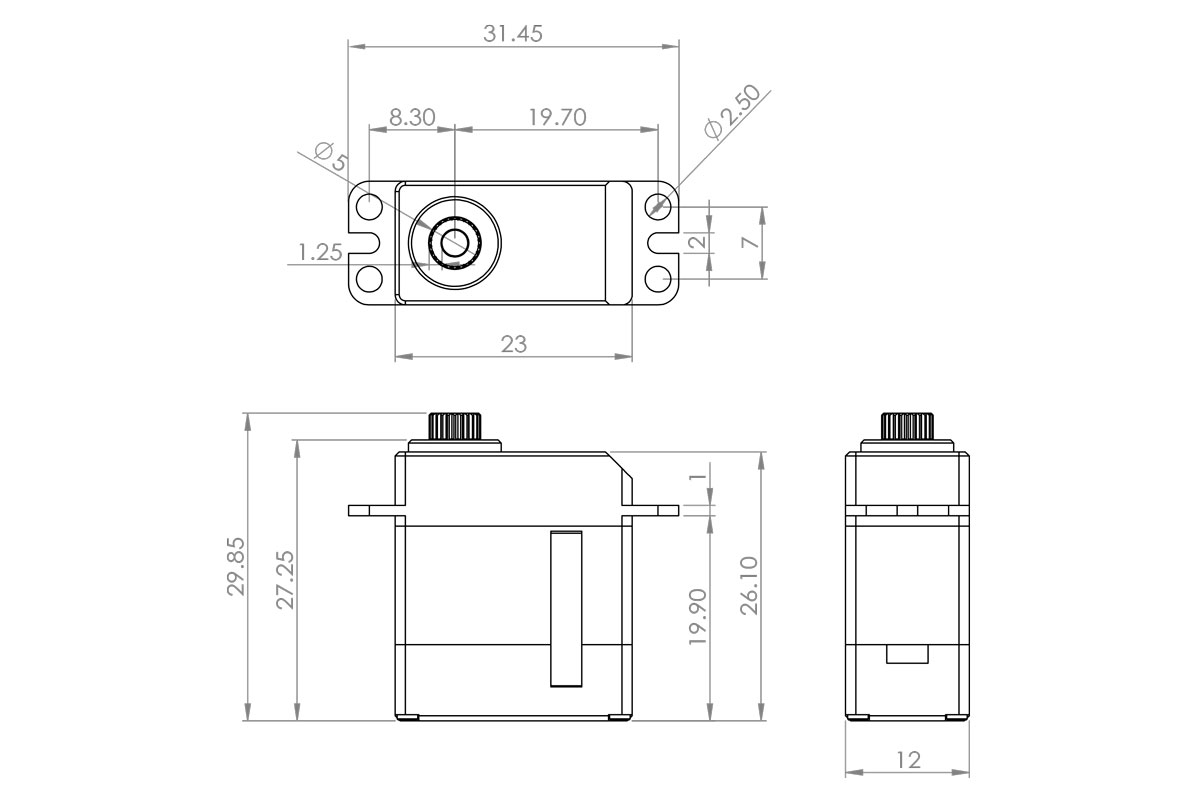

| Length [mm] | 23 |
| Width [mm] | 12 |
| Height [mm] | 27.25 |
| Weight [g] | 19.87 |
| Intended for | Aeroplanes,Helicopters |
| Servo motor type | HV Coreless |
Download
 |
Instruction Manual | 17.01.2024 |
