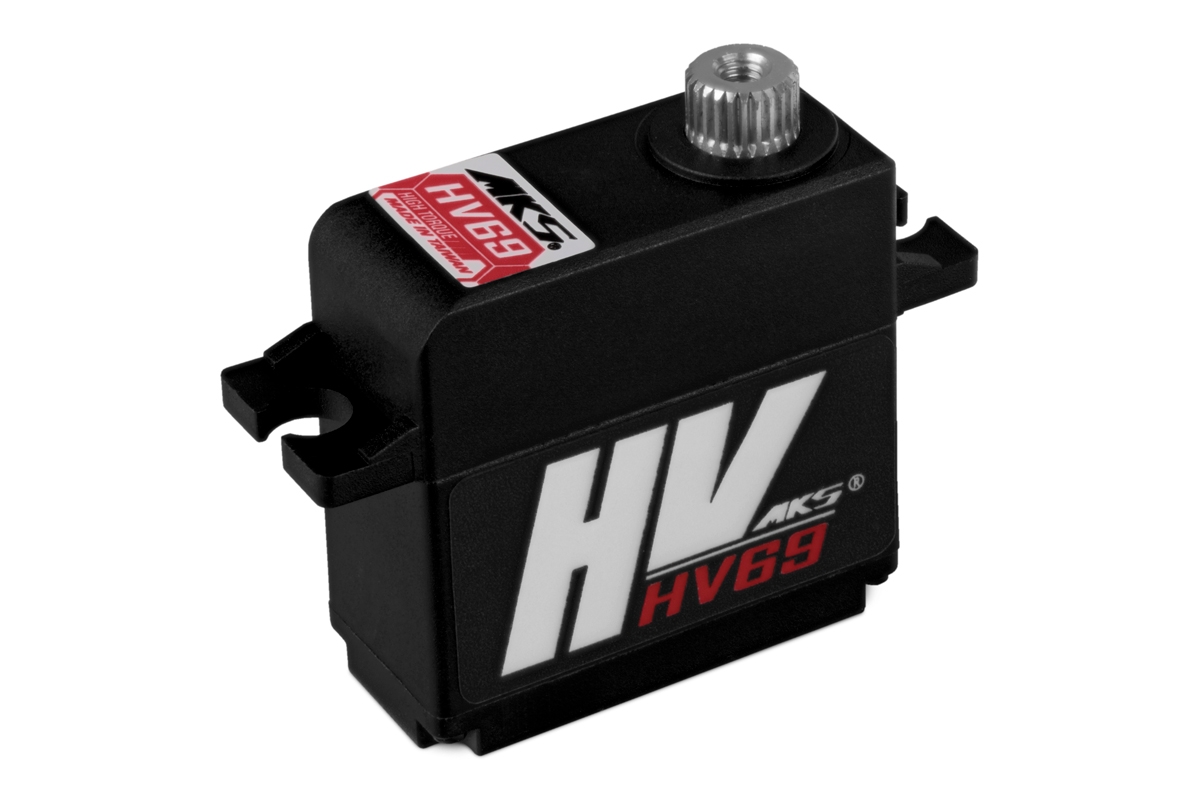

HV69 (0.10s/60°, 10.2kg.cm)

Utra high torque/high speed 21g HV digital micro servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for gliders and smaller aerobatic/scale model aeroplanes. Torque 6.0kg.cm, speed 0.17s/60° at 4.8V, torque 7.5kg.cm, speed 0.13s/60° at 6.0V, torque 9.2kg.cm, speed 0.11s/60° at 7.4V, torque 10.2kg.cm, speed 0.10s/60° at 8.2V. Dimensions 29x13x28.7mm, weight 21g. Programmable with DSP-2 programmer.

This item is not available in you region (United States)

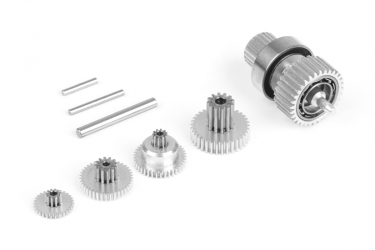

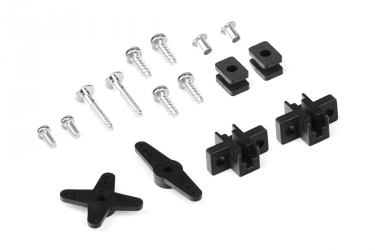

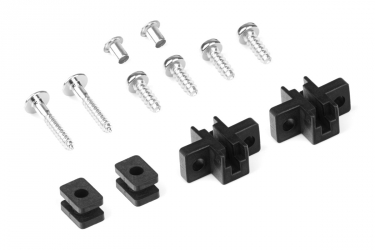

Ultra high torque/high speed programmable digital micro servo with metal gears with twin ballraced output shaft. It is particularly suitable for controlling elevators and rudders, but also ailerons and flaps in gliders and motor models. A plastic case with regular mounting lugs.

Wide input voltage range 6.0-7.4 V (nominal). 4.8-8.4 V operational.

Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.

Servo dimensions	Micro
Servo type	Digital
Programmable	Yes
Torque at 4.8V [kg∙cm]	6
Torque at 6.0V [kg∙cm]	7.5
Torque at 7.4V [kg∙cm]	9.2
Torque at 8.2 V [kg∙cm]	10.2
Speed at 4.8V [s/60st.]	0.17
Speed at 6.0V [s/60st.]	0.13
Speed at 7.4V [s/60st.]	0.11
Speed at 8.2 V [s/60st.]	0.1
Control pulse width in neutral [µs]	1520
Frame Rate [Hz]	333
Deadband [ms]	0.001
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	6 - 8.4

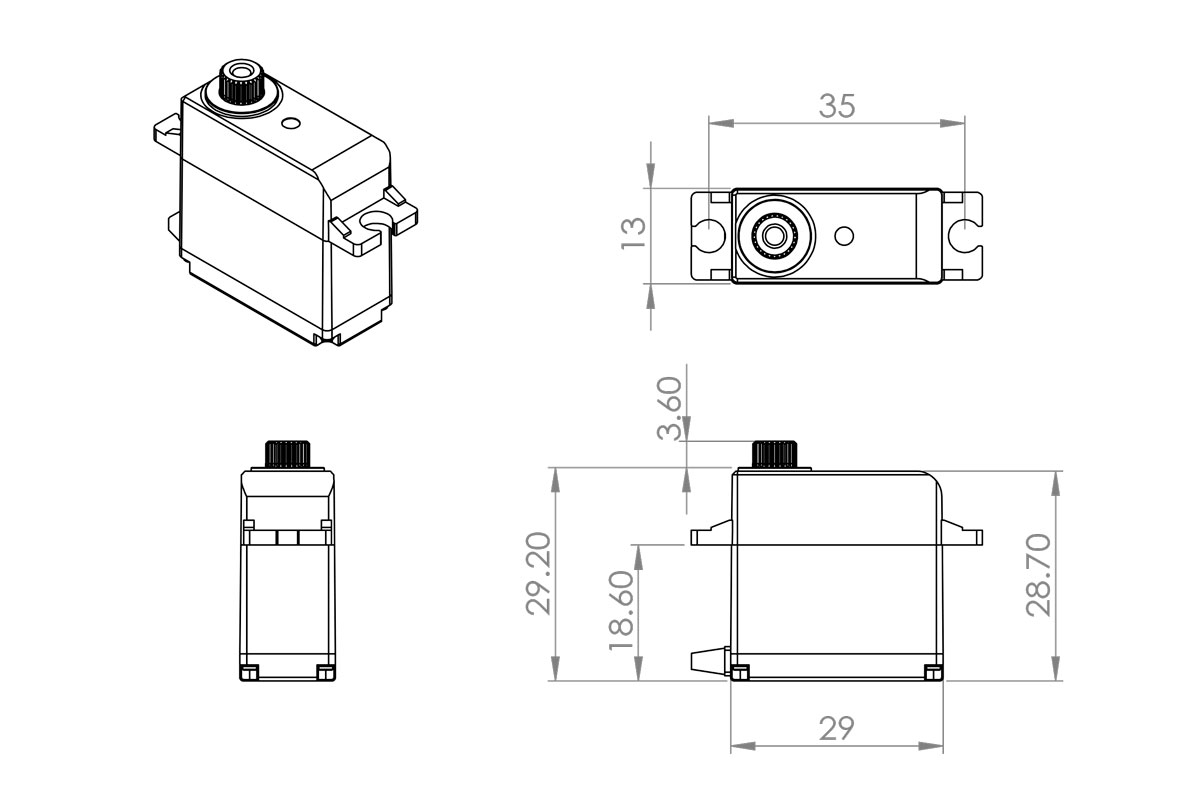

Length [mm]	29
Width [mm]	13
Height [mm]	28.7
Weight [g]	21
Intended for	Aeroplanes
Servo motor type	HV Coreless
