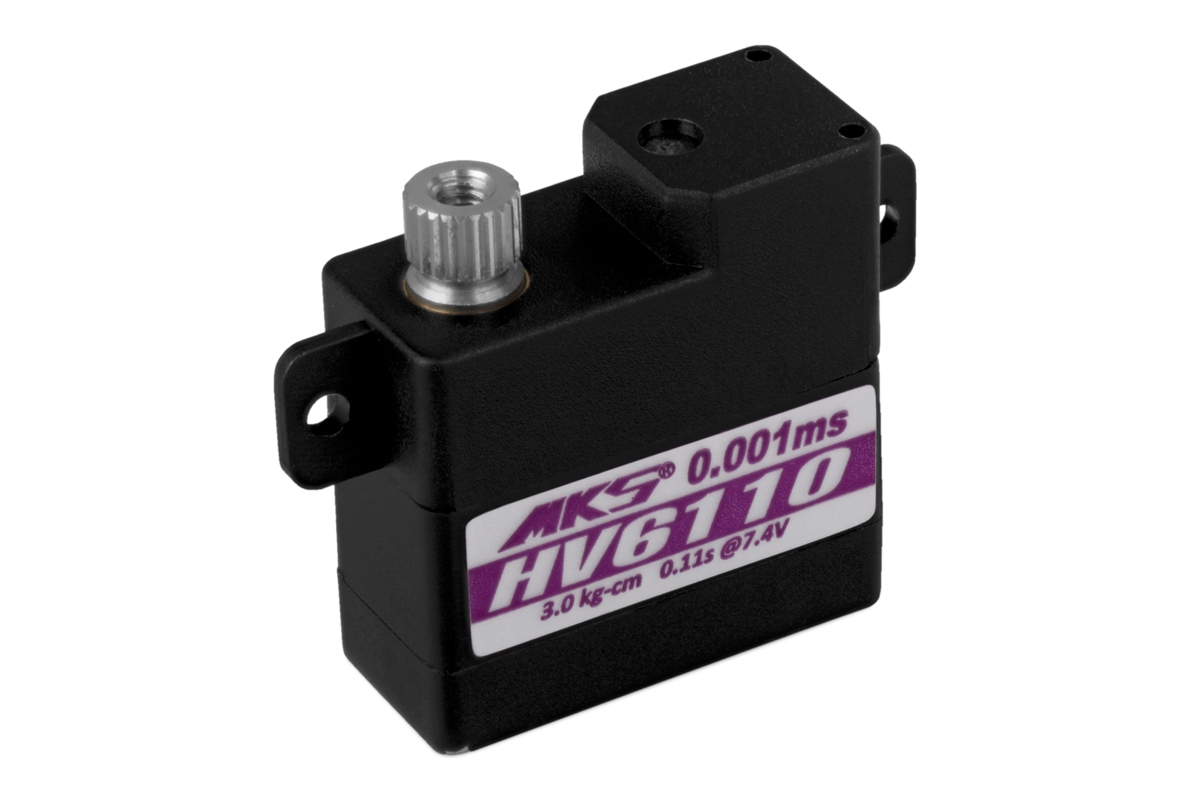

HV6110 (0.10s/60°, 3.4kg.cm)

Very high torque/ high speed programmable digital micro servo with metal gears with 2 jewel bearings and one oil-retaining bearing. The slim 10 mm servo case with flat mounting lugs makes it particularly suitable for controlling ailerons and flaps in hand launch gliders, smaller gliders/hotliners and motor models.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
