Code:MKS30001
Barcode:4710150350790
Brand:MKS

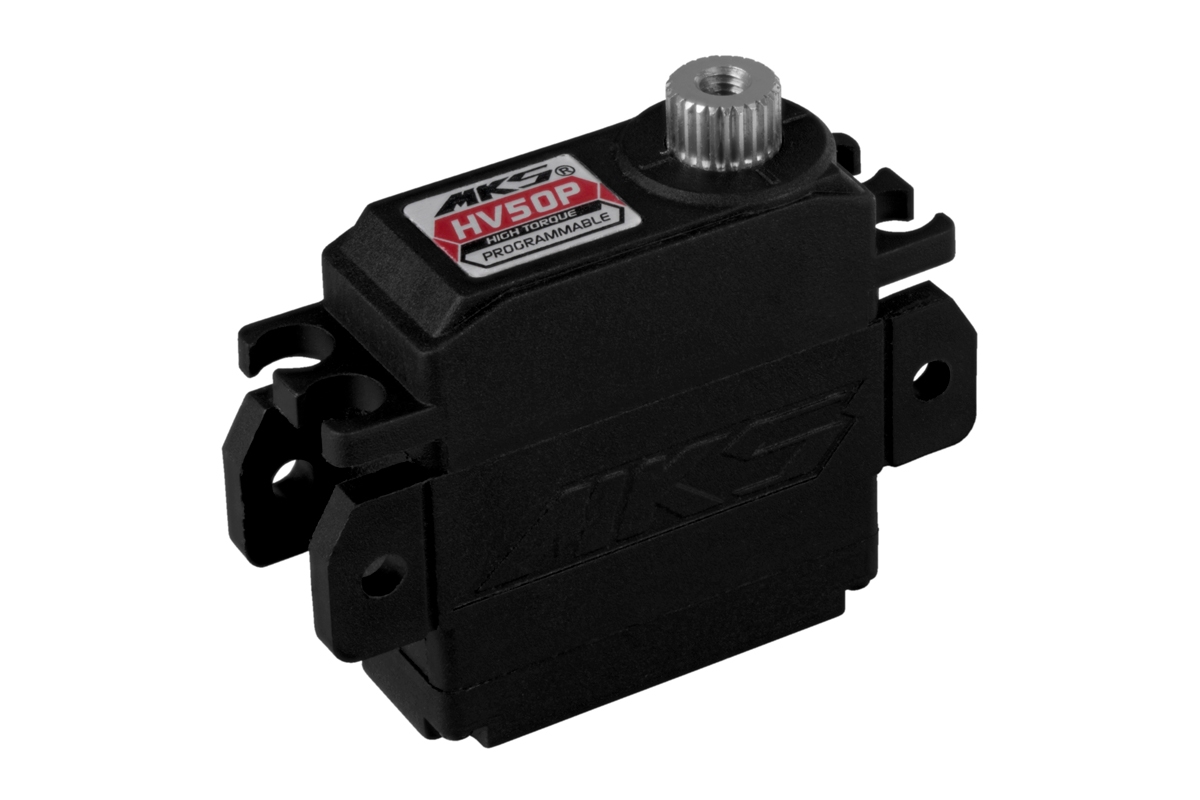

HV50P (0.071s/60°, 8.3kg.cm)

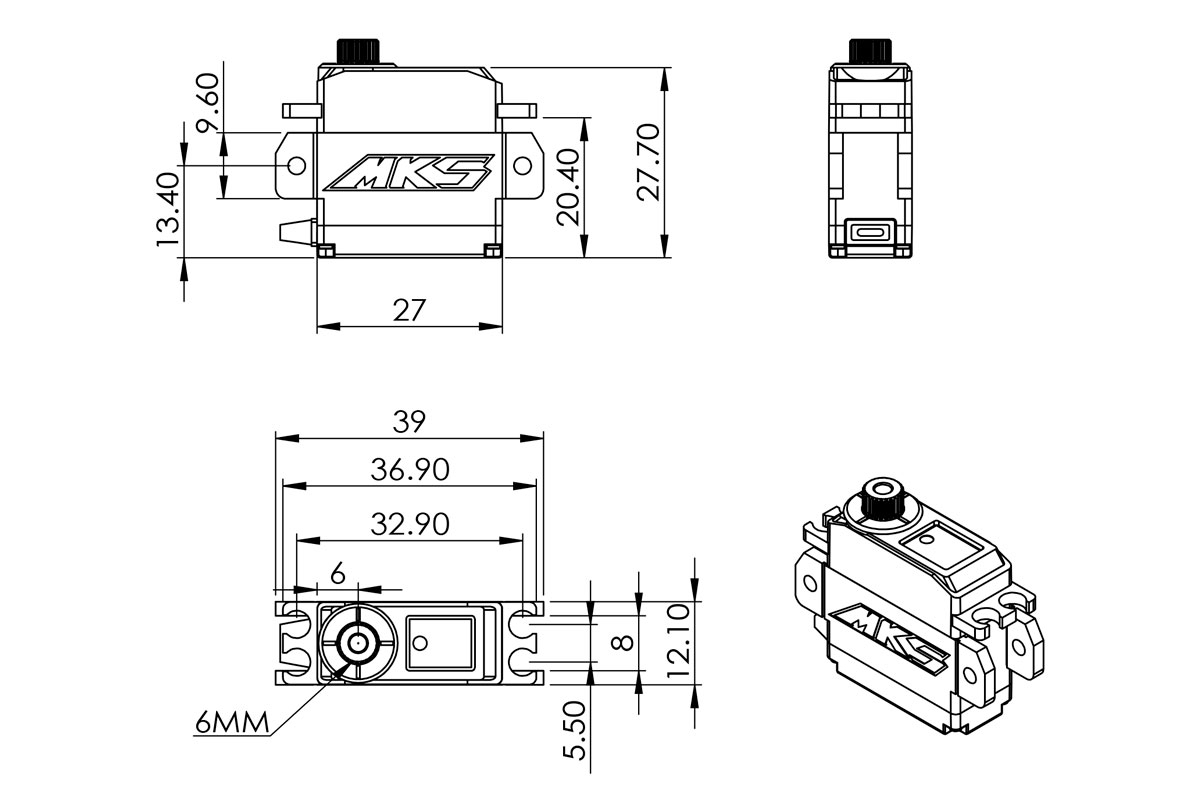

Ultra high torque/ super high speed 18g HV digital micro servo w. metal gears; wide input voltage 3.7-8.4V (1-2S LiPo), 2xBB. Ideal for contest 1/12 Pan RC cars. Torque 3.75kg.cm, speed 0.157s/60° at 3.7V, torque 6.1kg.cm, speed 0.097s/60° at 6.0V, torque 7.5kg.cm, speed 0.079s/60° at 7.4V, torque 8.3kg.cm, speed 0.071s/60° at 8.2V. Dimensions 27x12.1x27.7mm, weight 18.1g. Plastic case with normal and flat mounting lugs. Programmable with DSP-1 programmer.
This item is not available in you region (United States)
Description
Spare parts
Download

Ultra high torque/ super high speed programmable digital micro servo with metal gears with twin ballraced output shaft. It was specially designed for contest 1/12th on-road RC cars, developed in cooperation with the Europen champion Max Mächler. A plastic case with regular and flat mounting lugs for easy installation into any chassis.

Wide input voltage range 3.7-7.4 V (nominal), operational 3.5-8.4 V.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
Left Angle: Max. Left angle adjustment.
Right Angle: Max. Right angle adjustment.
Reversion: Reverse of the PWM command.
Allow Uncont: The Servo move to the “Uncontrolled Position” when the PWM command is loss.
Uncontrolled Pos: The emergency position in the case of PWM command loss, if the “Allow Uncont” is turned on.
Uncontrolled Time: The Servo will move to the “Uncontrolled Pos” after the “Uncontrolled Time” when the PWM command is loss.

Servo dimensionsMicro
Servo typeDigital
ProgrammableYes
Torque at 3.7 V [kg∙cm]3.75
Torque at 6.0V [kg∙cm]6.1
Torque at 7.4V [kg∙cm]7.5
Torque at 8.2 V [kg∙cm]8.3
Speed at 3.7 V [s/60st.]0.157
Speed at 6.0V [s/60st.]0.097
Speed at 7.4V [s/60st.]0.079
Speed at 8.2 V [s/60st.]0.071
Control pulse width in neutral [µs]1520
Frame Rate [Hz]333
Deadband [ms]0.001
Servo gearsMetal
Ball bearings
High-voltageYes
Power supply [V]3.7 - 8.4
Length [mm]27
Width [mm]12.1
Height [mm]27.7
Weight [g]18.1
Intended forOn-road cars
Servo motor typeHV Coreless
