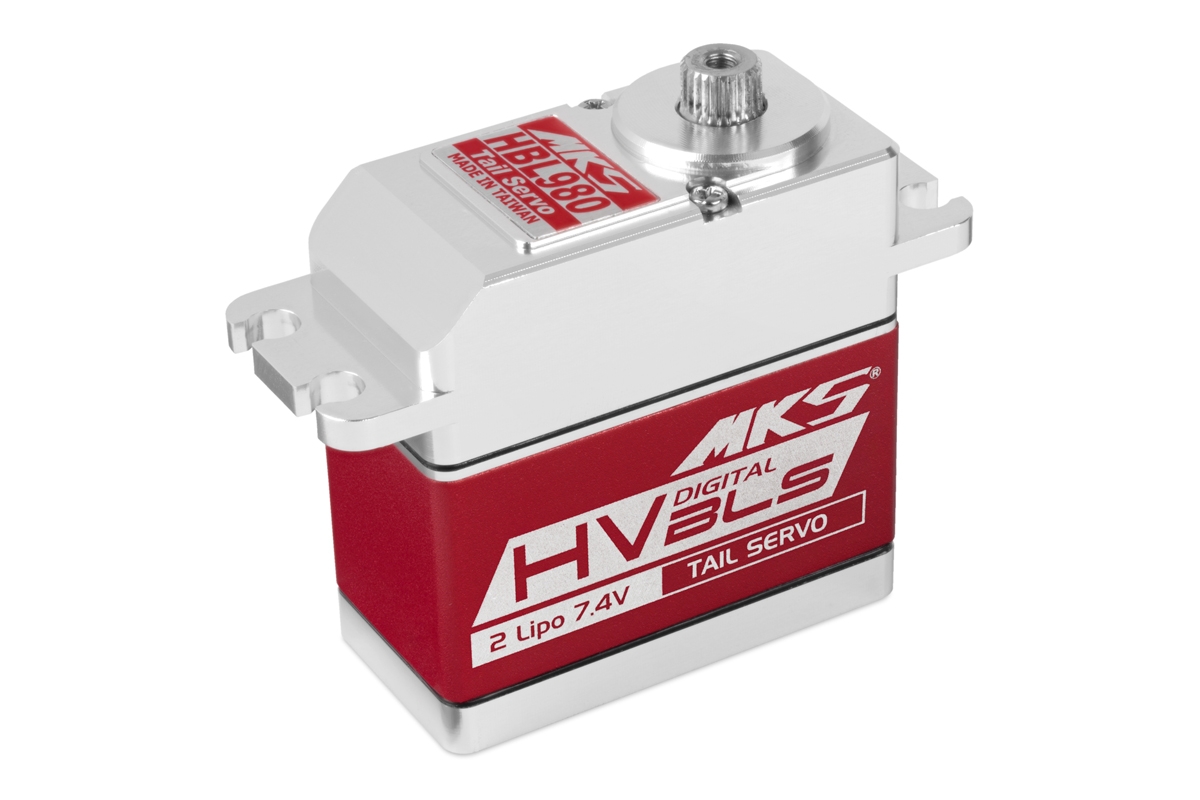

HBL980 (0.03s/60°, 6.2kg.cm)
This item is not available in you region (United States)
Ultra high speed narrowband (760µs) digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 550-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads.
Input voltage range 6.0-7.4 V (nominal).
Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | No |
| Torque at 6.0V [kg∙cm] | 4.5 |
| Torque at 7.4V [kg∙cm] | 5.6 |
| Torque at 8.2 V [kg∙cm] | 6.2 |
| Speed at 6.0V [s/60st.] | 0.04 |
| Speed at 7.4V [s/60st.] | 0.036 |
| Speed at 8.2 V [s/60st.] | 0.03 |
| Control pulse width in neutral [µs] | 760 |
| Frame Rate [Hz] | 560 |
| Deadband [ms] | 0.0004 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 6 - 8.4 |

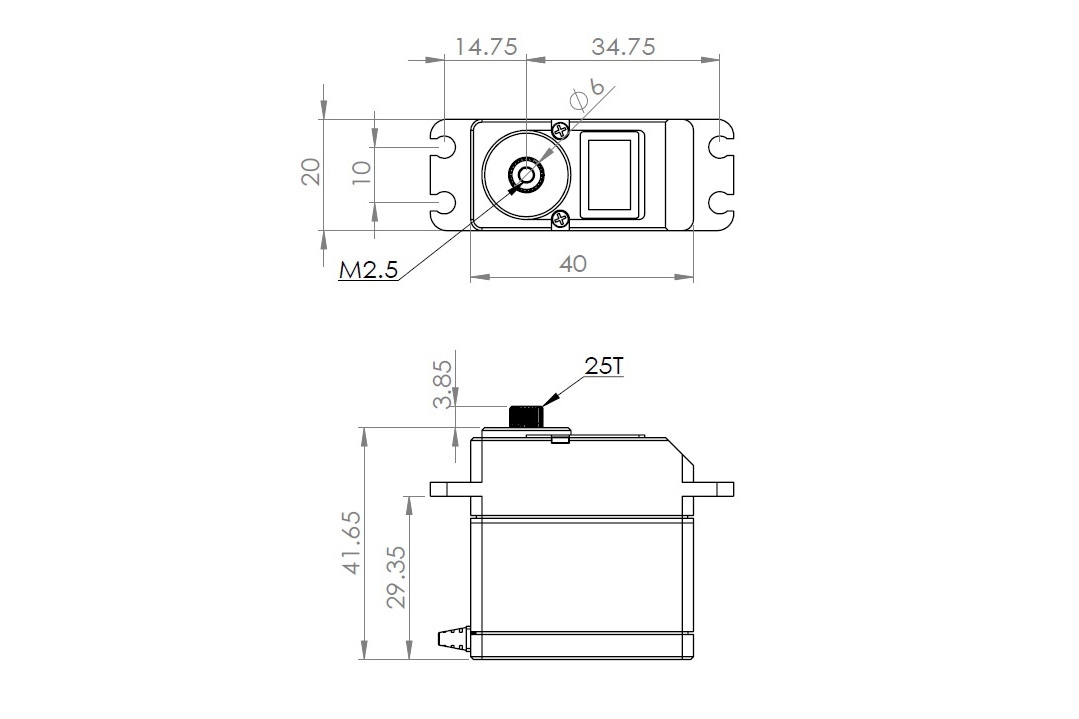

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 40 |
| Weight [g] | 70.29 |
| Intended for | Helicopters |
| Servo motor type | Brushless |
