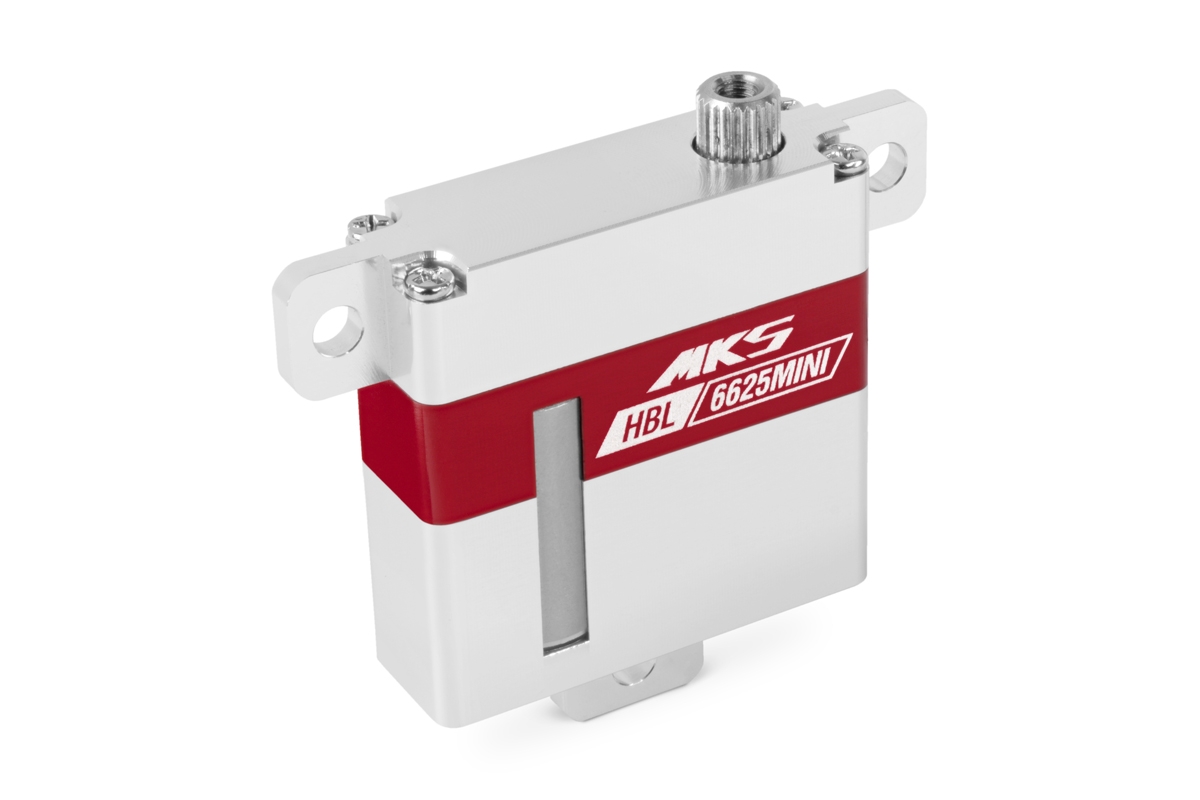

HBL6625MINI (0.10s/60°, 6.0kg.cm)

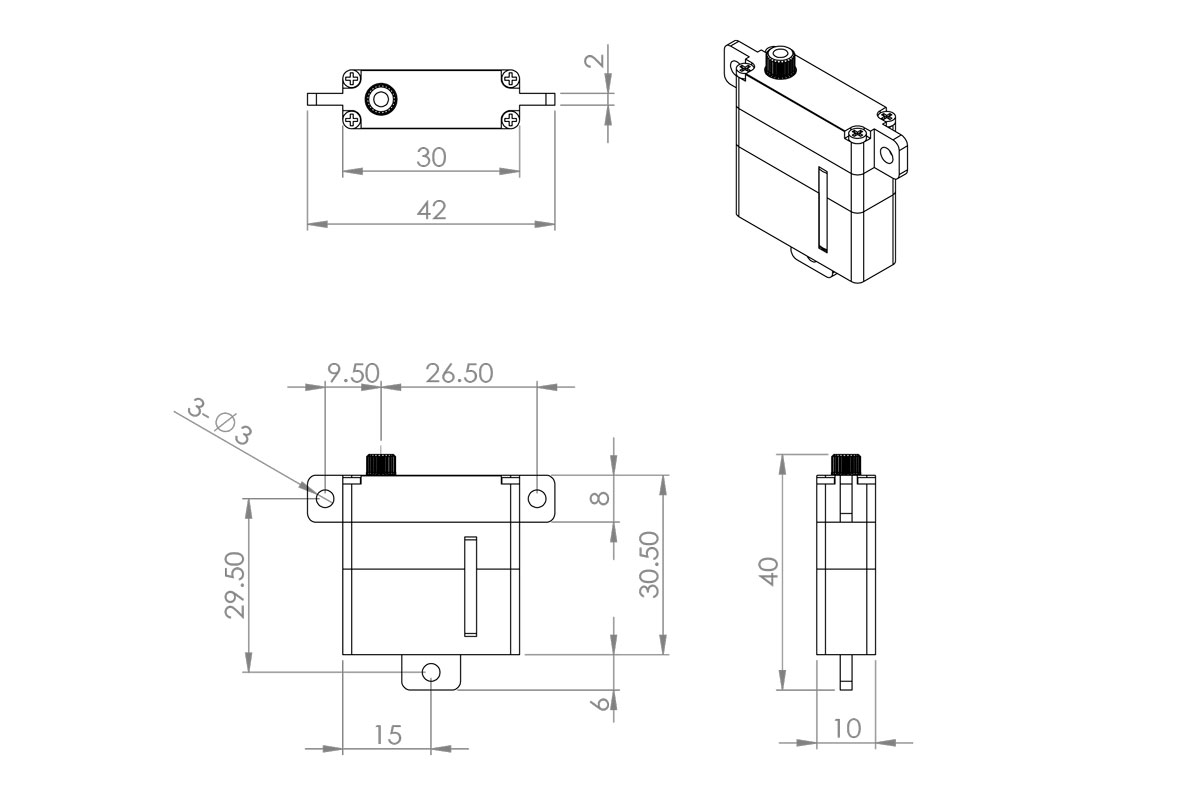

Very high torque/high speed programmable digital brushless mini servo with titanium gears with twin ballraced output shaft. The high precision no-backlash pre-loaded gears and slim 10 mm servo case makes it particularly suitable for controlling ailerons and flaps in gliders (F3B, F3F, F3J, F5J, etc.) and motor models with thin wing/tailplane profiles. An aluminium case with flat mounting lugs for perfect cooling even under high loads.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
