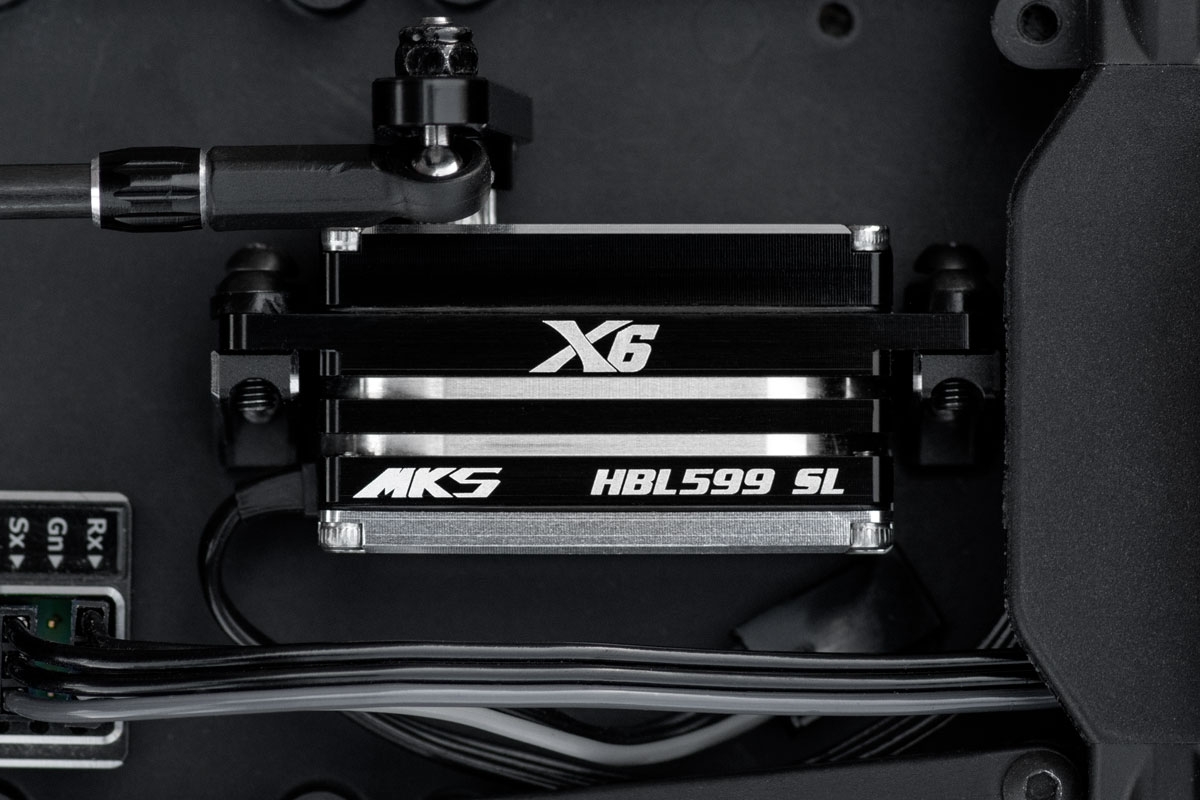

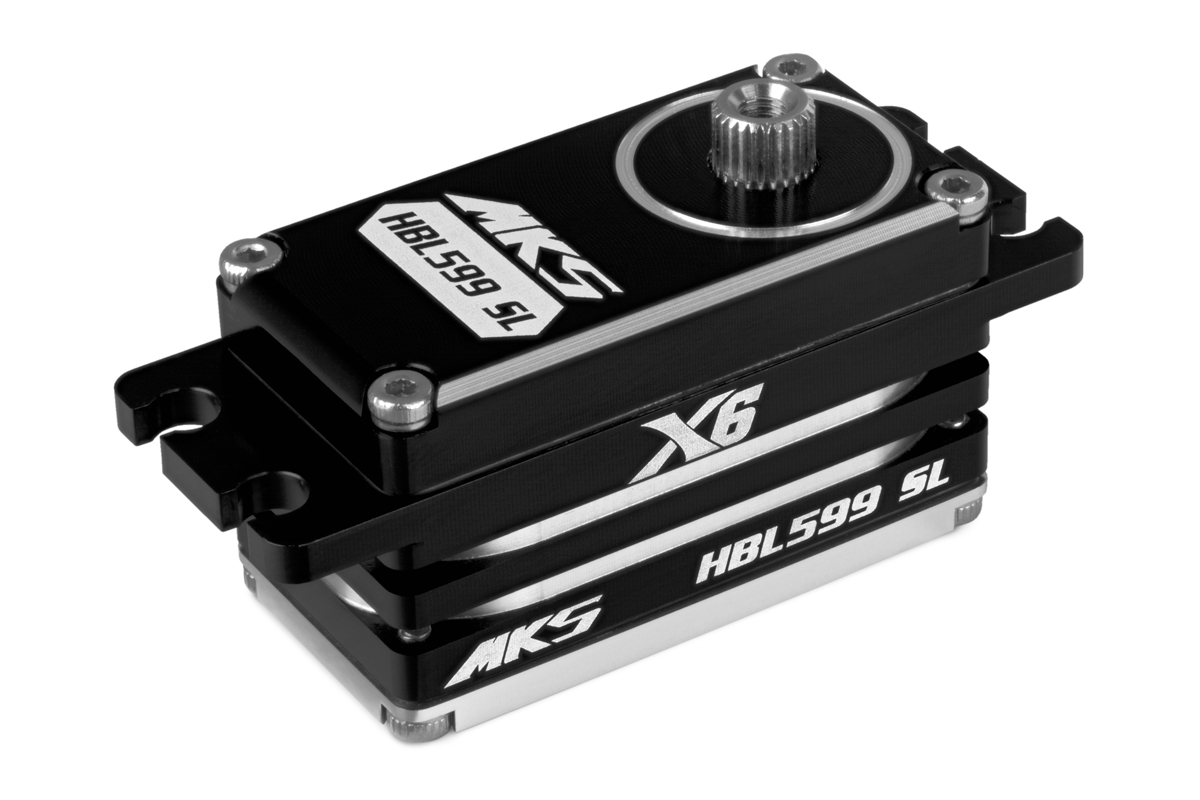

HBL599SL (0.09s/60°, 23.0kg.cm)
This item is not available in you region (United States)

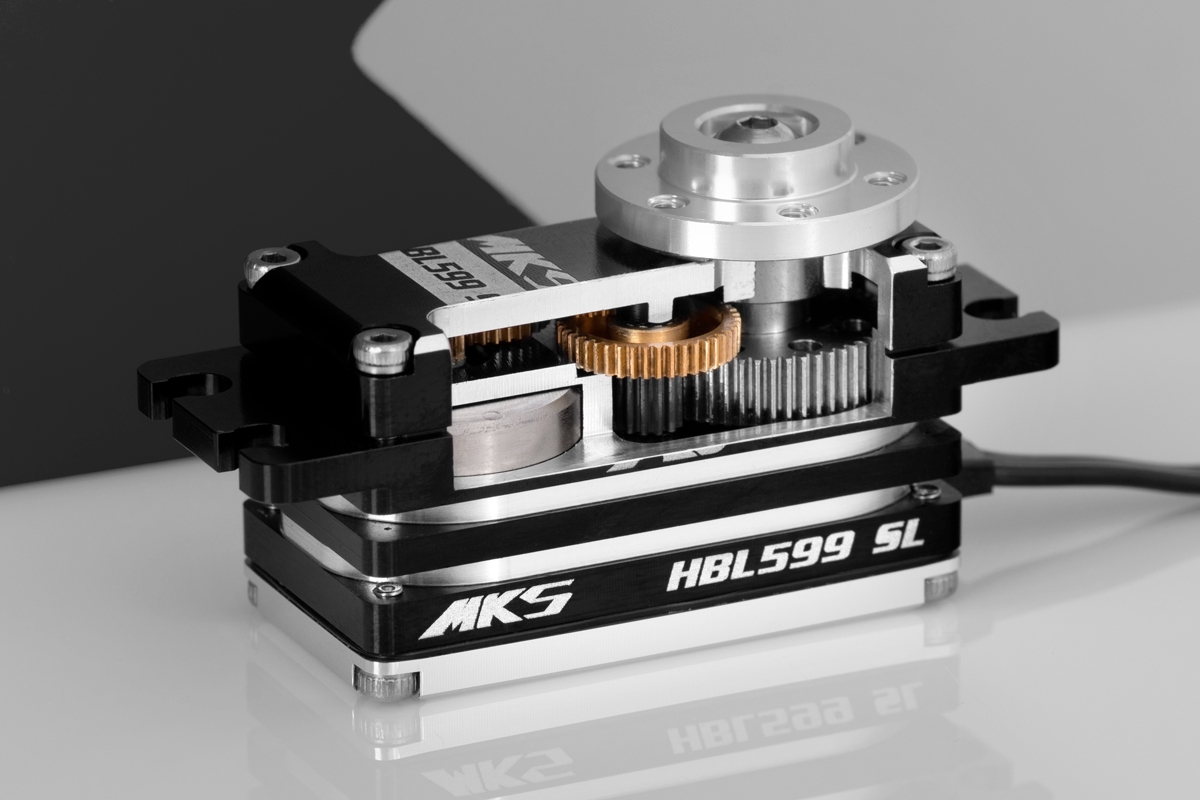

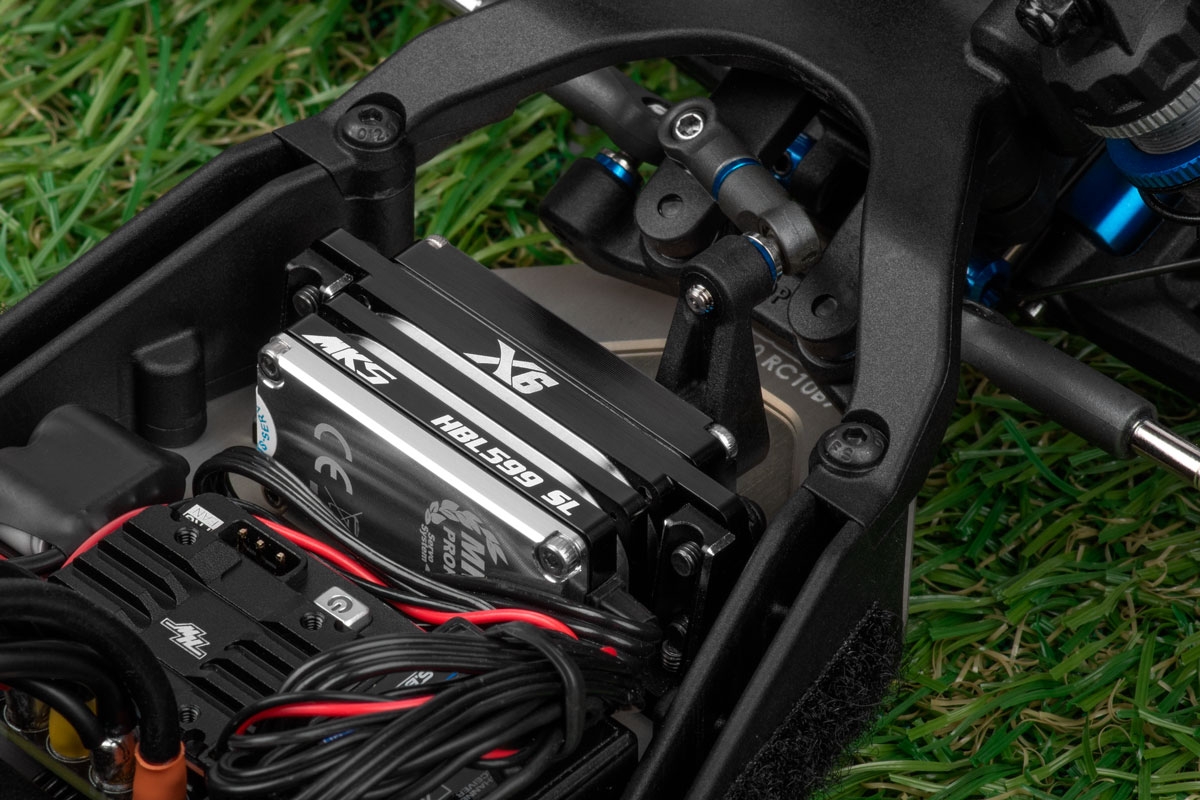

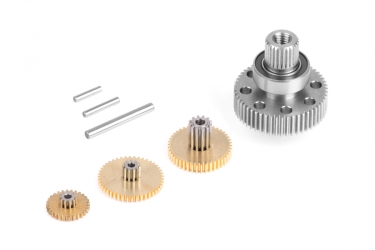

Super high torque/very high speed programmable digital low-profile standard brushless servo with metal gears and twin ballraced output shaft; ideal for 1/10 and 1/8 RC cars. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.
Wide input voltage range 4.8-7.4 V (nominal), operational 4.8-8.4 V.
Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.
| Servo dimensions | Standard |
| Servo type | Digital |
| Programmable | Yes |
| Torque at 4.8V [kg∙cm] | 16 |
| Torque at 6.0V [kg∙cm] | 18 |
| Torque at 7.4V [kg∙cm] | 23 |
| Speed at 4.8V [s/60st.] | 0.14 |
| Speed at 6.0V [s/60st.] | 0.11 |
| Speed at 7.4V [s/60st.] | 0.09 |
| Control pulse width in neutral [µs] | 1520 |
| Frame Rate [Hz] | 333 |
| Deadband [ms] | 0.0008 |
| Servo gears | Metal |
| Ball bearings | 2× |
| High-voltage | Yes |
| Power supply [V] | 4.8 - 8.4 |

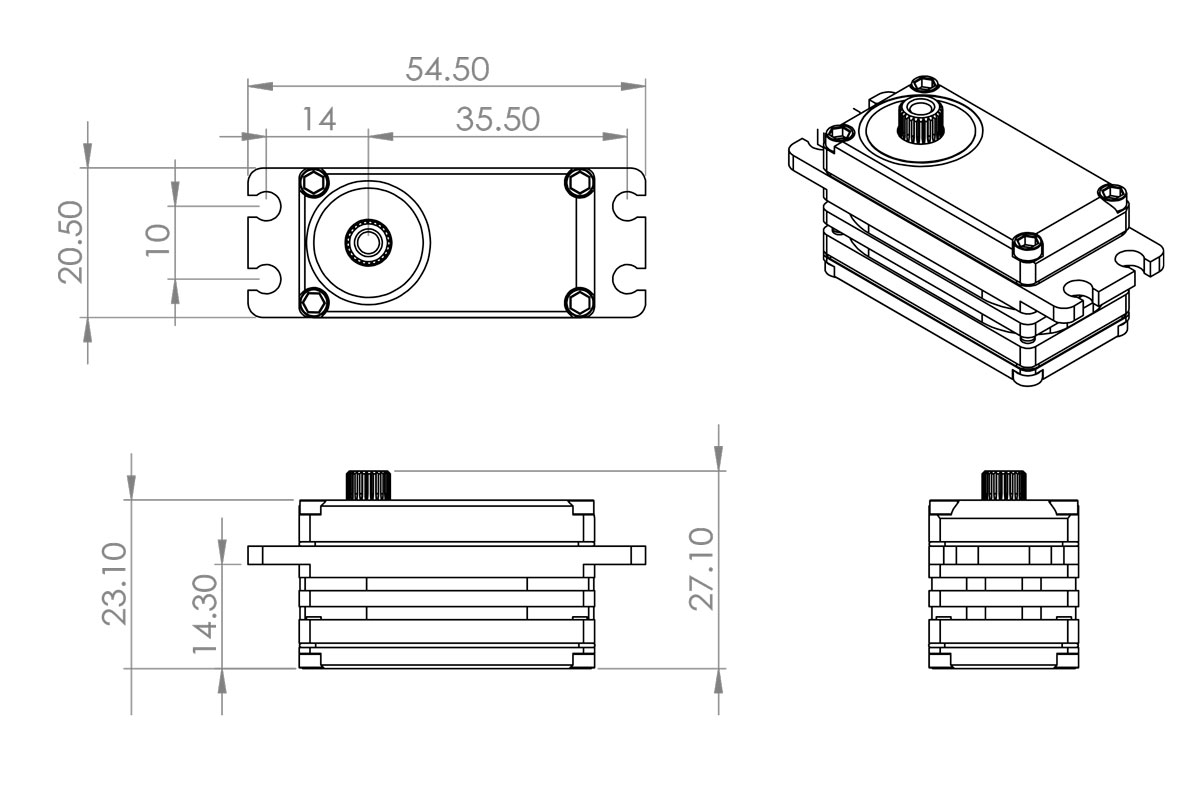

| Length [mm] | 40.5 |
| Width [mm] | 20.5 |
| Height [mm] | 23.1 |
| Weight [g] | 53.5 |
| Intended for | Aeroplanes,On-road cars,Off-road cars |
| Servo motor type | Brushless |
Download
 |
Instruction Manual | 17.01.2024 |
