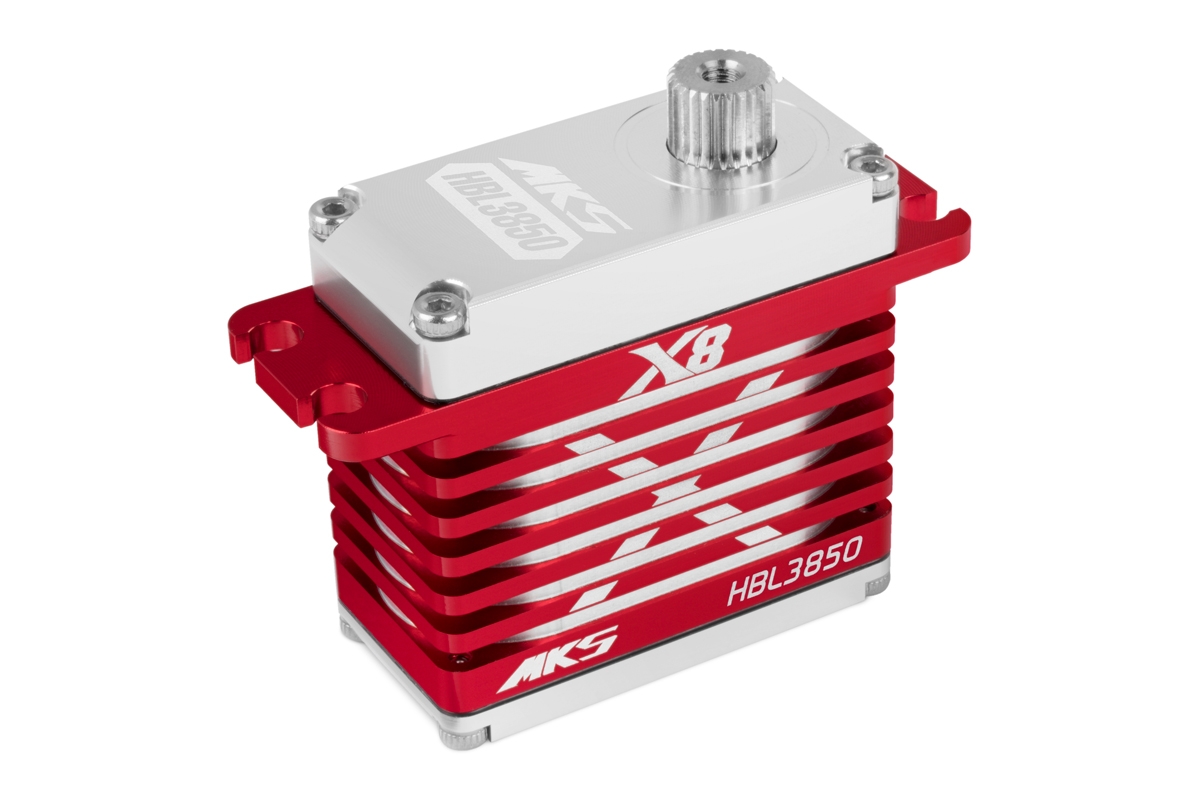

HBL3850 (0.10s/60°, 57.0kg.cm)

Super high torque/ high speed 81g HV digital standard brushless servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for giant model aeroplanes. Torque 42.0kg.cm, speed 0.142s/60° at 6.0V, torque 51.0kg.cm, speed 0.115s/60° at 7.4V, torque 57.0kg.cm, speed 0.104s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40x20x38.5mm, weight 81g. Programmable with DSP-2 programmer.

This item is not available in you region (United States)

Super high torque/ high speed programmable digital standard brushless servo with titanium gears and twin ballraced output shaft; ideal for large/giant model aeroplanes. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.

Input voltage range 6.0-7.4 V (nominal), operational 6.0-8.4 V.

Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.

Servo dimensions	Standard
Servo type	Digital
Programmable	Yes
Torque at 6.0V [kg∙cm]	42
Torque at 7.4V [kg∙cm]	51
Torque at 8.2 V [kg∙cm]	57
Speed at 6.0V [s/60st.]	0.142
Speed at 7.4V [s/60st.]	0.115
Speed at 8.2 V [s/60st.]	0.104
Control pulse width in neutral [µs]	1520
Frame Rate [Hz]	333
Deadband [ms]	0.0008
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	6 - 8.4

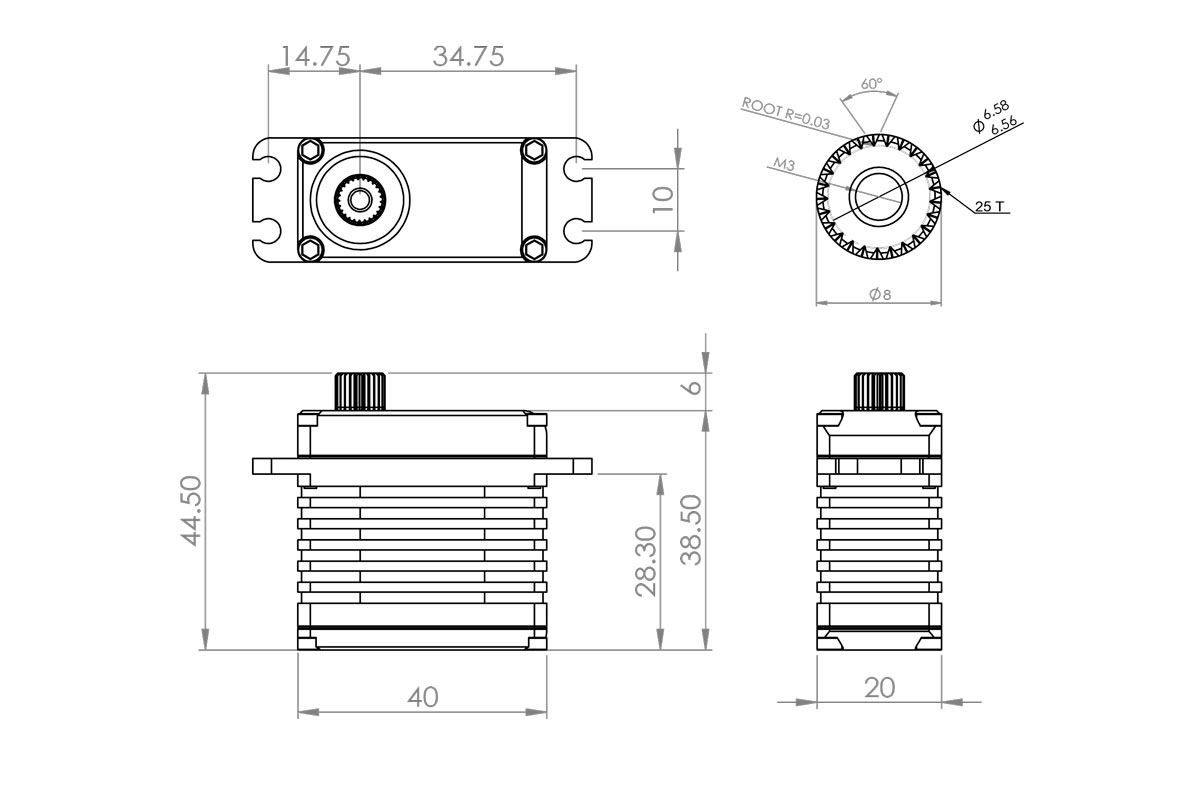

Length [mm]	40
Width [mm]	20
Height [mm]	38.5
Weight [g]	81
Intended for	Aeroplanes
Servo motor type	Brushless
