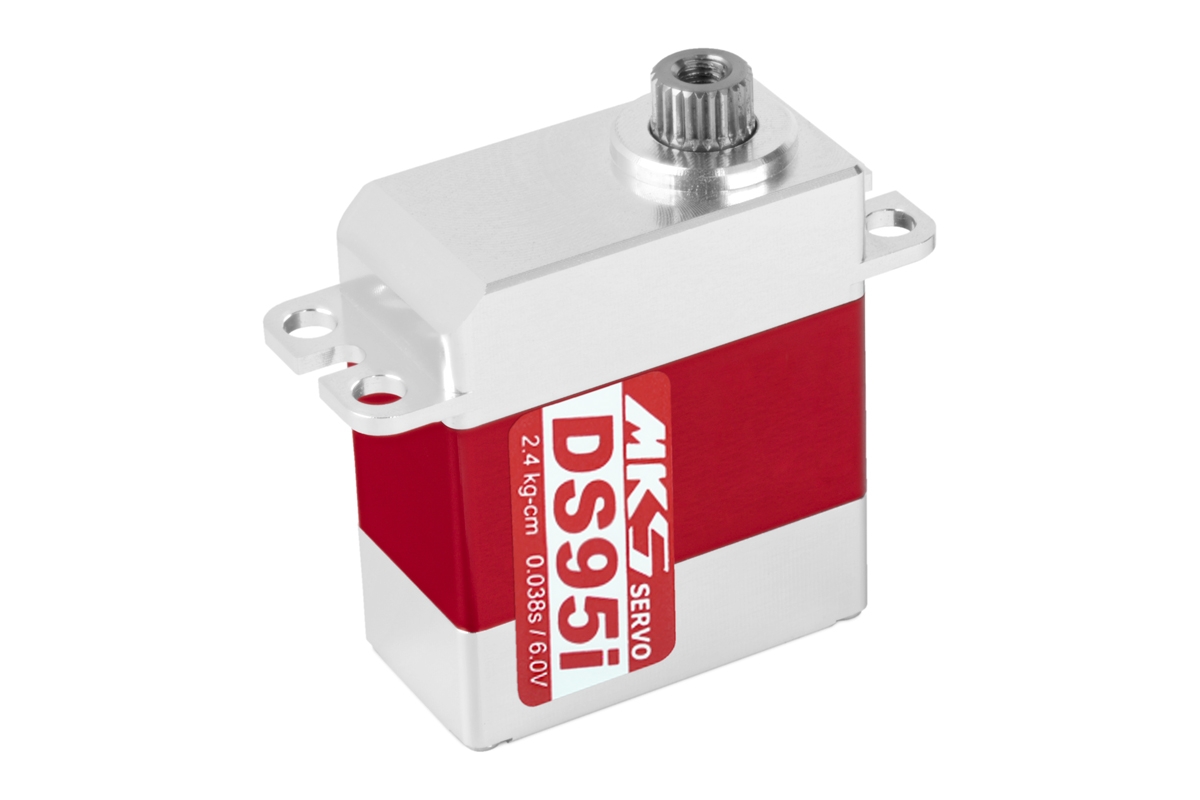

DS95i (0.038s/60°, 2.4kg.cm)

Ultra high speed 21g digital narrowband (760µs) micro servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Ideal for tail rotors of mini helicopters, compatible with most of gyro and flybarless systems. Torque 1.92kg.cm, speed 0.047s/60° at 4.8V, torque 2.40kg.cm, speed 0.038s/60° at 6.0V. Aluminium case for perfect heat dissipation. Dimensions 23x12x27.25mm, weight 21.21g. Non-programmable.

This item is not available in you region (United States)

Ultra high speed narrowband (760µs) digital micro servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 380-420 class mini helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 4.8-6.0 V (nominal).

Servo dimensions	Micro
Servo type	Digital
Programmable	No
Torque at 4.8V [kg∙cm]	1.92
Torque at 6.0V [kg∙cm]	2.4
Speed at 4.8V [s/60st.]	0.047
Speed at 6.0V [s/60st.]	0.038
Control pulse width in neutral [µs]	760
Frame Rate [Hz]	560
Deadband [ms]	0.0005
Servo gears	Metal
Ball bearings	2×
High-voltage	No
Power supply [V]	4.8 - 7

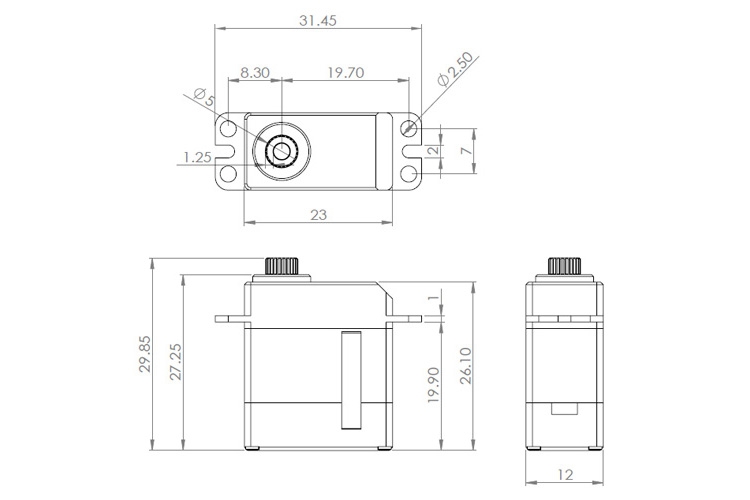

Length [mm]	23
Width [mm]	12
Height [mm]	27.25
Weight [g]	21.21
Intended for	Aeroplanes,Helicopters
Servo motor type	Coreless
