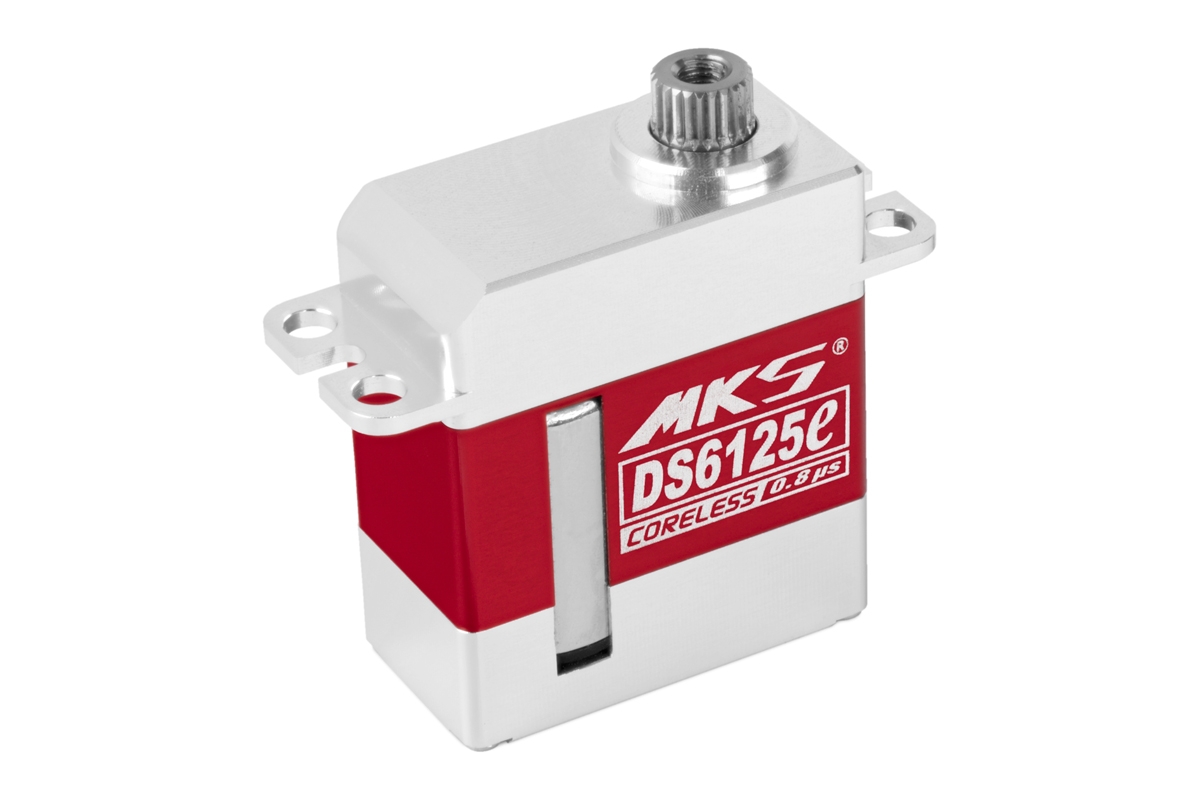

DS6125E (0.053s/60°, 3.25kg.cm)

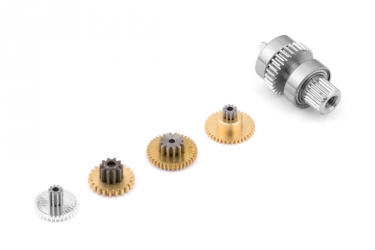

Ultra high speed programmable digital micro servo with metal gears with twin ballraced output shaft. The high precision no-backlash pre-loaded gears makes it particularly suitable for controlling elevators and rudders, but also ailerons and flaps in gliders (F3B, F3F, F3J, F5J, etc.) and motor models as well as cyclic of mini helicopters. An aluminium case with regular mounting lugs for perfect cooling even under high loads.

Input voltage range 4.8-6.0 V (nominal).

Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.
