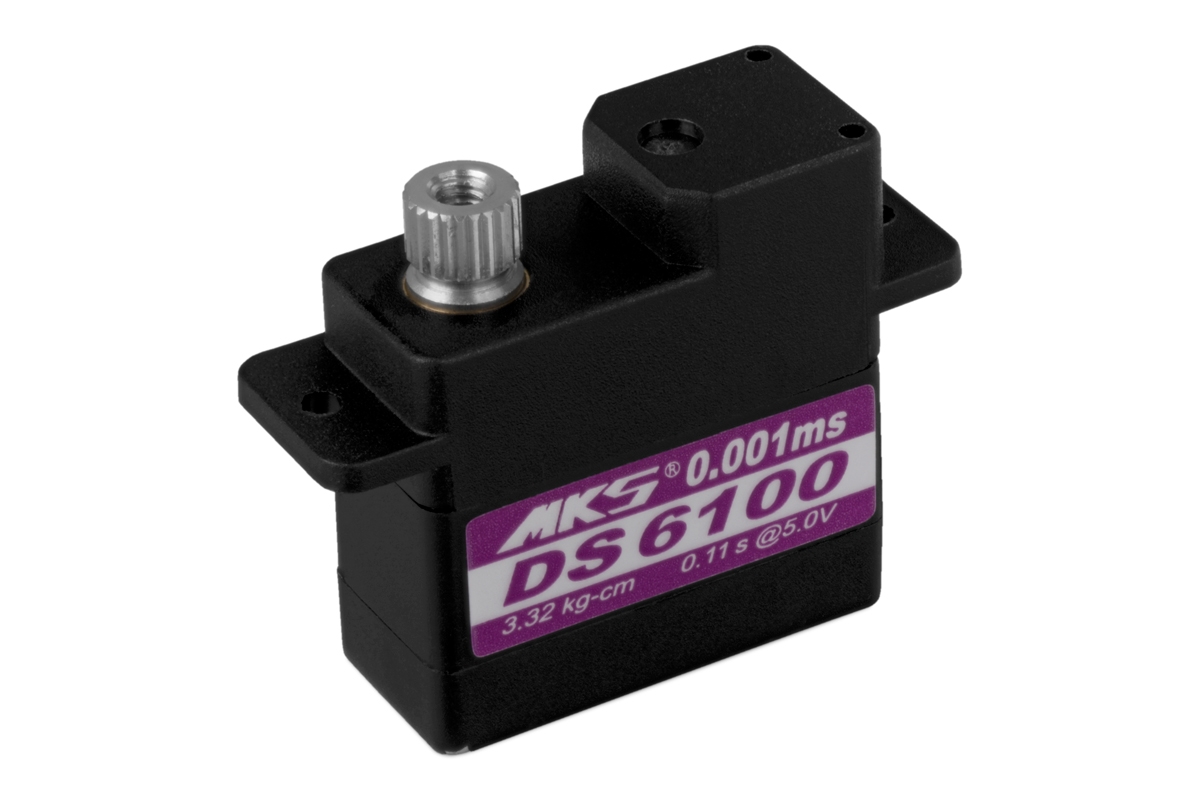

DS6100 (0.12s/60°, 3.19kg.cm)

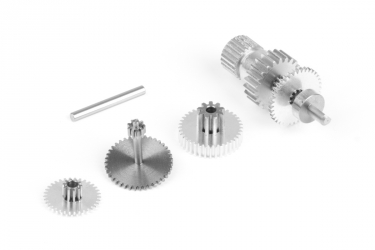

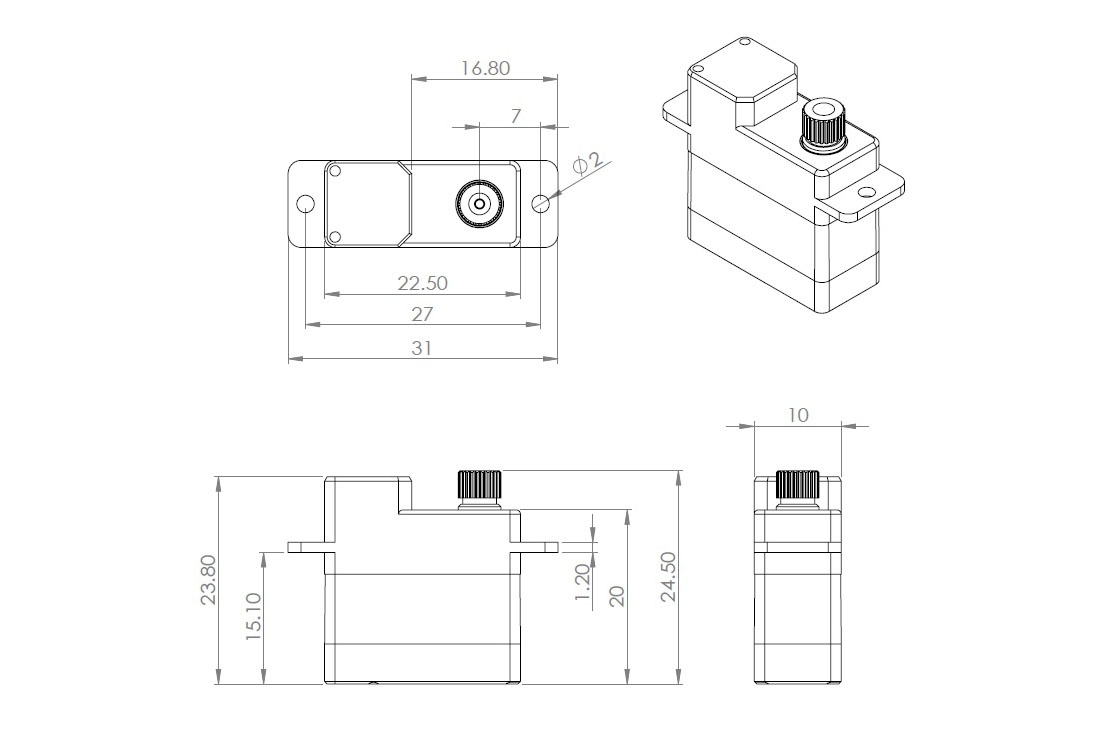

Very high torque/ high speed programmable digital micro servo with metal gears with 2 jewel bearings and one oil-retaining bearing. The slim 10 mm servo case makes it particularly suitable for controlling ailerons and flaps in hand launch gliders, smaller gliders/hotliners and motor models.

Input voltage range 4.8-5.0 V (nominal).

Using the DSP-2 MKS Digital Servo Programmer you can program a wide range of servo parameters:
Neutral: The setting of the neutral position.
Max_PWM (Max. pulse width): The maximum angular range will be limited within this command value.
Min_PWM (Min. pulse width): The minimum angular range will be limited within this command value.
Reverse: Reverse of the PWM command.
Dead_Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm.
CMD_Lost (Fail-Safe): The Servo move to the “CMD_Position” when the PWM control signal is lost.
CMD_Position: The emergency position in the case of PWM command lost, if the “ CMD_Lost ” is turned on.
CMD_Time: The Servo will move to the “CMD_Position” after the “CMD Time” when the PWM command is lost.
