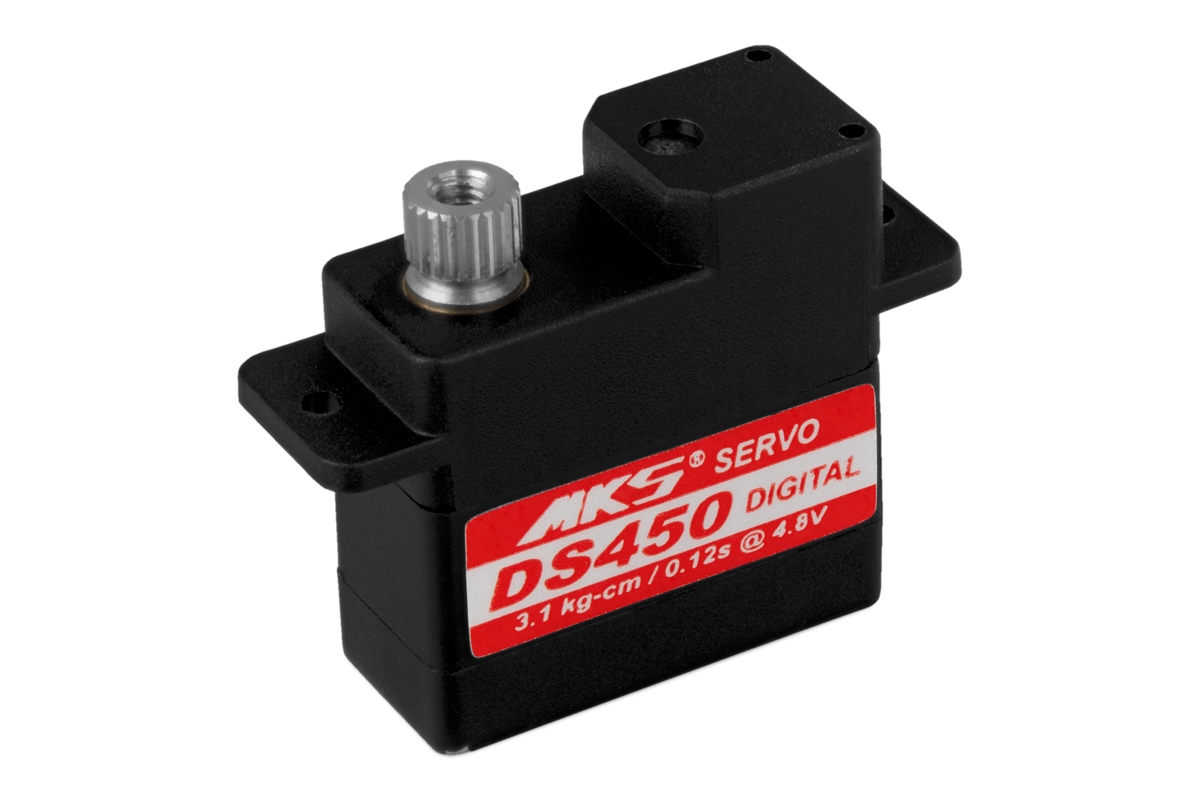

DS450 (0.12s/60°, 3.1kg.cm)

High torque/high speed 9.5g digital micro servo w. metal gears; input voltage 4.8-5.0V, 1xoil-retaining bearing. Ideal for cyclic of mini helicopters. Torque 3.10kg.cm, speed 0,120s/60° at 4.8V, torque 3.22kg.cm, speed 0,115s/60° at 5.0V,. Dimensions 22.5x10x23.8mm, weight 9.5g. Programmable with DSP-1 programmer.

This item is not available in you region (United States)

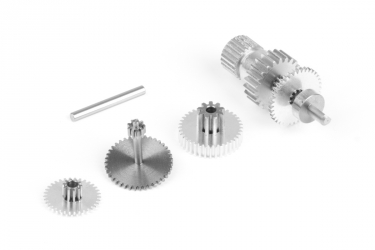

Very high torque/ high speed programmable digital micro servo with metal gears with 2 jewel bearings and one oil-retaining bearing. DS450 is particularly suitable for the cyclic control of micro helicopters.

Input voltage range 4.8-5.0 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface for GO servos and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensions	Micro
Servo type	Digital
Programmable	Yes
Torque at 4.8V [kg∙cm]	3.1
Torque at 5.0 V [kg∙cm]	3.22
Speed at 4.8V [s/60st.]	0.12
Speed at 5.0 V [s/60st.]	0.115
Control pulse width in neutral [µs]	1520
Frame Rate [Hz]	333
Deadband [ms]	0.002
Servo gears	Metal
Ball bearings	None
High-voltage	No
Power supply [V]	4.8 - 5

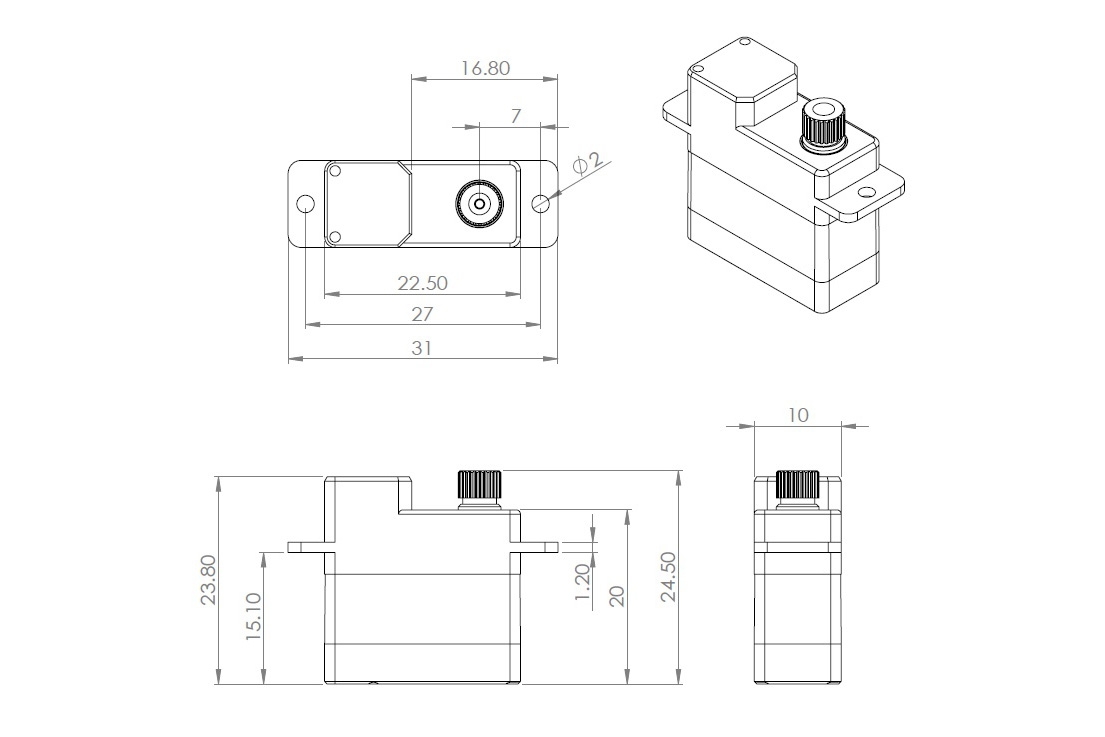

Length [mm]	22.5
Width [mm]	10
Height [mm]	23.8
Weight [g]	9.5
Intended for	Aeroplanes,Helicopters
Servo motor type	Coreless
