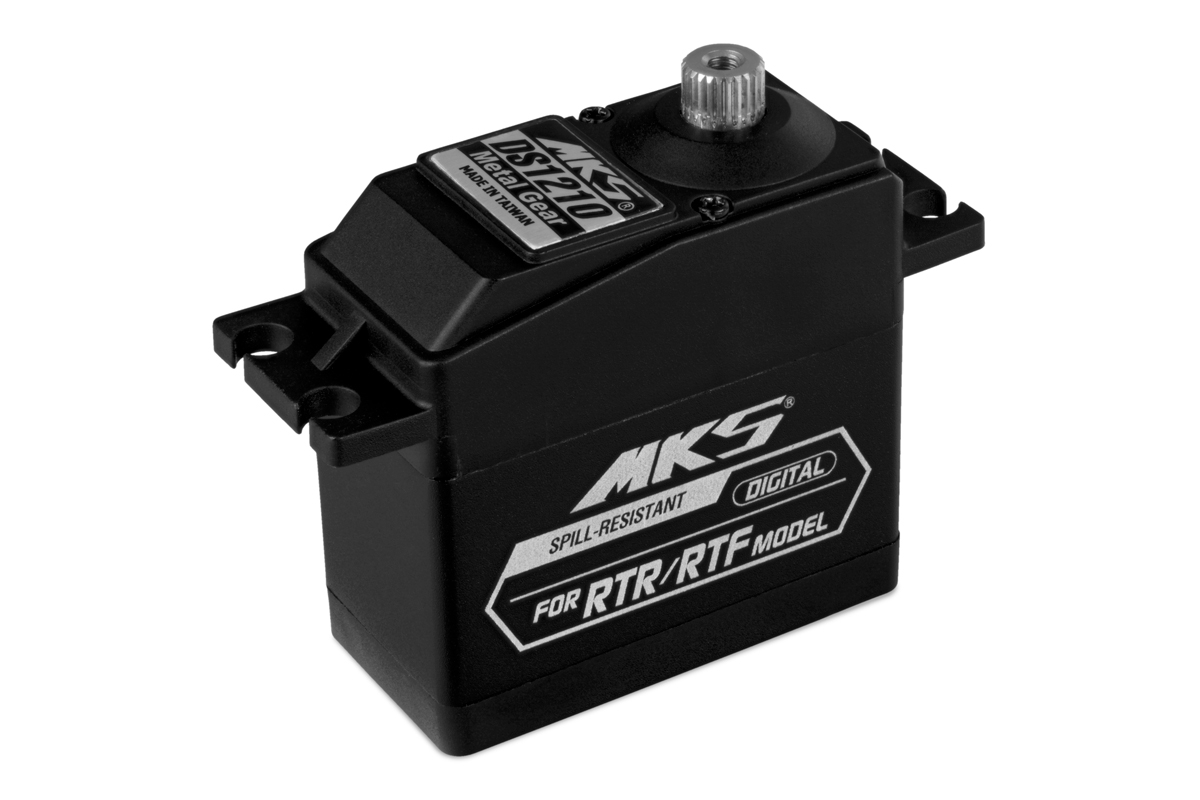

DS1210 (0.12s/60°, 10.0kg.cm)

56g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, regular model aeroplanes. Torque 8.05kg.cm, speed 0.15s/60° at 4.8V, torque 9.2kg.cm, speed 0.131s/60° at 5.5V, torque 10.0kg.cm, speed 0.12s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x40mm, weight 56g. Programmable with DSP-1 programmer.

This item is not available in you region (United States)

Digital standard servo with metal gears and twin ballraced output shaft for general use, regular model aeroplanes as well as RC cars and boats. An aluminium mid case for perfect cooling even under high loads.

Input voltage range 4.8-6.0 V (nominal)

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensions	Standard
Servo type	Digital
Programmable	Yes
Torque at 4.8V [kg∙cm]	8.05
Torque at 5.5 V [kg∙cm]	9.2
Torque at 6.0V [kg∙cm]	10
Speed at 4.8V [s/60st.]	0.15
Speed at 5.5 V [s/60st.]	0.131
Speed at 6.0V [s/60st.]	0.12
Control pulse width in neutral [µs]	1520
Frame Rate [Hz]	333
Deadband [ms]	0.001
Servo gears	Metal
Ball bearings	2×
High-voltage	Yes
Power supply [V]	4.8 - 6

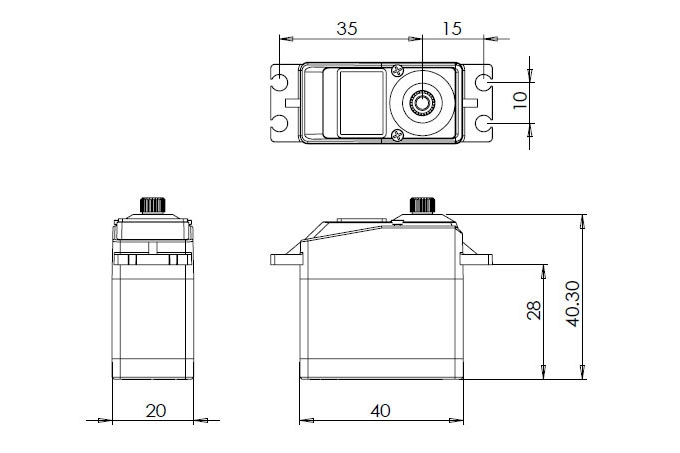

Length [mm]	40
Width [mm]	20
Height [mm]	40
Weight [g]	56
Intended for	Aeroplanes
Servo motor type	Coreless
