Code:SRT-W35
Brand:SRT

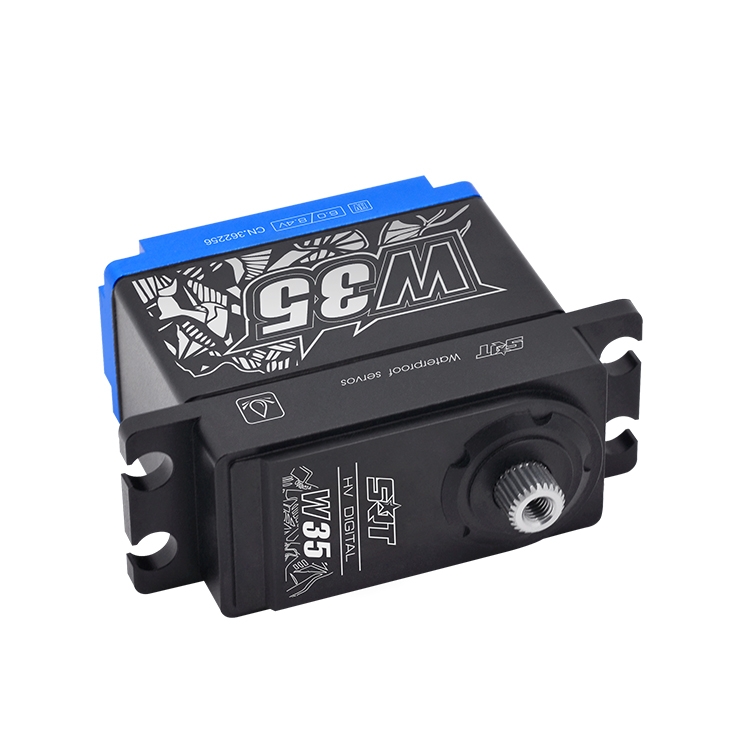

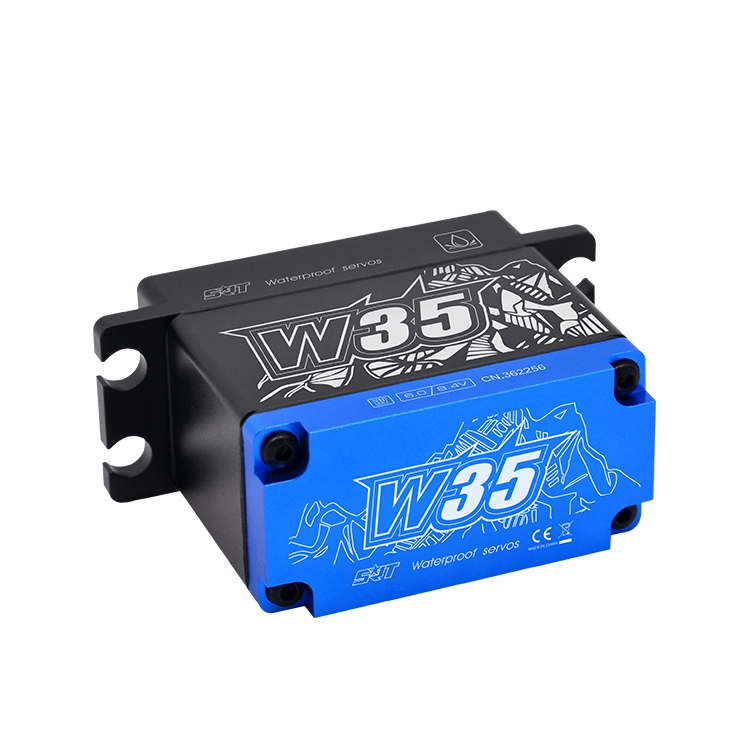

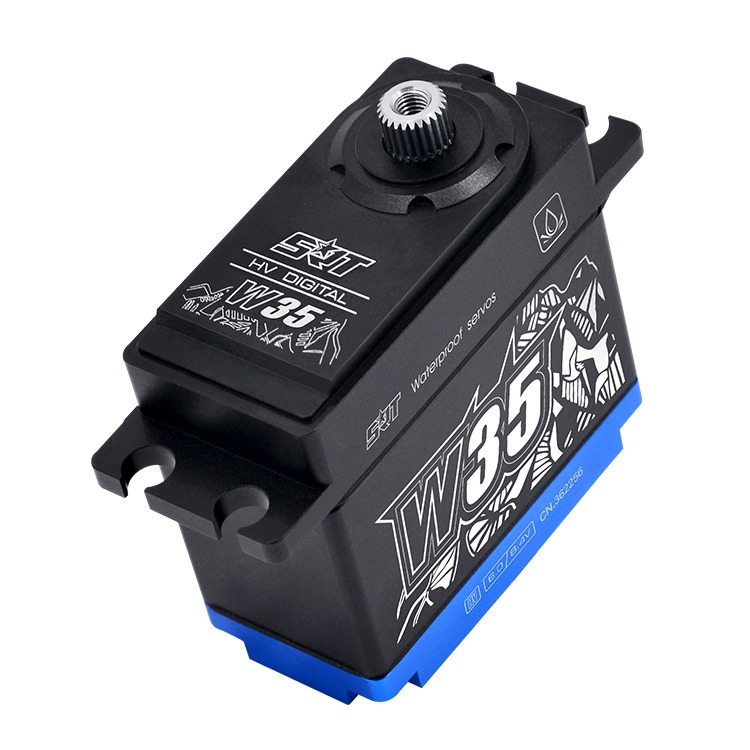

W35 HiVOLT CORELESS WATERPROOF Digital servo (35 kg-0,10s/60°)
In Stock
KEY FEATURES
- Ideal for 1/10 on road and 1/8 off road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
PRODUCT SPECIFICATIONS
- Type: Digital
- Bearing: Dual
- Motor Type: Coreless
- Gear Type: Metal
- Gear Material: Titanium & Steel
- control system: pulse width control
- working frequence: 1520μs / 330hz
- operating voltage: dc6.0-8.4v
- operating temperature range: -10 to + 60 degree
- operating speed (6.0v): 0.15 sec/60 degrees at no load
- operating speed (7.4v): 0.12 sec/60 degrees at no load
- operating speed (8.4v): 0.10 sec/60 degrees at no load
- stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
- stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
- stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
- potentiometer drive: direct drive
- dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
- weight: 82.5g (2.91 oz)
- connector wire length: jr 360 mm
