Code:SRT-T6S
Brand:SRT

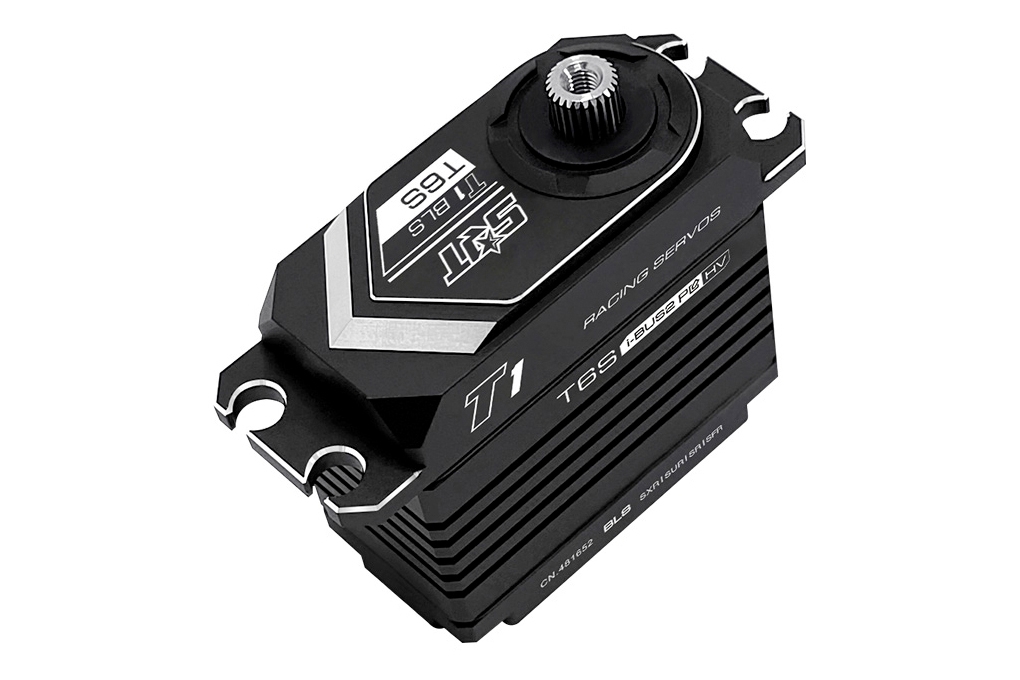

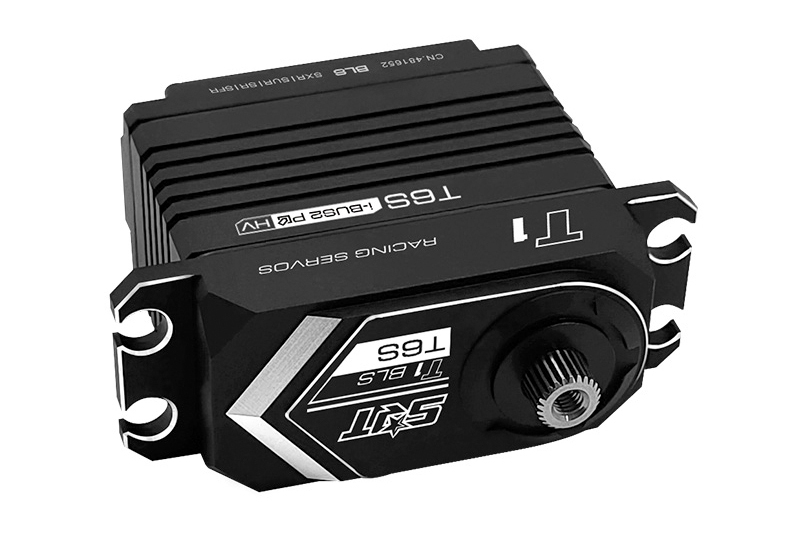

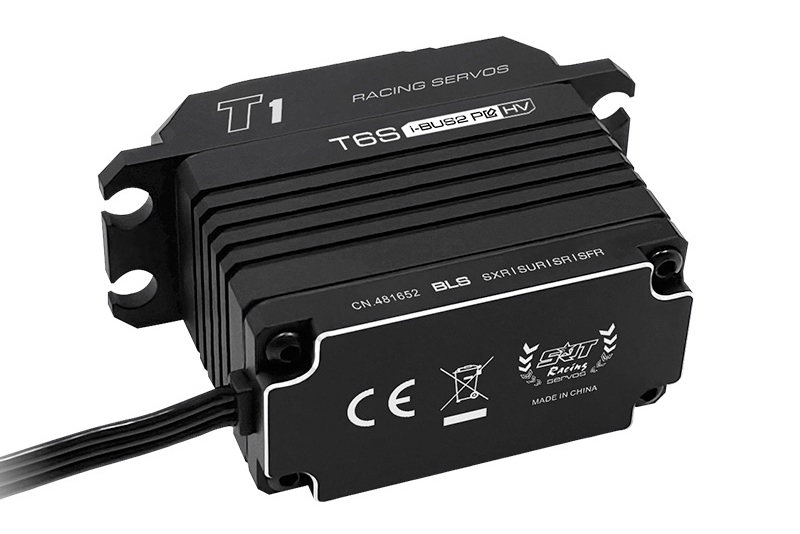

T6S HiVOLT BRUSHLESS Digital servo (58 kg-0.085s/60°)
Programmable digital HiVolt servo with brushless motor and steel gears.
In Stock
KEY FEATURES
- Ideal for 1/8 on road and 1/5 off road scale applications
- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- Programmable High torque Brushless servo
- Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
- 25T output shaft
- 2 μsec Dead Band
PRODUCT SPECIFICATIONS
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Steel
- control system: pulse width control
- working frequence: 1520μs / 330hz
- operating voltage: DC 6.0-8.4 V
- operating temperature range: -10 to + 60 degree
- operating speed (6.0v): 0.092 sec/60 degrees at no load
- operating speed (7.4v): 0.090 sec/60 degrees at no load
- operating speed (8.4v): 0.085 sec/60 degrees at no load
- stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
- stall torque (7.4v): 48.0kg.cm (625.0 oz/in)
- stall torque (8.4v): 58.0kg.cm (763.8 oz/in)
- potentiometer drive: direct drive

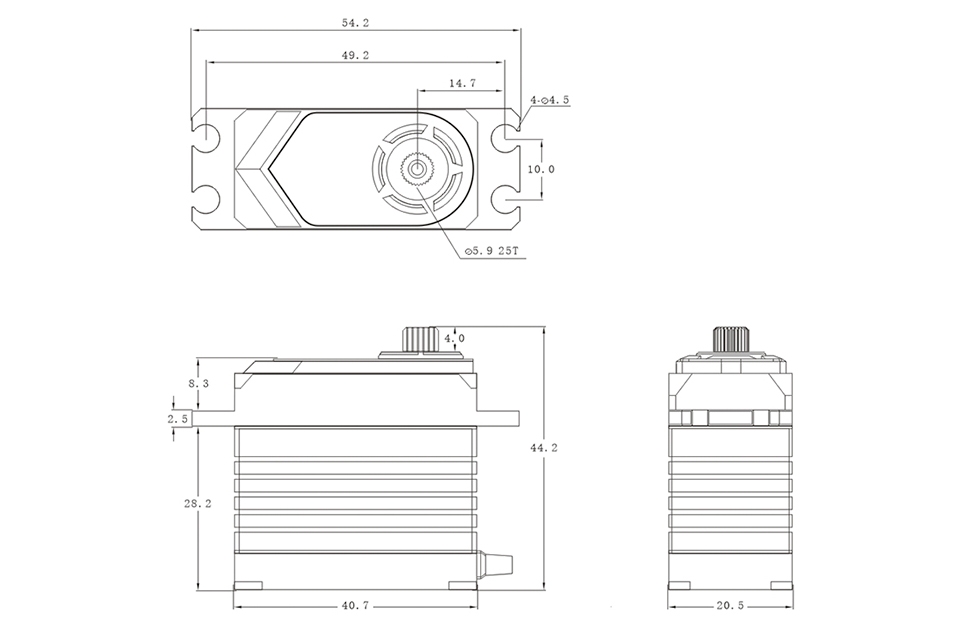

- dimensions: 40,7x20,5x39.0 mm /1.60x0.81x1.54 in
- weight: 83.0g (2.93 oz)
- connector wire length: jr 300 mm
