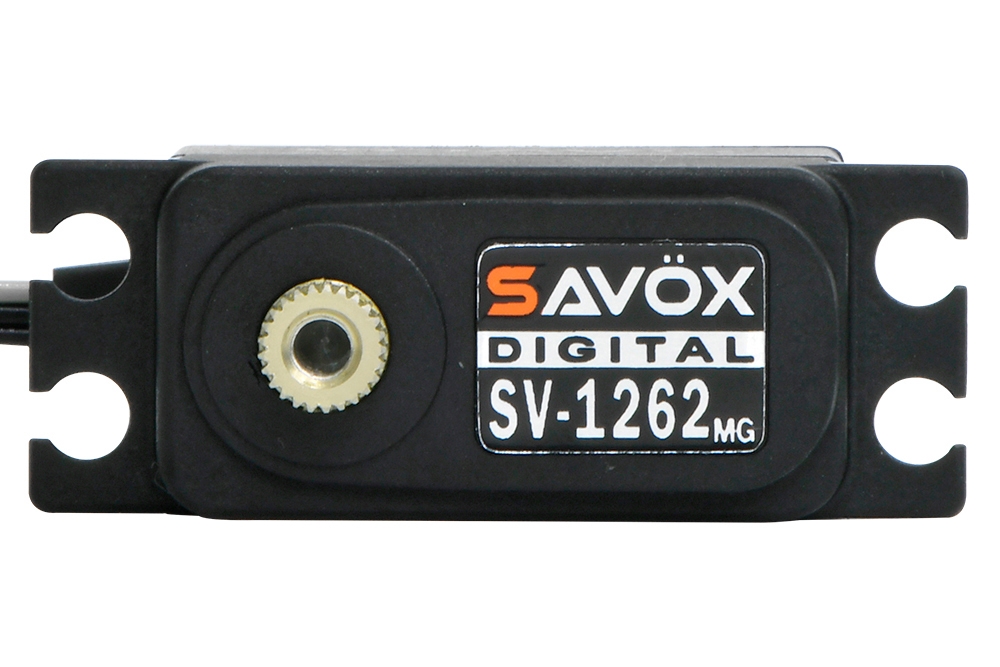

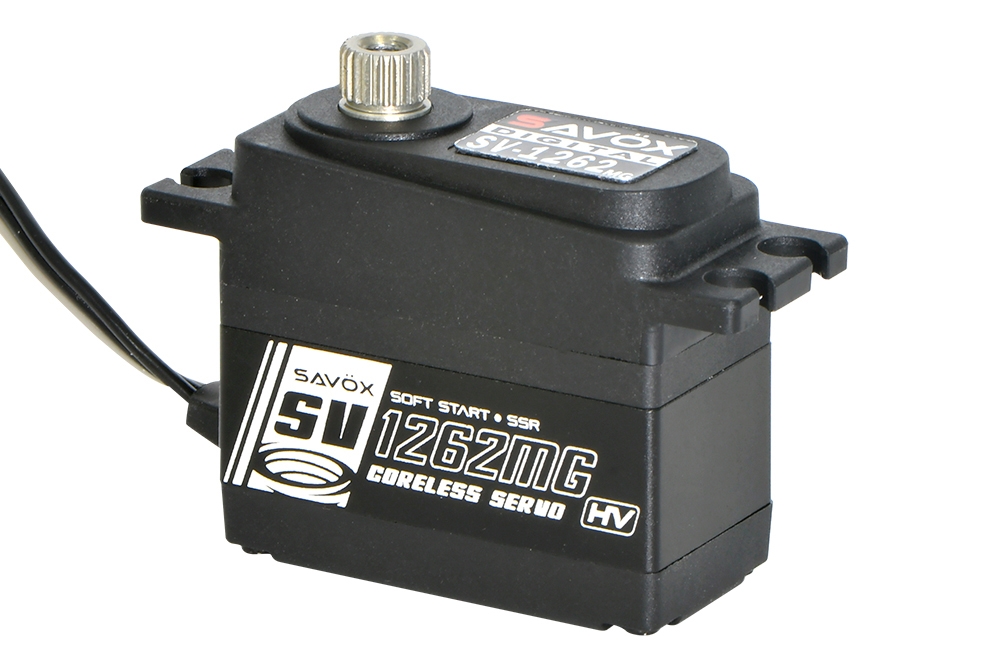

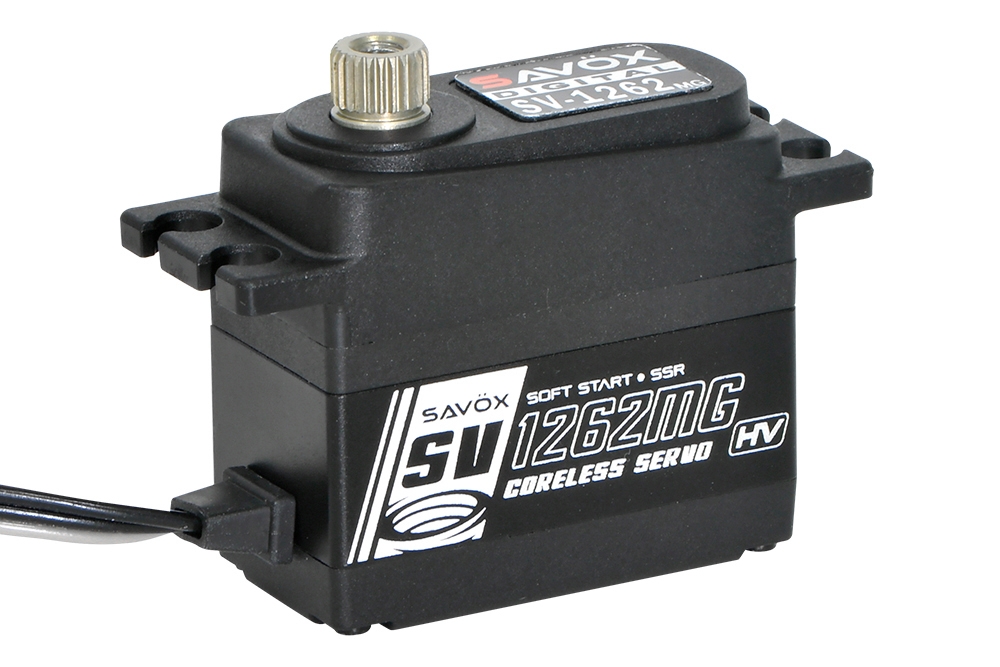

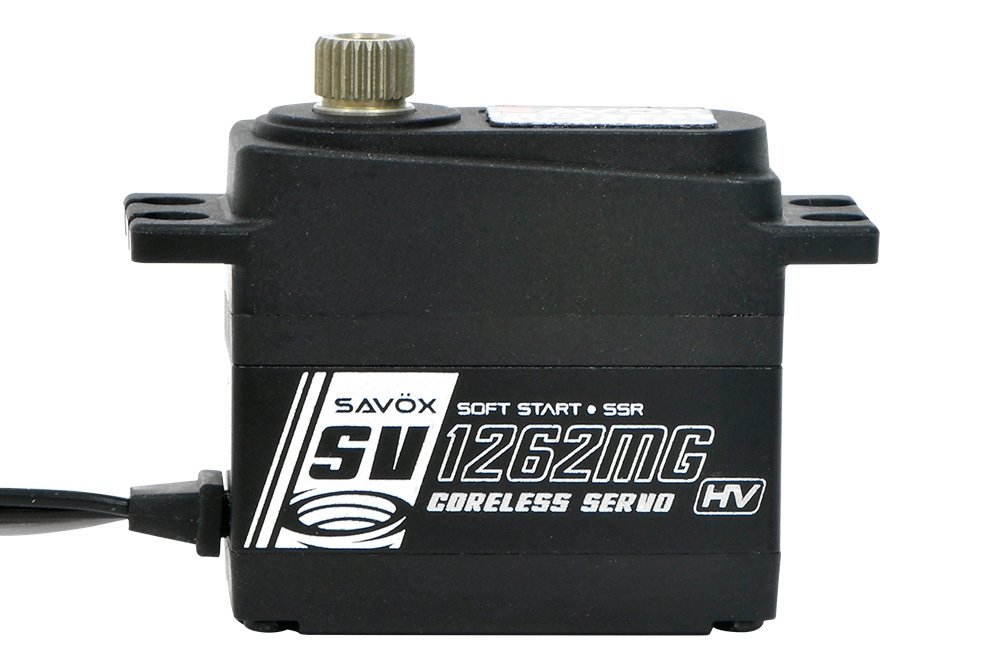

SV-1262MG HiVolt digital servo (9kg-0,085s/60°)

High-performance mini-class servo built for compact RC models where every gram and millimeter matters. It’s designed with a coreless motor, full metal geartrain, and modern control electronics, making it a reliable choice for high-precision platforms.

If you’re working with space-constrained builds like 1/12 on-road cars or lightweight aircraft, the SV-1262MG offers the performance of a larger servo in a more compact footprint.

Specifications

• Line: BLACK EDITION
• Application: CAR / HELI / AIRPLANE
• Servo Size: Mini
• Operating Voltage: 6.0V-8.4V
• Speed @6.0V: 0.11 s/60°
• Torque @6.0V: 4.6 kg/cm
• Speed @7.4V: 0.095 s/60°
• Torque @7.4V: 7.0 kg/cm
• Speed @8.4V: 0.085 s/60°
• Torque @8.4V: 9.0 kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Coreless
• Case Type: Hybrid (Aluminum/Composite)
• Protection: Water Resistant

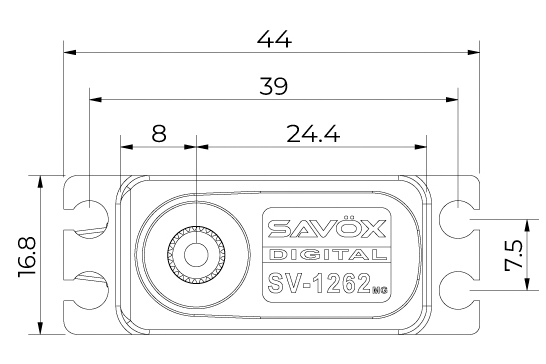

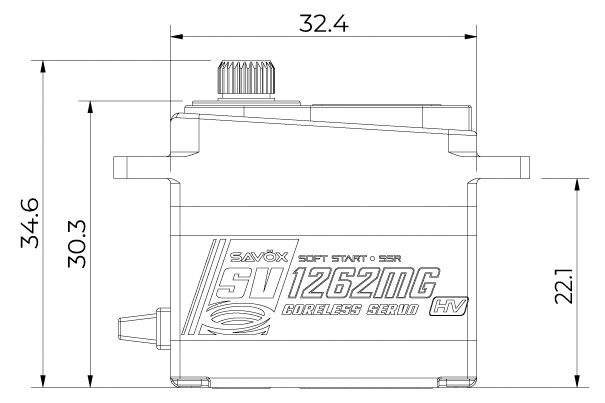

• Dimensions (L x W x H): 32.4 x 16.8 x 30.3 mm
• Weight: 30 g

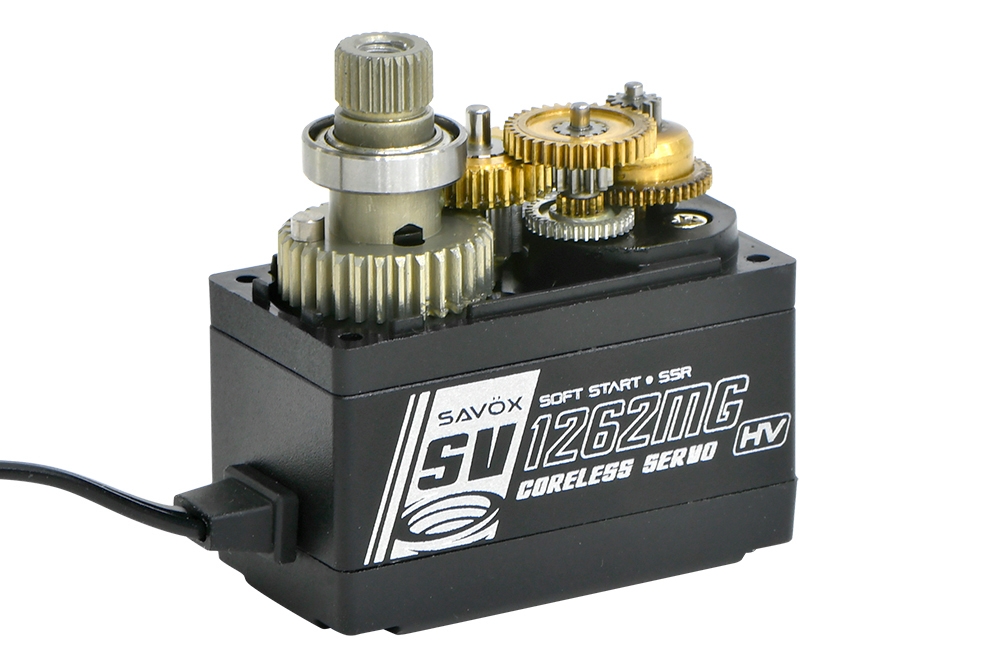

• Gear Type: Hybrid (Metal/Composite)
• Compatibility: Sanwa SUR, SSR; Futaba UR, SR
• PCB Board: 32-bit
• Horn Gear Spline: 25T(Φ6)
• Rotating Direction: Counterclockwise (when 1000→2000 μsec)
• Max Travel: ~154° (when 800→2200 μsec)
• Operating Travel: 110° (when 1000→2000 μsec)
• Neutral Position: 1500 μsec
• Bearing: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 26 AWG
• Cable Length: 250 ±5 mm
• Connector: JR Connector
• Stall Current @6.0V: 1700 mA
• Operating Current @6.0V: 100 mA
• Stall Current @7.4V: 2000 mA
• Operating Current @7.4V: 120 mA
• Stall Current @8.4V: 2200 mA
• Operating Current @8.4V: 150 mA
• Idle Current: 5 mA
• Dead Band Width: 3-5 μsec
• Frequency Range: 50-360 Hz
• Control System: Pulse width modification
• Operating Temperature: -10°C to 50°C
