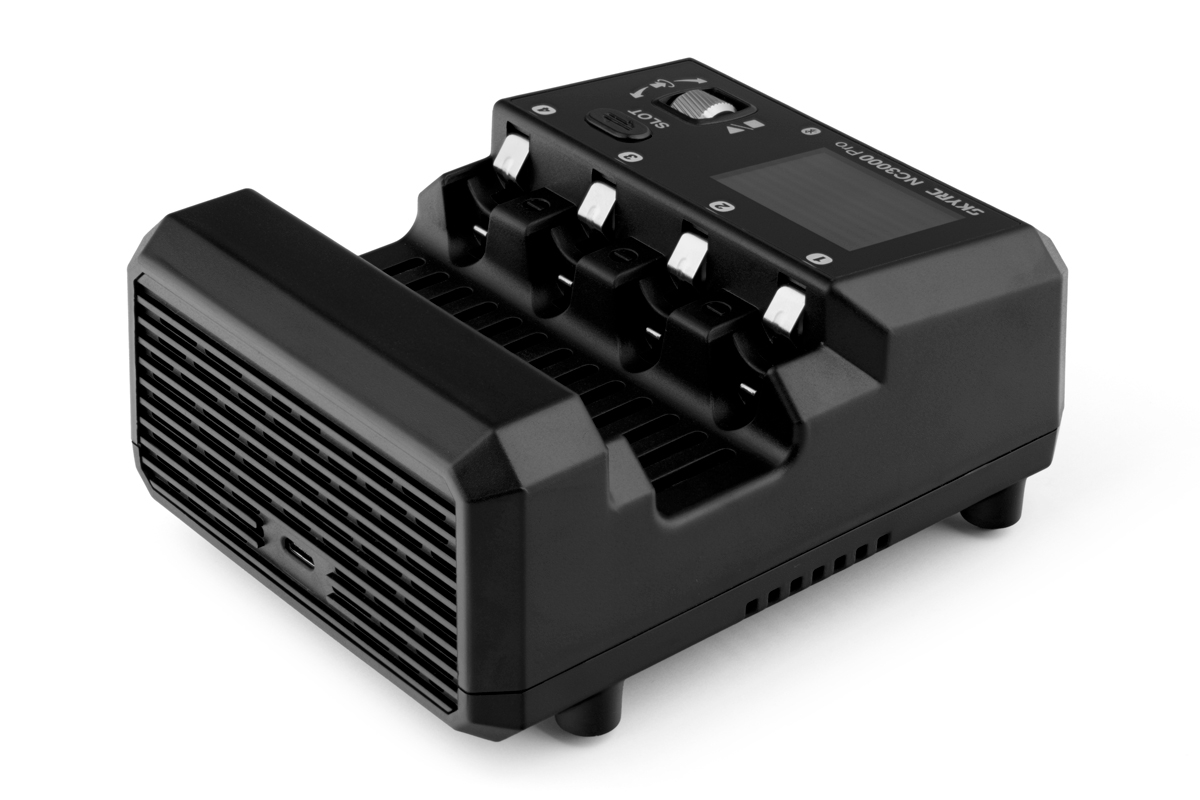

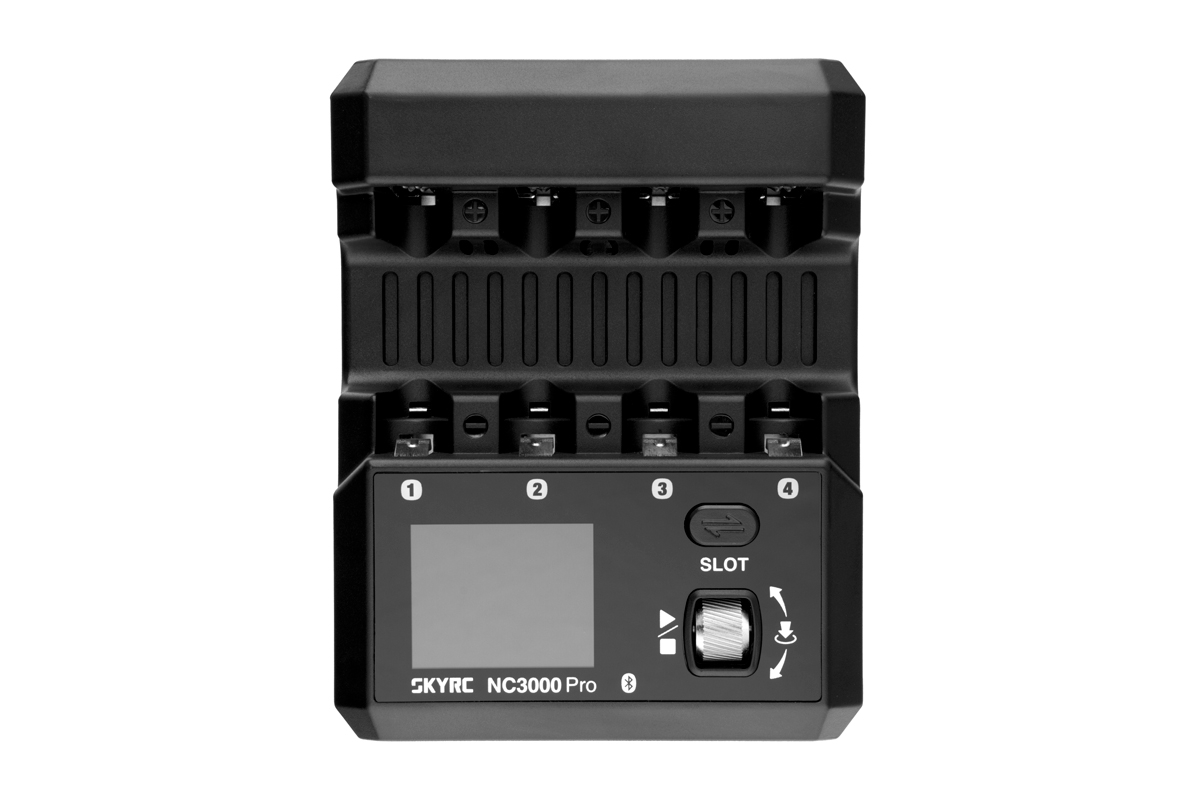

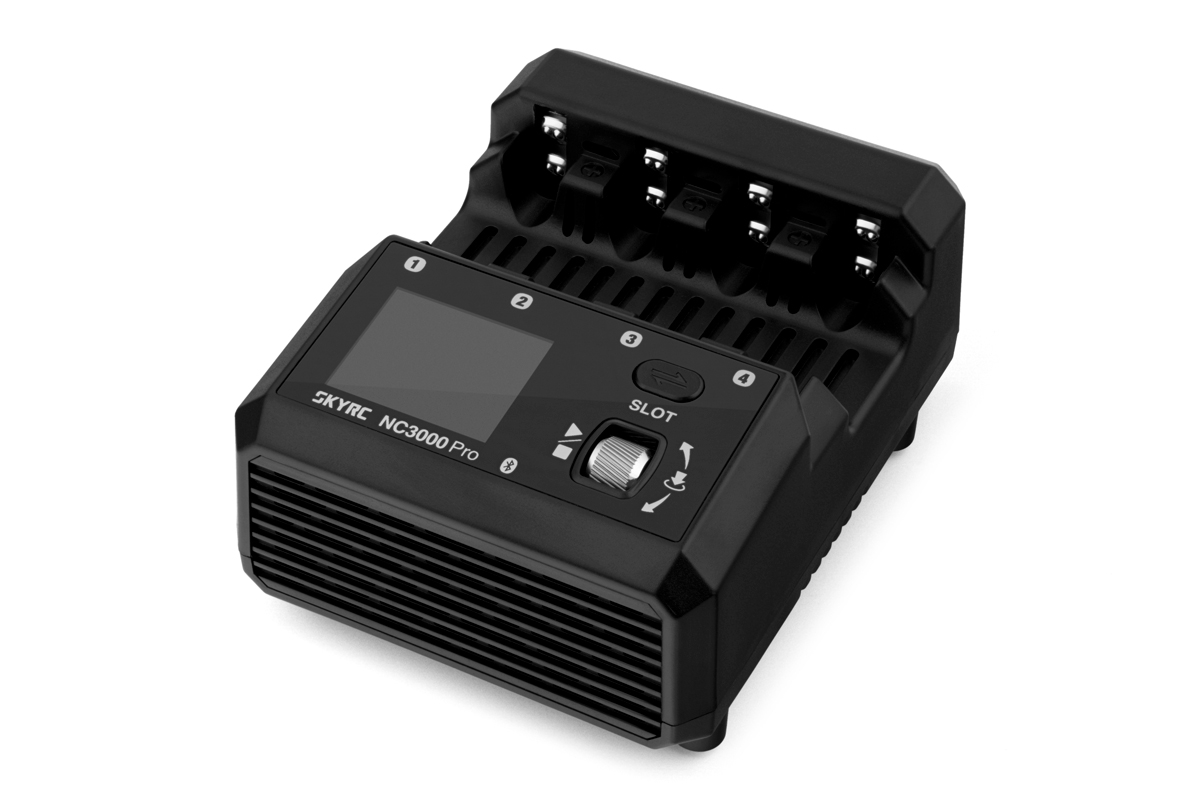

SKY RC NC3000 PRO charger

Multifunctional four-channel charger/discharger providing complete and truly convenient care for your AA and AAA NiCd and NiMH rechargeable batteries. The charger's intelligent software takes care of your batteries from initial low-current formation, through regular (fast) charging or discharging, cyclic charging/discharging (up to 3 cycles), to the revival of long-term used or long-term stored cells. For power, you will need a USB-C power source with QC2.0, PD/QC3.0 protocol.

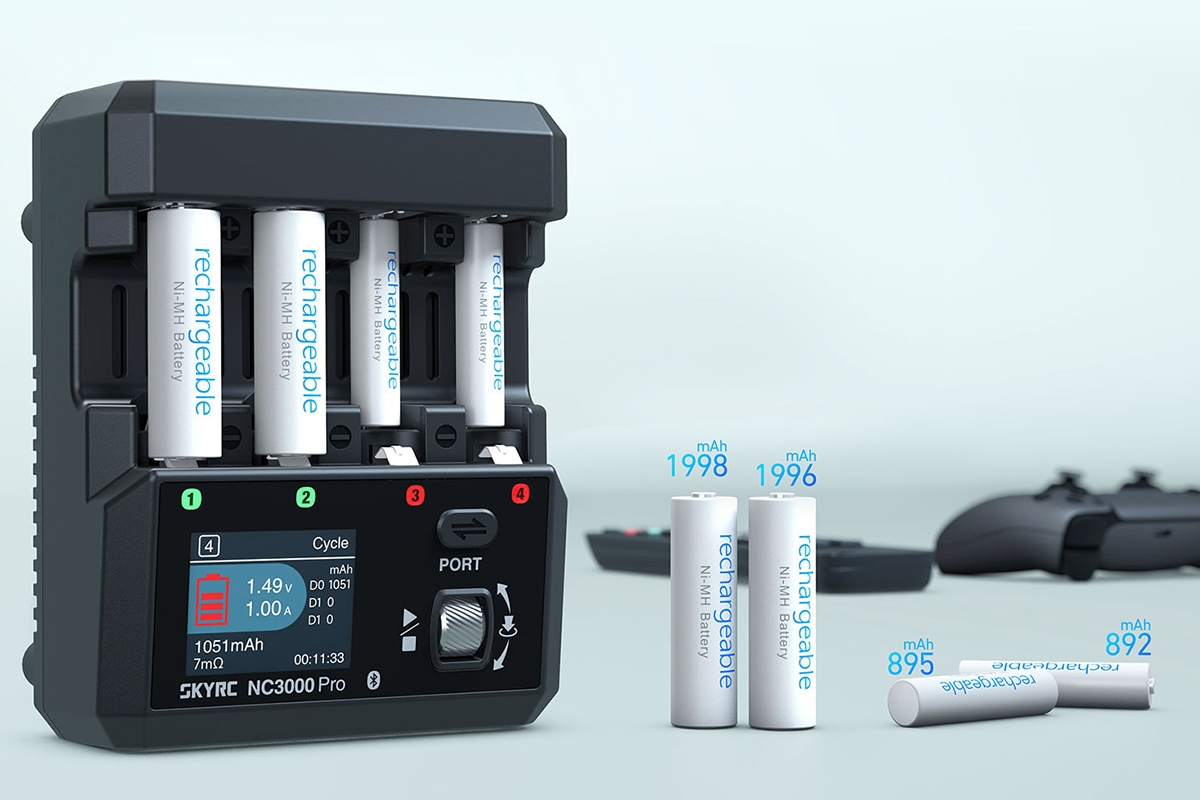

The NC3000 PRO allows you to charge or discharge up to four different AA or AAA rechargeable batteries simultaneously and independently. If you are charging four identical rechargeable batteries, simply set the parameters for one channel and then select simultaneous charging with the same parameters in all channels at the touch of a button. The parameters of the current process (charging/discharging current, charge/discharge level, battery voltage, internal resistance) are continuously displayed for all channels on the LCD.

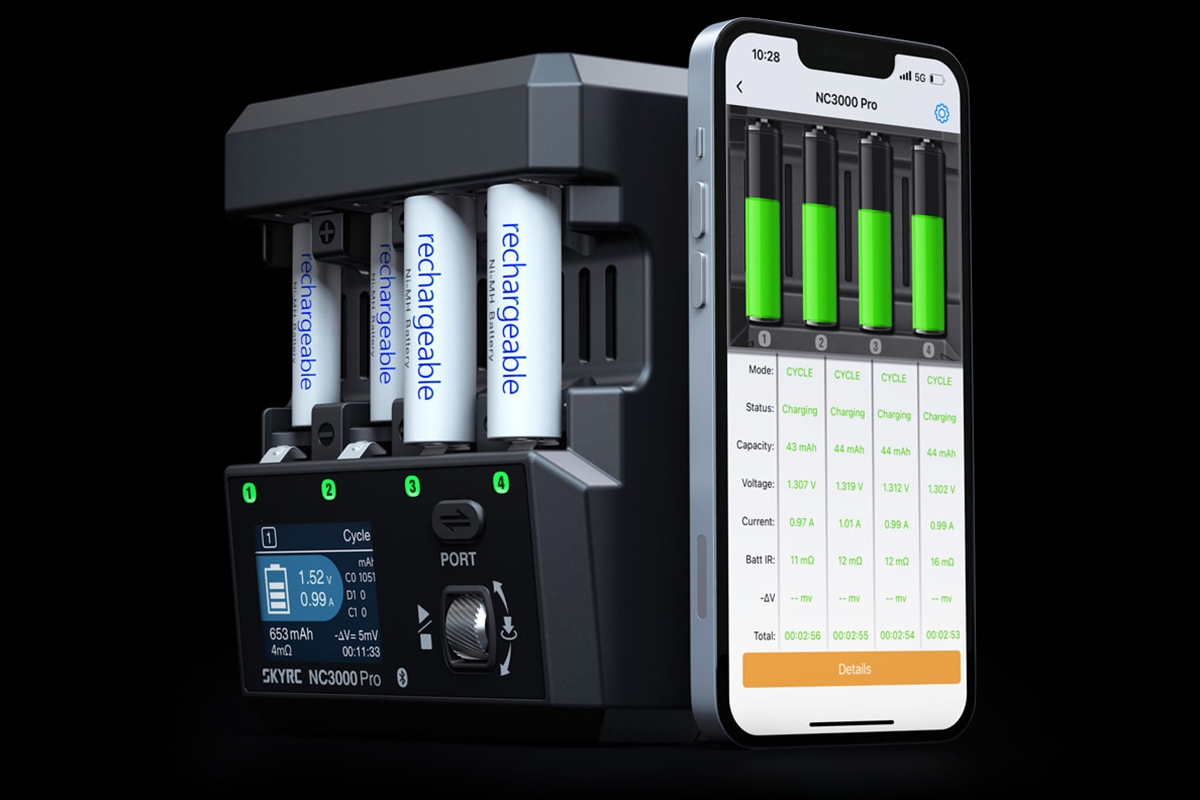

The NC3000 PRO is equipped with a Bluetooth interface that allows you to monitor the charging/discharging process in numerical and graphical form, control the charger using a smartphone or other mobile device with an iOS or Android operating system, and update the charger's firmware.

The NC3000 PRO allows you to set the sensitivity of delta-peak detection, the end voltage for discharging and charging, and the charging time. You can also select the current modes - either constant current charging or automatic current adjustment according to the internal resistance of the battery being charged.

Detailed instructions describing the principles of proper charging and operation of NiMH and NiCd batteries will facilitate the operation of the charger and the use of your batteries.

Basic functions

• Powered by a USB-C mains adapter with QC2.0, QC3.0, PD3.0 protocol, min. 30 W for full use of the charger's power
• For charging and discharging up to four AA or AAA NiCd/NiMH cells
• Adjustable charging current 0.2–3.0 A
• Adjustable discharge current 0.2–2.5 A
• Max. power for charging 22 W, for discharging 15 W
• Charging and discharging, forming, cyclic charging/discharging, fast charging
• Automatic delta-peak charging termination
• Adjustable end voltage for discharging and charging
• Adjustable delta-peak detection sensitivity 3–20 mV
• Repeated cyclic charging/discharging or discharging/charging (up to 3 cycles) with adjustable delay between cycle phases
• Charging or discharging termination when the set voltage, time or charge is exceeded
• Battery conditioning (charging and discharging with low current)
• Trickle charging 10–300 mA/off
• Parameter setting and menu navigation via buttons on the charger or on a smartphone (iOS or Android operating system) via Bluetooth 5.0 interface
• LCD with a simple and clear menu and parameter display during charging
• Forced fan cooling
• Compact, sturdy plastic housing

The charger set includes: NC3000 PRO, instructions.
