SKY RC CTG-016 Digital Camber Gauge

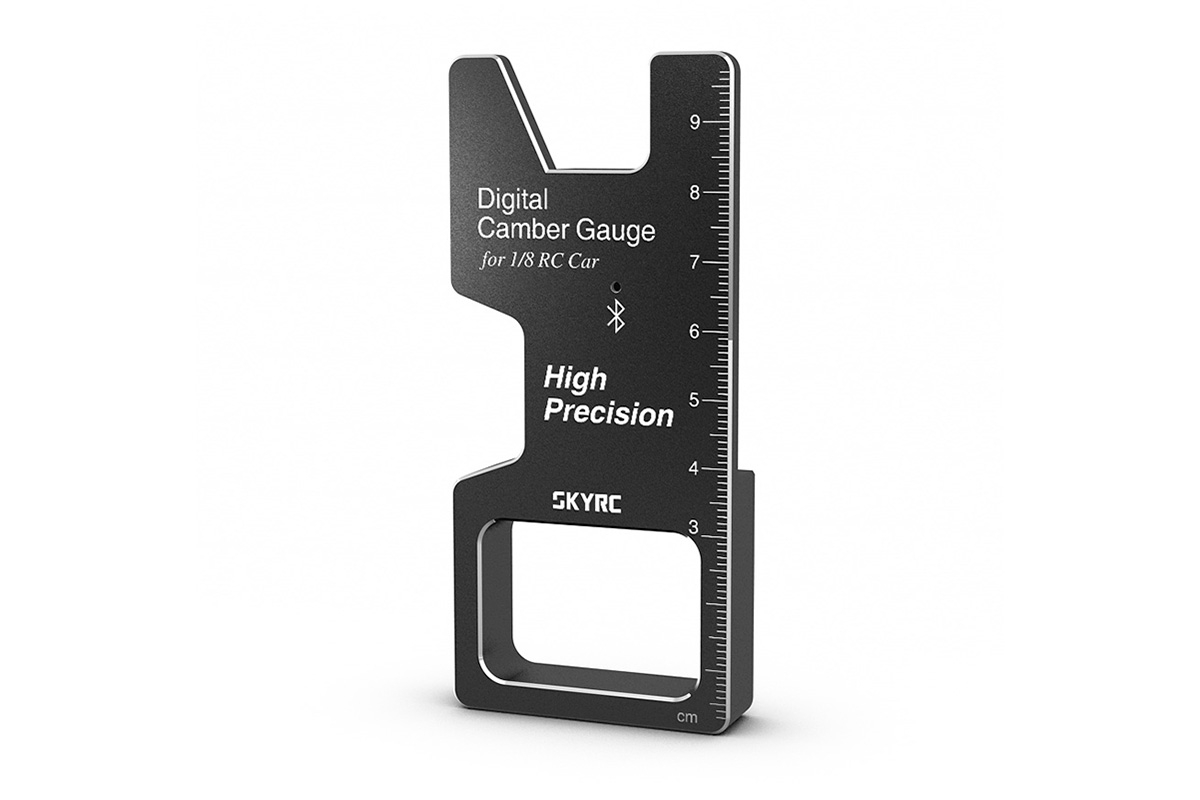

The SkyRC CTG-016 Digital Camber Gauge is a device for measuring angles on the wheels and axles of 1/8-scale RC cars. It can measure camber, caster, toe-in/toe-out, and other angles very easily, with high accuracy and resolution. Using the RC Gears app on a smartphone connected via Bluetooth, you can then measure and display the angles in both graphical and digital formats.

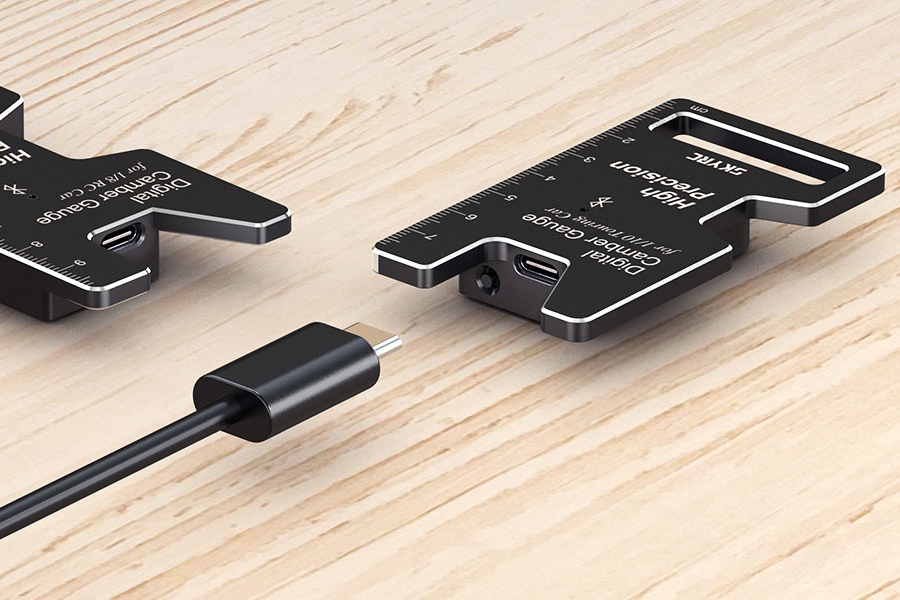

The gauge is capable of measuring angles with an accuracy of 0.2° within a range of ±17.5°. It is powered by a built-in 1S LiPo battery (you can use a standard 5 V smartphone charger with a USB Type-C cable to recharge it). An LED indicator signals operating status (Bluetooth connection, low battery voltage).

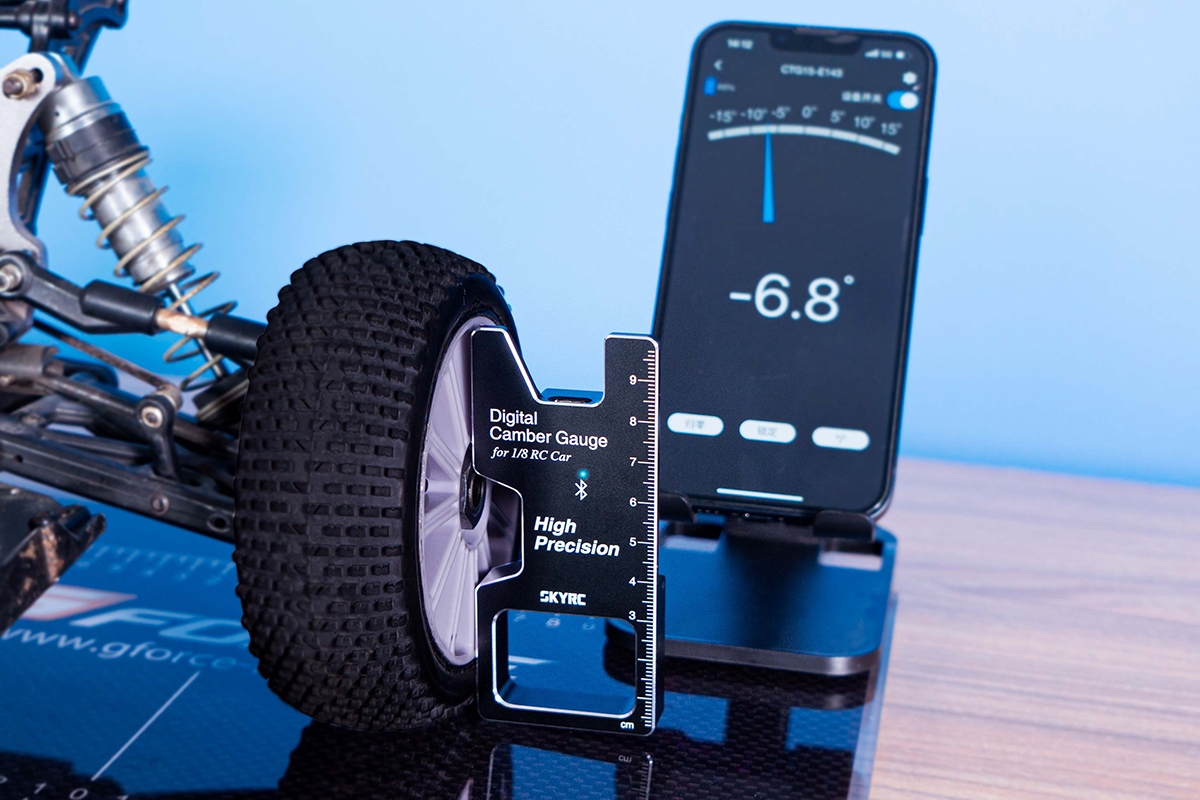

After turning it on, the gauge connects via Bluetooth to a smartphone or tablet (Android or iOS) running the RC Gears app. Then, simply place the inclinometer against the car’s wheel (to measure toe-in, position the car perpendicular with the wheels resting on a horizontal surface) to accurately measure, adjust, and align.

The set includes: CTG-016 digital inclinometer, user manual.
