Code:MKSO09002
Barcode:8596450077232
Brand:MKS

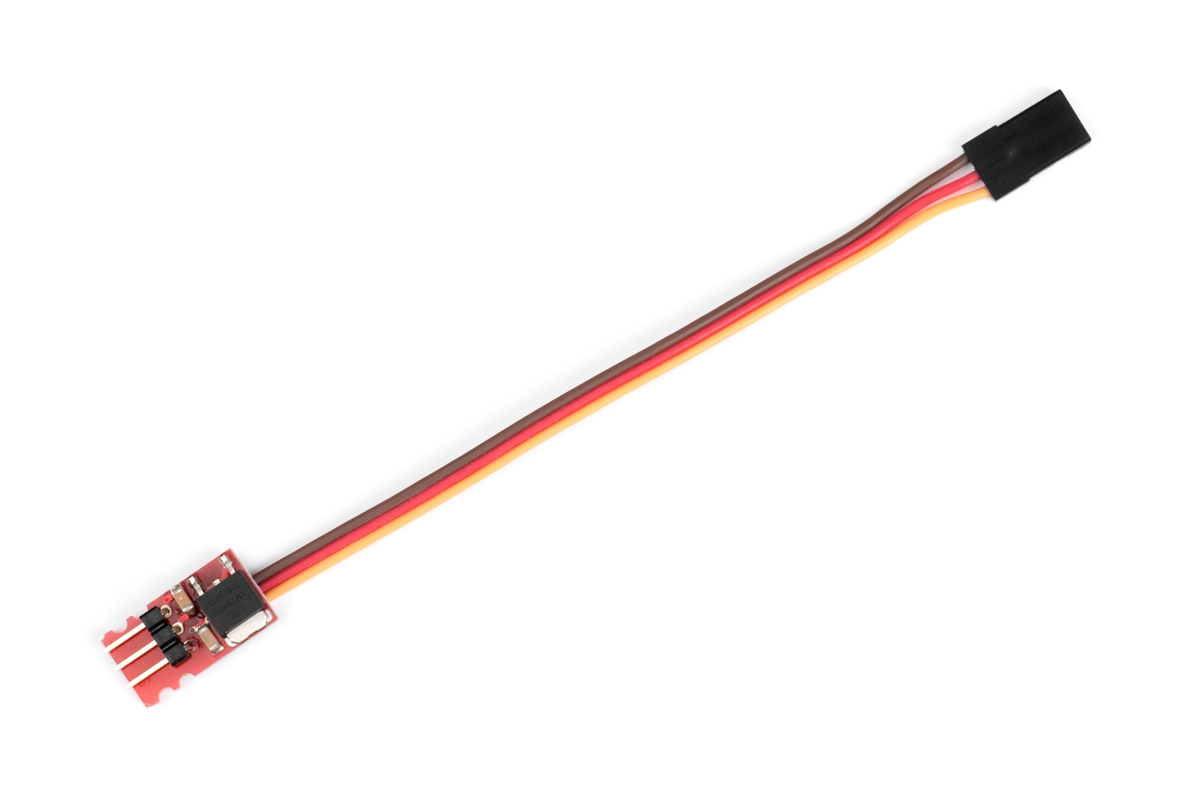

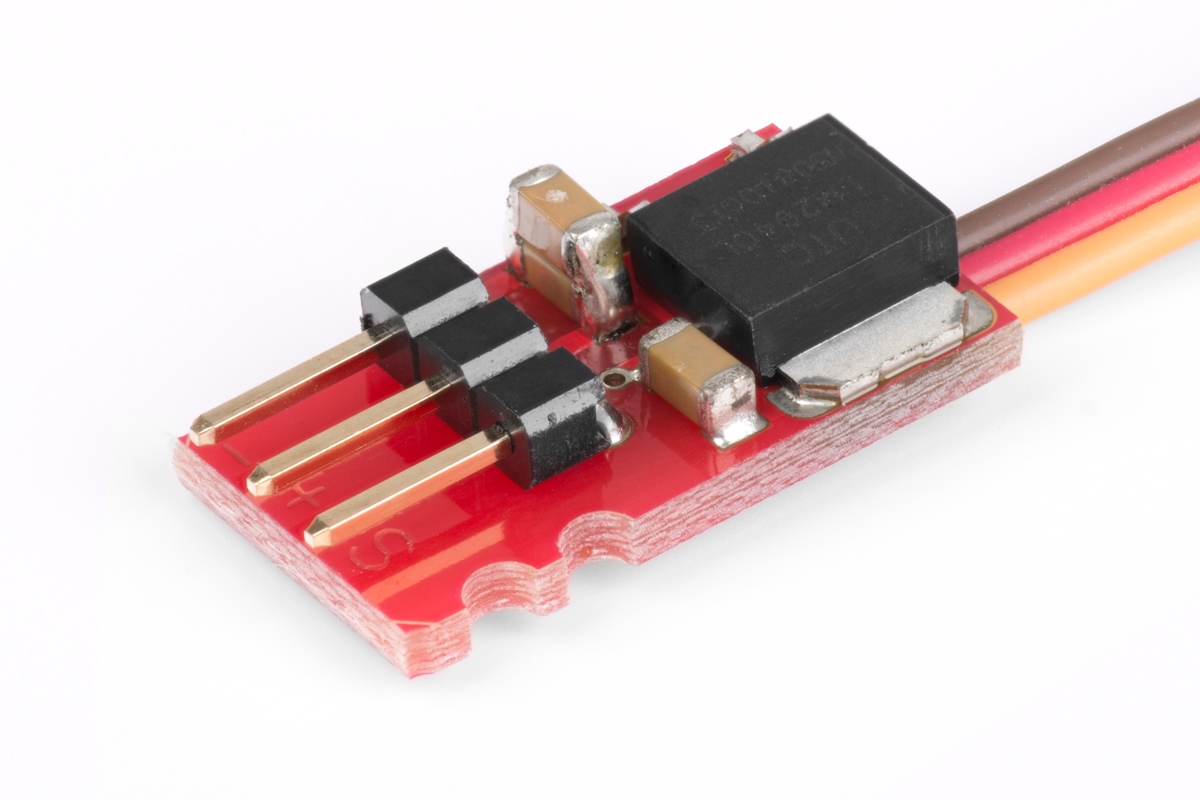

SBEC for DS6125mini, DS6125h (1.5A)
Dedicated SBEC voltage controller (5 V/1.5 A) for protecting individual servos from overload. Suitable for any servos with a continuous current of up to 1.5 A and a voltage of up to 5 V.
This item is not available in you region (United States)
Description
Can be used with DS6125 / DS6125E / DS6188 servos or any other servos with input voltage up to 5 V
- Input voltage: 5.1–8.4 V
- Output voltage: 5.0±0.1 V
- Output maximum current: 1.5 A
- Maximum working temp: 70 °C
- Wire lenght: 12 cm / 7 cm
- Weight: 2.45 g
Functions:
- A dedicated SBEC per servo can protect the rest of the servos, and the receiver in case of an abnormal situation, like servos blocked because of the control surface, or an unlikely malfunction of the servos
- Regulating the output current to avoid the servo overloading
- When using Li-Po 7.2–8.4 V, the SBEC can provide a stable voltage to the servo
- Linear mode; No interference
