Code:C-53011
Barcode:8718057197186
Brand:TEAM CORALLY

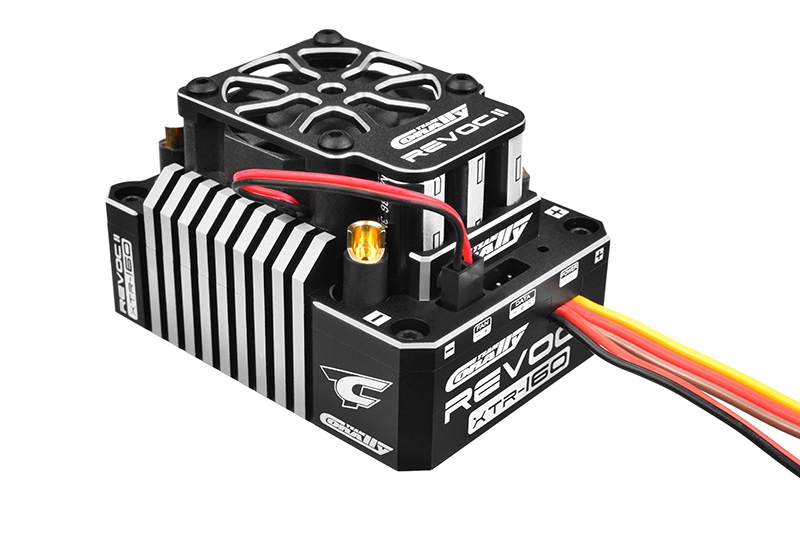

Revoc II TRX 160 "Racing Factory" - Black - Silver Color - 2-6S Esc
This item is not available in you region (United States)
The Team Corally REVOC II TRX 160 "RACING FACTORY" electronic speed controller for sensored and sensorless motors are being fine tuned for the today’s high power brushless motors. Everything can be set-up on these controllers to provide you the best functionality and performance.
The REVOC II TRX 160 "RACING FACTORY" manufactured with the highest grade components to ensure the lowest possible internal resistance resulting in a optimised performance. These controllers give the competition racer what he needs. You will experience the best controllability of your RC car, no matter you use it in a on-road or off-road car.
Features:
- For sensored and sensorless motors
- Manufactured with the highest grade components
- Ultra compact design
- Aluminum case for improved heat dissipation
- Waterproof power switch
- Advanced boost - turbo timing system for improved acceleration performance
- Enhanced throttle - brake control function.
- 10 programmed profiles can be stored in the ESC
- High power 5A BEC
- Powerful TC Link software to test motor timing and advise the best ESC timing setting
Programming Features:General Settings- Running Mode
- Cut-off Voltage
- Overheat protection
- Motor Rotation
- Reverse Speed
Throttle Control- Dead Band
- Punch Rate SW- Point
- Punch Rate 1
- Punch Rate 2
- Throttle Curve
Brake Control- Initial Brake
- Drag Brake
- Brake Strength
- Brake Rate Control
- Brake Curve
Turbo Timing- Turbo Timing
- Turbo Delay
- Turbo Slope
Power Specs- Application: 1/8 Off-Road - 1/8 On-Road
- Cont. Current (A): 160A
- Burst (A): 900A
- Nr of Li-xx Cells: 2-6S
- BEC: 6V 5A
- Motor Type: Sensored - Sensorless
- Motor Limits:
- 2S - 4S
- =< 3000 KV • 4-6 Poles
- 2S - 6S
- =< 2200 KV • 2-4 Poles
- Resistance: 0.00020 ohm
- Dimensions: 58x42x36mm
- Weight: 117g (without power leads)
