R16F receiver

Radiolink R16F 2.4GHz is a 16-channel FHSS with frequency hopping receiver with telemetry compatible with Radiolink T12D and T16D transmitters. It offers four operating modes:

• with standard pulse width modulated (PWM) signal servo outputs (16 PWM channels on outputs CH1–16)
• with S.BUS serial output and PWM channels (15 PWM channels on outputs CH1–15 + S.BUS on CH16)
• with S.BUS serial output, CRSF input and output and PWM channels (13 PWM channels on outputs CH1–13 +CRSF (RX) on CH14/CRSF (TX) on CH15 + S.BUS on CH16)
• with CRSF input and output and PWM channels (14 PWM channels on CH1–13 and CH16 outputs +CRSF (RX) on CH14/CRSF (TX) on CH15)

The use of FHSS transmission technology provides high resistance to interference and the possibility of setting fail-safe rates in case of failure or severe interference to the transmitter signal.

Pairing with the transmitter is done with a pairing button on the receiver, operating states are indicated by an LED.

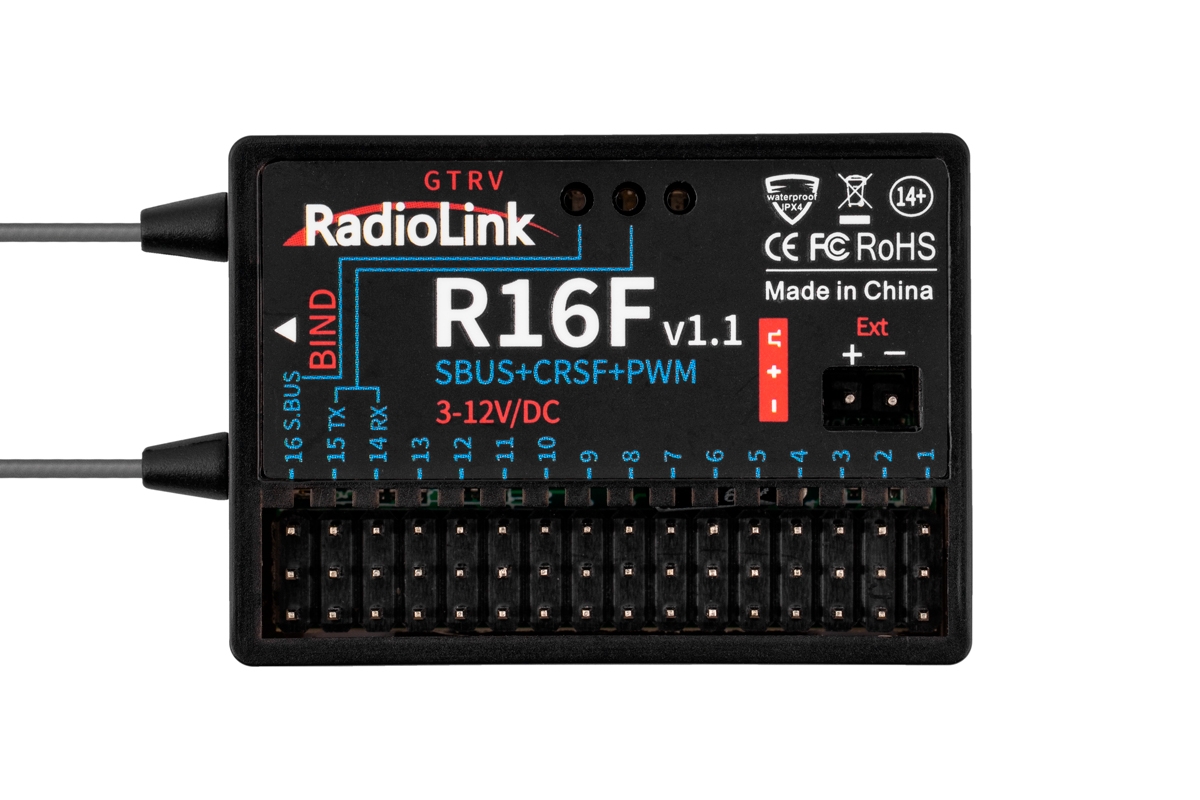

The receiver is equipped with contact rails for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.

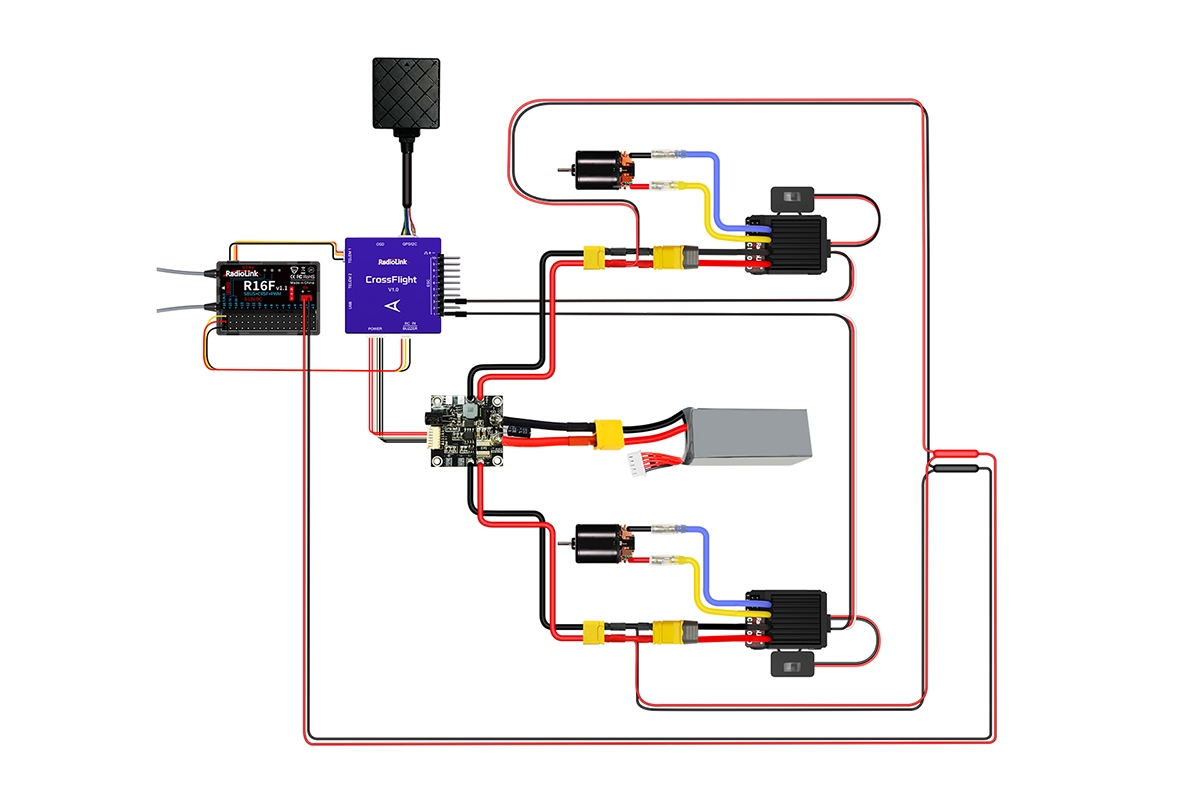

The receiver allows transmission of basic telemetry data - receiver supply voltage, received signal strength (RSSI) and external (e.g. drive) battery voltage in the range of 3–33.6 V (1–8S LiPo). When using the Radiolink control unit, additional telemetry data from the control unit can be transmitted to the T12D or T16D transmitter.

The 3–12 V operating range allows operation with power from 1–2S LiPo/Li-ion, 2S LiFe, 4–8 cell NiMH or 5–12 V BEC circuits.

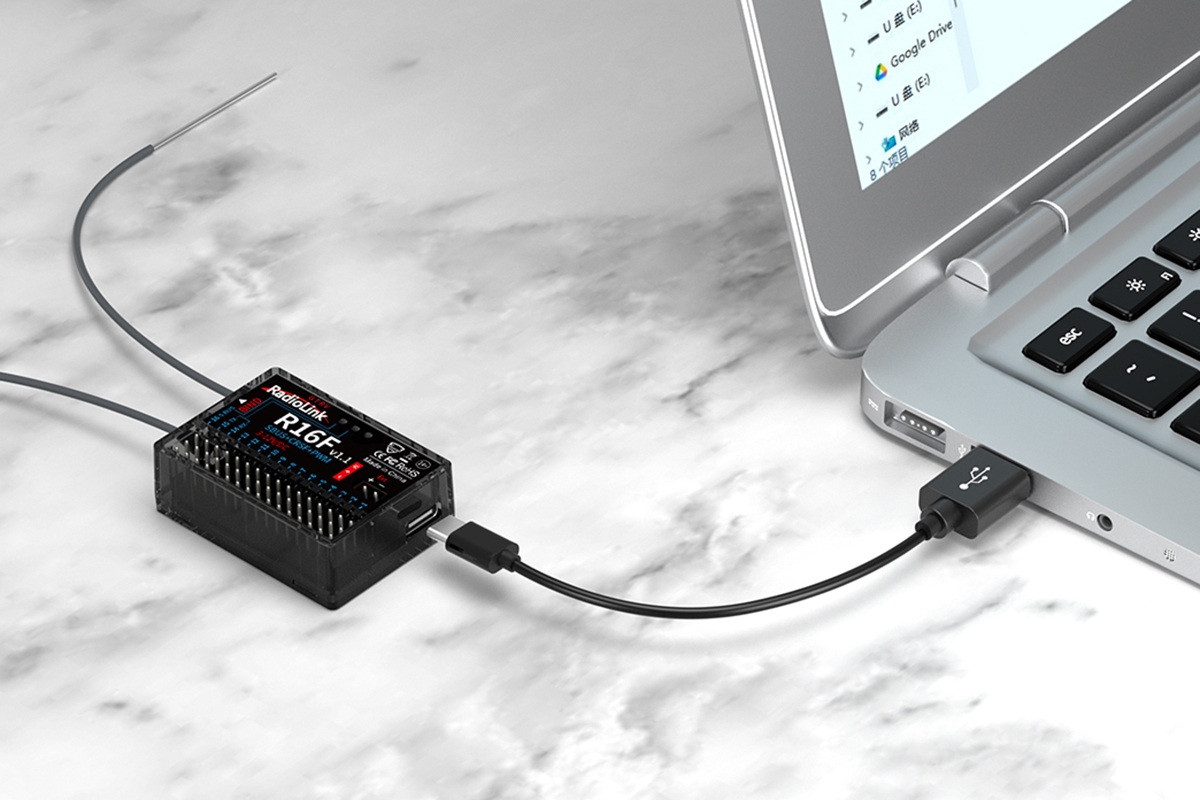

The receiver has upgradable firmware (via USB-C socket).

Receiver kit includes: R16F receiver, user manual.
