Code:HW30416202
Barcode:6938994423489
Brand:HOBBYWING

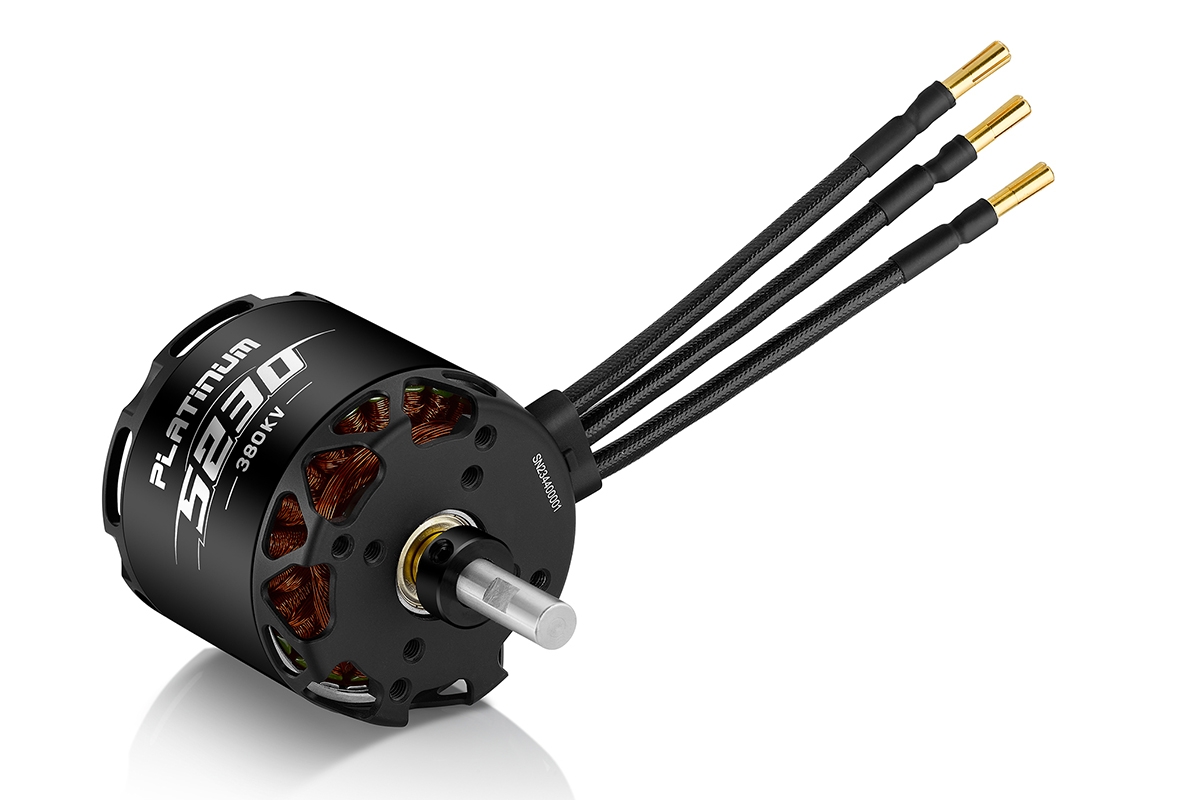

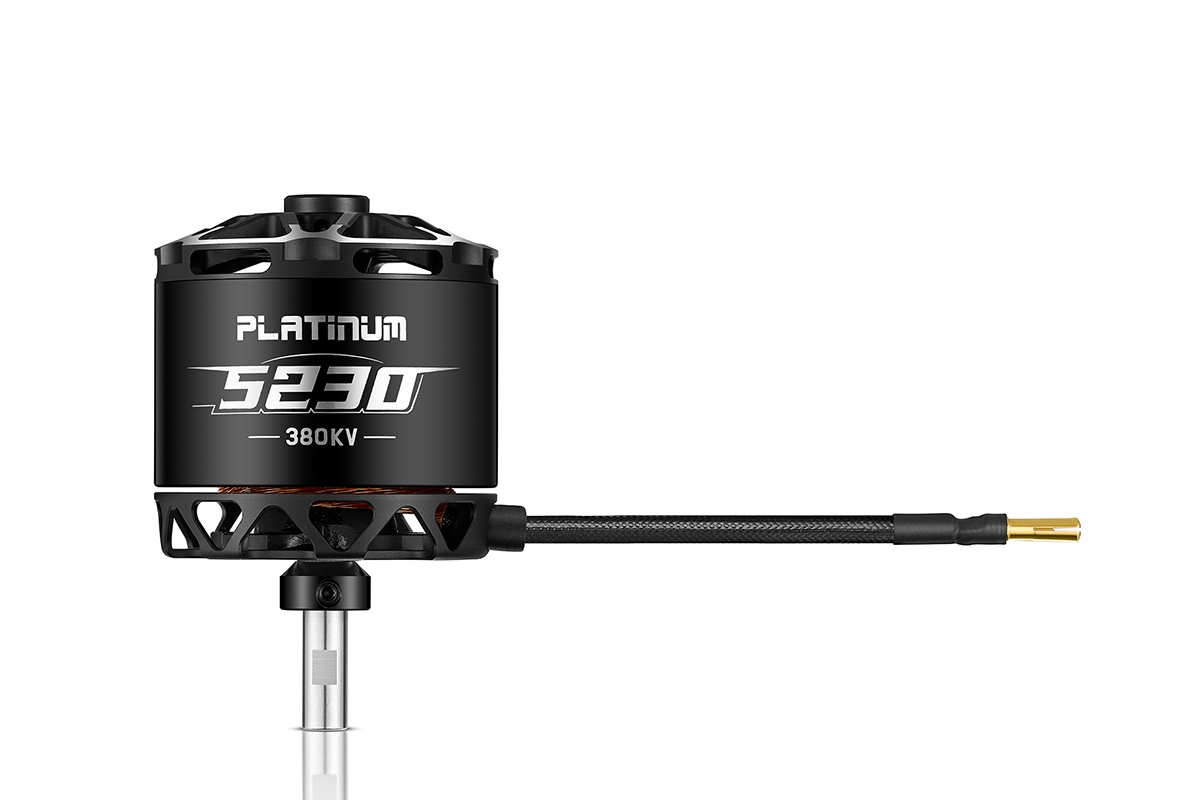

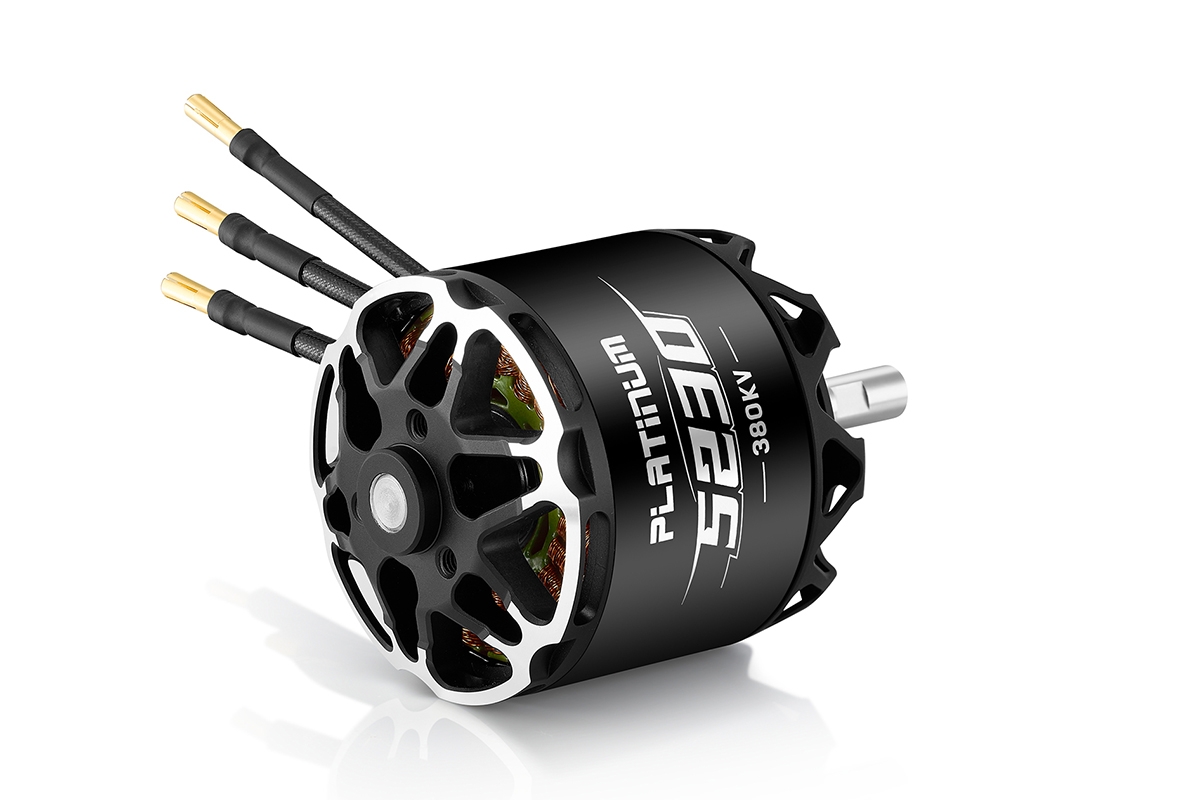

Platinum 5230SL-380KV
This item is not available in you region (United States)
Description
Spare parts
| Powering LiXX cells | 6 - 8 |
| RPM/V [ot./min/V] | 380 |
| Max. power (82 s) [W] | 4790 |
| Internal resistance [mOhm] | 7.8 |
| Open-circuit current (při 22,2 V) [A] | 4 |
| Max. peak current (82 s) [A] | 162 |
| Diameter [mm] | 60.2 |
| Length [mm] | 60 |
| Length celková [mm] | 93.5 |
| Shaft diameter [mm] | 8 |
| Weight [g] | 590 |
| Poles count | 28 |
| Timing [°] | 15 - 25 |
| ESC [A] | 150 - 200 |
| Recommended Propeller (6S) | 19x10", 20x10”, 22x10” |
| Recommended Propeller (8S) | 17x10", 18x10”, 18x12” |
