Code:HW30416200
Barcode:6938994423465
Brand:HOBBYWING

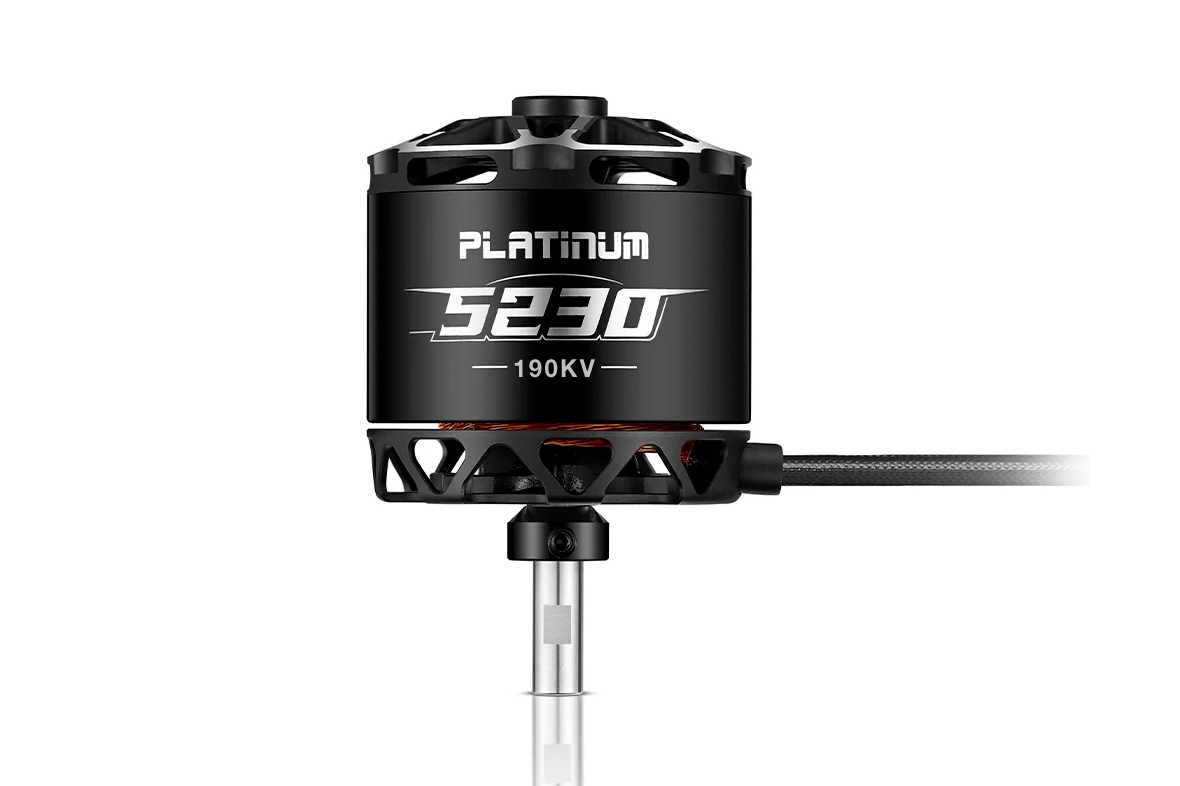

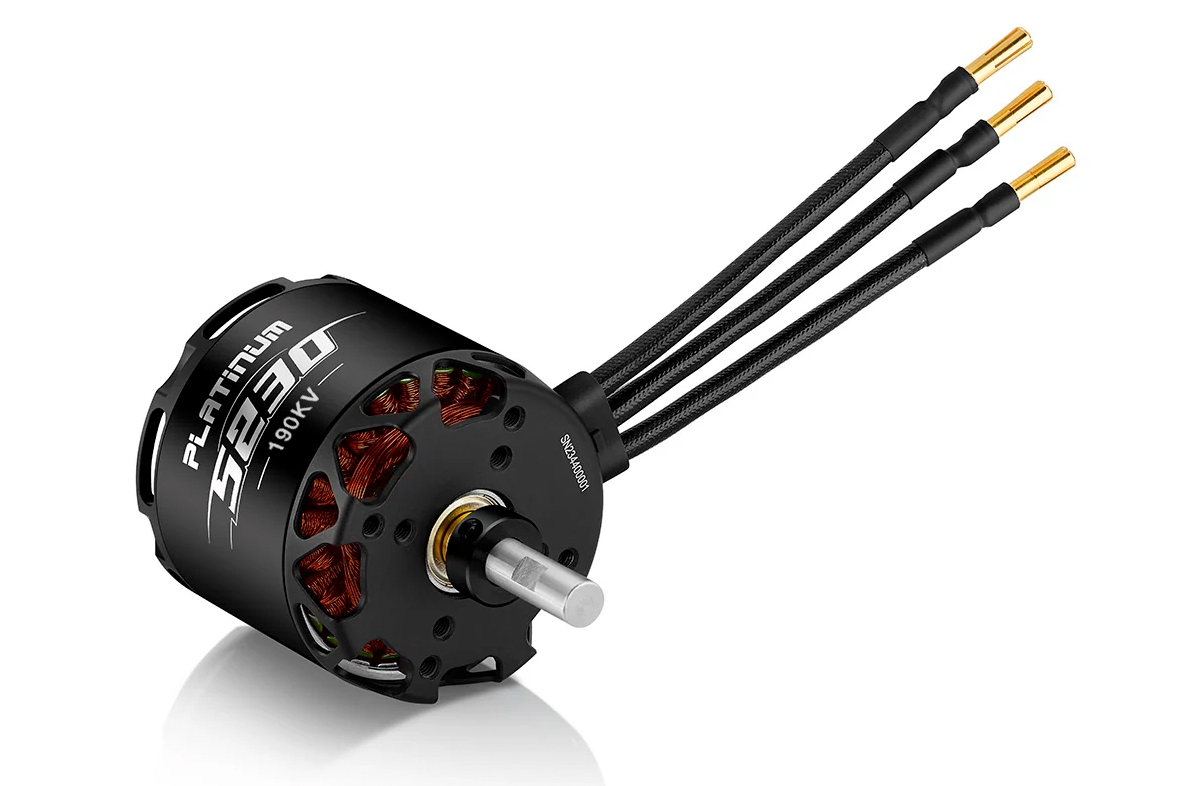

Platinum 5230SL-190KV
This item is not available in you region (United States)
Description
Spare parts
| Powering LiXX cells | 10 - 12 |
| RPM/V [ot./min/V] | 190 |
| Max. power (42 s) [W] | 4985 |
| Internal resistance [mOhm] | 22 |
| Open-circuit current (při 44,4 V) [A] | 3 |
| Max. peak current (42 s) [A] | 112.5 |
| Diameter [mm] | 60.2 |
| Length [mm] | 60 |
| Length celková [mm] | 93.5 |
| Shaft diameter [mm] | 8 |
| Weight [g] | 582 |
| Poles count | 28 |
| Timing [°] | 15 - 25 |
| ESC [A] | 130 - 180 |
| Recommended Propeller (10S) | 20x10”, 22x10”, 22x12" |
| Recommended Propeller (12S) | 20x8", 20x10", 22x10" |
