Code:HW30416150
Barcode:6938994423441
Brand:HOBBYWING

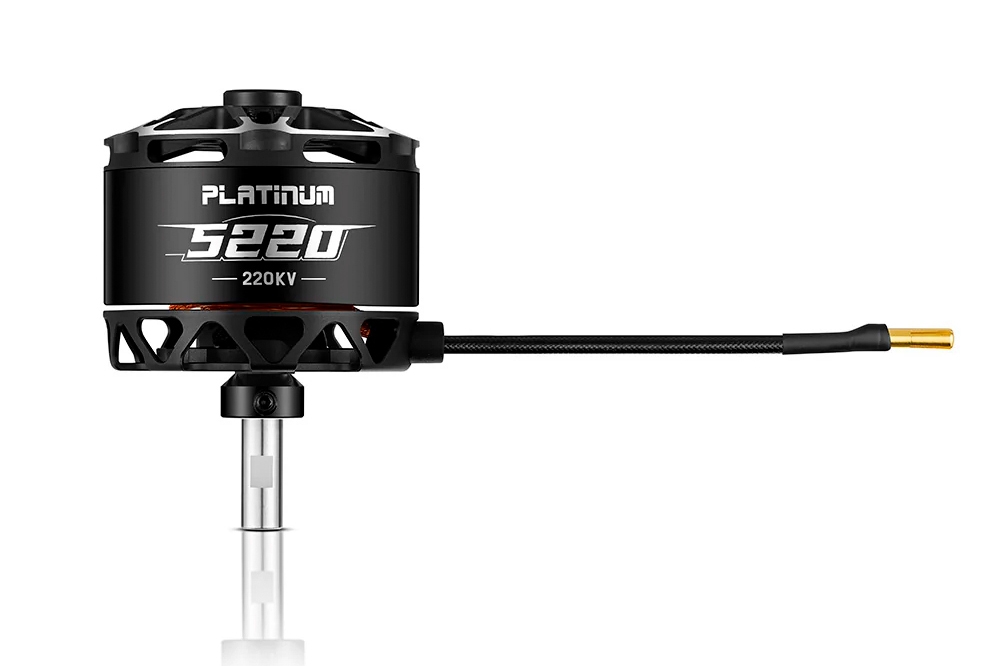

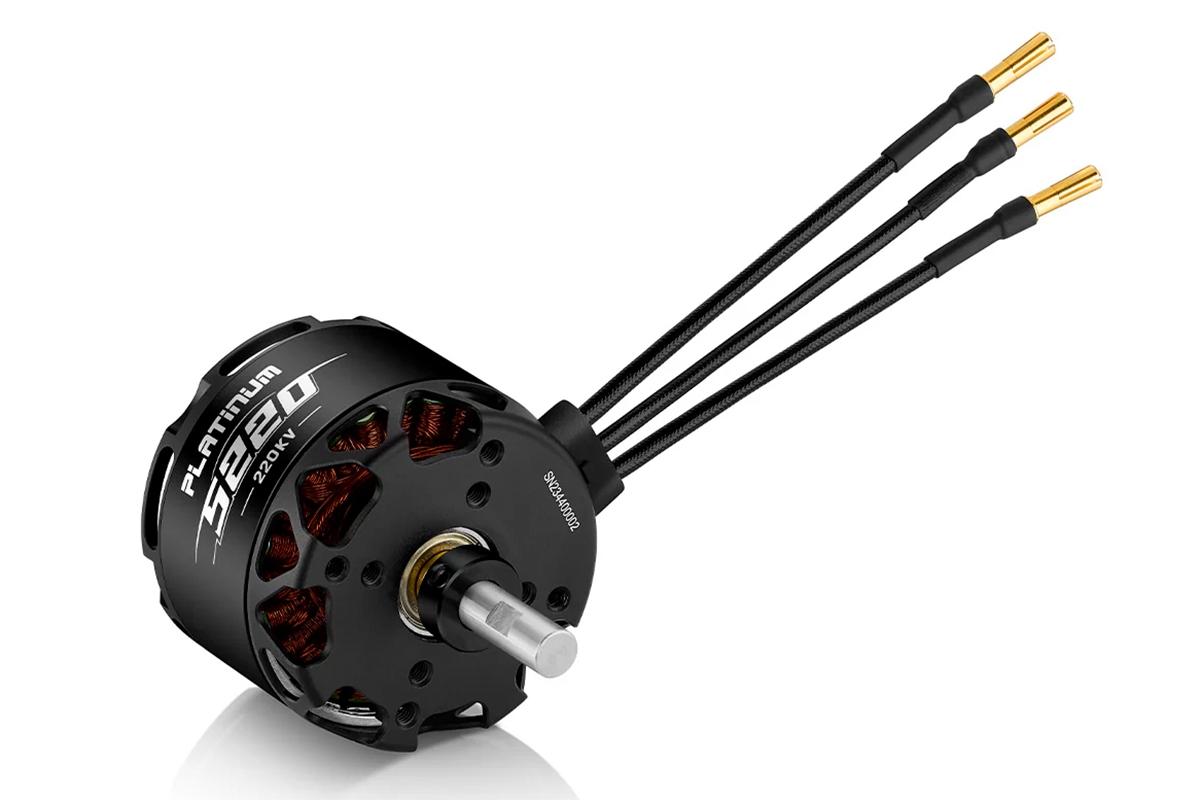

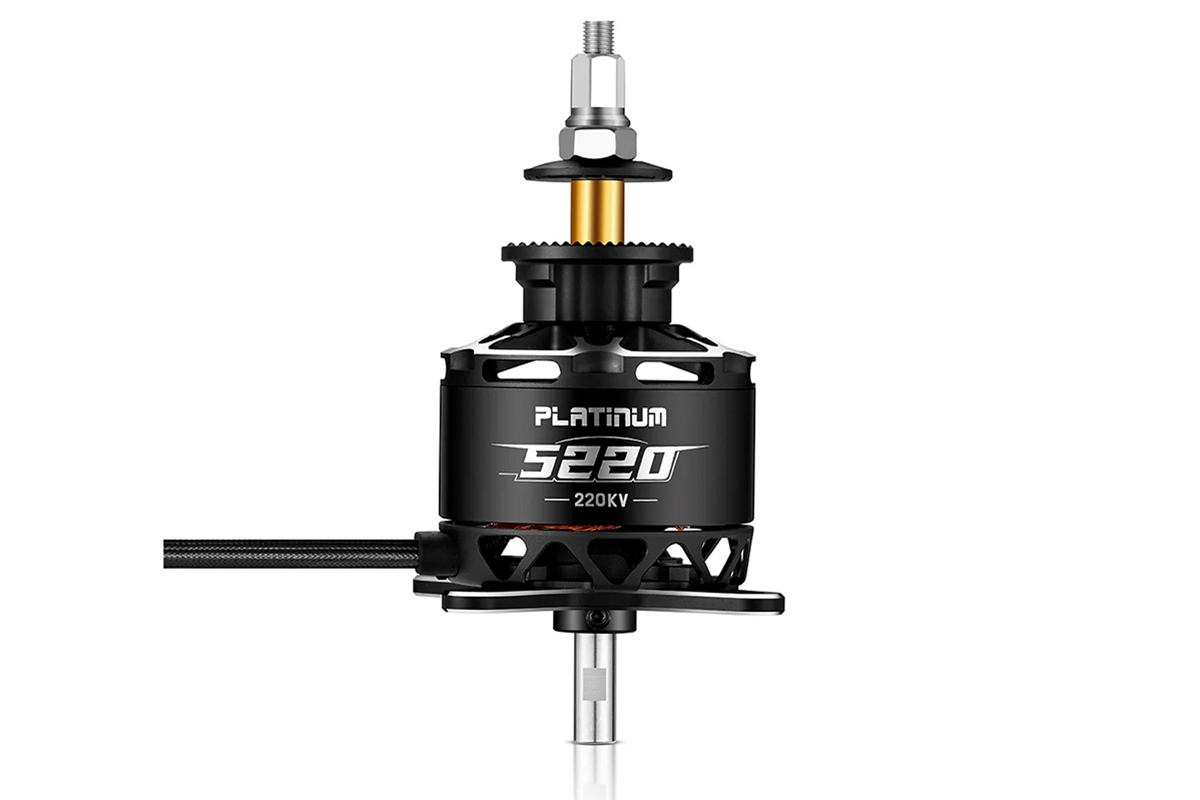

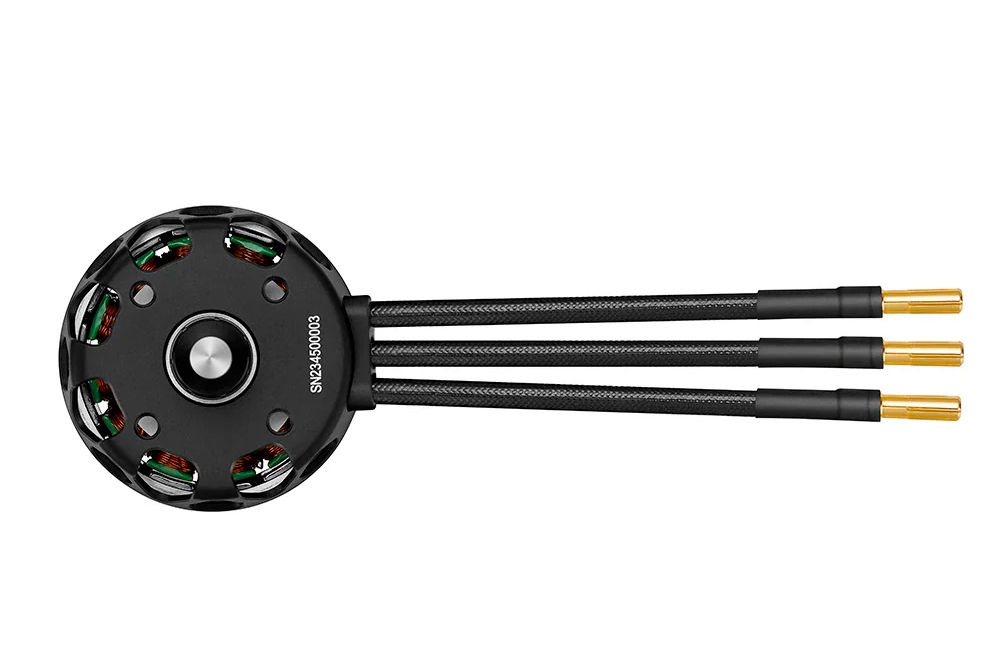

Platinum 5220SL-220KV
This item is not available in you region (United States)
Description
Spare parts
| Powering LiXX cells | 10 - 12 |
| RPM/V [ot./min/V] | 220 |
| Max. power (44 s) [W] | 3828 |
| Internal resistance [mOhm] | 27.5 |
| Open-circuit current (při 44,4 V) [A] | 3.5 |
| Max. peak current (44 s) [A] | 86 |
| Diameter [mm] | 60.2 |
| Length [mm] | 53.5 |
| Length celková [mm] | 83.5 |
| Shaft diameter [mm] | 8 |
| Weight [g] | 430 |
| Poles count | 28 |
| Timing [°] | 15 - 25 |
| ESC [A] | 130 - 180 |
| Recommended Propeller (10S) | 20x8”, 20x10” |
| Recommended Propeller (12S) | 17x8", 18x8", 18x10" |
