Code:HW30416001
Barcode:6938994423366
Brand:HOBBYWING

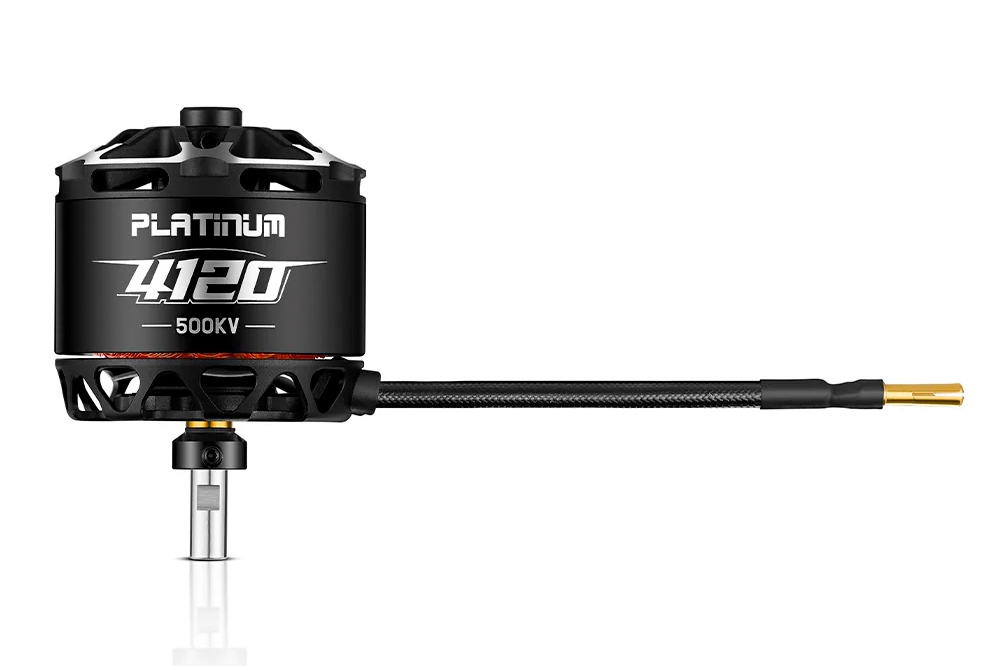

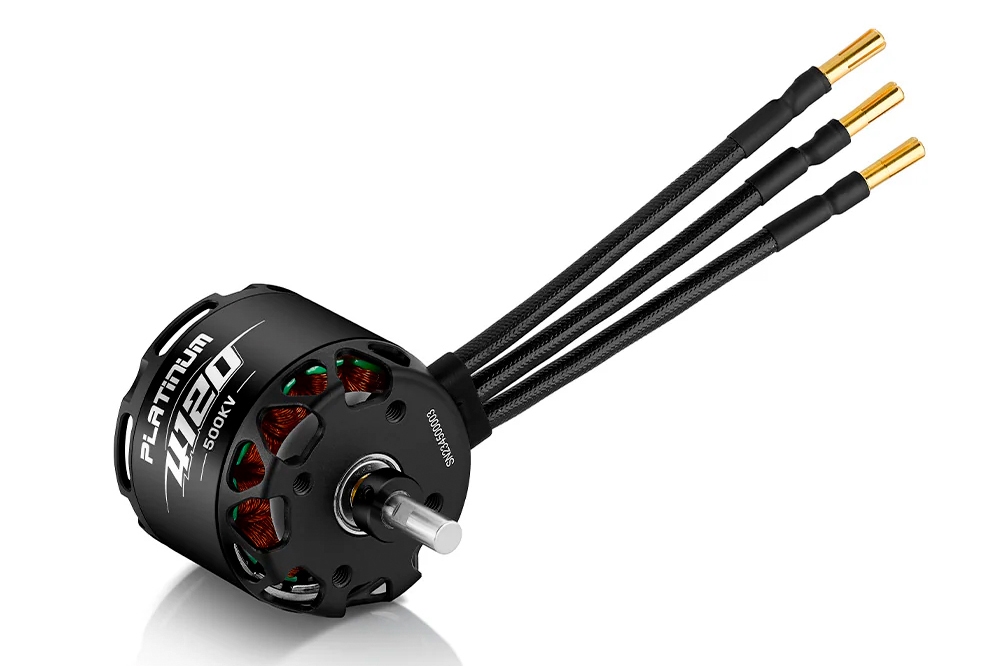

Platinum 4120SL-500KV
This item is not available in you region (United States)
Description
Spare parts
| Powering LiXX cells | 6 |
| RPM/V [ot./min/V] | 500 |
| Max. power (42 s) [W] | 2276 |
| Internal resistance [mOhm] | 17 |
| Open-circuit current (při 22,2 V) [A] | 2.6 |
| Max. peak current (42 s) [A] | 102.7 |
| Diameter [mm] | 49.5 |
| Length [mm] | 50.3 |
| Length celková [mm] | 72.3 |
| Shaft diameter [mm] | 6 |
| Weight [g] | 310 |
| Poles count | 14 |
| Timing [°] | 15 - 25 |
| ESC [A] | 120 - 150 |
| Recommended Propeller (6S) | 15x6”, 15x8”, 16x6”, 16x8" |
