Code:OS19210

Barcode:4531028027695

Brand:OS MAX

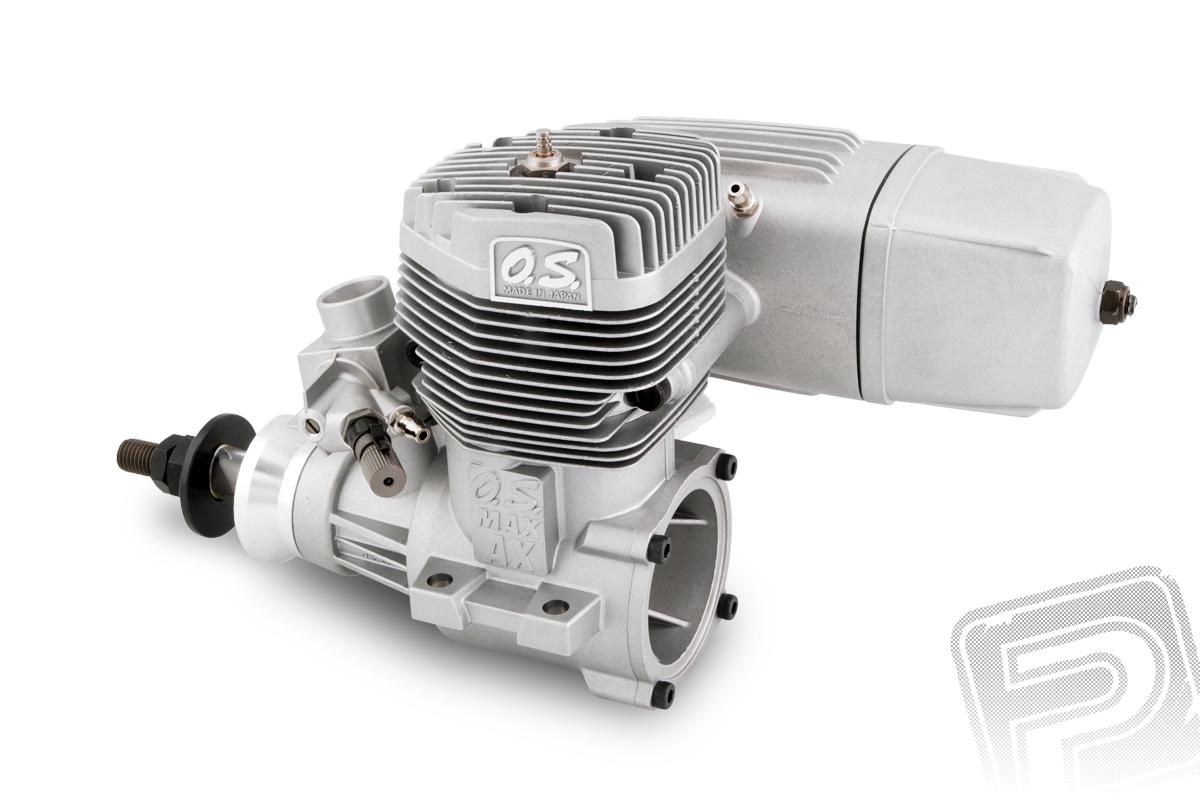

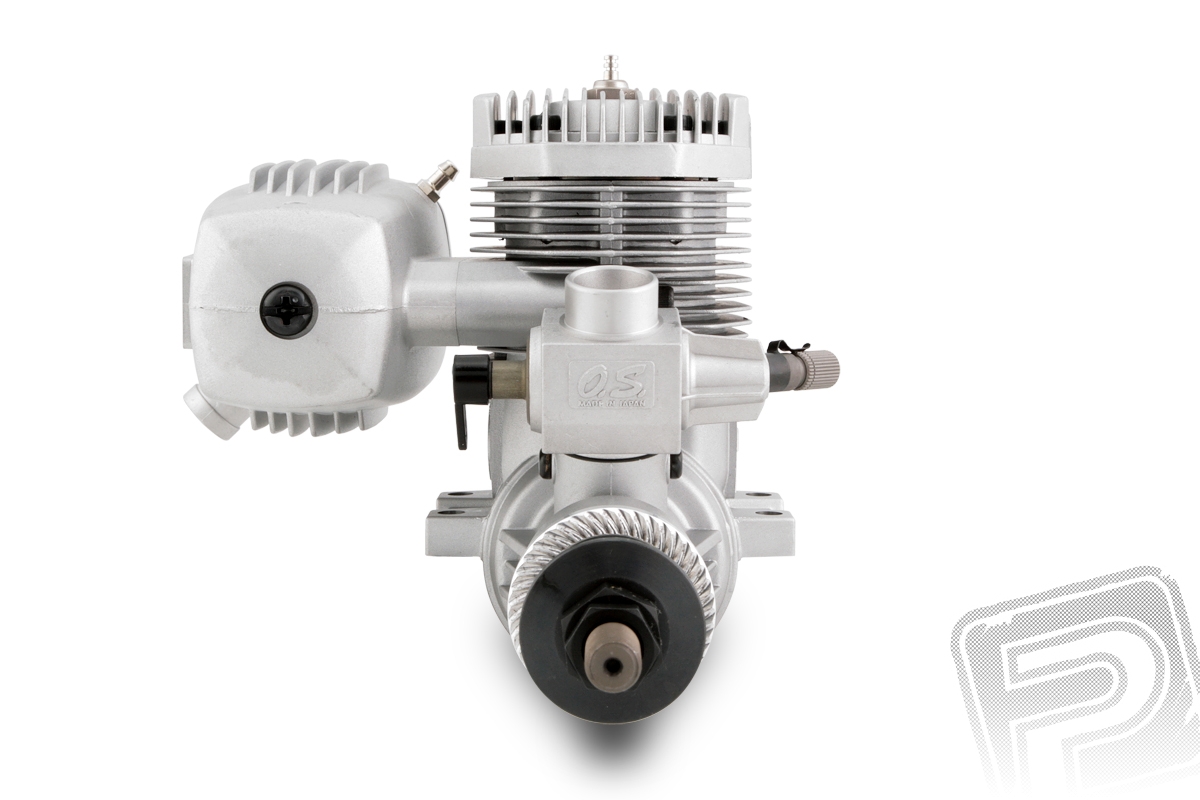

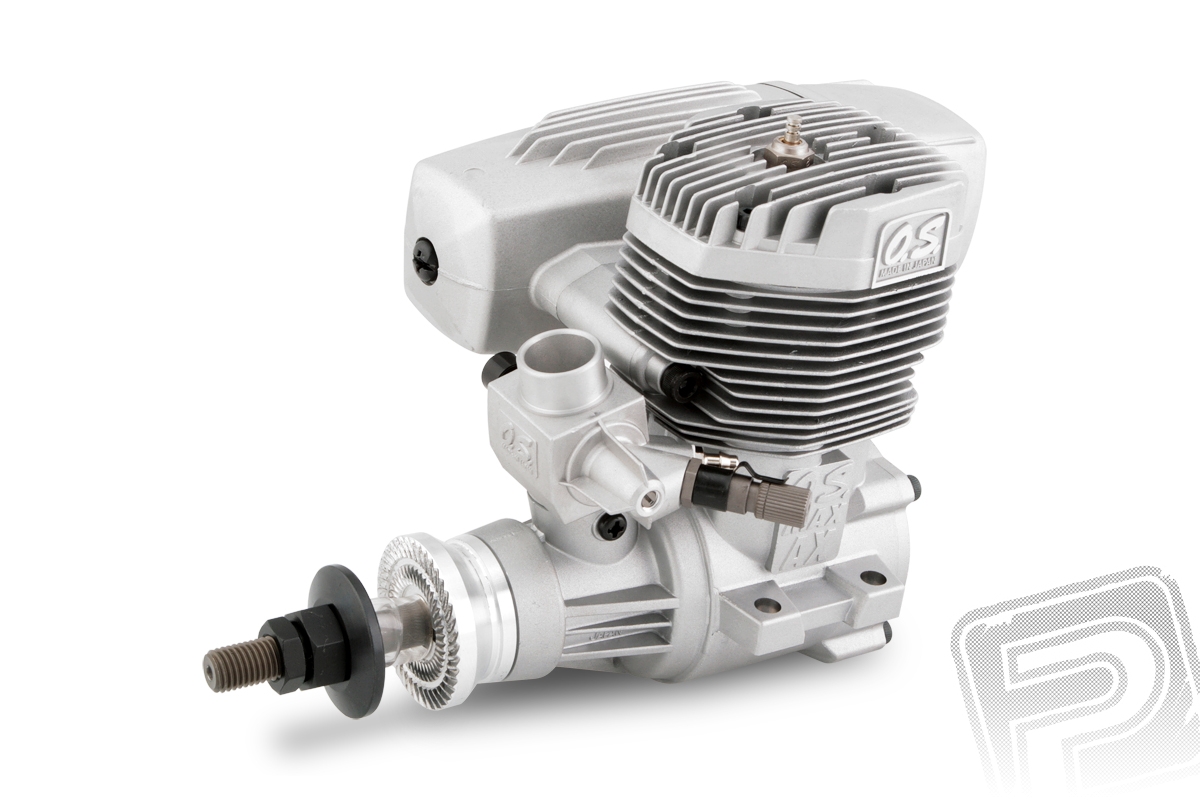

OS MAX-120AX RING (70D) W/E-5020 SILENCER

Not on stock

€299.60

Displacement [ccm]	19.96
Cylinder count	1
Bore [mm]	30.4
Stroke length [mm]	27.5
Operating RPM [ot./min]	1800 - 9500
Motor power (při 9000 ot./min) [kW]	2.28
Power (při 9000 ot./min) [HP]	3.1
Weight (motor) [g]	647
Weight (tlumič s přechodkou 90°) [g]	219
Weight (tlumič s rovnou přechodkou) [g]	245
Recommended tank volume [ml]	450 - 500
Recommended spark plug	O.S. MAX No.8, No. 10 (A5)
Propeller nut thread	UNF 5/16-24

Accessories (11)

KAVAN Pro propeller 15x10"

KAVAN Pro propeller 16x8"

KAVAN Pro propeller 16x10"

Wooden propeller KAVAN 15x10 2-blade natural

Wooden propeller KAVAN 16x8 2-blade natural

Wooden propeller KAVAN 16x10 2-blade natural

KAVAN PRO K1 glow plug - ultra hot

KAVAN PRO K2 glow plug - hot

KAVAN PRO K3 glow plug - medium

GLOW PLUG NO.10 (A5)

Glowplug OS MAX No.8

Spare parts (53)

Fuel Inlet (Nipple No.1)

Pressure Nipple (No.7)

Needle Assembly

"O" Ring (2pcs.)

"O" Ring (2pcs.)

Carburetor Screw #4D4C2H

BALL BEARING (F) 120AX

Needle valve holder assy 20C.60U.70D.40J

Throttle Lever Assembly

Piston Pin Retainer(2pcs.)

WOODRUFF KEY 61.90.91 and GT-33

Carburettor gasket 20E. 7D. 60F. 60MC. 70D.

Crankshaft 120AX

E-5020 Silencer Assembly

90 Adapter Retaining Screw (M4x20 2pcs.)

Silencer Retaining Screw (C.M4x45 2pcs.)

SILENCER GASKET (O-RING) E-5020

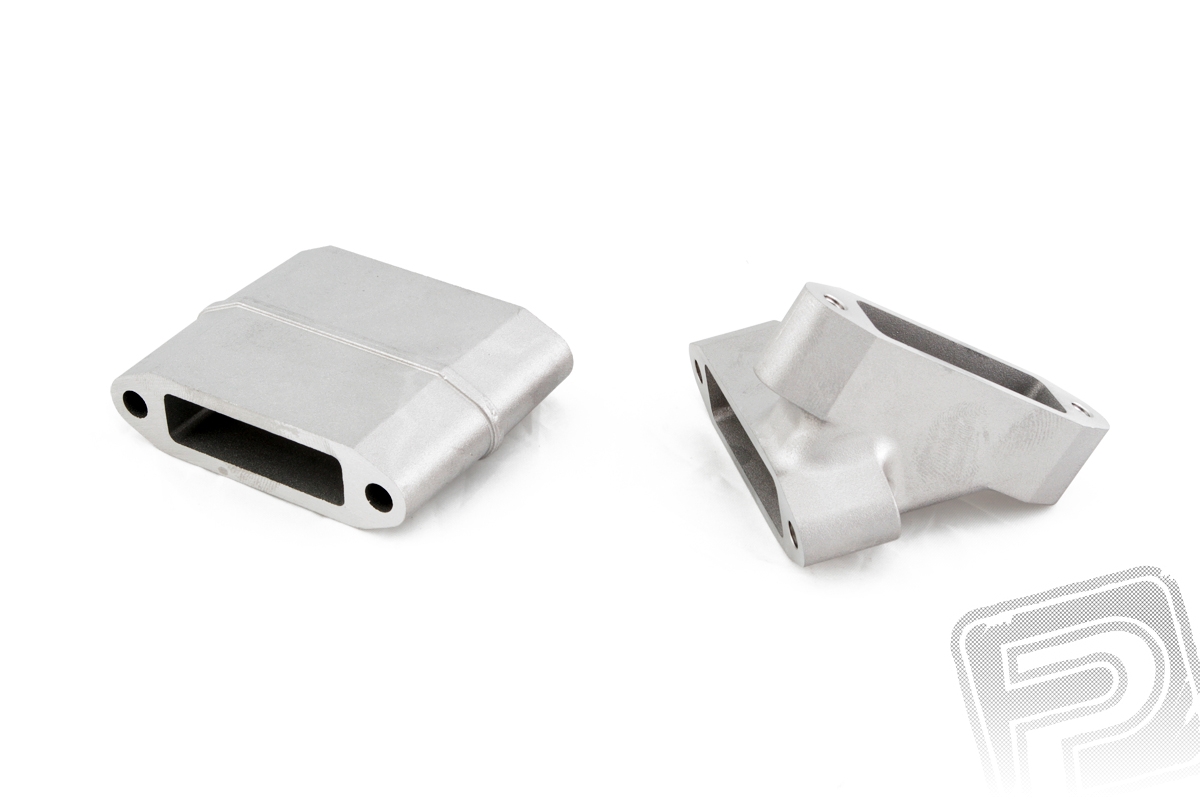

E-5020 Silencer Extension Adapter

Extention Adapter Retaining Screw (M4x90 2pcs.)

E-5020 Silencer 90 Adapter

Cylinder liner 120AX

Piston ring 120AX

Mixture Control Valve Assembly

Carburetor Complete (Type 70D)

Carburetor Body

Carburetor Rotor

Roter Guide Screw

Lock nut set FS70S2.91S.91FX.120AX

Lock nut set for spinner 5/16-M4

Lock nut set for spinner 5/16-M5

Crankshaft Bearing No.3

"O" Ring (2pcs.)

THRUST WASHER 46AX.91FX.SXH.SZ.FT160.FF

M5 Lock Washer (10pcs.)

Long Socket Wrench With Plug Grip

Non-Bubble Weight

Glowplug OS MAX No.8

Radial Motor Mount

Needle-Valve Extension Cable Set

M5 Blind Nut (10pcs.)

Rocker Support Retaining Screw (1pc.)

Download

	Explozívní a rozměrový výkres, seznam náhradních dílů		05.03.2015
	Exploded view		13.05.2013
