Code:NGHGT65
Barcode:8596450109537
Brand:NGH

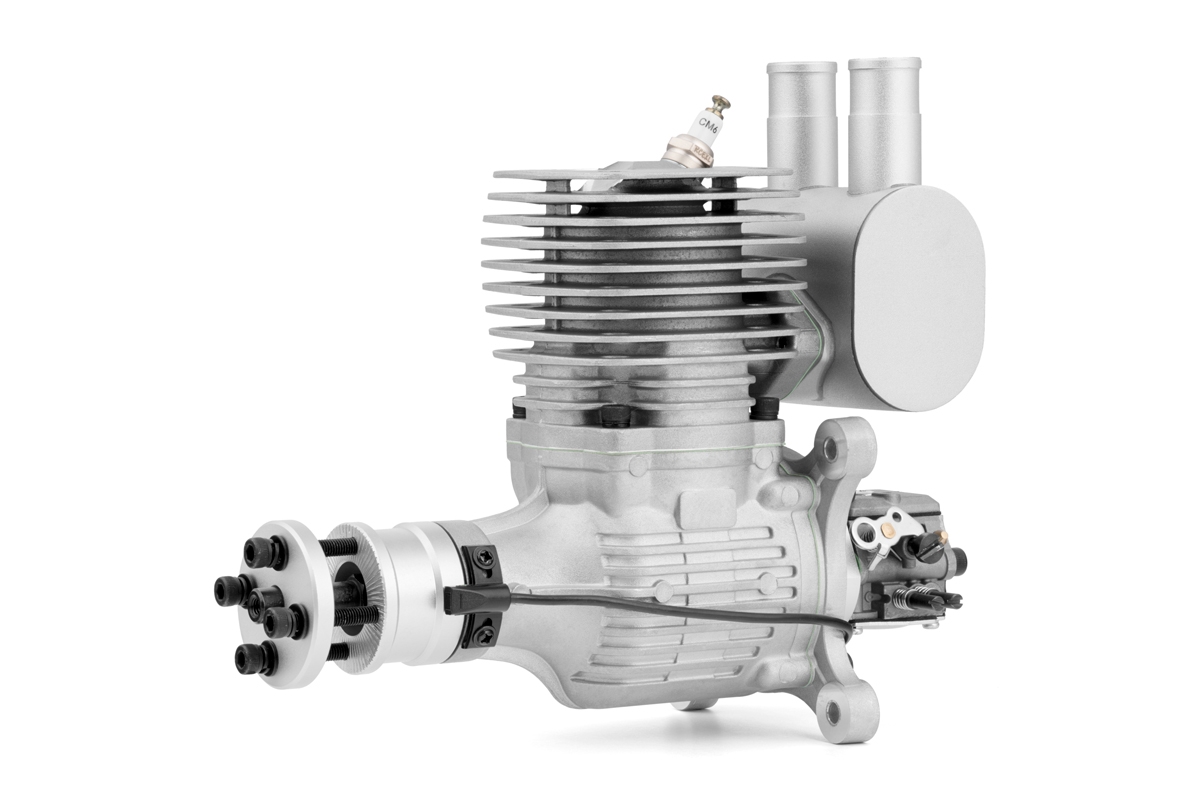

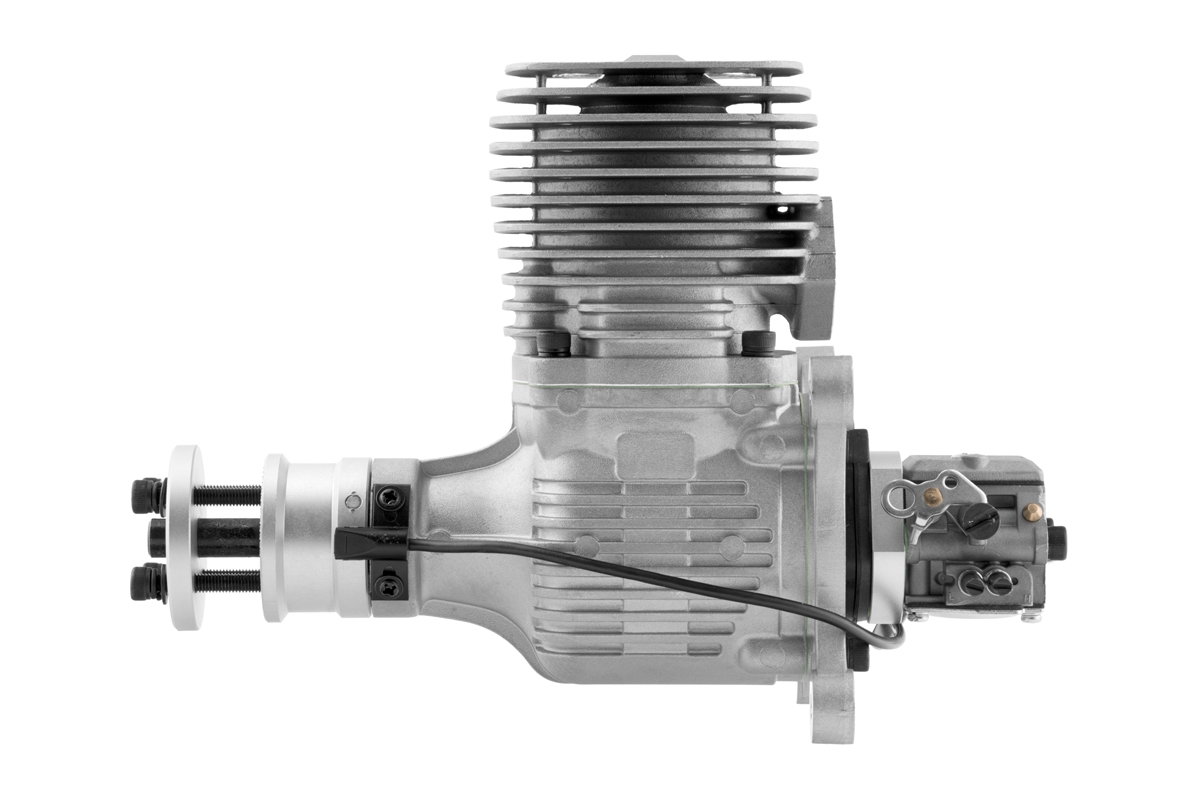

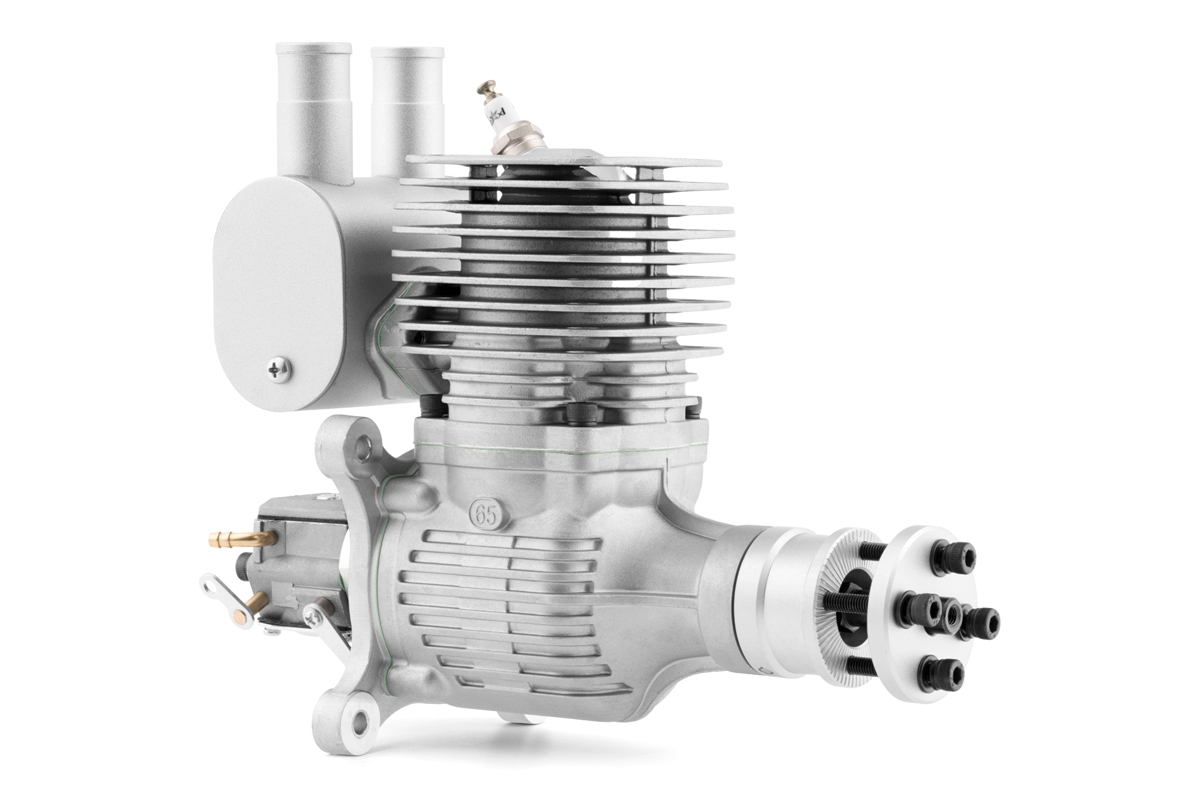

NGH GT65 Two-Stroke Gas Engine

Airplane gasoline two-stroke single cylinder engine with displacement 65ccm and power output 6,7HP (5kw) at 7 500rpm. Recommended fuel mixture = N95 gas 35:1 with fully synthetic 2T oil.
This item is not available in you region (United States)
Description
Spare parts

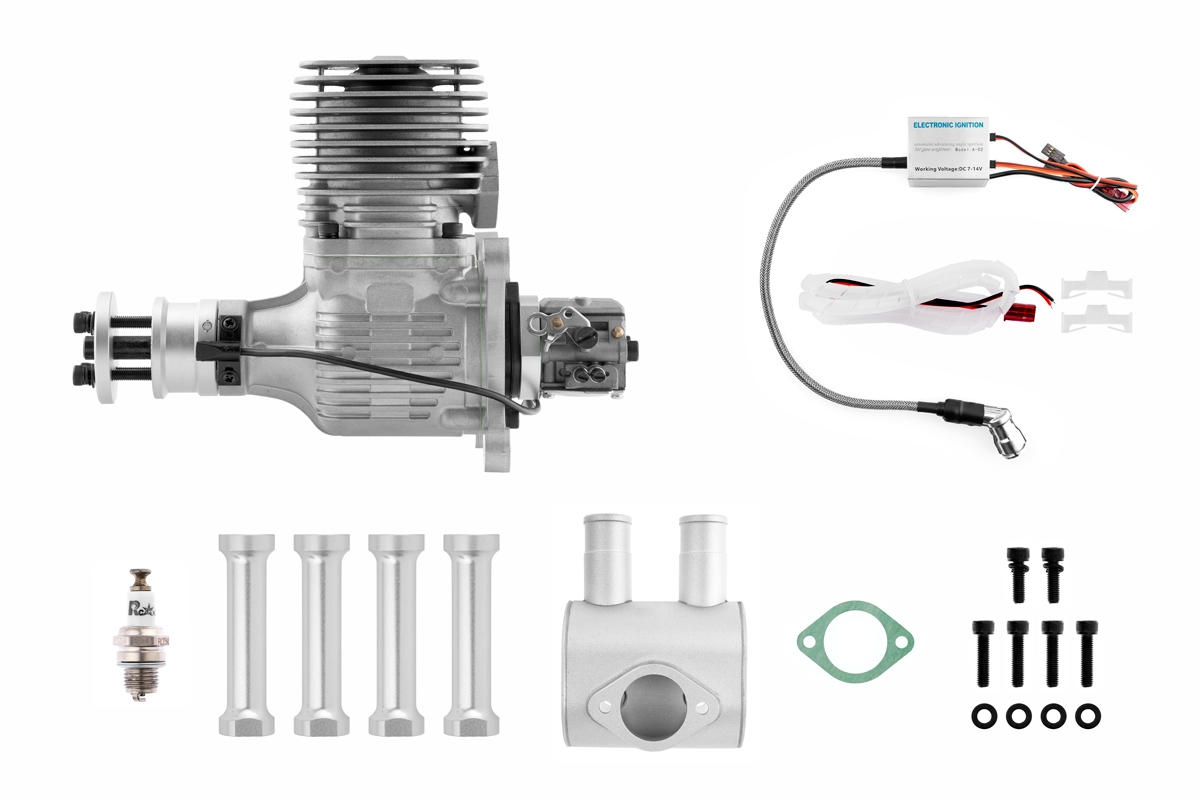

KAVAN Europe s.r.o. is happy to introduce the NGH line of petrol engines. The manufacturer, Changsha Guanghua Aviation Technology Co., Ltd., has become widely recognized for affordable priced high quality and performance engines. They are manufactured and designed from scratch for model aircraft offering uncompromised quality, high performance and reliability using accessories like Walbro® carburettors and RCEXL® electronic ignitions.


The two stroke engine line up starts with the small 9 ccm one that would fit models designed for 6.5-8.5 ccm (.40-.53 cu inch) glow engines perfectly - up to the mighty 130 ccm twin for giant models.

Displacement [ccm]65
Bore [mm]48
Stroke length [mm]36
Operating RPM [ot./min]1200 - 7000
Power [HP]6.7
Motor power [kW]5
Tensile force [kg]8.9
Weight [g]1650
Ignition weight [g]100
Exhaust weight [g]125
Spark plug typeCM-6
Ignition power-supply [V]6 - 14.4
Recommended PropellerTwo-blades 18x10 ; 19x8 ; 19x10 ; 20x8
