KAVAN Europe s.r.o. is happy to introduce the NGH line of petrol engines. The manufacturer, Changsha Guanghua Aviation Technology Co., Ltd., has become widely recognized for affordable priced high quality and performance engines. They are manufactured and designed from scratch for model aircraft offering uncompromised quality, high performance and reliability using accessories like Walbro® carburettors and RCEXL® electronic ignitions.
The two stroke engine line up starts with the small 9 ccm one that would fit models designed for 6.5-8.5 ccm (.40-.53 cu inch) glow engines perfectly - up to the mighty 130 ccm twin for giant models.
Displacement [ccm] | 35 |
Bore [mm] | 37.3 |
Stroke length [mm] | 32 |
Operating RPM [ot./min] | 1500 - 8000 |
Power [HP] | 4.2 |
Motor power [kW] | 3.13 |
Tensile force [kg] | 8.9 |
Weight [g] | 1150 |
Ignition weight [g] | 100 |
Exhaust weight [g] | 140 |

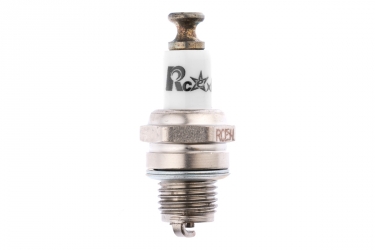

Spark plug type | CM-6 |
Ignition power-supply [V] | 6 - 14.4 |
Recommended Propeller | Two-blades 18x10 ; 19x8 ; 19x10 ; 20x8 |
