Code:NGHGT25
Barcode:8596450109506
Brand:NGH

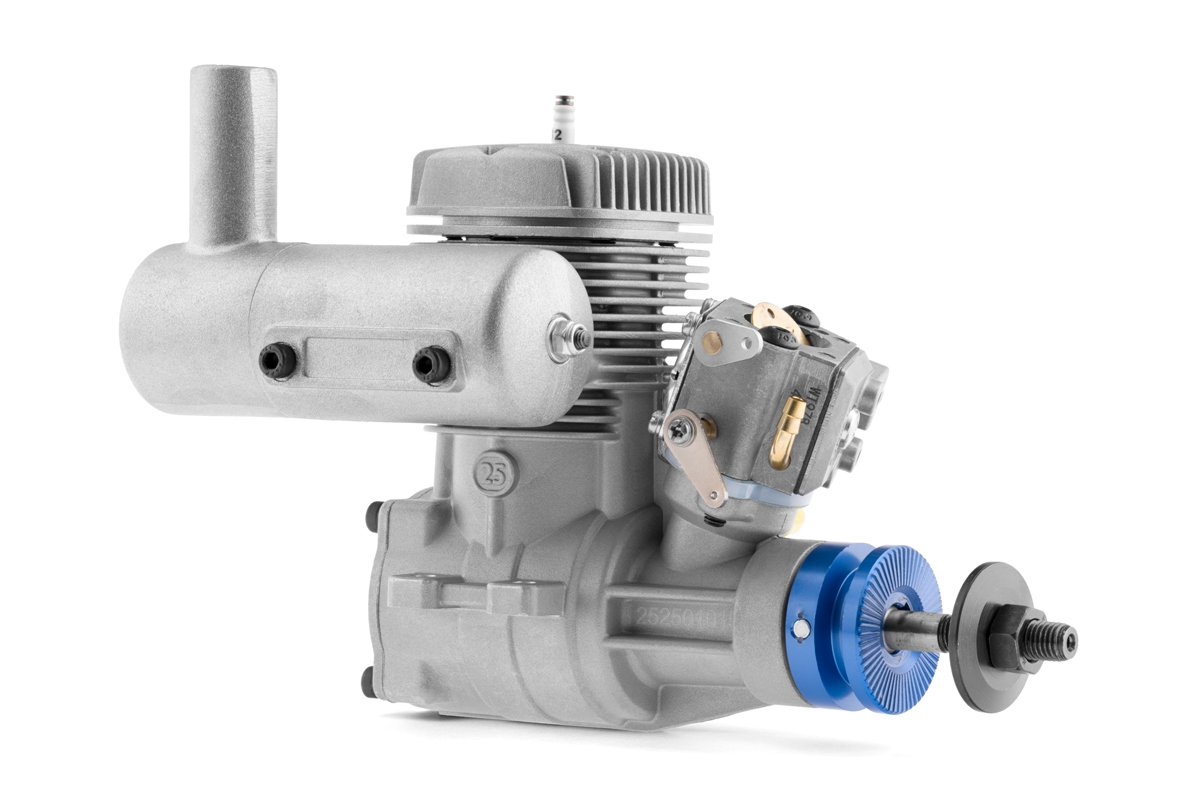

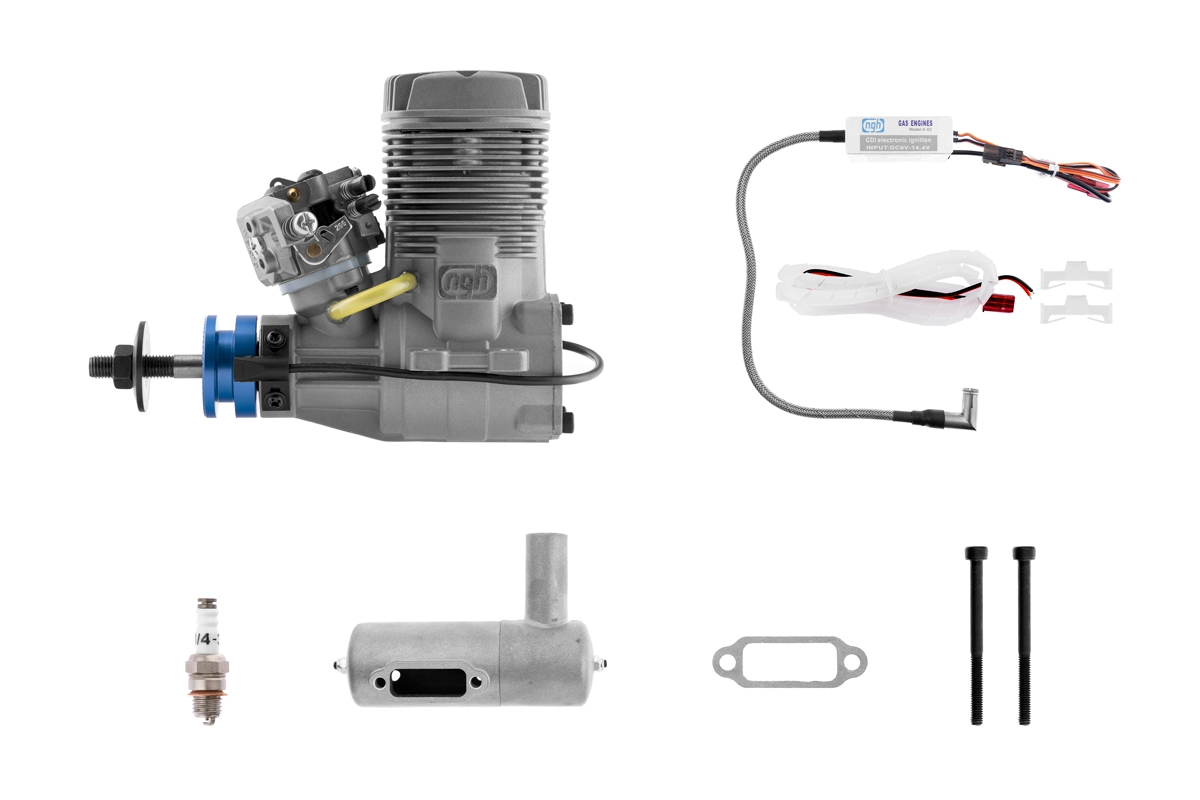

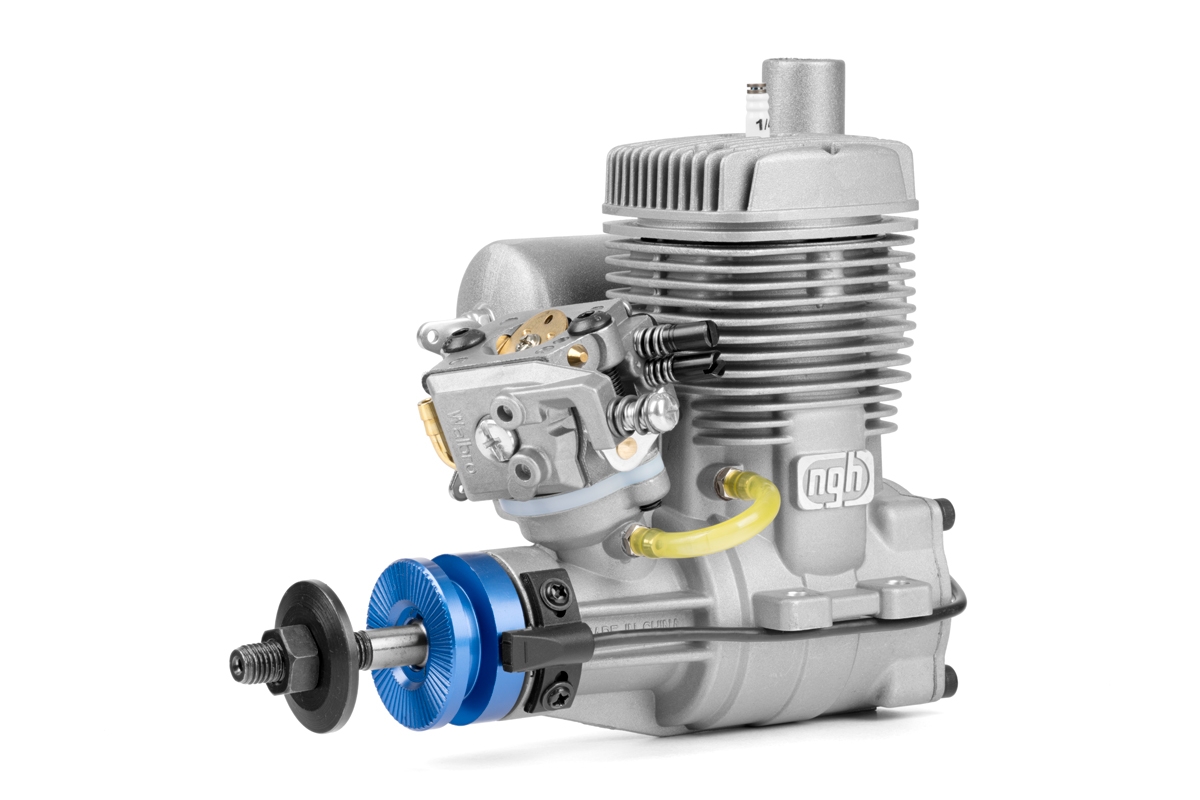

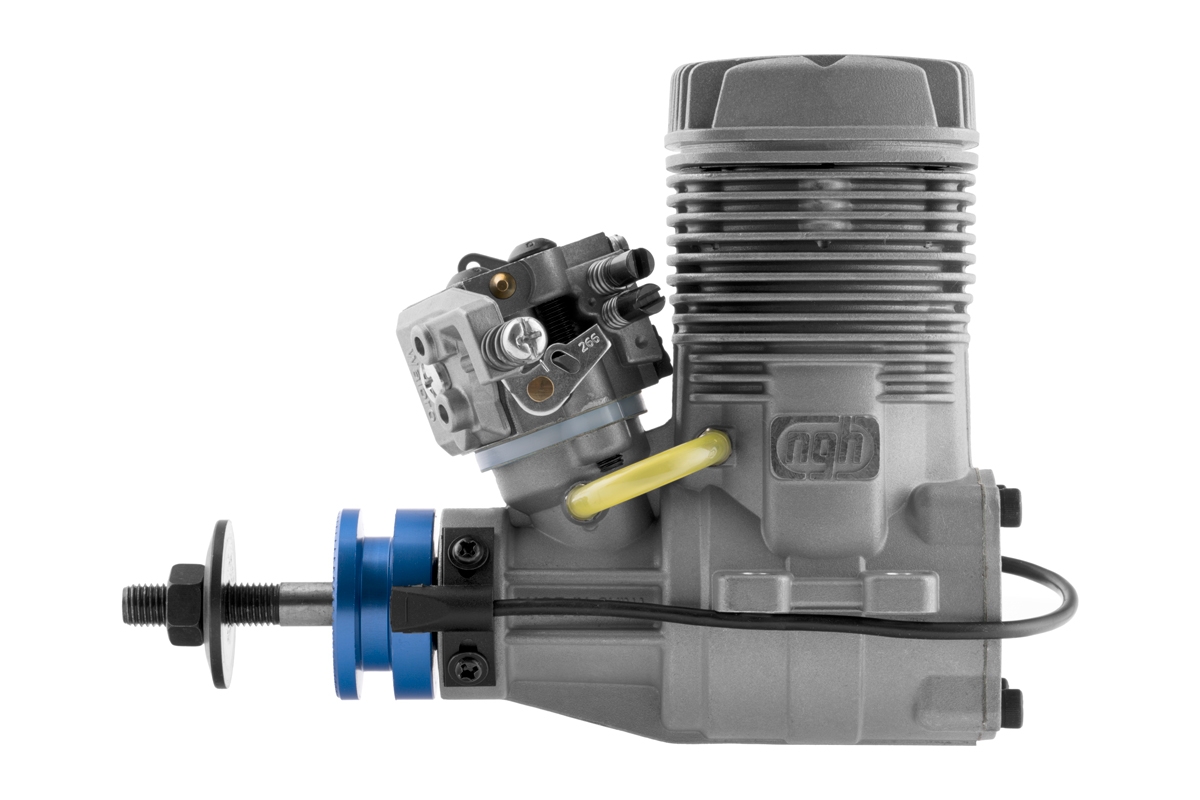

NGH GT25 Two-Stroke Gas Engine

Airplane gasoline two-stroke single cylinder engine with displacement 25ccm and power output 2,97HP (2,21kw) at 11 000rpm. Recommended fuel mixture = N95 gas 25:1 with fully synthetic 2T oil.
This item is not available in you region (United States)
Description

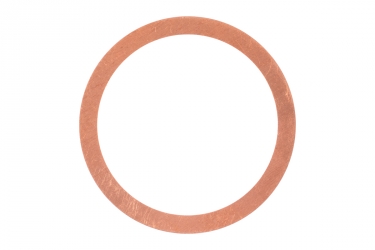

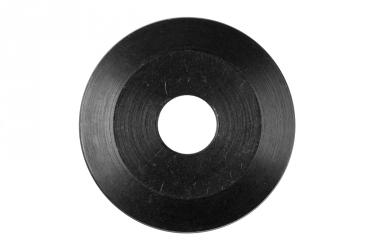

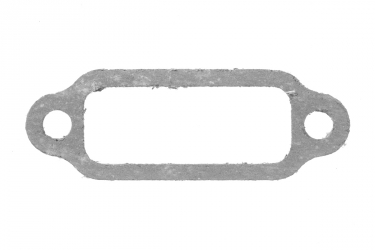

Spare parts

KAVAN Europe s.r.o. is happy to introduce the NGH line of petrol engines. The manufacturer, Changsha Guanghua Aviation Technology Co., Ltd., has become widely recognized for affordable priced high quality and performance engines. They are manufactured and designed from scratch for model aircraft offering uncompromised quality, high performance and reliability using accessories like Walbro® carburettors and RCEXL® electronic ignitions.


The two stroke engine line up starts with the small 9 ccm one that would fit models designed for 6.5-8.5 ccm (.40-.53 cu inch) glow engines perfectly - up to the mighty 130 ccm twin for giant models.

Displacement [ccm]25
Bore [mm]33.2
Stroke length [mm]29
Operating RPM [ot./min]1800 - 11000
Power [HP]2.97
Motor power [kW]2.21
Tensile force [kg]6.7
Weight [g]840
Ignition weight [g]100
Exhaust weight [g]80
Recommended PropellerTwo-blades 16x8 ; 16x10 ; 17x8 ; 17x10
Ignition power-supply [V]6 - 14.4
Spark plug type1/4-32
